Name: Eurosystems M90 - Single blade mower - B&S 625 EXi
Brand: Eurosystems
SKU: K601397
Price: 980.5 EUR
Availability: InStock
Rating: 4.22 (45 reviews)

Description

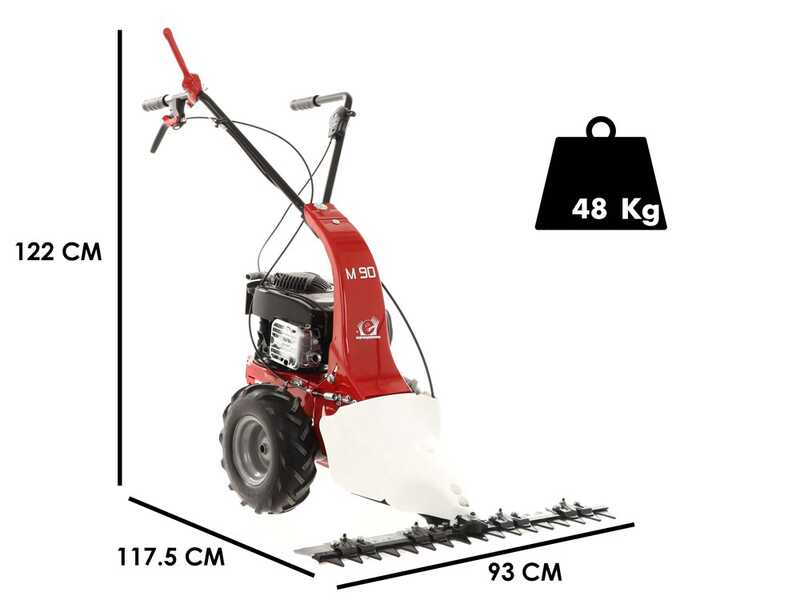

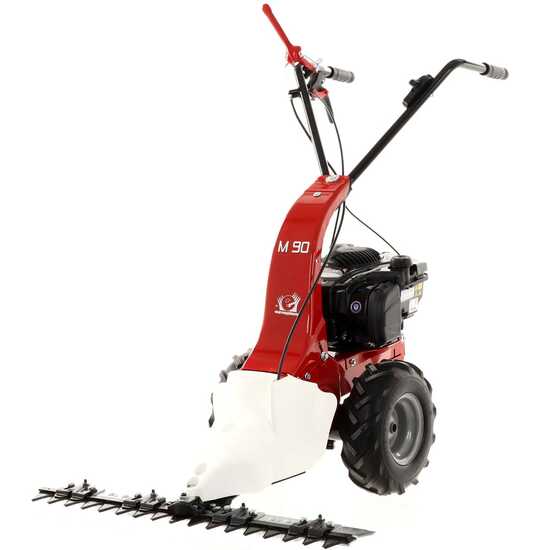

Eurosystems M90 scythe mower

The M90 is self-propelled powered scythe mower featuring pneumatic tractor wheels driven by an oil-bath worm screw transmission. The 87 cm sickle bar (attachment included in the price and provided on standard kit). Mulching cutter bar with standard single-blade action.
The mulching denomination refers to the good cutting efficiency results obtained thanks to the blade shape and sharpness

The sickle bar is connected by a belt drive transmission that ensures long durability over time of the product, carrying out a protective action similar to a clutch effect.
This self-propelled scythe mower is also powered by a reliable Briggs & Stratton petrol engine, renowned manufacturing industry as the highest International producer of four-stroke petrol engines on gardening and agricultural machineries.

FOR FREE:

ENGINE MAINTENANCE KIT

Eurosystems M90 - Single blade mower - B&S 625 EXi

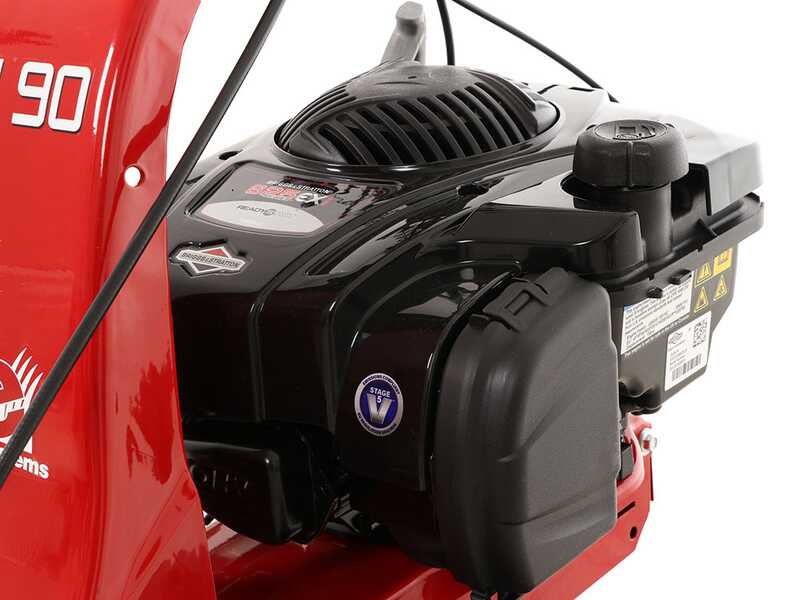

Briggs&Stratton 625 E-Series engine

Briggs & Stratton 625 E Series is an air-cooled OHV 4-stroke petrol engine.

Engine featuring 150 cc capacity.

This engine is really easy to start thanks to the comfortable recoil start.

Thanks to the good build quality and the great capacity of the fuel tank, this engine has a high reliability, low power consumption and a good working autonomy.

Focus on air filter

Technical features:

Engine type: 4-Stroke, single cylinder

Cylinder type: Aluminium

Cubic Capacity: 150 cm³

Fuel: Petrol

WARNING!
The engine is provided without oil. Check the oil level before the first starting.

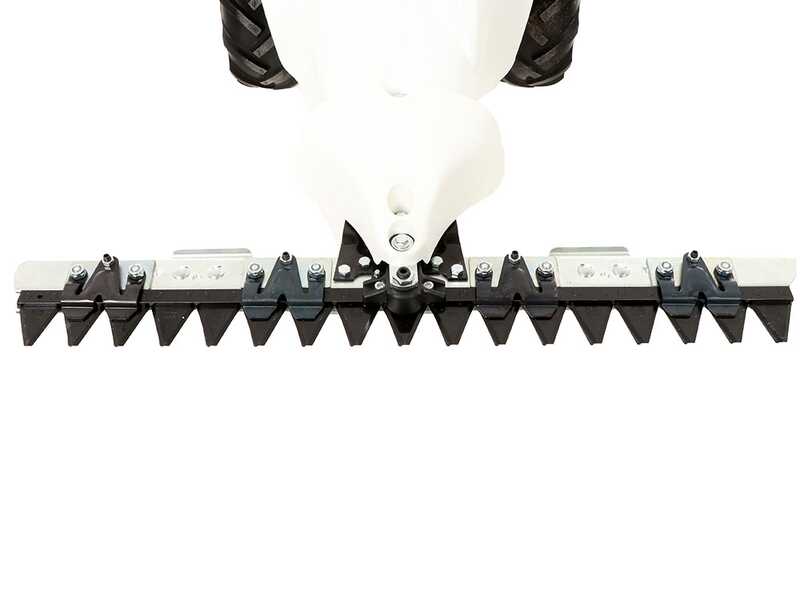

87 cm sickle bar

Sickle bar cutting width: 87 cm

Mulching cutting system: the sickle bar consists of a lower blade and an upper blade, which moves with an oscillatory motion in contact with the lower blade that is fixed and acts as a counter-blade. This type of sickle bar is renowned as mulching due to the particular clear cut that it carried out, consistency and grass height, obtained thanks to the shape of the blades.

The sickle bar is provided with upper blade guides.

Swinging sickle bar.

The sickle bar rotates around its own fast-coupling pin that connects it to the machine body. This system allows the petrol scythe mower to move and work on all kinds of terrains and challenging, uneven surfaces.

Intermediate drive transmission and Tractor wheels

Oil-bath worm screw intermediate transmission

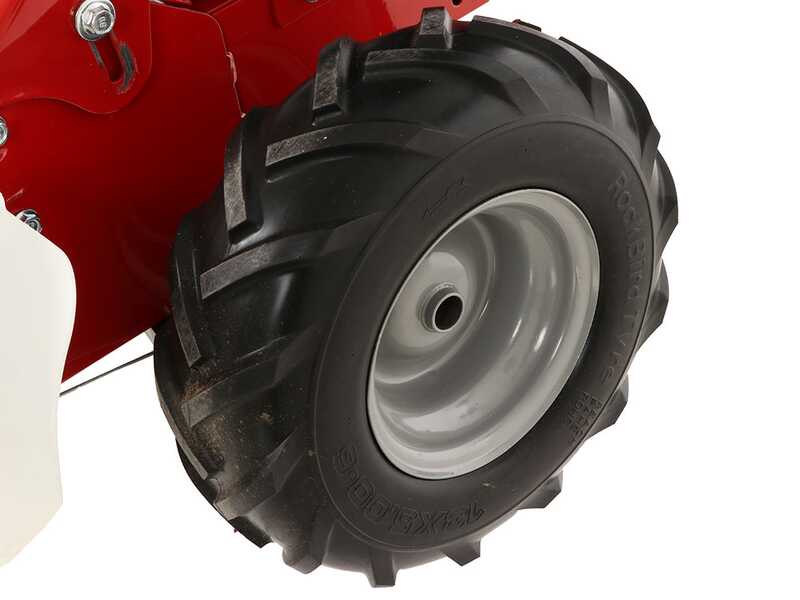

Large tractor wheels: 13x5.00 - 6

Deep tyre tread allows the scythe mower to move on challenging surfaces with perfect grip.

Screw to disassemble the wheels.

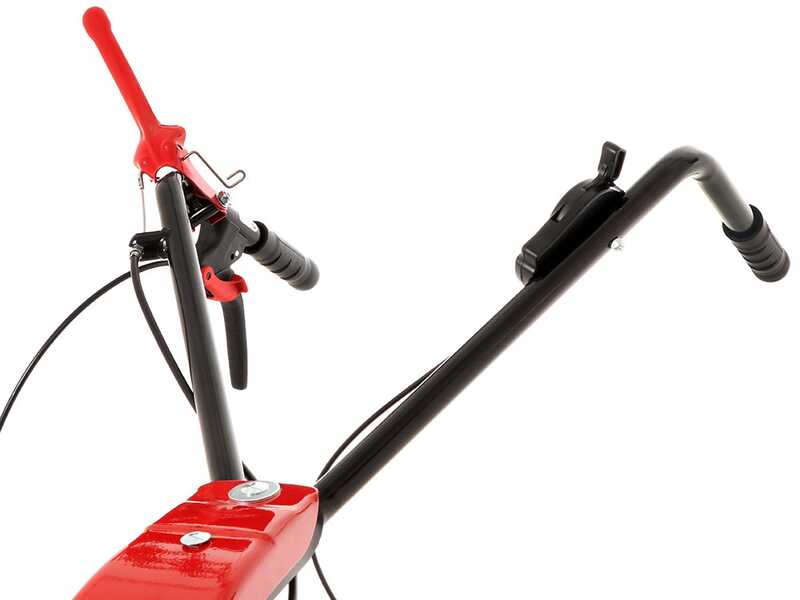

Controls and steering handles

Upper metal red lever: Cutter bar engagement / disengagement.

The lower black lever on the right side engages the forward gear.

Throttle lever.

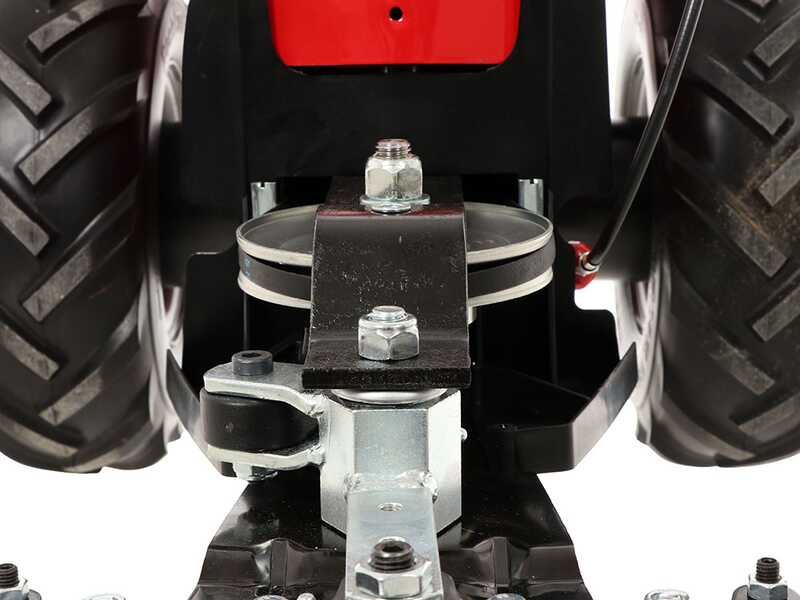

Final belt drive transmission

Final belt drive between the sickle bar and the central drive system, featuring a protective white case as you can see in the picture to the right.
This drive system increases the machine durability. The belt tends to slip in case the blades collide with something. Thus, the machine components that are normally subject to wear will last longer.

However, we recommend you avoid hitting obstacles with the scythe mower and using it on rocky surfaces.

The belt transmission also allows the great advantage of having a blade engagement lever (upper red lever). The Operator can activate the petrol scythe mower blade only if and when necessary; where there is work to be done. Self-propulsion can be used to move the machine around even when the blade is disengaged. It allows, for instance, to move the equipment using the self-propulsion on the wheels while the blade is stopped.

Free items & Standard equipment

1° GIFT: Spare parts & accessories kit for B&S engines

Spare parts and maintenance tool kit for the following BRIGGS & STRATTON engine series:

550E series
575E series
625E series
675 EXi series

WARNING: This kit is not suitable for other brands or models on the market. We do not provide kits other than those already available on our website.

The maintenance kit includes:

Professional spark plug for the engine.
Multi-tool joint wrench. Specific for lawn mowers - rough cut mowers - scythe mowers - etc.
Engine air filter.
Specific syringe for oil suction.
Waste oil collection bottle for easy waste oil disposal.
Funnel oil draining and refilling.

2° GIFT: Protection kit

PROTECTION KIT - SAFETY EQUIPMENT

Protective earmuffs to work with maximum comfort.
Hearing protection must be the right one for any working situation. In this case, the earmuffs supplied are specifically designed to protect the operator from the noise of the machine.

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate,equipped with anti-fog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid fogging and to improve comfort of use.

Agrieuro headscarf 100% cotton

Cotton gloves with rubber waves, for greater comfort and a secure and stable grip on the equipment

3° GIFT: Oil

COMPLIMENTARY: two 600 ml sae 15W 40 oil bottles. Specific lubricant for 4-stroke gardening machinery with up to 10 Hp of power. Good cleansing and dispersion.

4° GIFT: Sharpener for lawn mower blades

The sharpener allows you to sharpen the blades of your lawn mower in a few minutes.

It is very easy to use since it is only necessary to attach it to your screwdriver/drill and then it will be ready to use.

Thanks to its small size, you won’t even need to remove the blade from the lawn mower, thus ensuring an even faster maintenance.

Free items and Extra features

The scythe mower is shipped in its original packaging along with the sickle bar attachment, which is packed together with the unit.

Instructions manual included in the box.

The sickle bar is provided with blade protection bar.

WARNING!
The engine is shipped without oil. Please ensure to fill the oil tank before starting the unit.
