Name: Eurosystems M90 - Single-blade mower - Loncin 123 OHV
Brand: Eurosystems
SKU: K601411
Price: 884.13 EUR
Availability: InStock
Rating: 4.4 (147 reviews)

Description

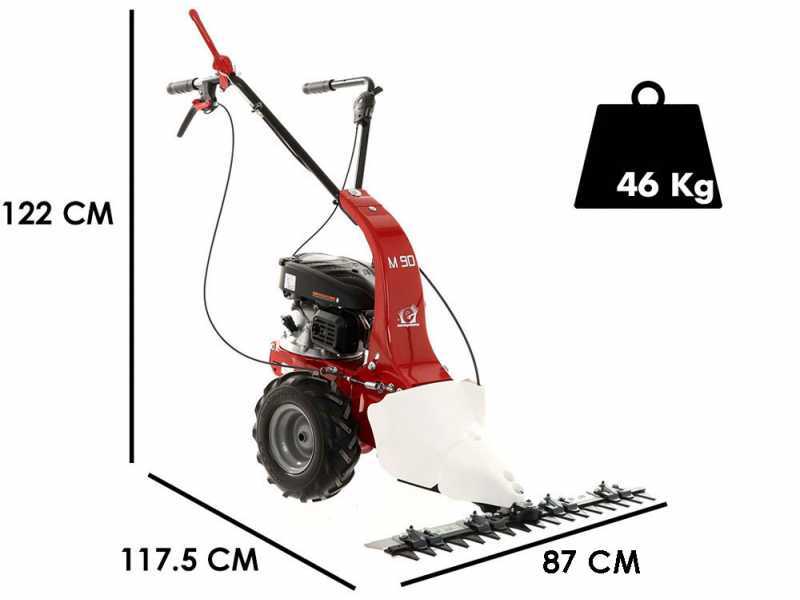

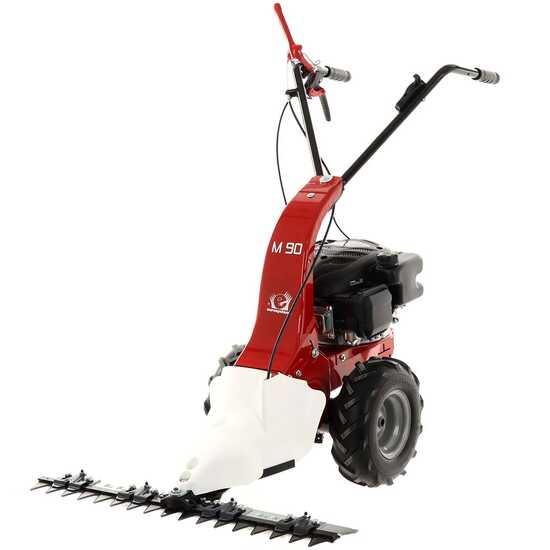

Eurosystems M90 scythe mower

The M90 is self-propelled powered scythe mower featuring pneumatic tractor wheels driven by an oil-bath worm screw transmission. The 87 cm sickle bar (attachment included in the price and provided on standard kit). Mulching cutter bar with standard single-blade action.
The mulching denomination refers to the good cutting efficiency results obtained thanks to the blade shape and sharpness

The sickle bar is connected by a belt drive transmission that ensures long durability over time of the product, carrying out a protective action similar to a clutch effect.
This self-propelled scythe mower is also powered by a reliable Loncin petrol engine.

FOR FREE:

ENGINE MAINTENANCE KIT

Eurosystems M90 - Single-blade mower - Loncin 123 OHV

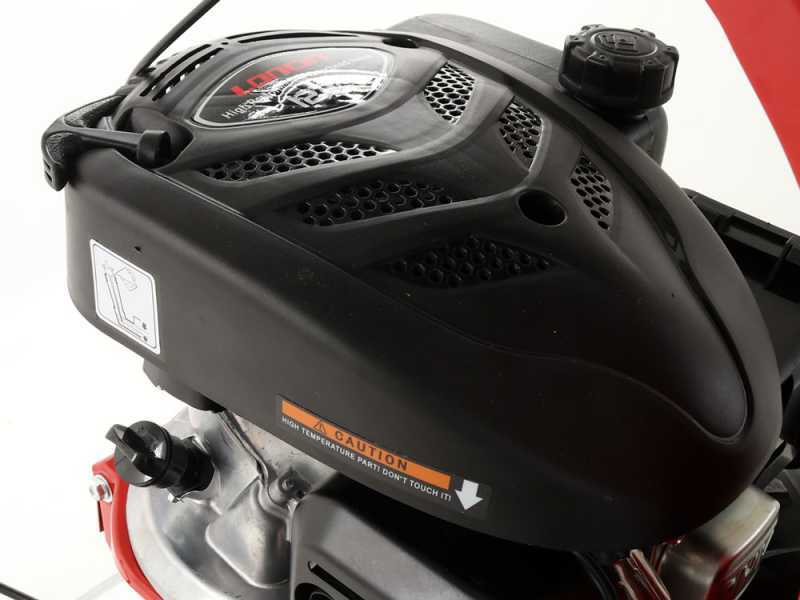

Loncin 123 OHV engine

The Loncin 123 OHV is a high-performing petrol engine, suitable demanding operations that require high reliability and long durability over time.

Features:
Engine Type: single-cylinder 4-stroke OHV
Cylinder Type Aluminium
Cubic Capacity 123 cm³
Fuel: Petrol
Max. rev/min: 3600 rpm
Operation: Manual

Four-stroke petrol engine belonging to the latest technology with overhead valve system "OHV" and automatic start-up.

WARNING!

The engine is PROVIDED WITHOUT OIL.
Please carefully read the Instructions Manual before starting the unit.

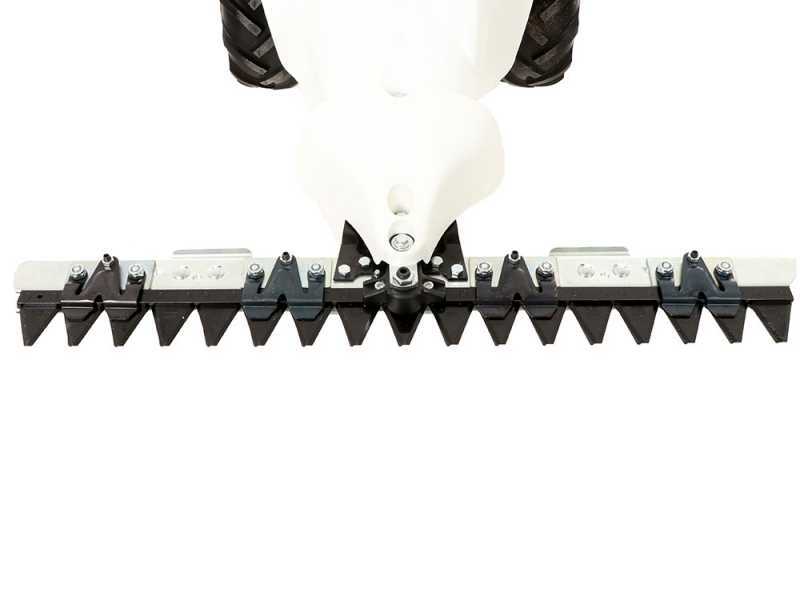

87 cm sickle bar

Sickle bar cutting width: 87 cm

Mulching cutting system: the sickle bar consists of a lower blade and an upper blade, which moves with an oscillatory motion in contact with the lower blade that is fixed and acts as a counter-blade. This type of sickle bar is renowned as mulching due to the particular clear cut that it carried out, consistency and grass height, obtained thanks to the shape of the blades.

The sickle bar is provided with upper blade guides.

Swinging sickle bar.

The sickle bar rotates around its own fast-coupling pin that connects it to the machine body. This system allows the petrol scythe mower to move and work on all kinds of terrains and challenging, uneven surfaces.

Intermediate drive transmission and Tractor wheels

Oil-bath worm screw intermediate transmission

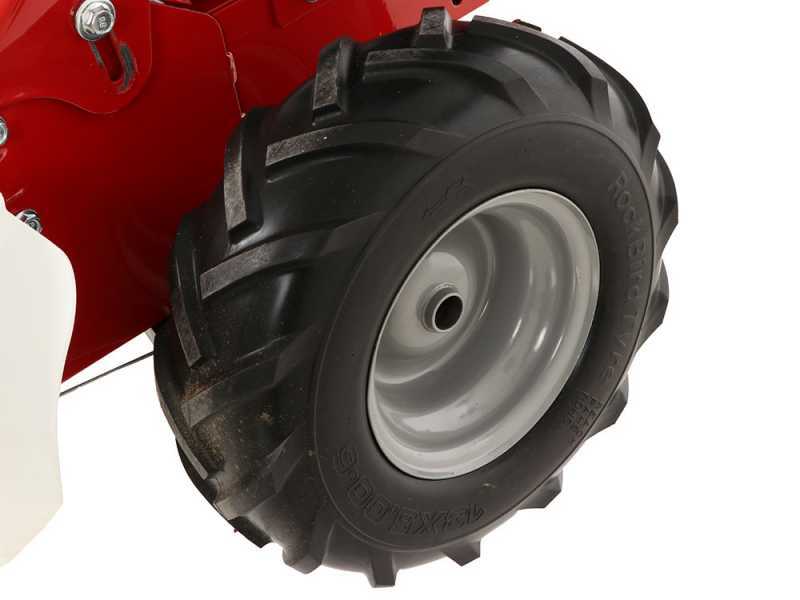

Large tractor wheels: 13x6.00 - 6: 13x5.00 - 6

Deep tyre tread allows the scythe mower to move on challenging surfaces with perfect grip.

Screws for the wheel disassembling.

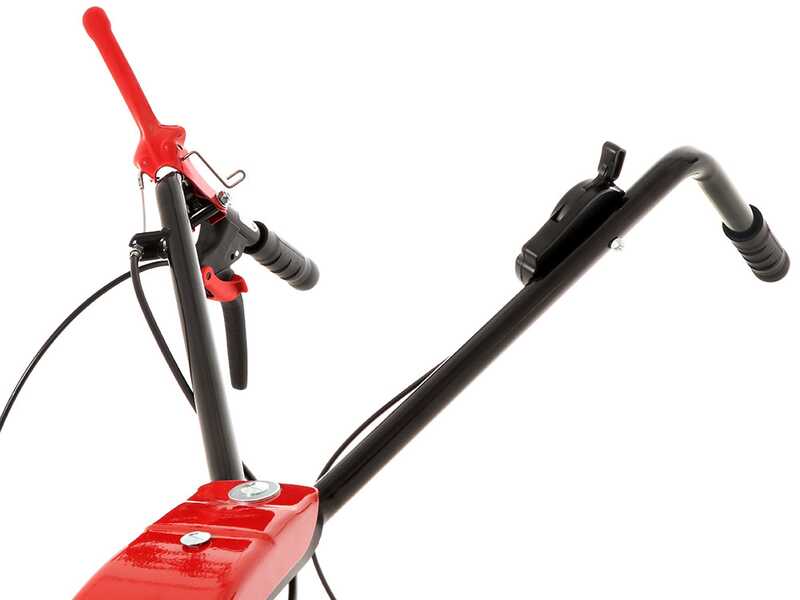

Controls and steering bars

Upper metal red lever: Cutter bar engagement / disengagement.

The lower black lever on the right side engages the forward gear.

Throttle lever

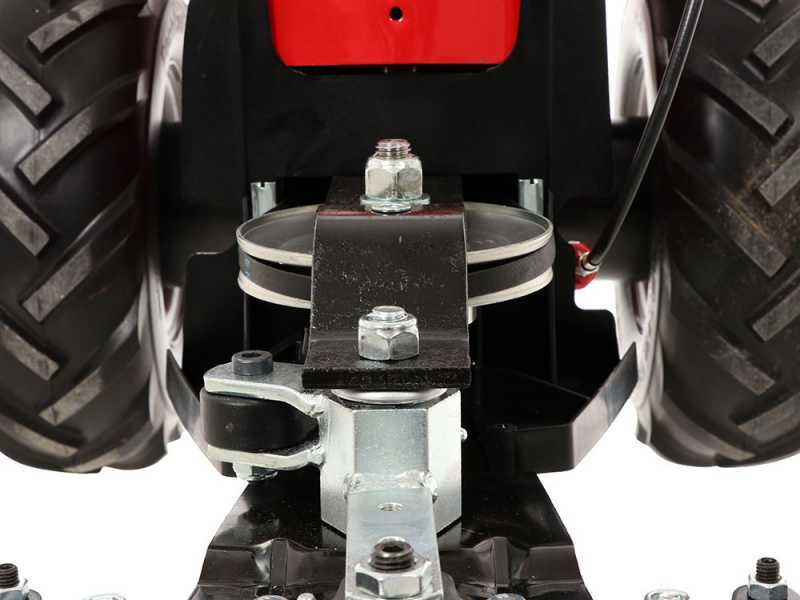

Final belt drive

Final belt drive between the sickle bar and the central drive system, featuring a protective white case as you can see in the picture to the right.
This drive system increases the machine durability. The belt tends to slip in case the blades collide with something. Thus, the machine components that are normally subject to wear will last longer.

However, we recommend you avoid hitting obstacles with the scythe mower and using it on rocky surfaces.

The belt transmission also allows the great advantage of having a blade engagement lever (upper red lever). The Operator can activate the petrol scythe mower blade only if and when necessary; where there is work to be done. Self-propulsion can be used to move the machine around even when the blade is disengaged. It allows, for instance, to move the equipment using the self-propulsion on the wheels while the blade is stopped.

Free items & Standard equipment

1° GIFT: Spare parts and maintenance kit for petrol engines

Universal spare parts and accessories maintenance kit for 4-stroke engine gardening machines.

WARNING: this kit is not suitable for all types of engines on the market. We do not supply sets other than those already published on this website nor do we guarantee their adaptability to machines not purchased on our website.

Included in the packaging are:

No. 01 original GeoTech spark plug
No. 01 professional spark plug wrench with jointed socket

2° GIFT: 600 ml oil bottles

COMPLIMENTARY: two sae 15 W 40 600 ml oil bottles. Specific lubricant for 4-stroke engine gardening machinery with up to 10 Hp of power. Good cleansing and dispersion.

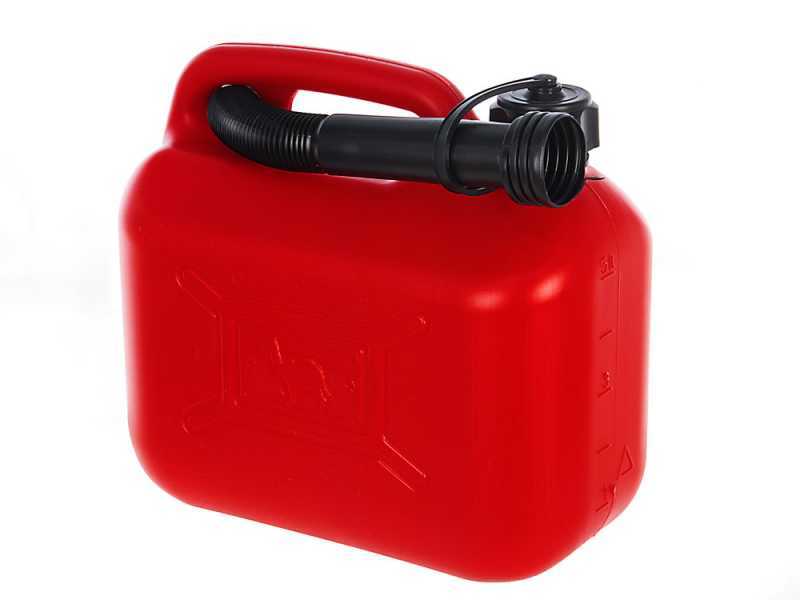

COMPLIMENTARY: Heavy-duty 5L Plastic Fuel Tank With Flexible Pouring Spout

Fuel tank: capacity 5 L

Professional ONU approved tank, made of certified plastic material.

With sealing cap equipped with comfortable anti-fall clamp.

Flexible pouring spout equipped with independent assembling sealing ring.
It allows a simple fuel dosage without the risk of spilling it.

The insides are made of exceptionally thick plastic, which makes these tanks especially sturdy and anti-drilling.

Furthermore, the plastic is red so as not to allow the penetration of light, ensuring the optimal fuel conservation.

Focus on the carrying handle and housing for the flexible pouring spout

WARNING: petrol and mixture tend to lose their characteristics and to deteriorate quickly when in contact with light. For this reason, traditional transparent tanks are strongly discouraged for these fuels (as well as for poor security reasons)

GIFT: SAFETY KIT

SAFETY KIT

Noise-cancelling earmuffs to work with maximum comfort
Hearing protection must be performed correctly in every situation. In this case, the supplied earmuffs are specifically designed to educe machine noise.

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate, equipped with antifog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid fogging and to improve comfort of use.

100% cotton Agrieuro bandana

Cotton gloves with rubber ripples for comfort and a secure and stable grip on equipment.

Free items / Extra features

The scythe mower is shipped in its original packaging along with the sickle bar attachment, which is packed together with the unit.

Instructions manual included in the box.

The sickle bar is provided with blade protection bar.

WARNING!
The engine is shipped without oil. Please ensure to fill the oil tank before starting the unit.
