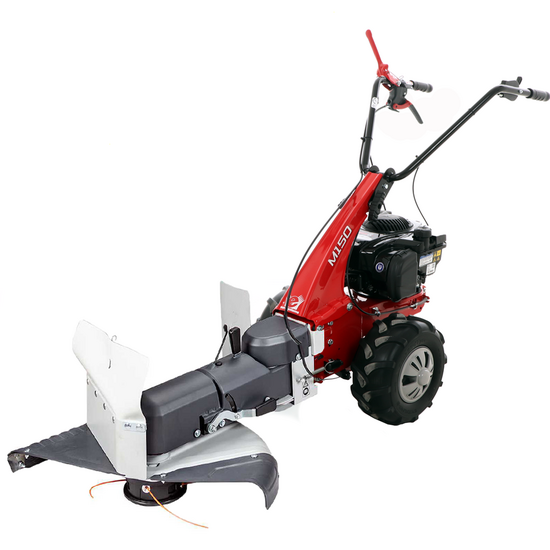

Eurosystems Minieffe M150 - Petrol wheeled brushcutter - B&S 625 EXi

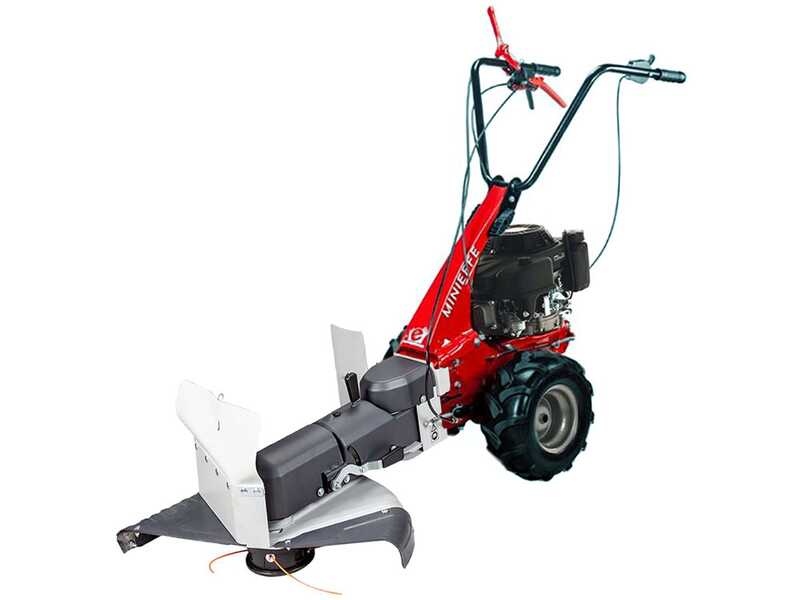

The Eurosystems Minieffe wheeled brush cutter is a multifunctional machine with an internal combustion engine, designed for maximum performance on all types of terrain. Thanks to its self-propelled drive with sculptured pneumatic wheels, it adapts perfectly to uneven or sloping surfaces, ensuring stable and safe use. The oil-bath worm drive provides robustness and reliability even under demanding working conditions.

This machine is equipped with a B&S 625 EXi petrol engine, known for its efficiency and power. The mower deck, included as standard, makes it ideal for shredding grass, wild vegetation and weeds. The cutting deck, driven via belt drive, is easily mounted thanks to the quick couplings, optimising working time.

The Minieffe is a versatile model that supports numerous accessories, including a brush cutter with a four-outlet head for 3 mm wire, 60 cm cutting width and tilt adjustment from 0° to 6°. In addition, the plate can be swivelled at different fixed angles (0°, 15°, 30°, 45°). The machine includes a protective wall against debris, providing additional safety during use.

Main features:

• B&s 625 EXi petrol engine.
• Worm drive in oil bath.
• Cutter deck with 60 cm cutting width.
• Multifunctional accessories with quick couplings.
• Plate adjustment up to 45° and anti-retraction guards.
• Sculpted pneumatic wheels for maximum grip.

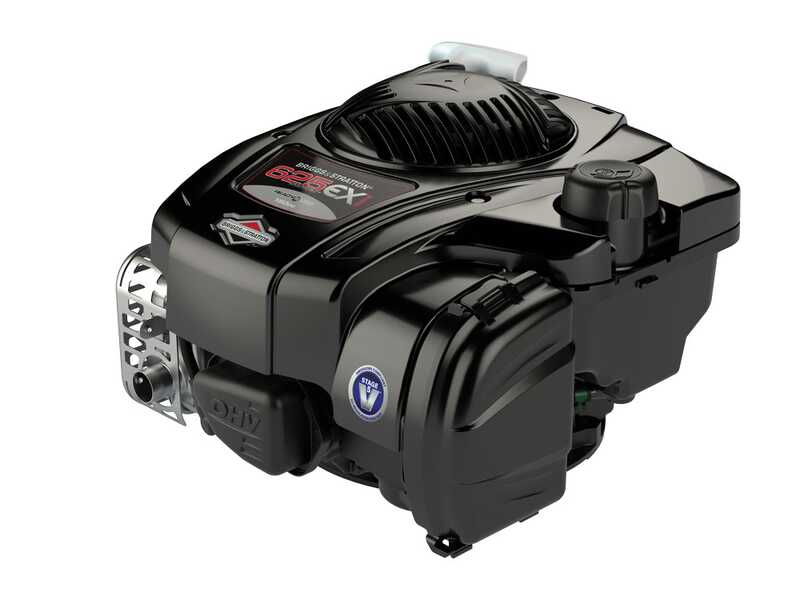

The Briggs & Stratton 625 Exi engine guarantees high performance, so it is suitable for works that require high reliability and durability, thanks to its remarkable 163 cc displacement.

Features:

• Engine type: Single-cylinder 4-stroke
• Cylinder type: Aluminium
• Cubic capacity: 150 cm³
• Power supply: Petrol
• Starting: Instruction manual

Designed to deliver unprecedented reliability and performance, the 625 EXi series has established itself as the ideal engine for these agricultural machines.

The engine is equipped with Instart device.

WARNING!

The engine is PROVIDED WITHOUT OIL.

Before using the machine, it is important to read the instruction manual carefully.

Nominal power: 5 HP

The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This figure is the one that is most widely used and publicised in the main sales channels, even if it is higher than the real power of the engine.

Actual power: 3.04 HP
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* this is a figure that can vary for the same engine model depending on the rpm the equipment manufacturer has decided to have the applied engine deliver

WARNING!
These accessories are not included in the purchase price of the machine.

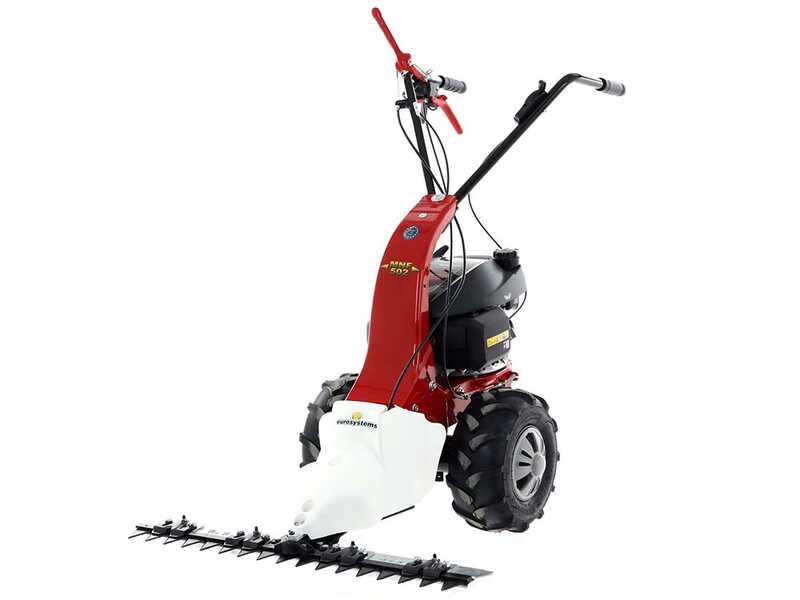

87 cm SICKLE BAR

ROTARY MOWER: turns this petrol-driven flail mower into a powerful rotary mower

COLLECTOR BRUSH WITH BASKET: turns this machine into a functional self-propelled motorised brush

105 CM FRONT BRUSH

FRONT BLADE: suitable for small amounts of snow, sand, dirt and so on.

PAIR OF SNOW CHAINS: perfect combined with the FRONT BLADE accessory.

WARNING!

The photos are only illustrative, they may differ from the main product.

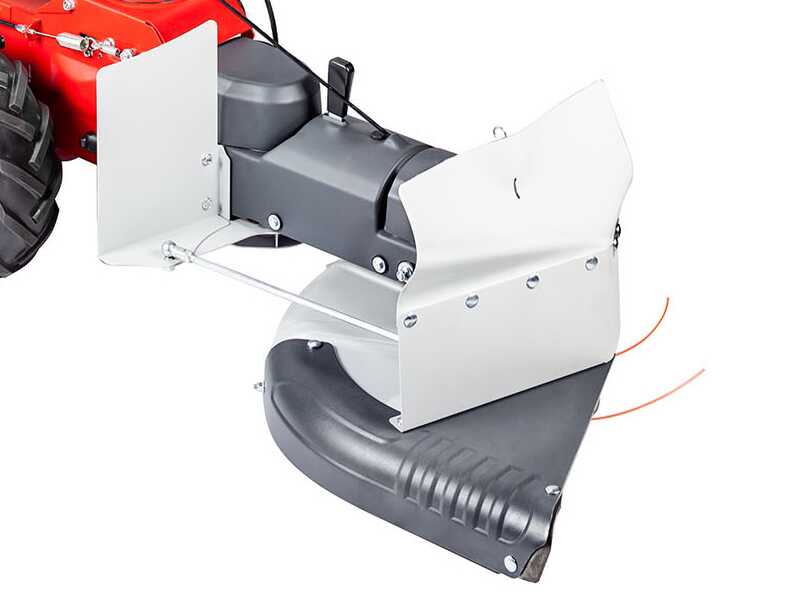

The Eurosystems brush cutter attachment is a versatile, high-performance tool that is ideal for keeping your garden in perfect condition.

Designed to be front-mounted on the P55 EVO multi-tractor, this brush cutter offers a practical and efficient solution for cutting grass and managing vegetation.

Equipped with a head with four 3 mm wire outlets, the brush cutter offers a cutting capacity of between 20 and 40 mm. The head supports two wire rolls of 7.5 metres each, ensuring a long working life. With a cutting width of 60 cm, this attachment allows large areas to be covered in less time.

The cutting deck adjustments are particularly useful for adapting to different working conditions. The cutting plate can be rotated from 0 to 6°, allowing greater precision and adaptability on uneven terrain. In addition, the plate can be positioned laterally at fixed angles of 0°, 15°, 30° and 45°, offering the possibility to reach difficult corners and clean precisely.

Among the distinctive features of the Eurosystems brush cutter attachment is the wire extension control located on the handlebar, which allows the cutting wire to be extended without interrupting work, thereby optimising productivity.

Guard walls protect the machine and the tool from debris caused by cutting operations.

The Eurosystems brush cutter attachment is an excellent choice for anyone looking for a reliable and versatile tool for garden maintenance.

Dimensions: 86x62x39 cm

Net weight: 20 Kg

This brush cutter is compatible with machines above 3.5 hp.

Not compatible with B&S 450 engines.

The intermediate drive is an oil-bath worm gear.

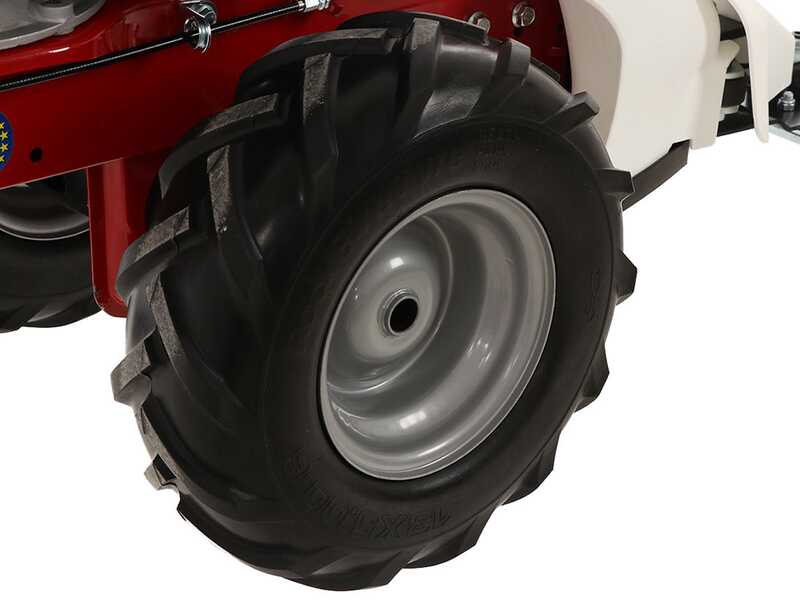

The tractor type wheels are generously sized: 13x5.00–6.

Their remarkable tread allows the mower to advance even in the most difficult terrain while maintaining ideal grip at all times.

Screws for wheel disassembly.

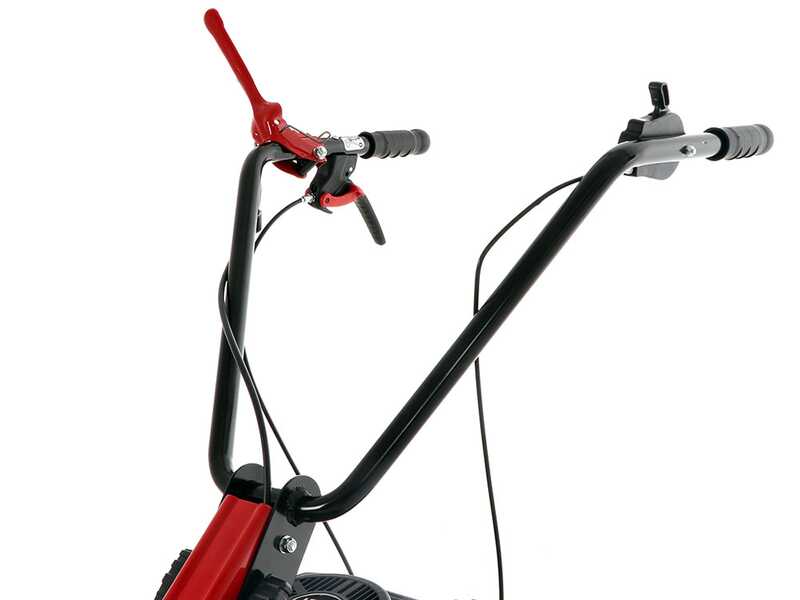

Upper metal red lever: Cutter bar engagement/disengagement.

The lower (right) black lever engages the forward gear

Throttle lever.

The Minieffe series features a new and effective anti-vibration system at the base of the handlebar, between the handlebar and its connection the machine there are four rubber pistons that will absorb the vibrations coming from the engine and the accessory mounted on the machine. Also, the knobs are anti-vibration as well thanks to the rubber cover.
