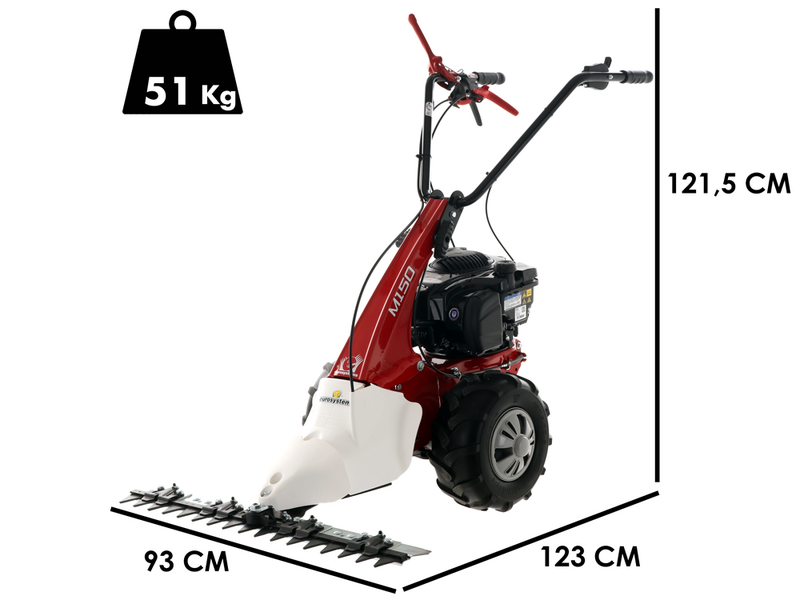

Eurosystems Minieffe M150 RM - Multifunctional motor mower - B&S 625 EXi

It is a self-propelled petrol scythe mower with large sculpted pneumatic wheels operated by an oil-bath worm screw transmission and equipped with 2 gears (1 forward + 1 reverse).

The 87 cm sickle bar accessory (provided on standard) is a mulching tool with standard single-blade motion. Mulching means that it has a very high cutting efficiency thanks to the particular shape and sharpness of the blades; standard single-blade motion means that the cutter bar is equipped with two cutting blades, lower and upper, and the latter is controlled by a transmission with oscillatory movement that cuts the grass thanks the counterblade action of the fixed lower blade.

The cutter bar is driven by a belt transmission which gives it good durability thanks to the clutch effect guaranteed by this type of transmission.
This self-propelled petrol scythe mower is also equipped with a powerful Briggs & Stratton engine, a company known as the world's largest manufacturer of petrol engines for agricultural and garden equipment.

Suitable for mowing uncultivated and wild grass, even very tall, or grass to be collected for feeding livestock.

The Briggs & Stratton 625 Exi engine guarantees high performance, so it is suitable for works that require high reliability and durability, thanks to its remarkable 163 cc displacement.

Features:

• Engine type: 4-Stroke, single cylinder
• Cylinder type: Aluminium
• Cubic Capacity: 150 cm³
• Fuel: Petrol
• Starting: Manual

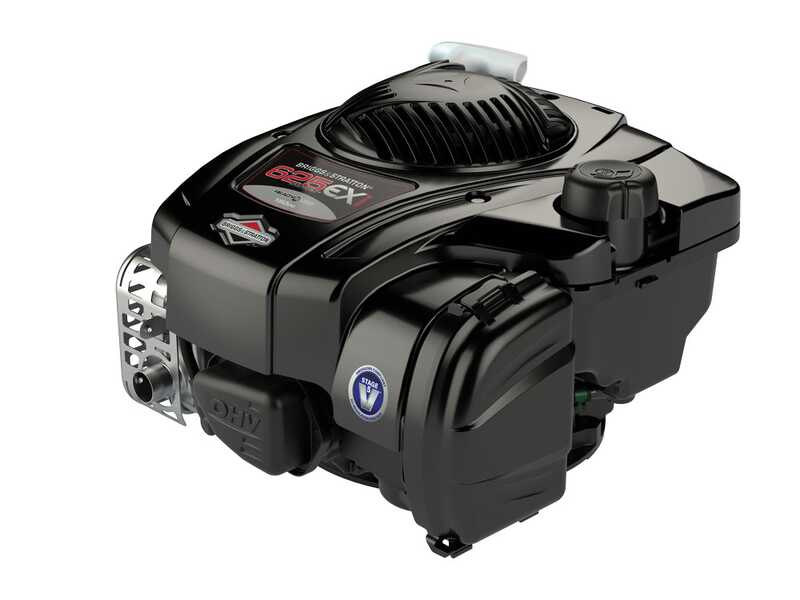

Designed to offer unprecedented performances and reliability, the 625 EXi series is the ideal engine for these agricultural machines.

The engine is equipped with Instart device.

WARNING!

The engine is PROVIDED WITHOUT OIL.

Before using the machine it is important to read the instruction manual carefully.

Rated Power: 5 HP

The correct term would be "Commercial” Power, meaning the classic standard of definition of power officially used until a few years ago by all leading engine manufacturers.*

* This figure is even more widespread and advertised in the leading commercial channels, although it is higher than the actual power.

Effective power: 3.04 Hp
It corresponds to the real power expressed by the motor shaft. This is the power indicated as official in the manual or in the technical data of the motor manufacturer.

* This technical data may vary for the same engine model depending on the rotational speed supplied by the engine applied to the equipment.

WARNING!
The following accessories are not included in the machine price.

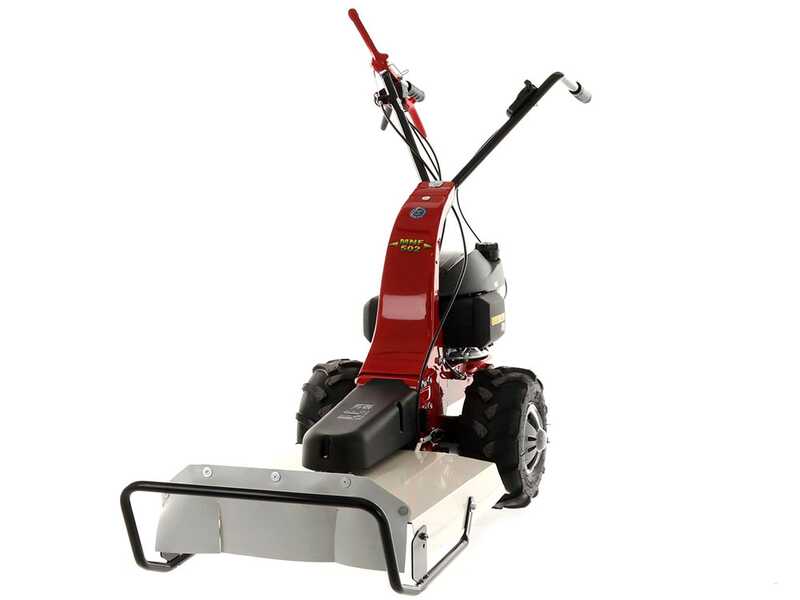

53 cm BRUSH MOWER BLADE DECK: this accessory allows using the machine as a powerful petrol rough-cut mower (to chop the grass very finely).

ROTATING SCYTHE: this accessory allows using the machine as a powerful rotary scythe mower.

BRUSH AND COLLECTOR: this attachment allows using the petrol scythe mower as a handy self-propelled power sweeper.

105 cm FRONT BRUSH

FRONT BLADE: suitable for small amounts of snow, sand, dirt and so on.

PAIR OF SNOW CHAINS: perfect combined with the FRONT BLADE accessory.

WARNING!

The photos are only illustrative, they may differ from the main product.

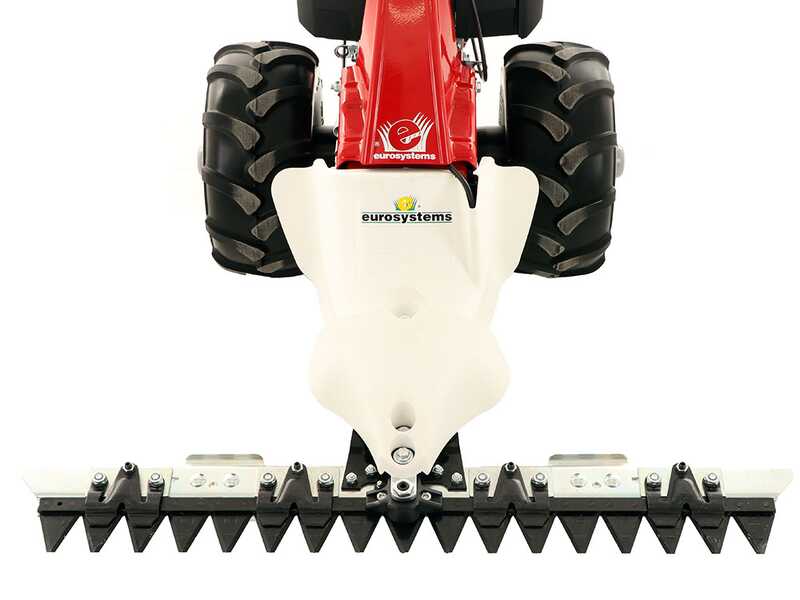

Sickle bar cutting width: 87 cm

Mulching cutting system: the sickle bar consists of a lower blade and an upper blade, which moves with oscillatory motion in contact with the lower blade that is fixed and merely acts as a counter-blade. This type of sickle bar is known as mulching due to its particularly clear cut, carried out on grass of every texture and height, obtained thanks to the shape of the blades.

The bar is equipped with a blade holder placed on the top of it.

The cutter bar is tilting.

The sickle bar rotates around its own attachment axis that connects it to the machine body. This system allows the petrol scythe mower to move and work on all kinds of terrain, even the most uneven surfaces, given its great adaptability.

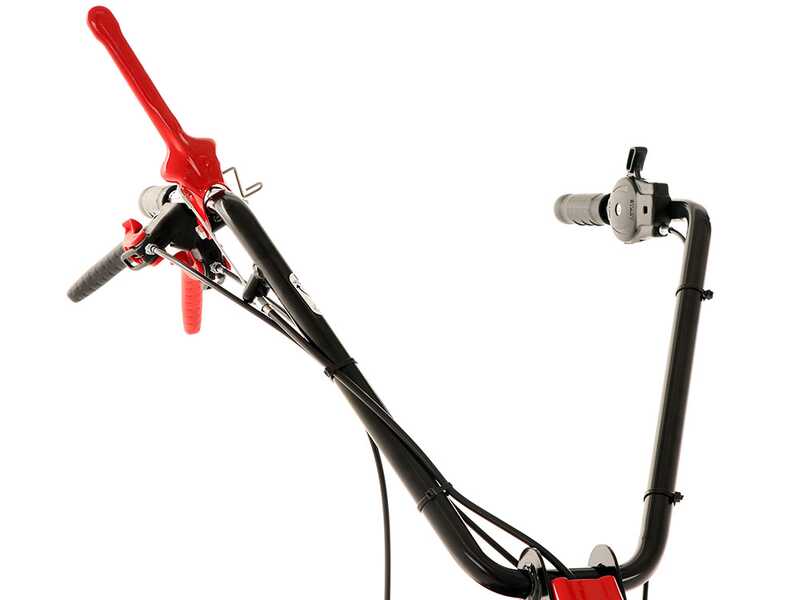

Vertically adjustable handlebars by means of the specific controls.The red and black levers respectively engage the forward and reverse gear.

Starting lever.

Throttle lever.

The Minieffe series features a new and effective anti-vibration system at the base of the handlebar, between the handlebar and its connection the machine there are four rubber pistons that will absorb the vibrations coming from the engine and the accessory mounted on the machine. Also, the knobs are anti-vibration as well thanks to the rubber cover.

Oil-bah worm screw intermediate transmission.

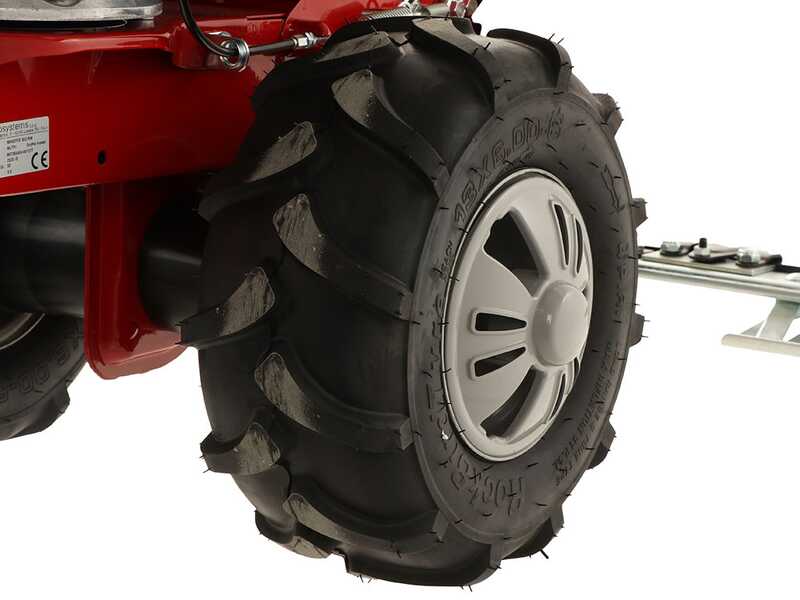

Large-sized tractor wheels: 13x6.00 - 6.

Since they are sculpted, the scythe mower can operate even on the most difficult surfaces while always maintaining perfect grip.

Screws for wheel disassembly.

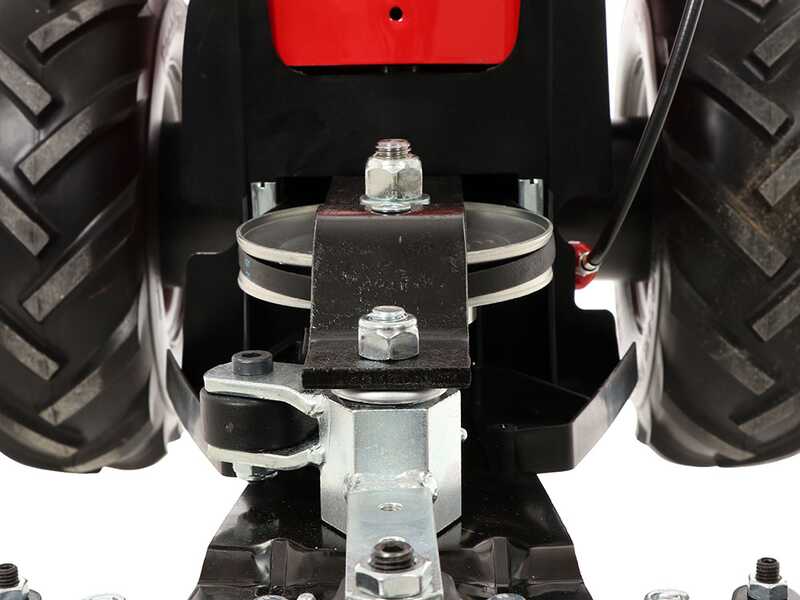

Final belt drive between the sickle bar and the central drive system, featuring a protective white case as you can see in the picture to the right.
This drive system increases the machine durability. The belt works almost like a clutch: it tends to slip in case the blades collide with something. Thus, the machine components that are normally subject to wear will last longer.

However, we recommend you to avoid hitting obstacles with the scythe mower and using it on stony surfaces.

Another great advantage of the belt-driven transmission consists of the blade engagement/disengagement lever (upper red lever). The Operator can activate the petrol scythe mower blade only if and when necessary; where there is work to be done. Self-propulsion can be used to move the machine around even when the blade is disengaged. It allows, for instance, to move the equipment using the self-propulsion on the wheels while the blade is stopped.
