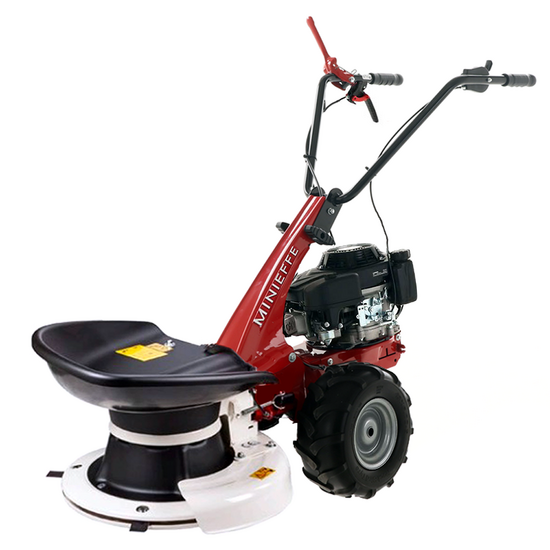

Name: Eurosystems Minieffe - Multifunctional rotary mower - Loncin L2000 OHV
Brand: Eurosystems
SKU: K603091
Price: 1408.73 EUR
Availability: InStock

Description

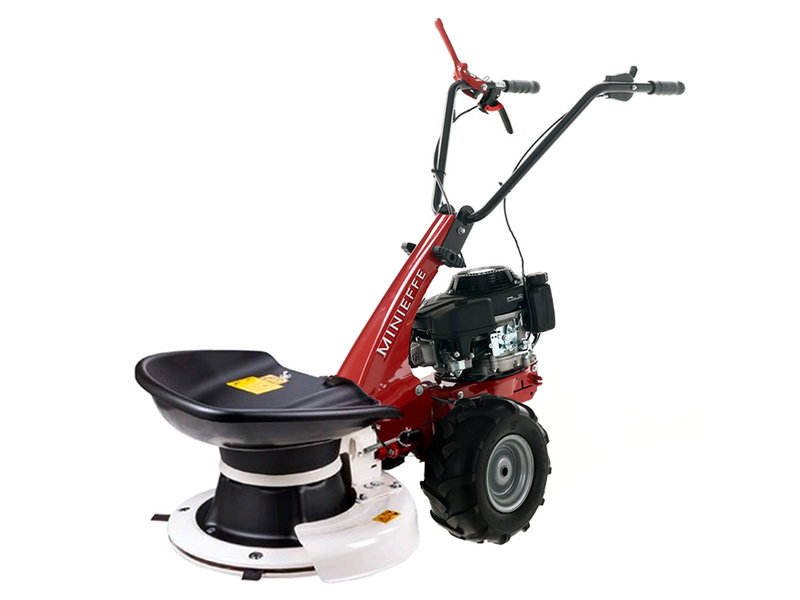

Eurosystem Minieffe Petrol Scythe Mower - with Loncin 196 OHV Engine

The Eurosystems Minieffe Loncin 196 OHV is a self-propelled petrol rotary scythe mower featuring pneumatic Tractor wheels operated by an oil-bath worm screw transmission. Its 57 cm rotary scythe (included in the listing price) is made of a rotating disc equipped with 4 retracting blades rotating on their axis (the blades retract inside the body in case of shock).

The machine is equipped with a powerful 196 cc OHV Loncin engine

This is undoubtedly the most advanced and effective cutting system on the market today as it emulates the heavy-duty tractor drum scythe mower cutting system.

Suitable for all kinds of surfaces and any kind of grass (tall, short, thick, slender, straight, bent or crushed by weather conditions).

Eurosystems Minieffe - Multifunctional rotary mower - Loncin L2000 OHV

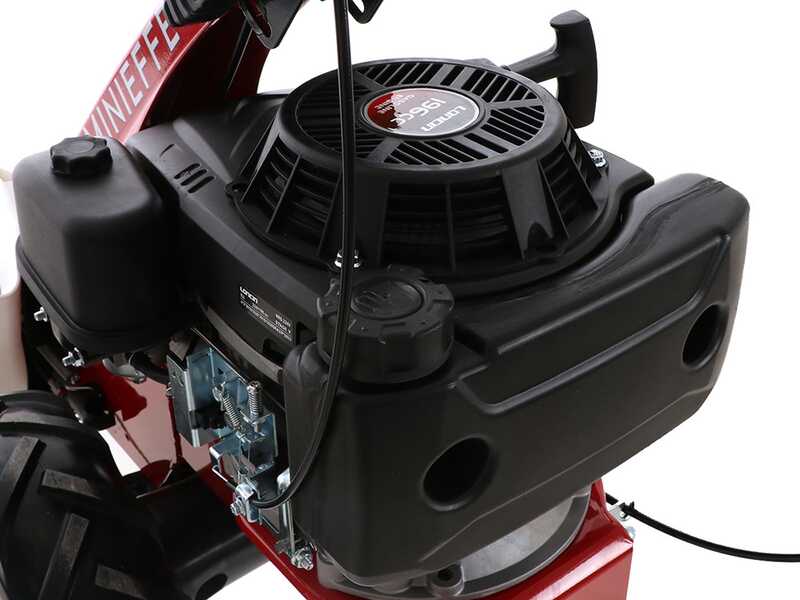

Loncin Engine

The Eurosystem Minieffe scythe mower is powered by a powerful Loncin L200 OHV engine that is mostly renowned for the high standard of reliability and good performance.

Features:

Engine type

4-Stroke, single cylinder

Cylinder type:

Aluminium

Cubic capacity:

196 cm³

Fuel:

Petrol

Fuel:

OVH (overhead valve)

WARNING!
The engine is supplied without oil.
Fill the oil tank at level before first start-up.

Nominal Power: 6.5 HP

Real power: 4.8 HP

* The correct term would be "Commercial” Power, meaning the classic standard of definition of power officially used until a few years ago by all leading engine manufacturers. This technical detail is even more widespread and advertised in the leading commercial channels, although it is a matter that it is higher than the actual power.

WARNING!

The engine is PROVIDED WITHOUT OIL.
Please carefully read the instruction manual before starting.

Optional Accessories, not included in the price

WARNING!
The following accessories are not included in the machine price.

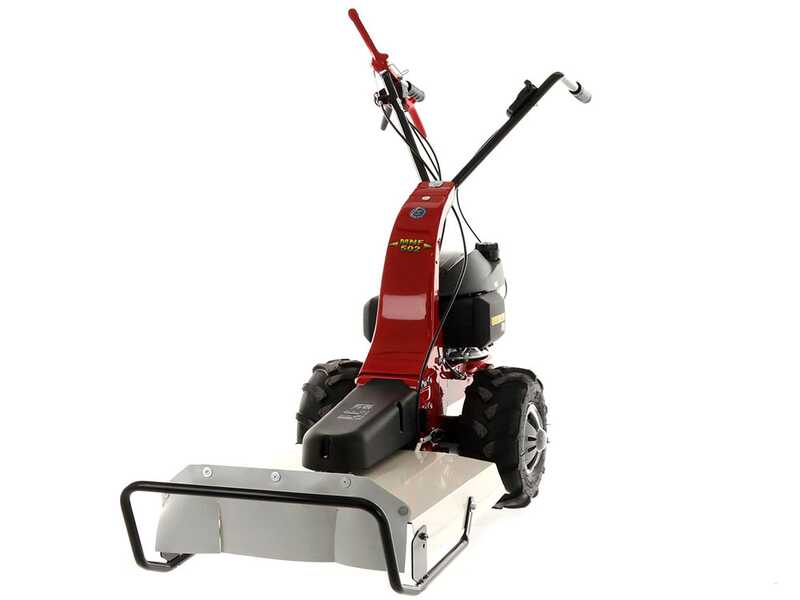

87 cm SICKLE BAR

53 cm BRUSH MOWER BLADE DECK: this accessory allows using the machine as a powerful petrol rough-cut mower that chops the grass very finely.

BRUSH AND COLLECTOR: this attachment allows using the petrol scythe mower as a handy self-propelled power sweeper.

105 cm FRONT BRUSH

FRONT BLADE: suitable for small amounts of snow, sand, dirt and so on.

PAIR OF SNOW CHAINS: perfect combined with the FRONT BLADE accessory.

WARNING!

The photos are only illustrative, they may differ from the main product.

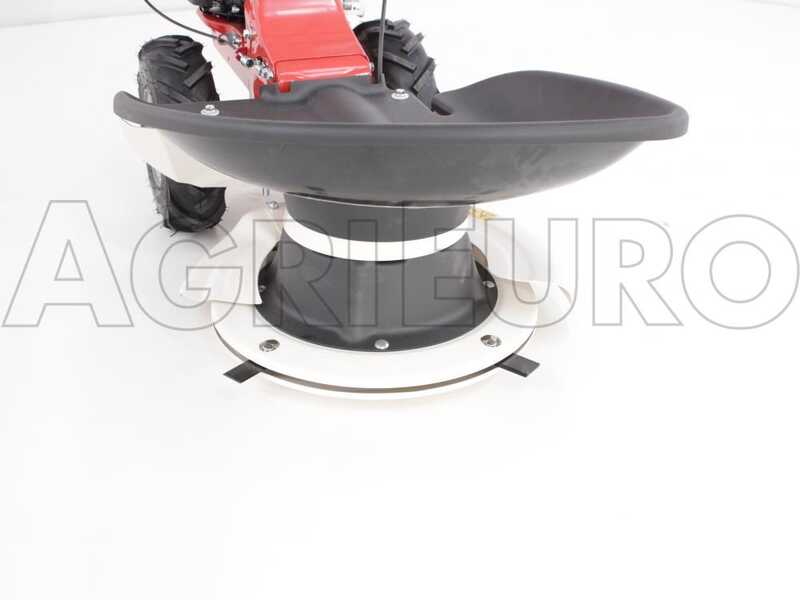

57 cm Rotary Sickle Bar

Cutting diameter: Ø57 cm

Blade rotation speed: 2300 g/min

Cutting height: 36 mm

Cutting system: n°4 swing knives that form a 90° angle, with double edges. The knives slide back inside in case of shocks or collisions with stones.

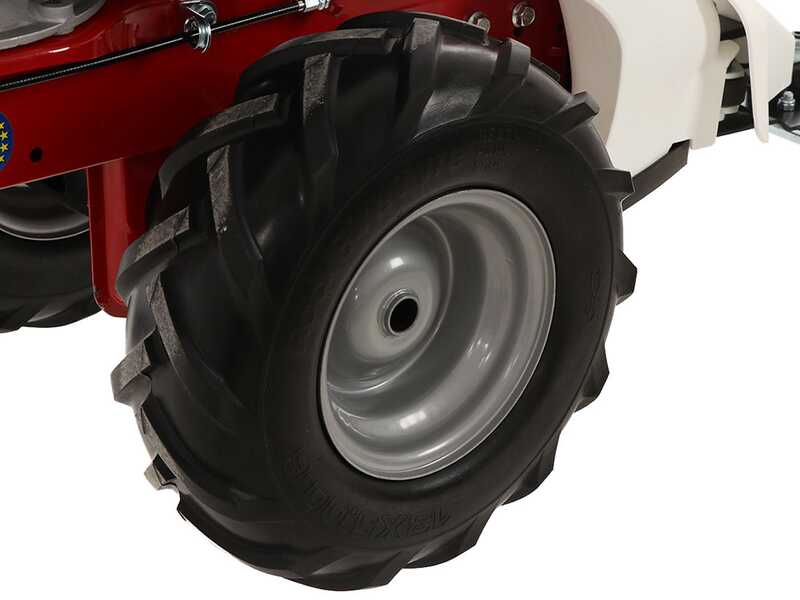

Intermediate Transmission and Tractor Wheels

Oil-bath worm screw intermediate transmission.

Large tractor wheels: 13x5.00 - 6.

Since they are sculpted, the scythe mower can operate even on the most difficult surfaces while always maintaining perfect grip.

Screws for wheel disassembly.

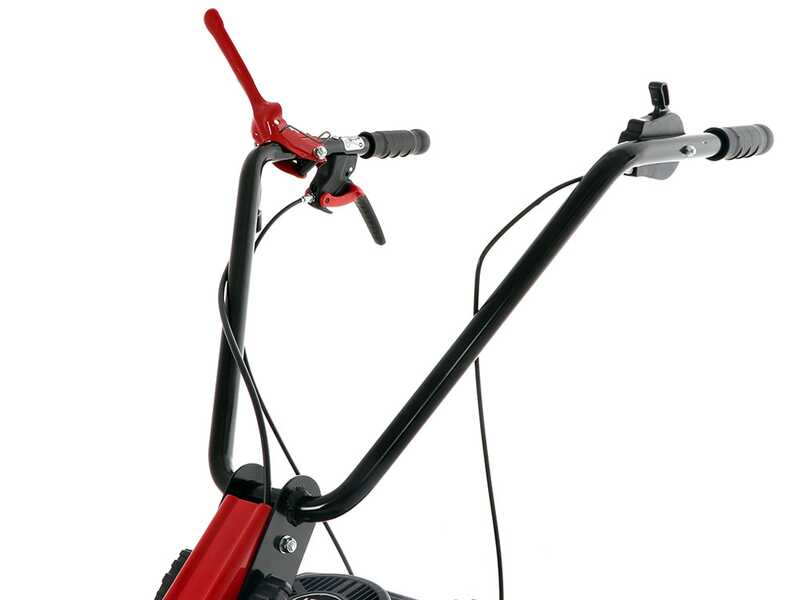

Controls and Steering Handles

Upper metal red lever: Cutter bar engagement/disengagement.

The lower (right) black lever engages the forward gear

Throttle lever.

The Minieffe series features a new and effective anti-vibration system at the base of the handlebar, between the handlebar and its connection the machine there are four rubber pistons that will absorb the vibrations coming from the engine and the accessory mounted on the machine. Also, the knobs are anti-vibration as well thanks to the rubber cover.

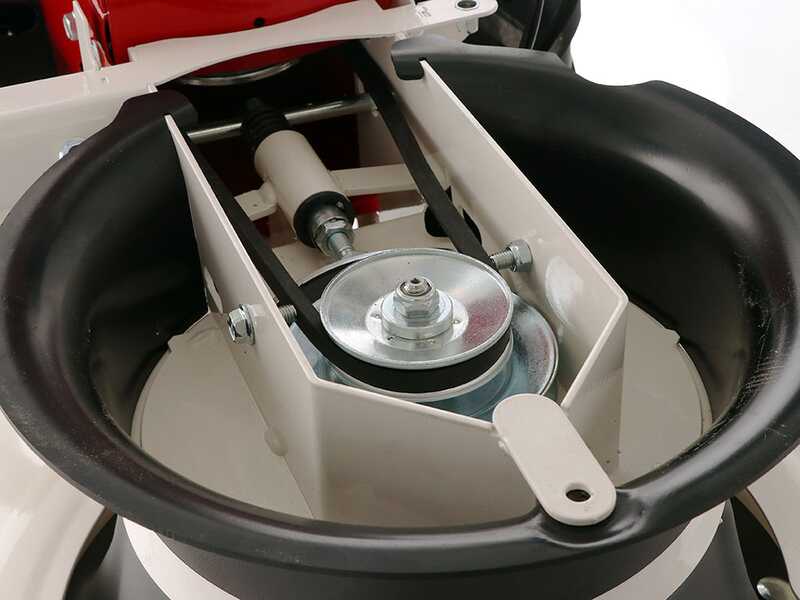

Final Belt Drive

Final belt drive between rotary sickle and central machine transmission (protected by the black front casing in the photo).
This drive system increases the machine durability. The belt works almost like a clutch: it tends to slip in case the blades collide with something. Thus, the machine components that are normally subject to wear will last longer.

However, we recommend you to avoid hitting obstacles with the scythe mower and using it on rocky surfaces.

Another great advantage of the belt-driven transmission consists of the blade engagement/disengagement lever (upper red lever). The Operator can activate the petrol scythe mower blade only if and when necessary; where there is work to be done. Self-propulsion can be used to move the machine around even when the blade is disengaged. It allows, for instance, to move the machine using self-propulsion while the blade is stopped.

Free items & Standard equipment

1° GIFT: Spare parts and maintenance kit for petrol engines

Universal spare parts and accessories maintenance kit for 4-stroke engine gardening machines.

WARNING: this kit is not suitable for all types of engines on the market. We do not supply sets other than those already published on this website nor do we guarantee their adaptability to machines not purchased on our website.

Included in the packaging are:

No. 01 original GeoTech spark plug

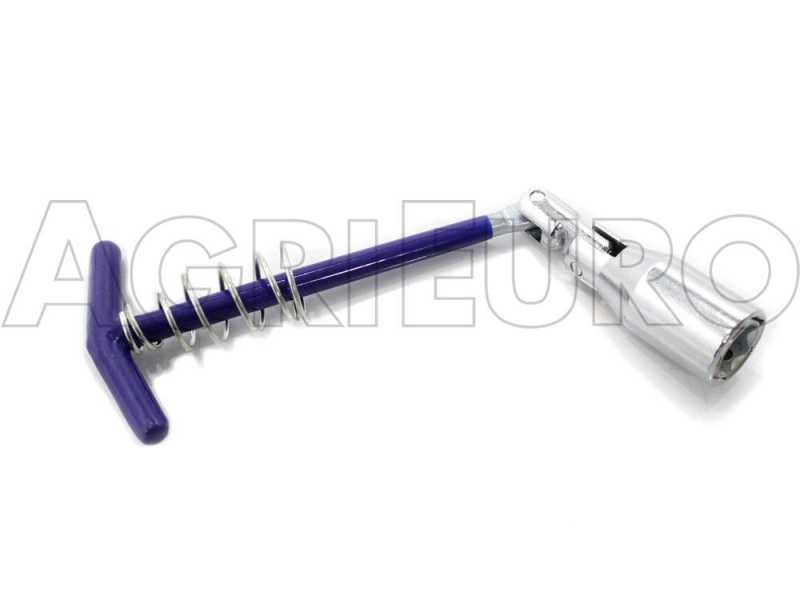

No. 01 professional spark plug wrench with jointed socket

2° GIFT: 600 ml oil bottles

COMPLIMENTARY: two sae 15 W 40 600 ml oil bottles. Specific lubricant for 4-stroke engine gardening machinery with up to 10 Hp of power. Good cleansing and dispersion.

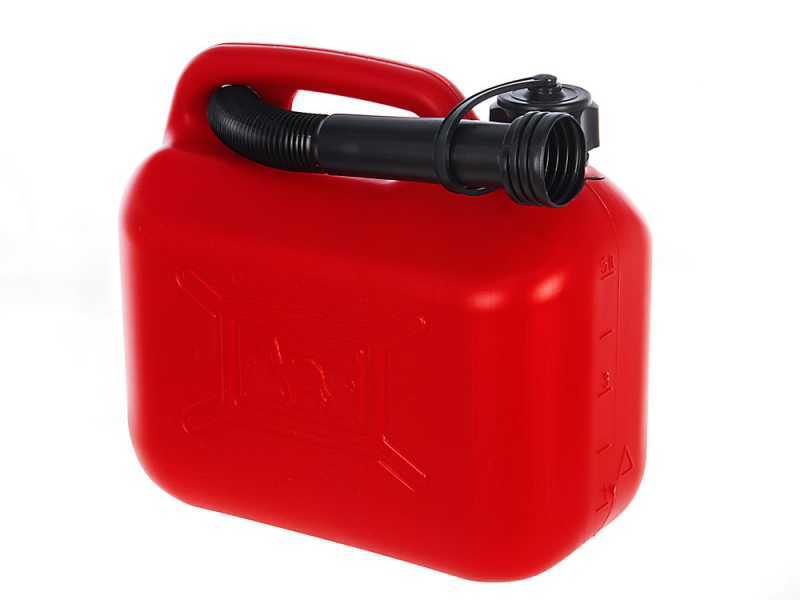

COMPLIMENTARY: Heavy-duty 5L Plastic Fuel Tank With Flexible Pouring Spout

Fuel tank: capacity 5 L

Professional ONU approved tank, made of certified plastic material.

With sealing cap equipped with comfortable anti-fall clamp.

Flexible pouring spout equipped with independent assembling sealing ring.
It allows a simple fuel dosage without the risk of spilling it.

The insides are made of exceptionally thick plastic, which makes these tanks especially sturdy and anti-drilling.

Furthermore, the plastic is red so as not to allow the penetration of light, ensuring the optimal fuel conservation.

Focus on the carrying handle and housing for the flexible pouring spout

WARNING: petrol and mixture tend to lose their characteristics and to deteriorate quickly when in contact with light. For this reason, traditional transparent tanks are strongly discouraged for these fuels (as well as for poor security reasons)

GIFT: SAFETY KIT

SAFETY KIT

Noise-cancelling earmuffs to work with maximum comfort
Hearing protection must be performed correctly in every situation. In this case, the supplied earmuffs are specifically designed to educe machine noise.

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate, equipped with antifog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid fogging and to improve comfort of use.

100% cotton Agrieuro bandana

Cotton gloves with rubber ripples for comfort and a secure and stable grip on equipment.
