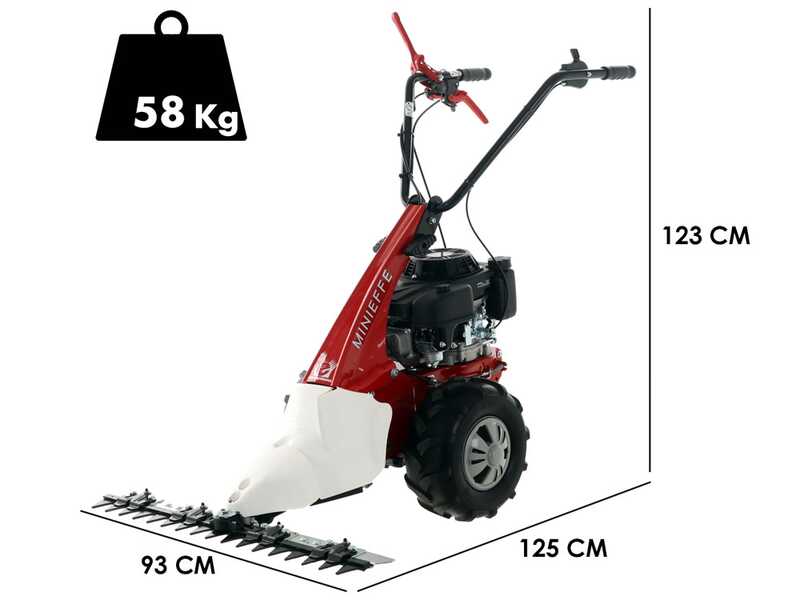

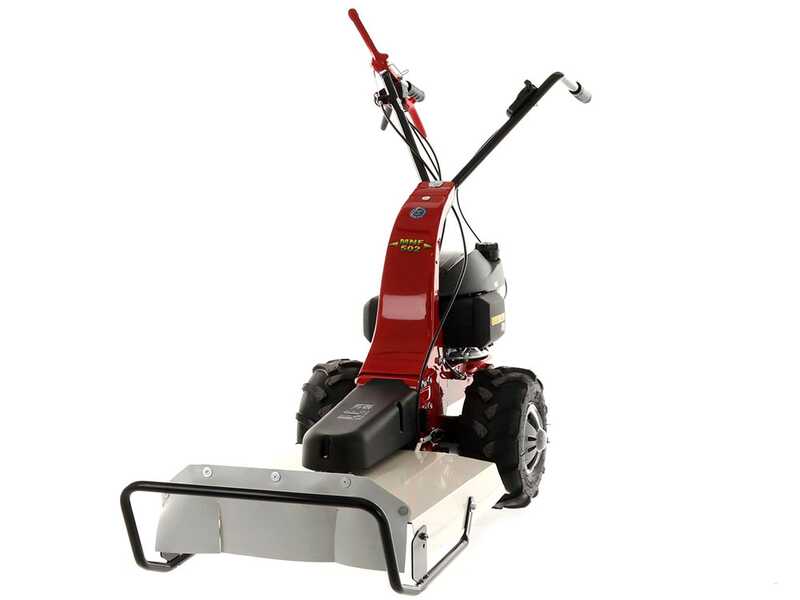

Eurosystems Minieffe RM - Multifunctional motor mower - Loncin L200 OHV

The Minieffe is a self-propelled petrol scythe mower equipped with 13x6.00-6 anti-puncture sculpted drive tractor wheels with rims, driven by a worm screw transmission in oil bath and equipped with 1 forward + 1 reverse gear. The 87 cm sickle bar (included in the price and provided on standard kit) is a Mulching cutter bar with standard single-blade action.
Mulching means good cutting efficiency obtained thanks to the particular blade shape and sharpness

The sickle bar is connected by a belt-drive transmission that ensures long durability over time, carrying out a protective action similar to a clutch effect.
Moreover, this self-propelled scythe mower is powered by a reliable Loncin 196cc petrol engine.

COMPLIMENTARY:

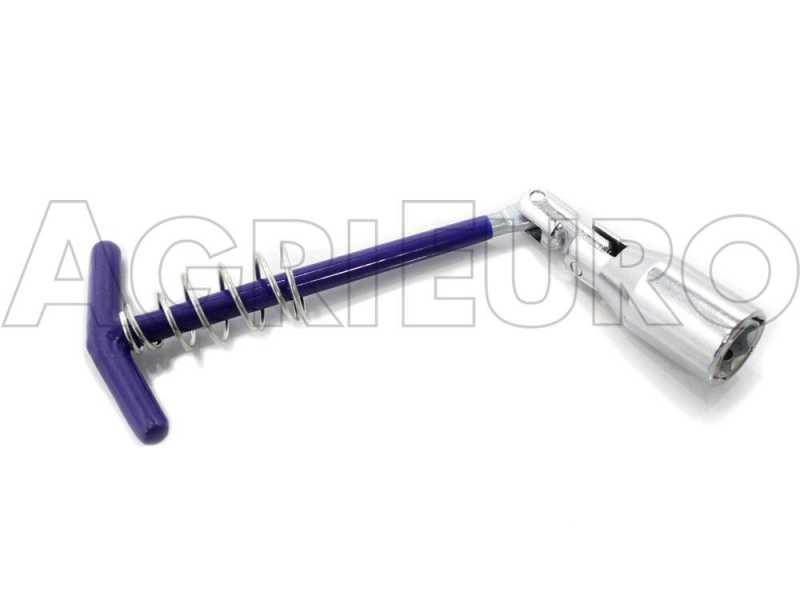

ENGINE MAINTENANCE KIT

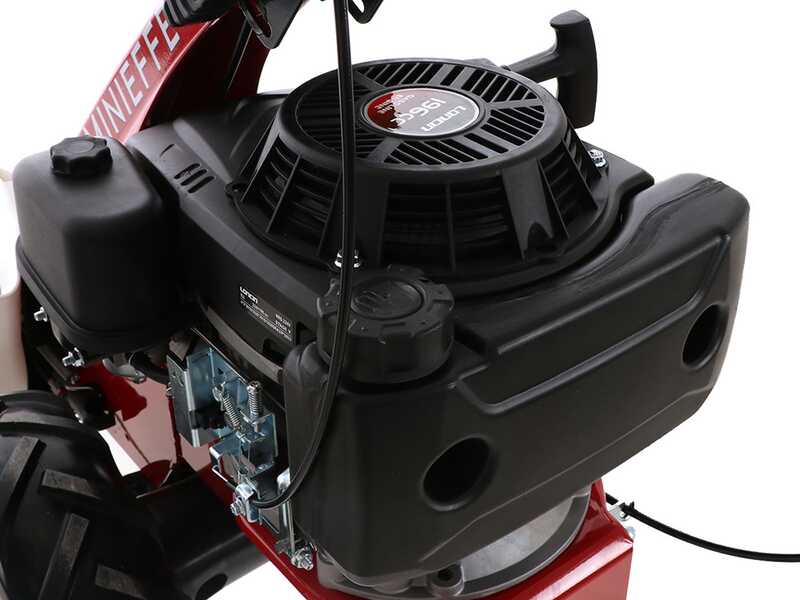

The Eurosystem Minieffe scythe mower is powered by a powerful Loncin L200 OHV engine that is mostly renowned for the high standard of reliability and good performance.

Features:

WARNING!
The engine is supplied without oil.
Fill the oil tank at level before first start-up.

Nominal Power: 6.5 HP

Real power: 4.8 HP

* The correct term would be "Commercial” Power, meaning the classic standard of definition of power officially used until a few years ago by all leading engine manufacturers. This technical detail is even more widespread and advertised in the leading commercial channels, although it is a matter that it is higher than the actual power.

WARNING!

The engine is PROVIDED WITHOUT OIL.
Please read carefully the instruction manual before starting.

WARNING!
The following accessories are not included in the machine price.

53 cm BRUSH MOWER BLADE DECK: this accessory allows using the machine as a powerful petrol rough-cut mower that chops the grass very finely.

BRUSH AND COLLECTOR: this attachment allows using the petrol scythe mower as a handy self-propelled power sweeper.

105 cm FRONT BRUSH

FRONT BLADE: suitable for small amounts of snow, sand, dirt and so on.

PAIR OF SNOW CHAINS: perfect combined with the FRONT BLADE accessory.

WARNING!

The photos are only illustrative, they may differ from the main product.

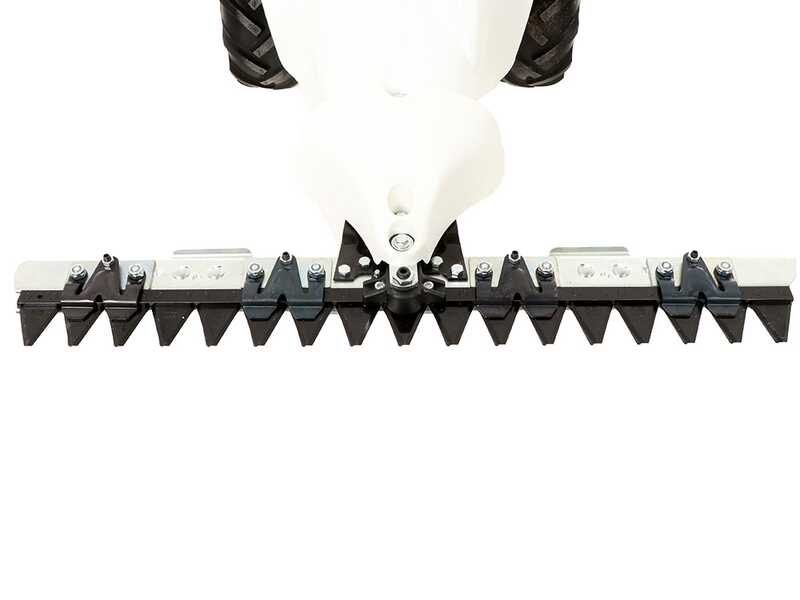

Sickle bar cutting width: 87 cm

Mulching cutting system: the sickle bar consists of a lower blade and an upper blade, which moves by oscillating motion in contact with the lower blade, which is fixed and acts as a counter-blade. This type of sickle bar is known as mulching due to its particularly clear cut, carried out on grass of every texture and height, obtained thanks to the shape of the blades.

The sickle bar is provided with upper blade holders.

Swinging cutter bar. The sickle bar rotates around its axis of attachment to the machine body. This system allows this petrol scythe mower to move and work on all kinds of terrains and even challenging, uneven surfaces, since it adapts to its unevenness

Oil-bath worm screw intermediate transmission.

Anti-puncture tractor wheels with large rims: 13x6.00 - 6.

Since they are sculpted, the scythe mower can operate even on the most difficult surfaces while always maintaining perfect grip.

Screws for wheel disassembly.

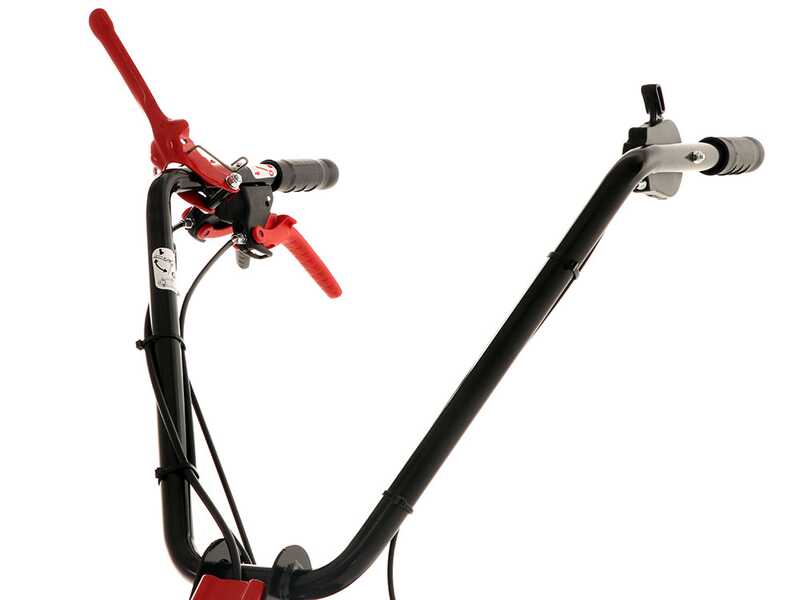

The handles are adjustable vertically using the dedicated knobs.

The red lever and the black lever respectively activate the forward and reverse speed of the machine.

Lever for starting the machine.

Throttle lever.

The Minieffe series features a new and effective anti-vibration system at the base of the handlebar, between the handlebar and its connection the machine there are four rubber pistons that will absorb the vibrations coming from the engine and the accessory mounted on the machine. Also, the knobs are anti-vibration as well thanks to the rubber cover.

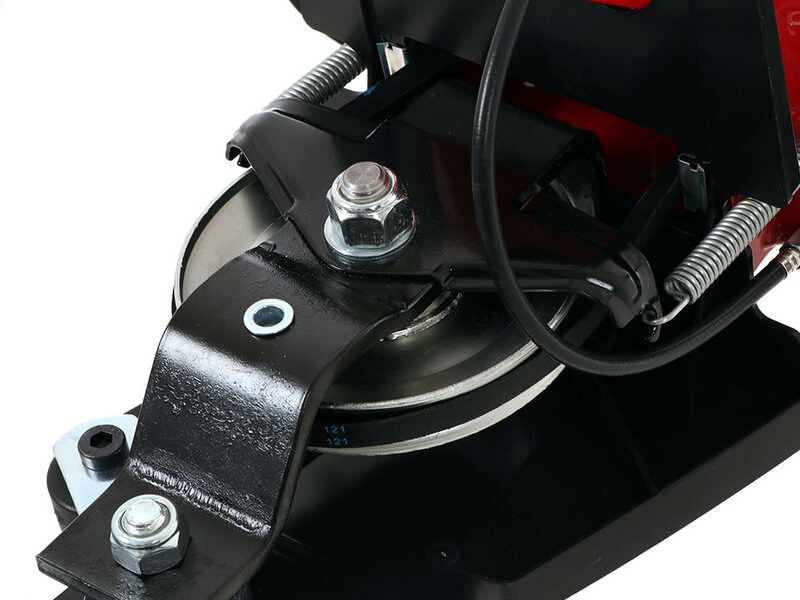

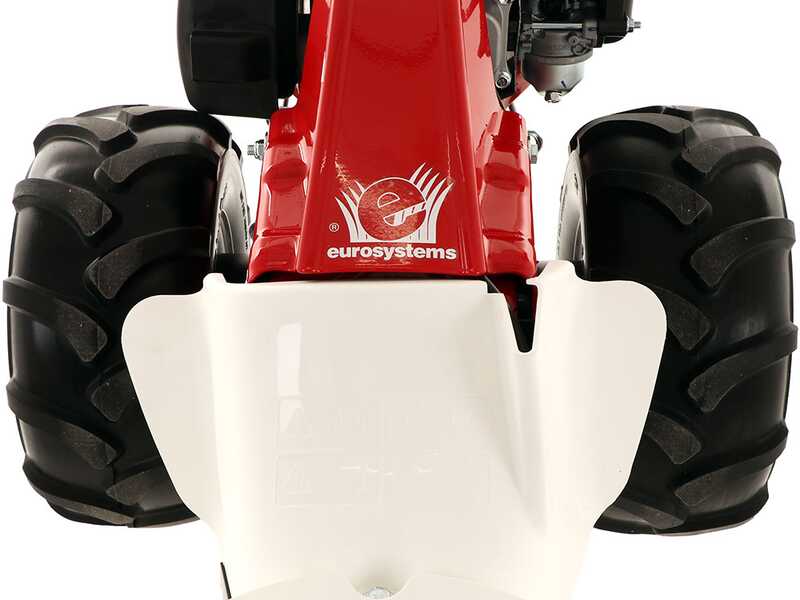

Final belt drive between the sickle bar and the central drive system, featuring a protective white case as you can see in the picture to the right.
This drive system increases the machine durability. The belt works almost like a clutch: it tends to slip in case the blades collide with something. Thus, the machine components that are normally subject to wear will last longer.

However, we recommend you to avoid hitting obstacles with the scythe mower and using it on stony surfaces.

Another great advantage of the belt-driven transmission consists of the blade engagement/disengagement lever (upper red lever). The Operator can activate the petrol scythe mower blade only if and when necessary; where there is work to be done. Self-propulsion can be used to move the machine around even when the blade is disengaged. It allows, for instance, to move the equipment using the self-propulsion on the wheels while the blade is stopped.
