Description

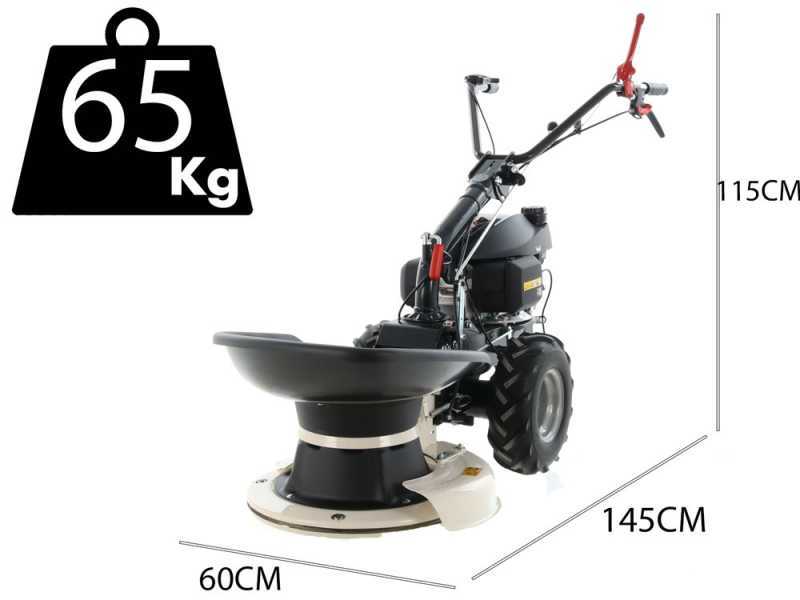

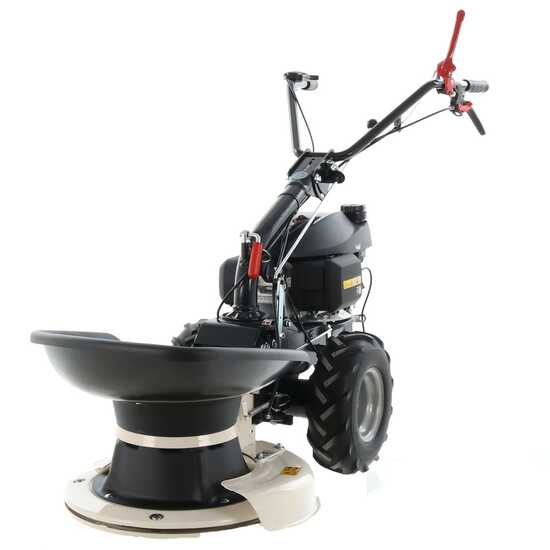

P55 rotary scythe mower 57 cm

Self-propelled rotary scythe mower. The pneumatic wheels are activated by an oil-bath worm gear drive and 2 speed gear shifting system (1 forward speed + 1 reverse speed).

Equipment powered by an outstanding Honda GCVX 170 engine.

The cutting unit consists of 4 swing blades that rotate around their own axis and slide back inside in case of shocks. The blades rotate around their own axis and slide back in when hitting obstacles. This is undoubtedly the most advanced and effective cutting system on the market today as it emulates the heavy-duty tractor drum mower cutting system.

Suitable for all kinds of surfaces and any kind of grass (tall, short, thick, slender, straight, bent or crushed by weather conditions).

Eurosystems P55 - Multifunctional rotary mower - Honda GCVX 170

Optional attachments

WARNING!
The following accessories are not included in the machine price.

53 cm BRUSH MOWER BLADE DECK: this accessory allows using the machine as a powerful petrol rough-cut mower that chops the grass very finely.

87 cm DUAL-BLADE ACTION SICKLE BAR: this accessory allows using the machine as a powerful scythe mower.

50 cm TILLER/CULTIVATOR: this attachment allows using the machine as handy two-wheel tractor.

FIXED-WING RIDGER: suitable for making small furrows on soil that has already been turned over.

SPRING SCARIFIER: for de-thatching your lawn.

BRUSH ACCESSORY AND COLLECTOR: this attachment allows using the petrol scythe mower as a handy self-propelled power sweeper.

WHEELBARROW: this accessory allows carrying loads of up to 100 kg.

FRONTO BLADE: suitable for small amounts of snow, sand, dirt and so on.

SNOW CHAINS: useful accessory while working with the SNOWPLOUGH attachment.

WARNING!

The photos are only illustrative, they may differ from the main product.

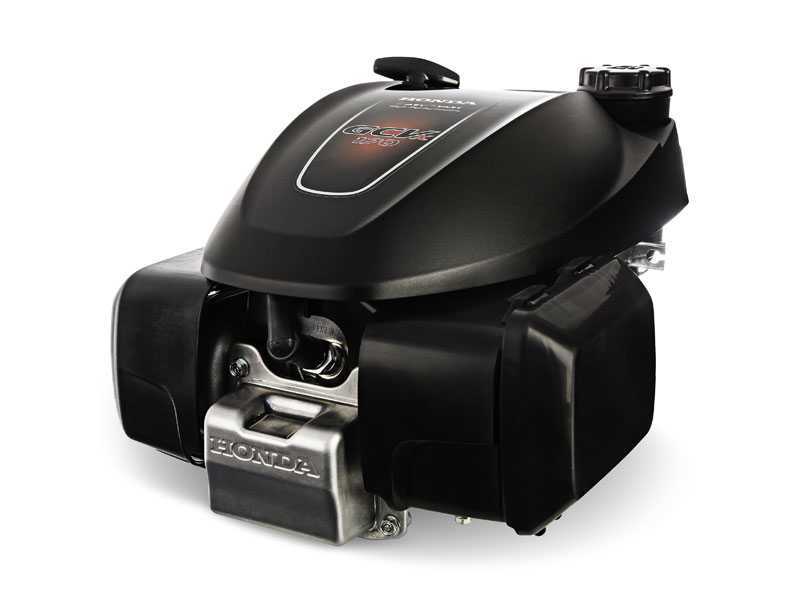

Honda GCVX 170 engine

The Honda GCVX 170engine guarantees high performances and it is suitable for works that require high reliability and long lasting in time, thanks to its remarkable 166 cc.

Features:

Engine type:

4-Stroke

Cylinder type:

Aluminium

Cubic Capacity:

166 cm³

Fuel:

Petrol

Activation:

Manual

4-stroke engine with the latest generation petrol ( overhead valve shaft OHV - transistorized ignition - starter with automatic decompression, etc. .).
Designed for offering reliability and unprecedented performances, Honda GCVX series has established as one of the best engines for these machines.

The recoil start is easy to use thanks to the automatic fuel priming system.

Focus on air filter.

WARNING!

The engine WILL NOT CONTAIN OIL when delivered.
Read the instructions manual carefully before starting the engine.

Gross Power: 5.5 HP
The appropriate wording is actually “Power Rating” as it is the classic standard terminology for power. All of the largest engine manufacturers have officially used this definition up until a few years ago.

* For the most part, this is still the information that all the main commercial and sales channels provide, even though it is higher than the net power output.

Net Power: 4.8 HP (at a 3000 rpm rate)
This is the actual power transferred to the drive shaft. Engine manufacturers disclose this power information in instructions manuals or technical data sheets as official.

* This information may vary for the same engine model because the equipment manufacturer establishes the rpm rate of the engine that is mounted on said equipment.

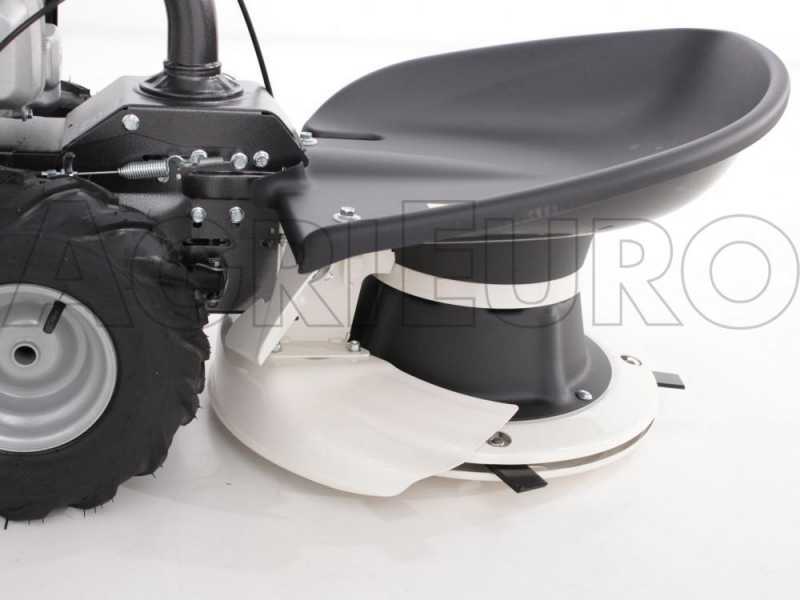

57 cm rotary sickle bar

Cutting diameter: Ø57 cm

blade rotation speed: 2300 rev/min

Cutting height: 36 mm

Cutting system: n°4 swing knives that form a 90° angle, with double edges. The knives slide back inside in case of shocks or collisions with stones.

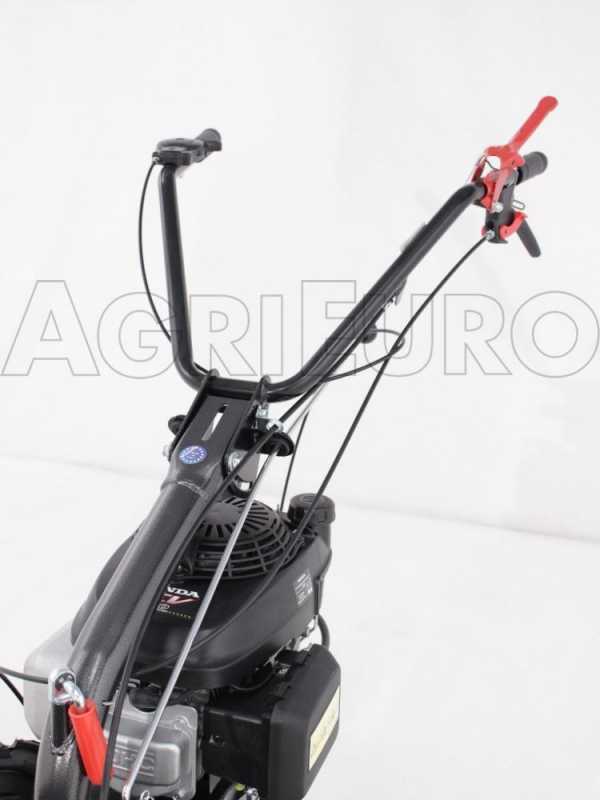

Steering bars and controls

The steering bars can be adjusted both horizontally and vertically.

The red safety lever allows stopping the machine in case of emergency.

Machine activation lever.

Gear stick.

Throttle control.

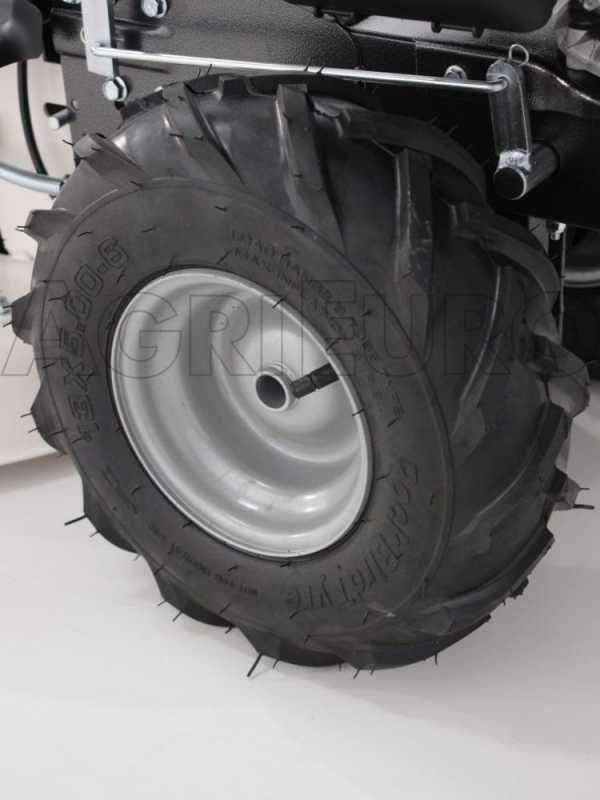

Gear shifting system, transmission and tractor wheels

Oil-lubricated worm gears final transmission. Belt central transmission.

The PM 55 self-propelled drum mower is equipped with large tractor wheels (13x5.00 - 6) to ensure perfect grip.

Sturdy gear shifting system featuring 1 forward speed
and 1 reverse speed

The user can select the desired gear by pulling the lever below the steering bars.

Free items & Standard equipment

1° GIFT: MAINTENANCE KIT

The maintenance kit includes:

Professional spark plug for engines.
Multi-tool joint wrench. Specific for lawn mowers - rough cut mowers - scythe mowers - etc.
Engine air filter.
Specific syringe for oil suction.
Waste oil collection bottle for easy waste oil disposal.
Funnel oil draining and refilling.

2° GIFT: Safety kit

PROTECTION KIT - SAFETY EQUIPMENT

Protective earmuffs to work with maximum comfort.
Hearing protection must be the right one for any working situation. In this case, the earmuffs supplied are specifically designed to protect the operator from the noise of the machine.

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate,equipped with anti-fog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid fogging and to improve comfort of use.

Agrieuro headscarf 100% cotton

Cotton gloves with rubber waves, for greater comfort and a secure and stable grip on the equipment

3° GIFT: 600 ml oil bottles

COMPLIMENTARY: two 600 ml sae 15W 40 oil bottles. Specific lubricant for 4-stroke gardening machinery with up to 10 Hp of power. Good cleansing and dispersion.

4° GIFT: Blade sharpener

The sharpener allows you to sharpen the blades of your lawn mower in a few minutes.

It is very easy to use since it is only necessary to attach it to your screwdriver/drill and then it will be ready to use.

Thanks to its small size, you won’t even need to remove the blade from the lawn mower, thus ensuring an even faster maintenance.

Free items and extra features

The machine is shipped in its original double packaging.

Instructions manual included in the package.

WARNING!
The engine is provided without oil. Ensure to check the oil level before starting the unit for the first time.
