Eurosystems P55 - Petrol Two-wheel Tractor - Honda GCVX 170 - 5.5HP

EUROSYSTEMS P55 two-wheel tractor fitted with

HONDA - GCVx 170 petrol engine

The great maneuverability of this multi tool two-wheel tractor allows preparing the ground for sowing with ease and in total safety, with an optimal distribution of weight and power. All controls within easy reach support the effort without the need for tiring pushes. Tilling the soil with this self-propelled 4-stroke machine has never been so easy. This EUROSYSTEMS P55 two-wheel tractor guarantees high performance and reliability. The powerful 5 Hp engine, the strong transmission, the large diameter pneumatic driving wheels with locking device, the 50 cm rear tiller with adjustable stake, the adjustable steering handles guarantee an optimal work on low consistency soils, ensuring a shallow but finely crumbled tilling, particularly suitable and ready for sowing.

The Eurosystems two-wheel tractors are Made in Italy. They are manufactured using high-quality materials and reliable technology.

MULTI TOOL: this two-wheel tractor model can be used with many different attachments thanks to the quick hitch and reversible steering handles.

The gearbox features 2 gears: 1 forward + 1 reverse.

The two-wheel tractor is powered by a top-of-the-range HONDA GCVX 170x 4-stroke engine (166 cc of cubic capacity)

Pneumatic drive wheels: 13x5.00-6

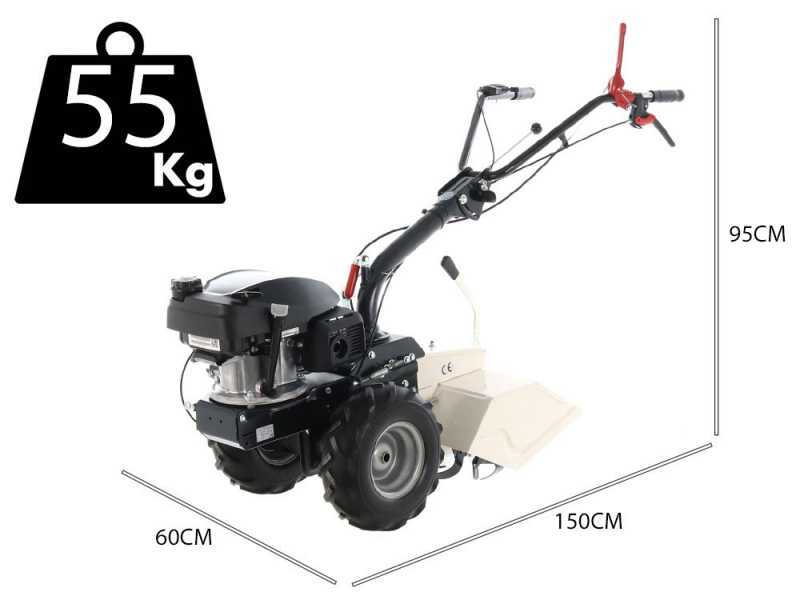

Weight: 55 Kg

THE PRICE ONLY INCLUDES THE 50 cm TILLER ATTACHMENT (the one in the side picture). All other accessories must be purchased separately.

The assembly is quite simple and is clearly explained in the instructions manual.

The reversible feature allows this two-wheel tractor to be used with different functions.

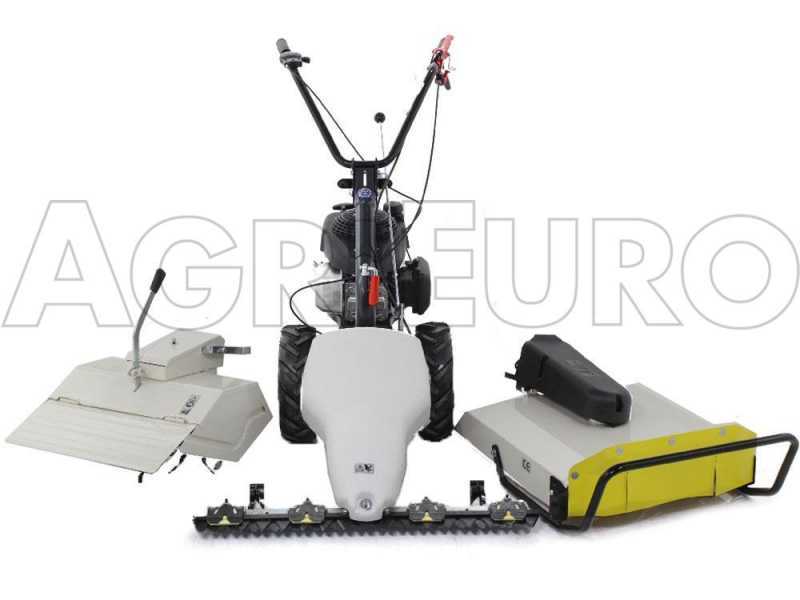

Here are some examples of the accessories that can be fitted to the machine:

• 50 cm tiller (included in the price):
• ROUGH MOWER CUTTING DECK
• 87 cm SICKLE BAR
• FURROWER
• SNOW PLOUGH
• LAWN SCARIFIER
• POWER SWEEPER
• ROTARY SCYTHE
• PAIR OF SNOW CHAINS

WARNING!

The photos are only for illustrative purpose and they may differ from the main product.

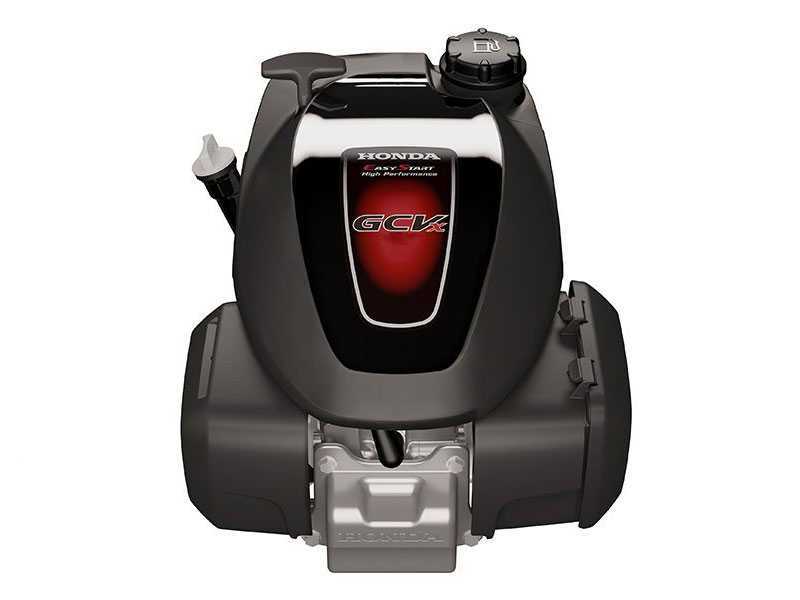

The Honda GCVX 170 engine guarantees high performance and it is suitable for works where high reliability and durability are required, thanks to its large cubic capacity of 166 cc.

Main features:

4-Stroke petrol engine of the latest generation (overhead valve shaft OHV - transistorised ignition - starter with automatic decompression system, etc. .).
Designed for offering high reliability and performance, Honda GCVX series has established itself as one of the best engines for these machines.

Easy recoil start thanks to the automatic fuel priming system.

Focus on the air filter.

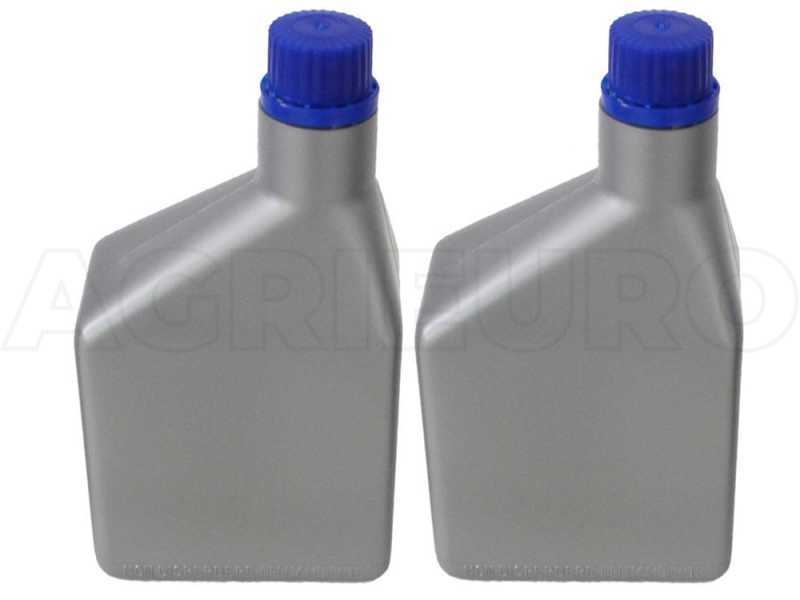

The engine is PROVIDED WITHOUT OIL.
Please carefully read the instruction manual before starting the unit.

Nominal Power: 5.5 Hp
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 4.8 Hp (at 3000 rpm)
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from an engine model to another according to the rotation speed provided by the manufacturer.

The gearbox features 2 gears: 1 forward + 1 reverse.

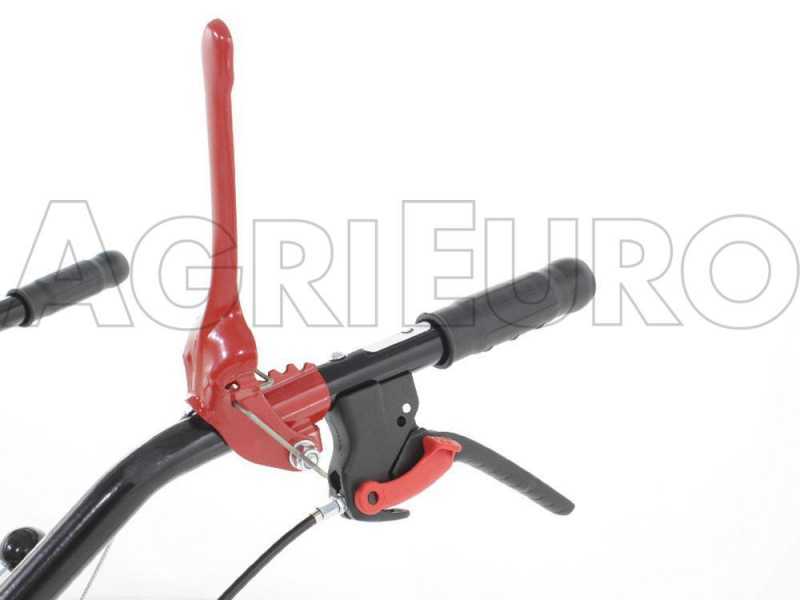

Gear shift lever control

Blade engagement/disengagement lever on the steering handles

Motion engagement lever on the steering handles

Throttle lever.

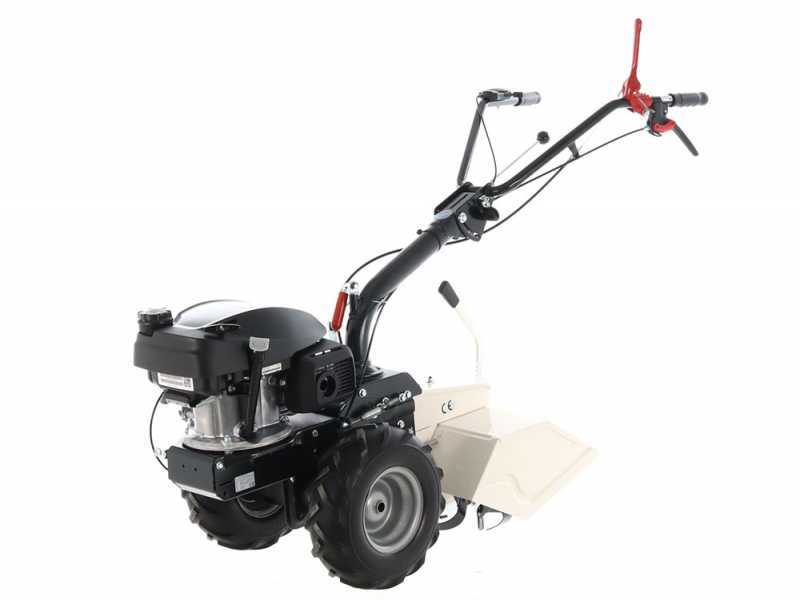

The steering handles are adjustable and 180° reversible.

Adjustable height: different heights available thanks to the adjustment system on the steering handles.

Focus on the height adjusting system.

Side-adjusting system:

The steering handles can be set at various angles (sideways) thanks to the fixing lever. This allows the operator to easily move the machine forward on firm ground.

Soft rubber-coated handles.

The reversible steering handles allows several other implements to be attached (sickle bar, rough cut mower, etc.)

The tiller features a quick hitch which allows the implement to be quickly removed to replace it with another attachment or simply to speed up storage of the machine.

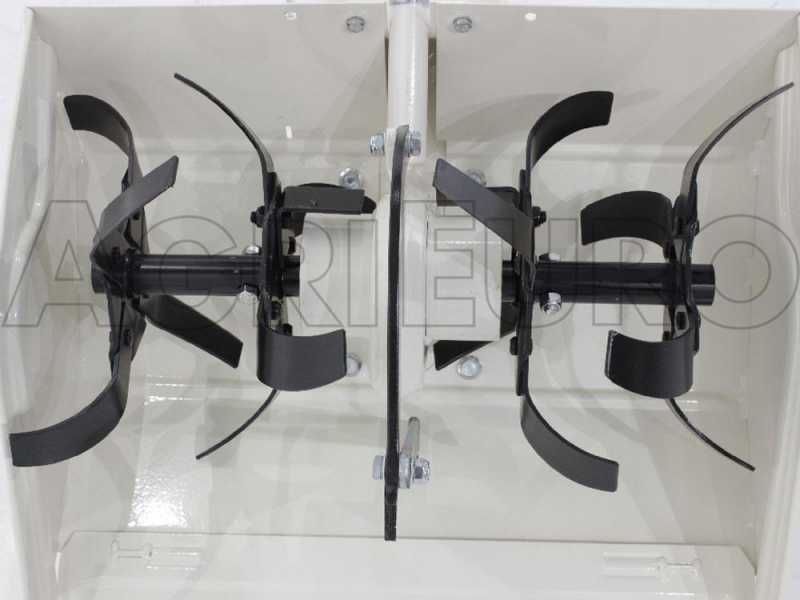

Tiller: 50 cm with quick hitch (with 4 elements x 4 hoes)

Transmission. Gear, screw in oil bath and belts.

Safety systems:
- impossibility to engage the tiller attachment in reverse gear when the operator is working on the tiller side
- the machine drive stops when the steering handles are released in compliance with the Machinery Directive 2006/42/CE

WARNING:

THIS MACHINE (like all two-wheel tractors on the market) IS SPECIFICALLY DESIGNED TO WORK EXCLUSIVELY ON SOFT AND ALREADY TILLED SOIL.

ITS MAIN FUNCTION IS TO GRIND THE SOIL VERY FINELY.

Differences between TWO-WHEEL TRACTORS and GARDEN TILLERS:

THE SPECIFIC USE OF THE TWO-WHEEL TRACTOR IS TO GRIND THE SOIL VERY FINELY, MAINLY IN VEGETABLE GARDENS.

It refines the soil more than a garden tiller. HOWEVER, IT IS NOT SUITABLE FOR WORKING ON HARD AND SOFT SOIL (where it is more appropriate to work with a garden tiller).
