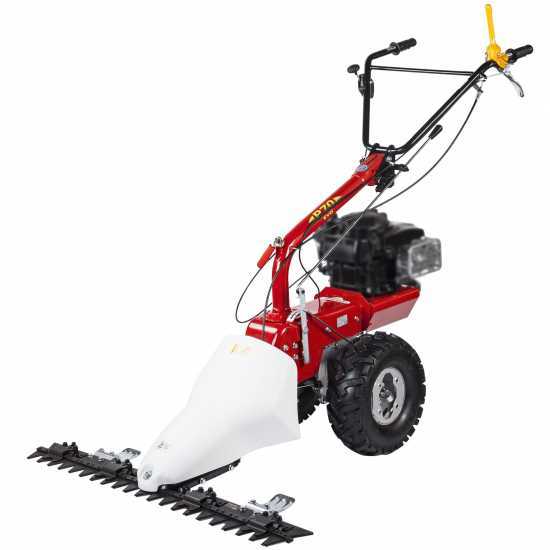

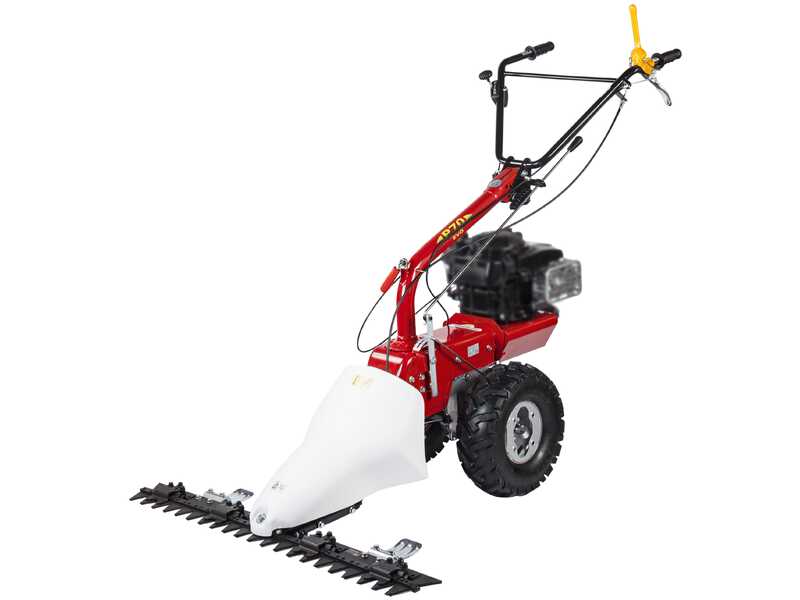

Eurosystems P70 EVO - Multifunctional twin-blade mower - B&S 850iS

Innovating self-propelled scythe mower featuring a set of large tractor wheels. The wheels are driven by an oil-bath gear and a 5 speed transmission system. 3 forward speeds and 2 reverse speeds.

107 cm sickle bar attachment included in the price, featuring dual-blade action. The lower blade and the upper blade move simultaneously in opposite directions.

This feature makes it stand out compared to other classic power scythes on the market that still feature a single-blade cutting action: in this case the upper blade moves while the lower blade is fixed.

The sickle bar is activated by a belt transmission system, which ensures durability thanks to the belt slipping effect.

Suitable for tall and thick overgrown grass and weeds and re-using the grass as food for livestock. The sickle bar cutting system cuts grass from the base without crushing it.

The grass pieces remain intact and they can be used as livestock food.

Suitable for all kinds of terrain, uneven surfaces and gentle slopes.

Brush sweeper
For cleaning:
- yards
- all kinds of green areas
- roads
- squares

Snowplough
Suitable for removing snow in squares and yards, on small driveways and so on.

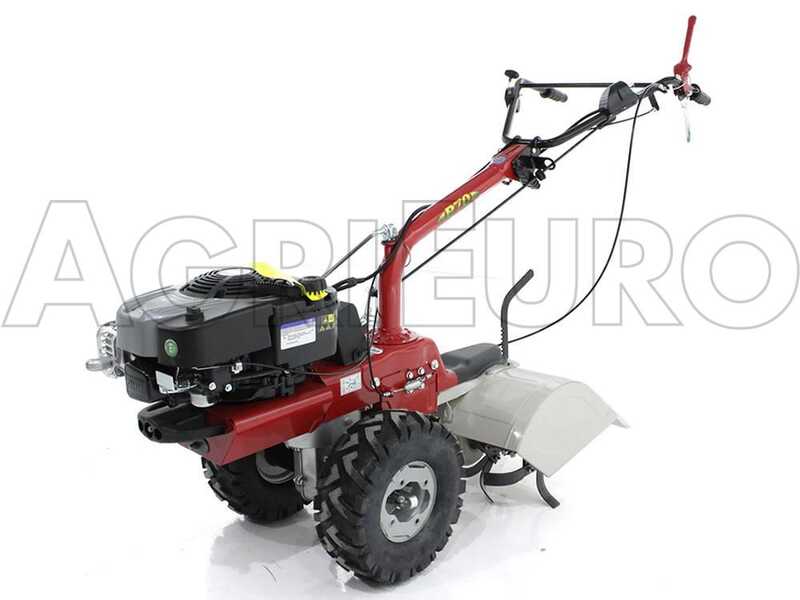

Tiller / cultivator
for small plots of soft and non-rocky land.

Brush mower blade deck:
This attachment turns the machine into a rough cut mower that can remove overgrown grass and weeds.

Leaf vacuum
for fast collection of dry leaves in squares, yards, on driveways and so on.

Snow blower
Suitable for removing large amounts of snow from driveways, roads and squares. This attachment blows the snow to the side through a chute.

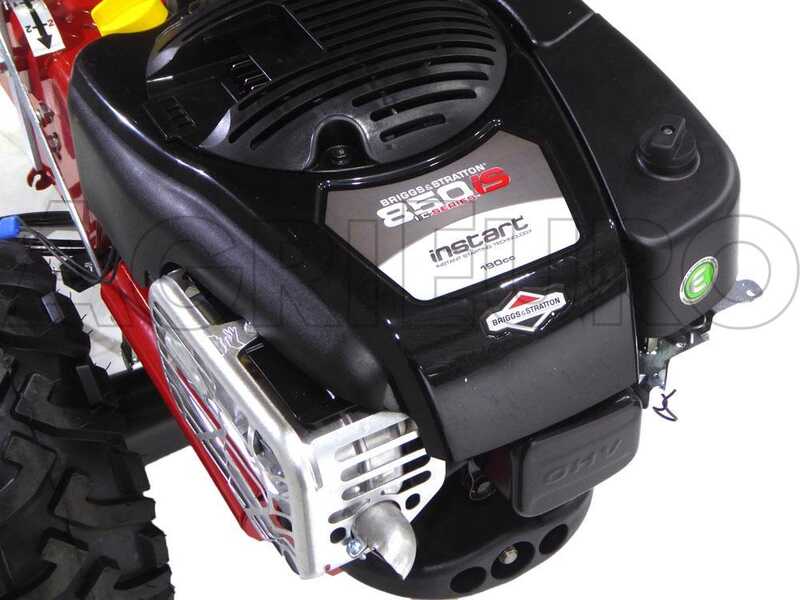

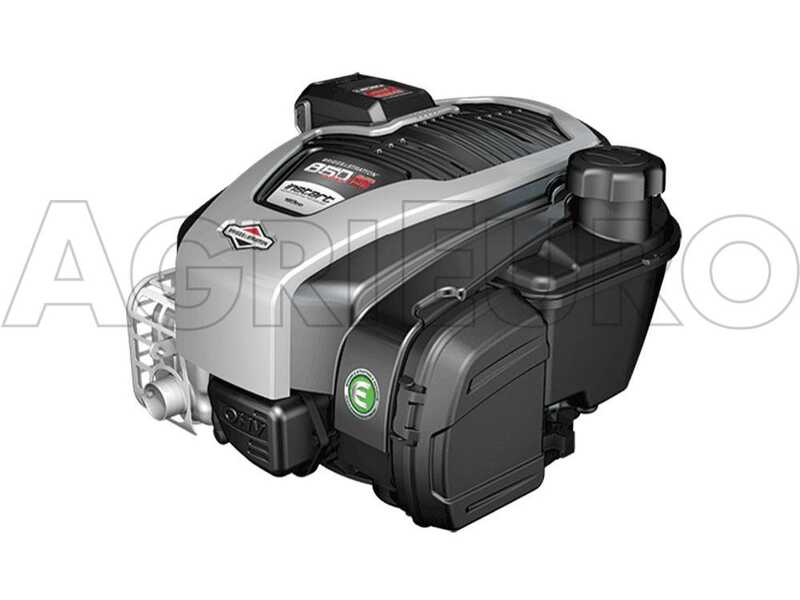

Brand-new Briggs&Stratton 850iS Series™ InStart single cylinder engine:

• InStart iS (Instant Starting Technology) is an innovative system that allows starting the engine with just one touch, no recoil starter rope required, no need to engage the carburettor or move the clutch lever.

Features:

The 850iS Series™ InStart model is the best gardening equipment engine model by Briggs & Stratton.

Besides their well-known power, performances and reliability, these new engine models feature the easiest and most innovative starting system ever. Other special characteristics: increased torque, extraordinary sound quality, lower noise and vibrations compared to other gardening equipment engines.

Focus on the standard-supplied battery and charger.

The InStart electric starting system by Briggs & Stratton allows starting this powerful engine by simply pressing a button.

This innovative system works thanks to the Lithium battery, which is built into the engine. Charge the battery for 10 minutes to start the engine more than 10 times. Charge it for 60 minutes and it will allow you to start the engine over 50 times. Once the battery is inserted, push the button to start the engine.

Place the battery in its housing, on the top part of the engine:1 2

Simply press the switch to start the engine.

You won't need to engage the carburettor or the clutch lever!

Lithium batteries ensure simple, fast and repeated starting and you don't need to charge them after each use. The InStart system is the simplest activation system ever: all you have to do is press a button - pulling the recoil cord is no longer necessary.

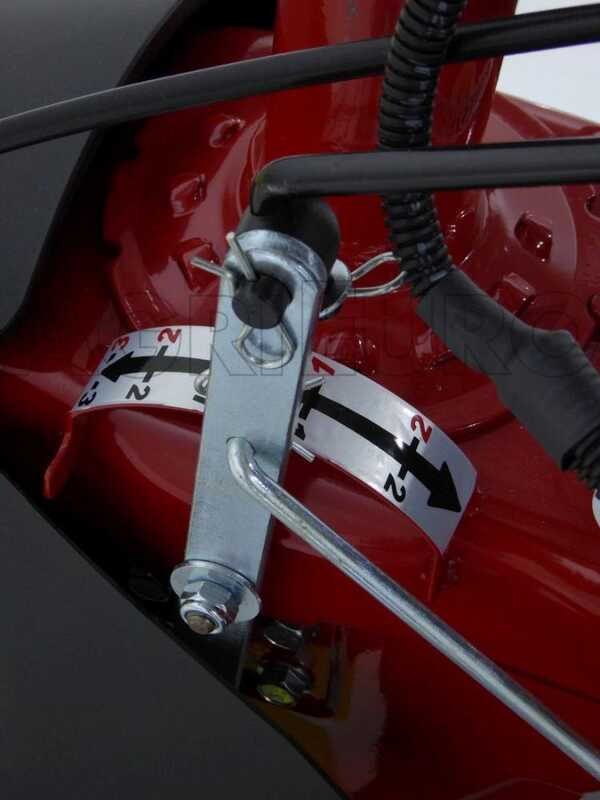

The 5 speeds gear shifting system features:

- 3 forward speeds

- 2 reverse speeds

The gear shifting stick is placed under the steering bars.

Central transmission: aluminium case and oil-lubricated steel gears. Very sturdy and reliable.

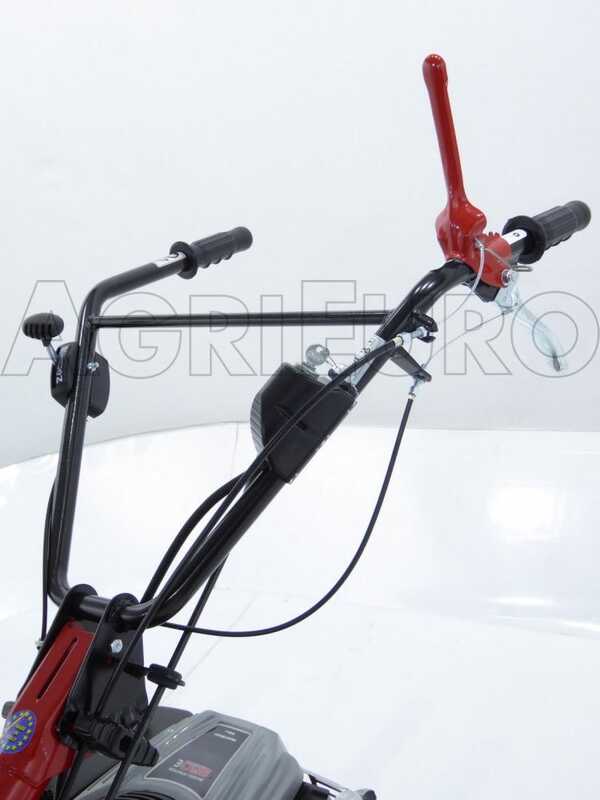

Focus on a detail of the handle bars. All the main controls are placed in this area.

The lower black knob lever is the gear shifting stick.

The red lever engages or disengages the sickle bar.

The silver lever engages and disengages forward or reverse motion, depending on the one the operator is using.

Focus on a detail of the handlebar height adjusting system.

The handle bars are reversible and the handlebar angle can also be adjusted.

Focus on a detail of the handle bars fixing and rotation system and lever.

Throttle control

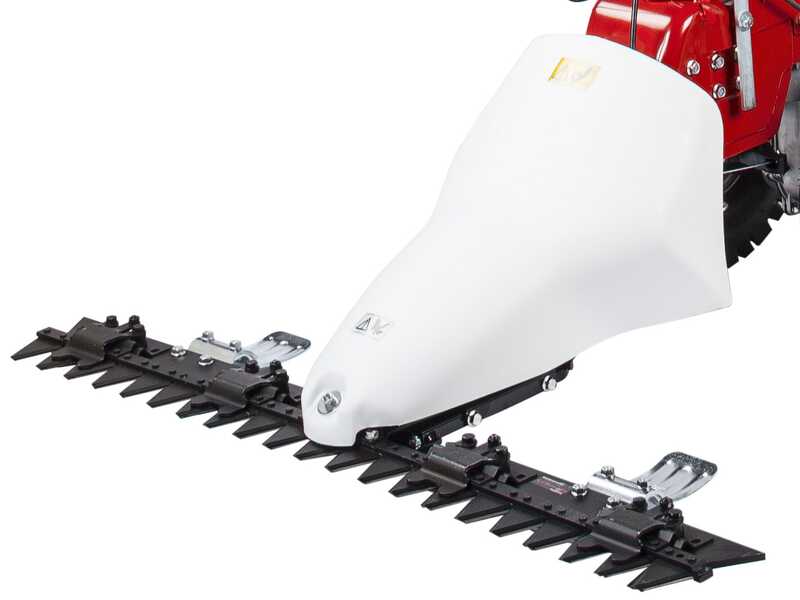

Sickle bar cutting width: 107 cm

DUAL-BLADDE ACTION: the cutting system consists of two blades that move simultaneously. The lower lever and the upper lever move in opposite directions: a special feature which makes this power scythe stand out compared to classic single-blade action scythe mowers on the market (in this case the upper blade moves while the lower blade is fixed and serves the purpose of a counterblade).

BUSATIS steel blades for high resistance.

DUAL-BLADE SYSTEM ADVANTAGES:

- higher effectiveness on tall, bushy and thick grass

- higher effectiveness on very short, thin and soft grass

- better cutting quality

- cleaner cuts

- faster cutting action

- ZERO VIBRATIONS

Plastic sickle bar shield

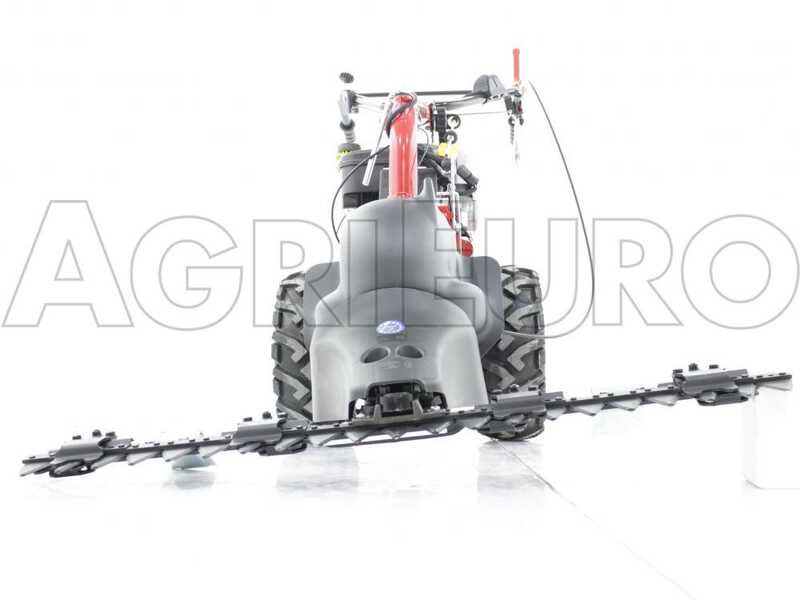

This scythe mower features a swinging cutter bar.

The cutter bar rotates around its own axis, which connects it to the machine body. This makes it possible to operate on all kinds of terrains, uneven and challenging surfaces.

Final belt drive between the sickle bar and the machine. The transmission unit is protected by the black shield you can see to the right.

This system protects the scythe mower. The belt tends to slip if the machine collides with obstacles, thus preventing damage to the scythe mower. However, we suggest you avoid hitting obstacles and using the machine on rocky surfaces.

Because the machine is equipped with a belt drive transmission system, the blade features an engage/disengage lever (upper red lever). This innovating machine allows engaging the blade only when necessary, so the blade can be disengaged when the operator doesn't need to use it.

The machine can be moved around on its drive wheels while the blade is disengaged.

Large pneumatic wheels with tractor tyres:

15"x 6.00 – 6

The wheels feature a blocking system that can be engaged or disengaged by releasing the fixing support. When blocking the wheels, they lose traction and go idle.
