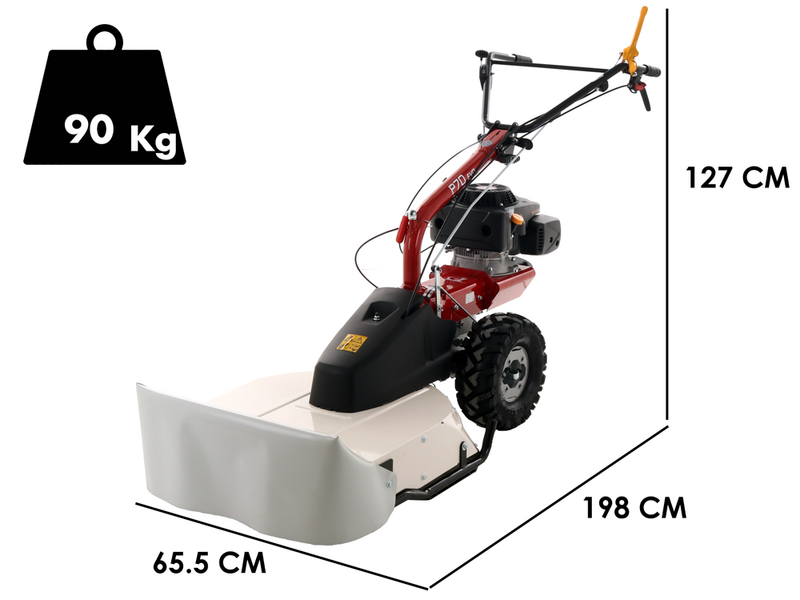

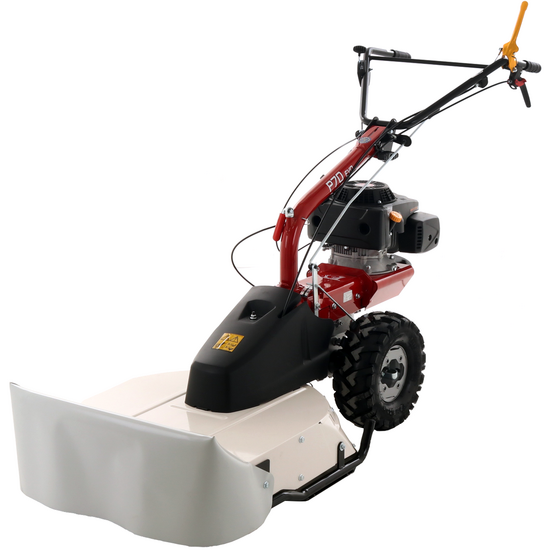

Eurosystems P70 EVO - Petrol Rough Cut Mower - Blade - Loncin 224 OHV

It is an innovative self-propelled scythe mower, equipped with large treaded drive wheels, connected to a gear transmission in oil bath and 5-speed gearbox (3 forward + 2 reverse).

The cutting deck accessory (provided on standard in the listing price), on the other hand, is driven by a belt transmission that gives it an exceptionally long life as it acts as a clutch effect that protects the cutting accessory.

This self-propelled petrol rough cut mower is also equipped with a powerful Loncin 224 OHV petrol engine

Suitable for cutting uncultivated and wild grass, even very tall, on all kinds of surfaces, even with a little slope and not perfectly flat.

It can destroy weeds that are even over one meter high. This is why it is one of the most effective petrol rough cut mowers on the market. It can be yours for a very competitive price.

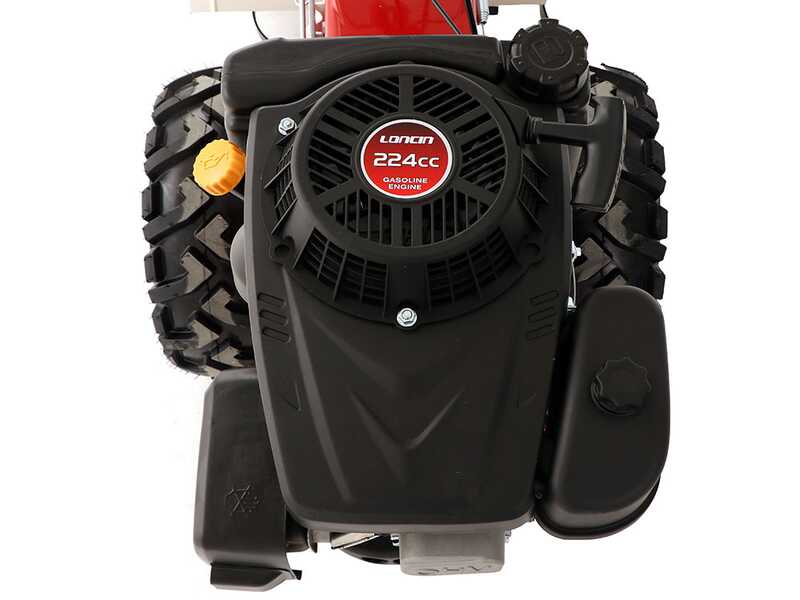

The Eurosystems P70 EVO scythe mower is powered by a powerful Loncin 224 cc OHV engine.

Features:

• Engine type: 4-Stroke, single cylinder
• Cylinder type: Aluminium
• Displacement: 224cc
• Compression ratio: 8.5:1
• Starting: Manual, recoil;
• Fuel: Petrol;

WARNING!

The engine is provided without engine oil. Bring the oil at the right level before first start.

Rated Power: 7 HP

Real power: 5.38 HP

WARNING!

* The correct term would be "Commercial” Power, meaning the classic standard of definition of power officially used until a few years ago by all leading engine manufacturers. This technical detail is even more widespread and advertised in the leading commercial channels, although it is a matter that it is higher than the actual power.

Power sweeper
to clean:
- courtyards
- any type of green space
- streets
- squares

Snow plough
suitable for removing snow in squares, small driveways, yards and so on.

Two wheel tractor
for treating small plots of soft, non-stony soils.

Sickle bar with
dual-blade action which allows removing
overgrown grass and weeds.

Leaf vacuum
for fast collection of dry fallen leaves in yards, driveways, courtyards...

Snow blower for cleaning roads, parkways, squares from large quantities of fallen snow
depositing it on the sides thanks to the standard-supplied gun.

The scythe mower is equipped with a 5-speed gearbox, 3 forward speeds and 2 reverse speeds.

They can be selected by means of the proper lever placed under the handlebars.

Central transmission with aluminium housing and internal steel gears in oil bath. Very sturdy and reliable.

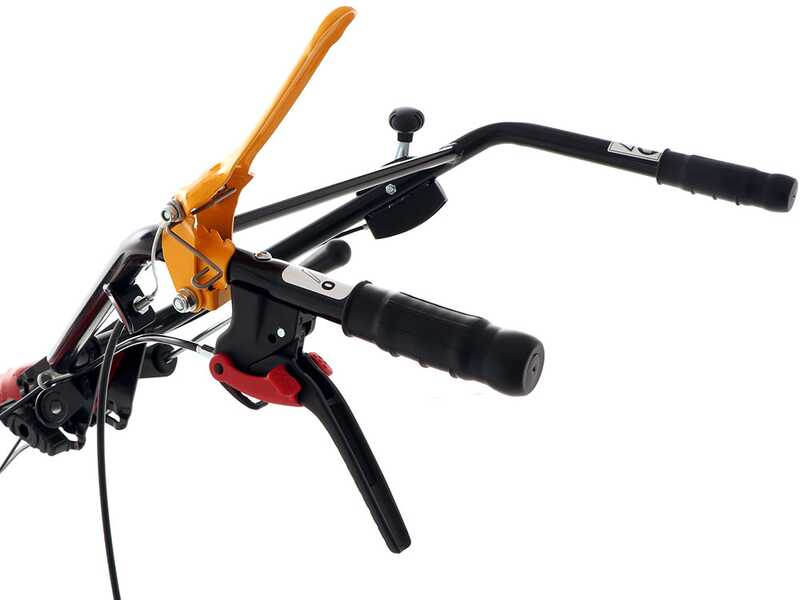

Focus on the steering handles (handlebars) where all the main controls are placed.

Lower lever with black knob: gear shifting lever.

Orange lever: Milling cutter engagement/disengagement.

Black lever: Forward and reverse gear engagement/disengagement (whatever the gear set by the operator).

Focus on the handlebar height adjustment.

The steering handlebars are reversible and adjustable laterally.

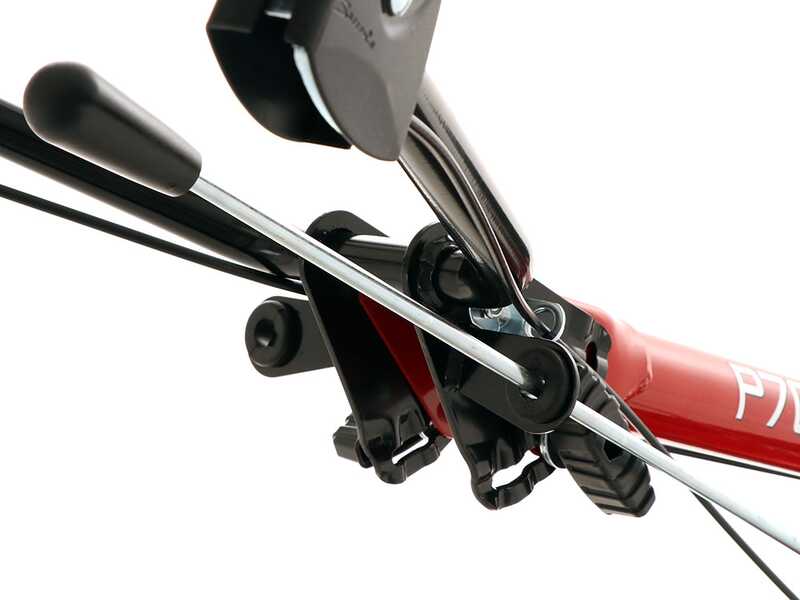

Focus on the handlebar fixing and rotation system through the proper lever.

Throttle lever

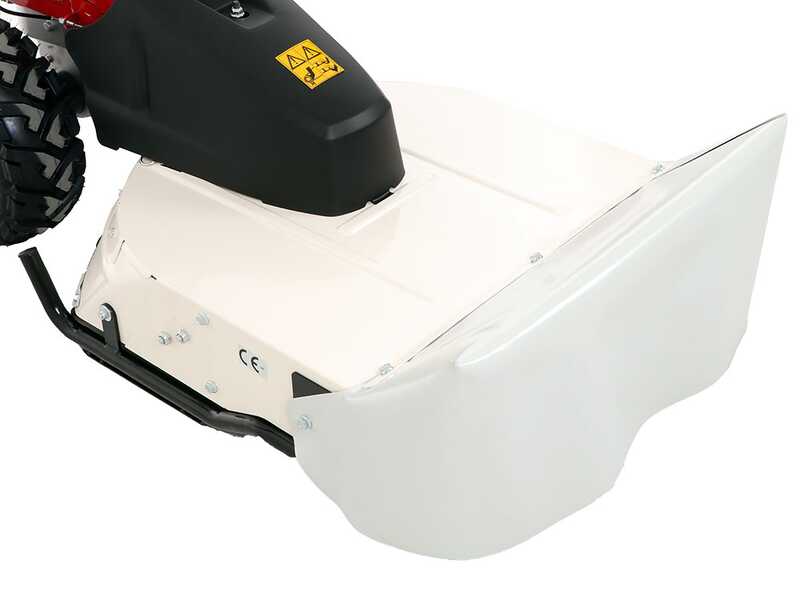

Innovative cutting deck consisting of:

- nr. 02 blades arranged perpendicular to each other (crossed) at different heights

- nr. 06 rotating knives at the ends

The two main blades are crossed, but most importantly they are placed on two different levels (one higher and one lower). These blades, by chopping grass and residues on more levels, allow the grass to decompose faster, since it is chopped so finely.

The 6-blade cutting deck cuts grass, small branches, reeds and much more very finely, like no other machine on the market can do. A truly extraordinary result. The maximum diameter for twigs and small shrubs is 1.5/2 cm.

The cutting deck chops the grass particularly finely since it is equipped with 6 cutting knives. These knives, placed on several levels, chop everything very finely. These are rotating knives. This protects them from any impact (such as stones, large diameter branches or unevenness of the ground). However, we recommend avoiding violent impacts if possible.

Blade rotation speed: 2300 rpm

Sturdy black tubular support slide, adjustable in height. The cutting height adjustable from 50 mm to 80 mm
Tall grass can easily access in the raised and particularly wide front entrance. It is protected by a thick PVC sheet to prevent the blades from throwing stones while rotating at high speed

THE CUTTING DECK IS THE ONLY ONE TILTING YOU CAN FIND ON THE MARKET.

In fact, it rotates around its own coupling axis to the machine body.
This allows it to work on any type of terrain, even quite bumpy, since it can easily adapt to its roughness.

Final belt transmission between the cutting deck and the machine body (protected by the large black carter in the photo).

This allows (together with the pivoting knife system) the cutting deck to last longer.

In fact, the belt performs a function similar to that of a clutch (it can slip in case of blade impact, often avoiding wear or damage of the components).

However, we recommend to avoid impacts and working on stony grounds, if the stones are big enough as to reach the rotating blades.

Therefore, an outstanding advantage consists of the blade engagement/disengagement lever.

In other machines, if the blade is mounted directly under the engine, this obviously cannot be turned off, and as long as the engine is running, the blade will continue to work. Instead, this innovative machine allows you to activate the blade only when necessary, for example in the spot where you need to work, and deactivate it immediately afterwards. It allows, for instance, to move the machine using self-propulsion while the blade is stopped.

Professional large size pneumatic sculptured drive wheels 15 "x6.00-6

Equipped with a locking/unlocking system that can be activated and deactivated by opening the fixing bracket. In this way, the wheels are in neutral or ensure traction.
