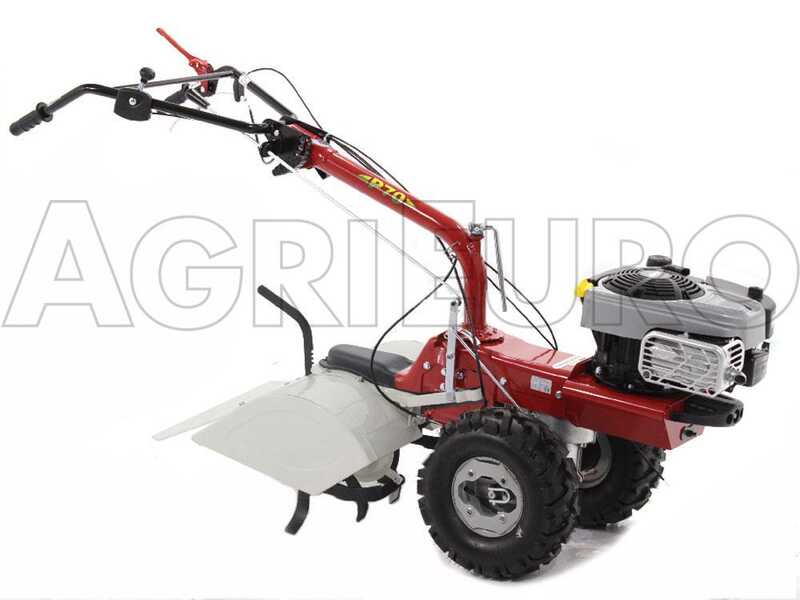

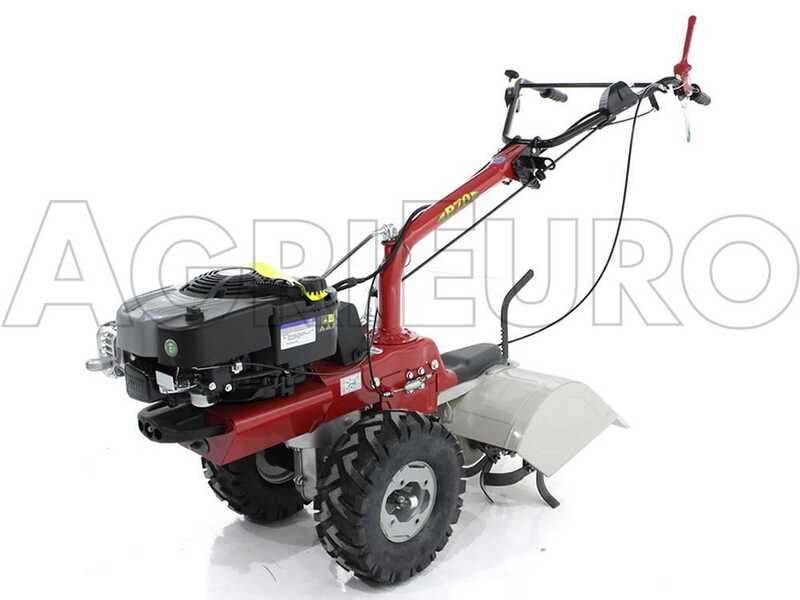

Eurosystems P70 EVO - Petrol Two-wheel Tractor - Brigs&Stratton 850E - 6.5HP

Self-propelled two wheel tractor powered by a 4-stroke engine and driven by large treaded tractor wheels. The wheels are attached to an gear transmission with gears in oil bath.

The 55 cm tiller attachment (supplied as standard) features 4 elements with 4 hoes each (16 hoes in total).

The two-wheel tractor is driven by a gearbox with 5 gears, of only 3 of which can be engaged to activate the functions of the machine (2 forward gears + 1 reverse gear), specifically the slower gears that are more suitable for specific use as a two-wheel tractor for tilling the soil.

The machine is multi tool i.e. it provides for the possible application of other accessories on request, which allow to use all 5 gears of the two-wheel tractor.

This type of machines is designed for working on soft, non-stony ground. They do not dig very deep into the ground, but have the ability to break up the soil very finely, more than any garden tiller. For this reason, they are specifically designed for working in vegetable gardens in all types of crops, or, in any case, on soft soils that have already been ploughed and frequently tilled.

On the other hand, in case of particularly hard (or even never worked) or fairly stony ground, or with sloping terrain, we recommend that you move towards a garden tiller, which is better suited to working in these conditions.

Power sweeper
to clean:
- courtyards
- any type of green space
- streets
- squares

Snow plough
suitable for removing snow in squares, small driveways, yards and so on.

Two-wheel tractor
for treating small plots of soft, non-stony soils.

Sickle bar with
dual-blade action which allows removing
overgrown grass and weeds.

Garden vacuum
for fast collection of dry fallen leaves in yards, driveways, courtyards, etc.

Snow blower for clearing roads, driveways, yards of large quantities of fallen snow, disposing of it on the sides thanks to the discharge chute.

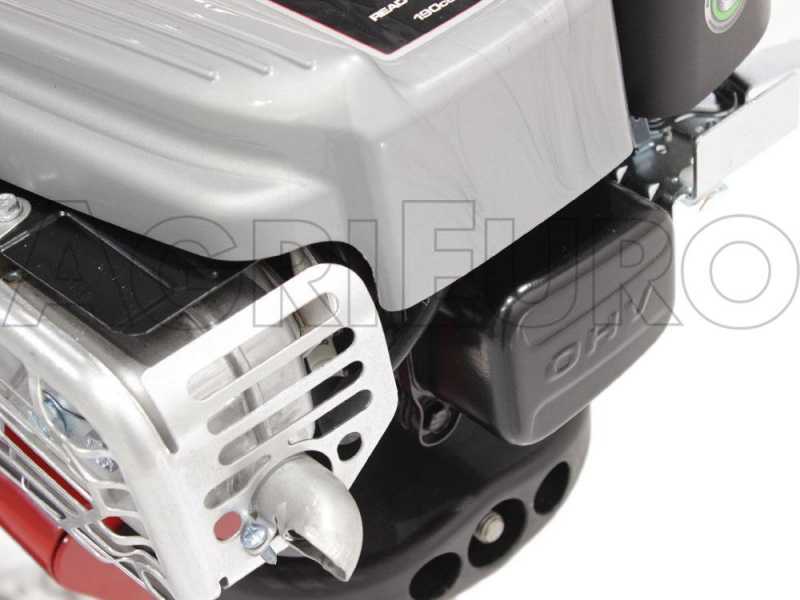

The Briggs & Stratton 850 E Series engine guarantees high performance, so it is suitable for works that require high reliability and durability, thanks to its remarkable 190 cc of cubic capacity.

Main features:

Designed for offering unmatched performance and long service life, the 850E series is the ideal engine for agricultural machinery.

Nominal Power: 6.5 Hp

The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers. This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 5.2 Hp

* It corresponds to the real power expressed on the cutting organ in working phase. This is the power indicated as official in the engine instructions manual.

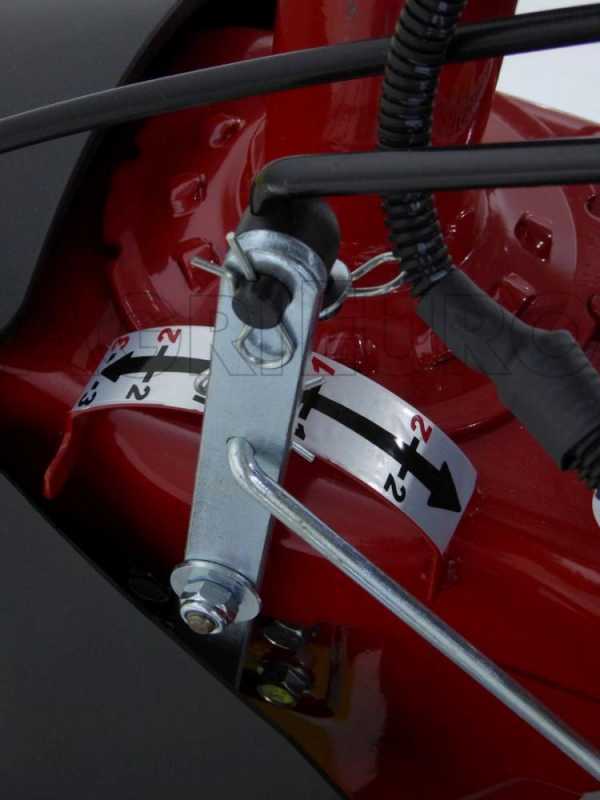

The two-wheel tractor is driven by a gearbox with 5 gears, of which only 3 can be engaged for tilling operations (2 forward gears + 1 reverse gear) and precisely those slower gears are more suitable for specific use as a two-wheel tractor for tilling the soil.

They can be selected by means of the proper lever placed under the steering handles.

Central transmission with aluminium housing and internal steel gears in oil bath. Very sturdy and reliable.

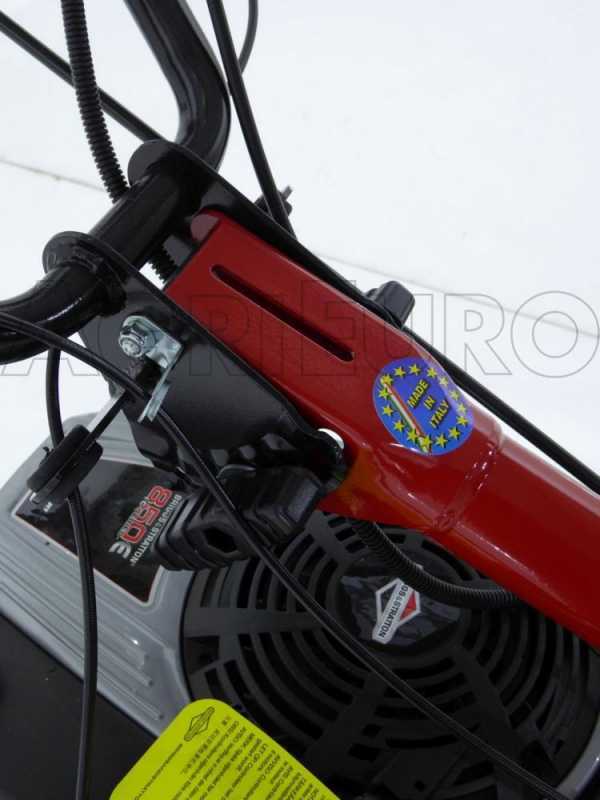

Focus on the steering handles where all the main controls are placed.

Lower lever with black knob: gear shifting lever.

Red lever: tiller engagement/disengagement.

Silver lever: forward and reverse gear engagement/disengagement (whatever the gear set by the operator).

Focus on the steering handles height adjustment.

The steering handles are reversible and adjustable laterally.

Focus on the steering handles fixing and rotation system through the proper lever.

Throttle lever

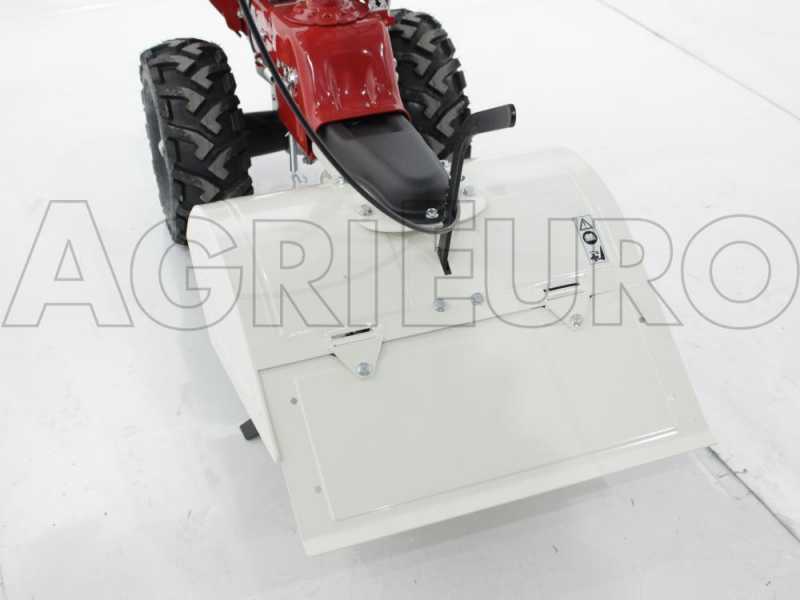

Tiller working width: 55 cm

External hood made of sheet steel.

Tiller equipped with 4 elements, each with 4 hoes

Tiller diameter: 32 cm

The stake can be adjusted in various positions, thus determining the working depth of the tiller(remember that all the two-wheel tractors on the market tend to grind the soil very finely, but they carry out fairly superficial work, i.e. they feature a medium-low working depth in the soil).

Final belt drive between the tiller and the machine body (protected by the black housing in the photo).

This will ensure longer life to the machine. In fact, the belt performs a function similar to that of a clutch (it can slip in the event of some impact from tiller’s hoes, often preventing the various components from being damaged.
However, we do not recommend bumping the machine and working on stony ground.

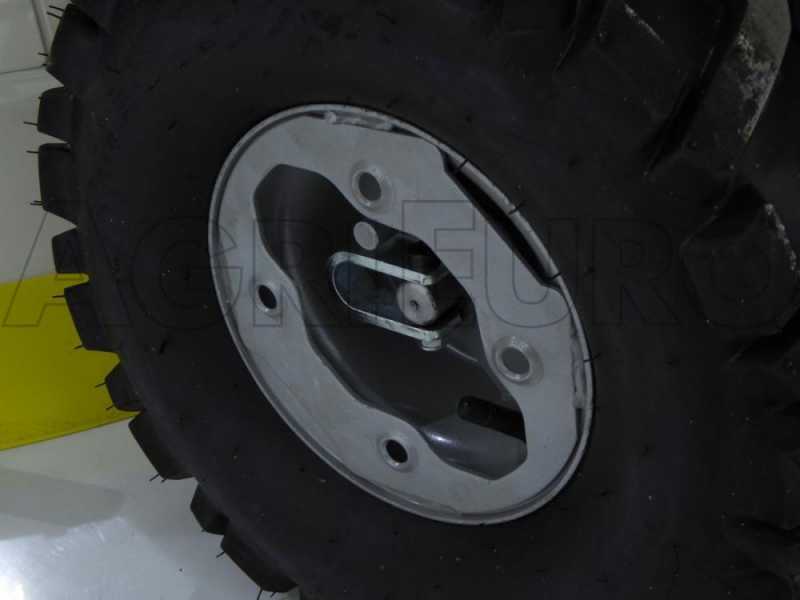

Heavy-duty large-sized pneumatic treaded drive wheels 15"x6.00-6

Equipped with a locking/unlocking system that can be activated and deactivated by opening the locking pin. In this way, the wheels go into neutral or regain traction.
