Description

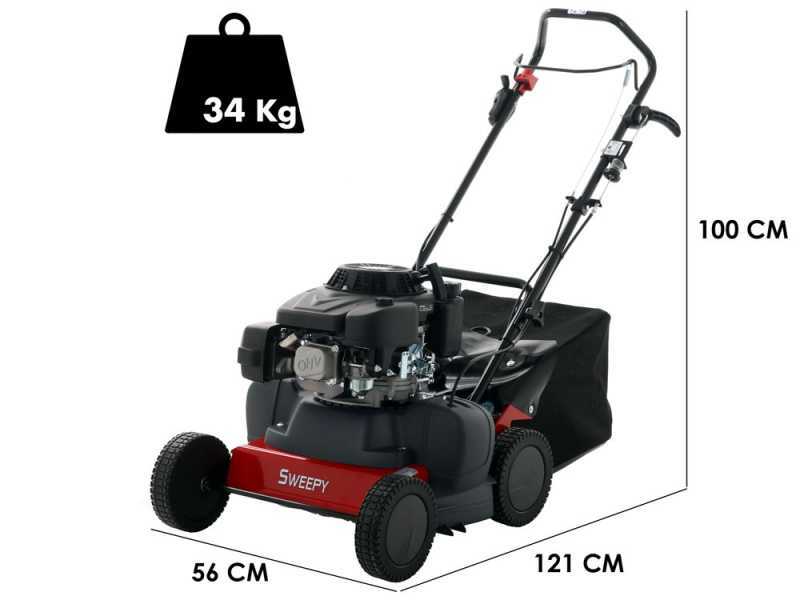

Eurosystem SWEEPY Power Sweeper with Loncin 196 OHV Engine

The SWEEPY power sweeper fitted with 196 Loncin OHV engine, is a product that belongs to the category of equipment suitable for the cleaning and maintenance of synthetic turfs, especially suitable for use in installations without backfill (granular or sandy soils).

This machine is intended for private individuals or alternatively for installers in the case of areas up to 1500 sq m.

The height-adjustable brush allows you to freshen up the synthetic lawn by cleaning and collecting various types of residues such as leaves, animal hair, cigarette stubs, etc.

The power sweeper is fitted with a Loncin 196 OHV engine high-performance, fuel-saving petrol engine.

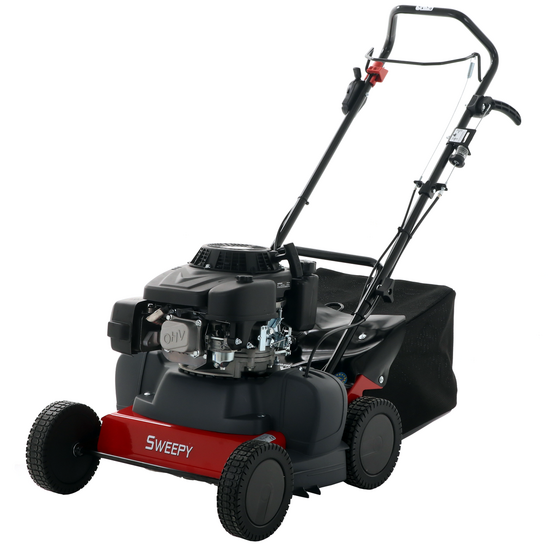

Eurosystems SWEEPY Power Sweeper with Loncin 196 OHV Engine - with Collector

Maintenance of synthetic turfs

These products are intended for the care, cleaning and maintenance of synthetic turf fields, especially for use in installations without backfill (granular plastic or sand).

For routine maintenance of your turf, we recommend regular brushing, obviously depending on the use of your field you will need to clean it properly. For the brushing of synthetic fields, it is advisable to use a brush with synthetic fibre bristles, such as nylon or polyethylene. WARNING: the brush must NOT have rigid metal bristles and to to avoid the removal of rubber granules, it is necessary to use the power sweeper correctly and without applying excessive pressure.

The position of the brushes will vary depending on the type or model of power sweeper. For optimum conditions, the brushes should be positioned in such a way that their tips lightly touch the grass fibres, which is why some machines are equipped with levers to adjust the working depth of the roller.

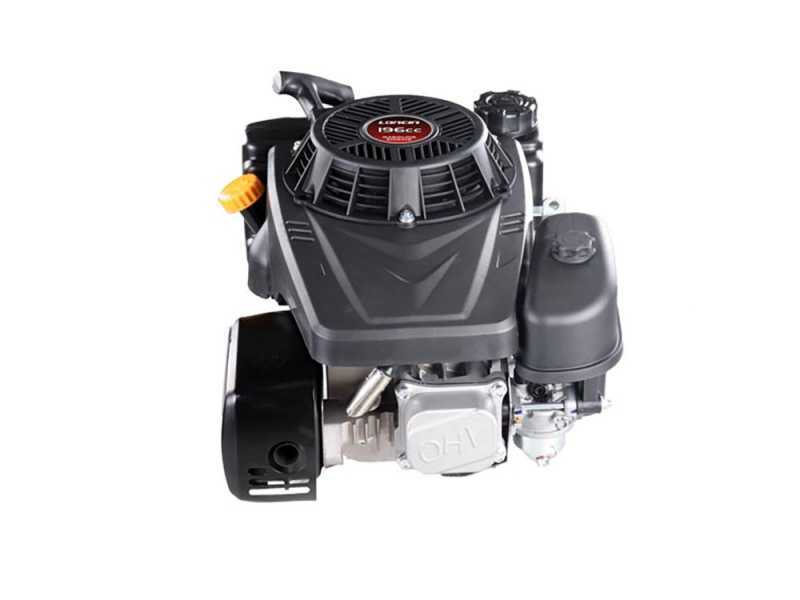

Loncin engine

The SWEEPY 196 OHV power sweeper is fitted with a powerful Loncin 196 OHV engine renowned for the high reliability and good performance.

Main features:

Engine type: 4-stroke, single cylinder

Cylinder type: Aluminium

Cubic capacity: 196 cm³

Power supply: Petrol

Focus on air filter

OHV (overhead valve)

Focus on the spark plug.

WARNING!

The engine is supplied without oil.
Fill the oil tank at level before first start-up.

Nominal Power: 6.5 Hp

Rated power: 4.8 Hp

The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers. This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

WARNING!

The engine is PROVIDED WITHOUT OIL.
Please carefully read the instructions manual before starting the unit.

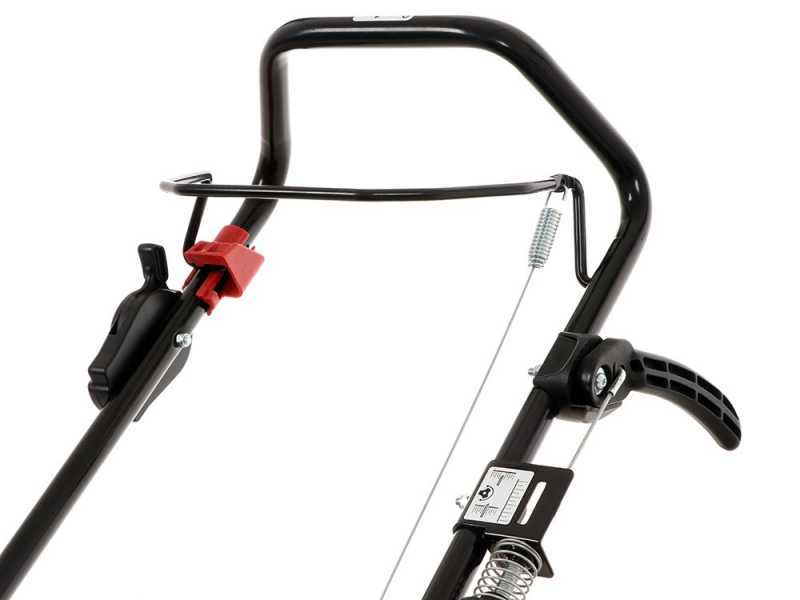

Controls, steering handles and wheels

The SWEEPY power sweeper is a hand-push machine with recoil start and V-belt drive.

Focus on the working depth adjustment (adjustment engaged , adjustment disengaged).

Focus on the depth adjusting lever.

The wheels feature a diameter of 20 cm, with ball bearings and automatic cleaning system.

Integrated quick release safety system on the roller engagement lever.

Focus on the engine speed variator

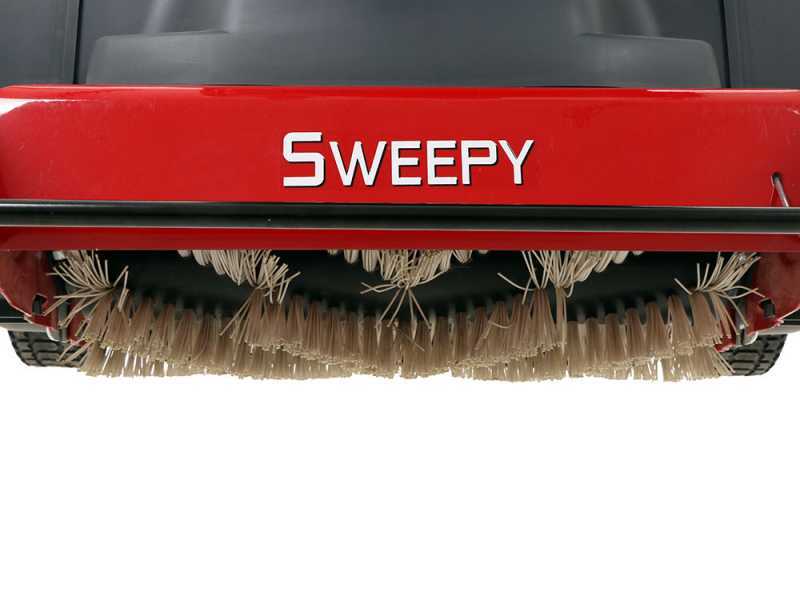

Collector and brush

This power sweeper is equipped with helical nylon brush with a diameter of 16 cm, a working width of 36 cm and a rotation speed of 2600 rpm.

Its working depth can be adjusted manually by means of the special lever for quick lifting placed on the handle.

The machine is also provided with a collector, easy to assemble and to remove, made of nylon with a maximum capacity of 45 L.

Free items & Standard equipment

1° GIFT: Engine spare parts and maintenance kit

COMPLIMENTARY:

Spare parts set and accessories for the maintenance of the following engines.

Honda GX 120/GX 160/GX 200
Honda GP160/GP 200
Loncin 120/160/196 cc
Axo 120/160/196 cc
Briggs & Stratton 950 series

The set includes:

No. 1 GeoTech spark plug

No. 01 professional joint spark plug wrench specific for riding-on mowers, flail mowers and lawn mowers heavy-duty engines.

No. 01 Spare elliptical pleated paper air filter with sponge cover

No. 01 round foam air filter for engines with oil bath filter unit

WARNING: This kit can’t be used for other brands or models on the market. We don’t provide different kit from the ones offered on our website. We do not guarantee that this kit is valid on products not purchased on our website

2° GIFT: 600 ml Bottles of Engine Oil

COMPLIMENTARY: two 600 ml sae 15W 40 oil bottles. Specific lubricant for 4-stroke gardening machinery with up to 10 Hp of power. Good cleansing and dispersion.

GIFT: SAFETY KIT

SAFETY KIT

Noise-cancelling earmuffs to work with maximum comfort
Hearing protection must be performed correctly in every situation. In this case, the supplied earmuffs are specifically designed to educe machine noise.

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate, equipped with antifog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid fogging and to improve comfort of use.

100% cotton Agrieuro bandana

Cotton gloves with rubber ripples for comfort and a secure and stable grip on equipment.
