Description

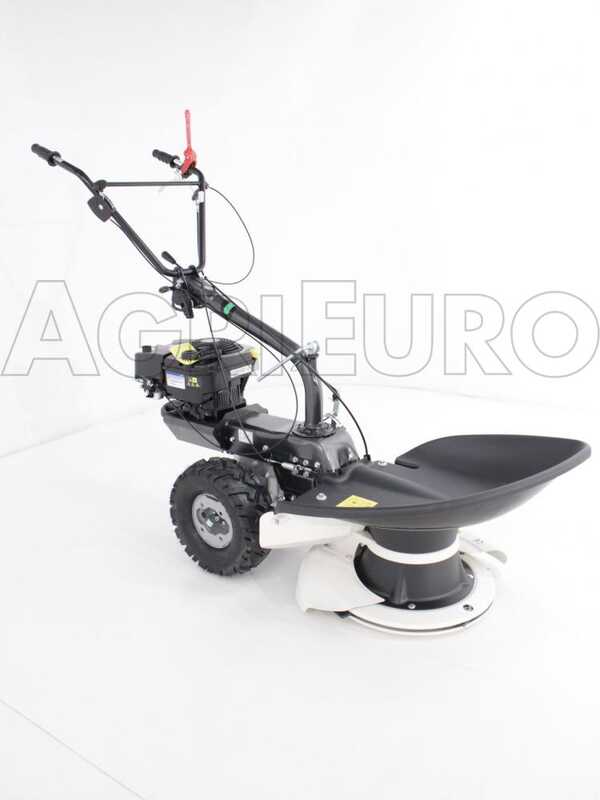

TM 70 64 cm rotary scythe mower

Self-propelled rotary scythe mower featuring a 4-stroke engine and large Tractor wheels. The pneumatic wheels are activated by an oil-bath worm gear drive and 5 speed gear shifting system (3 forward speeds + 2 reverse speeds).

The cutting unit consists of a rotating disc that features 4 swing blades. The blades rotate around their own axis and slide back in when hitting obstacles. This is undoubtedly the most advanced and effective cutting system on the market today as it emulates the heavy-duty tractor drum mower cutting system.

Suitable for all kinds of surfaces and any kind of grass (tall, short, thick, slender, straight, bent or crushed by weather conditions).

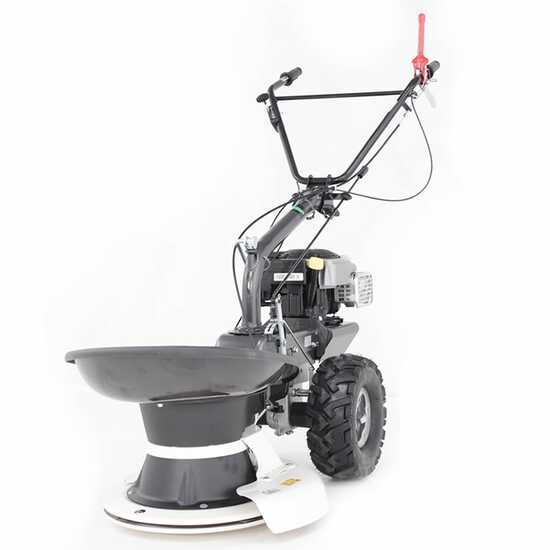

Eurosystems TM 70 EVO - Multifunctional rotary mower - B&S 850E I/C

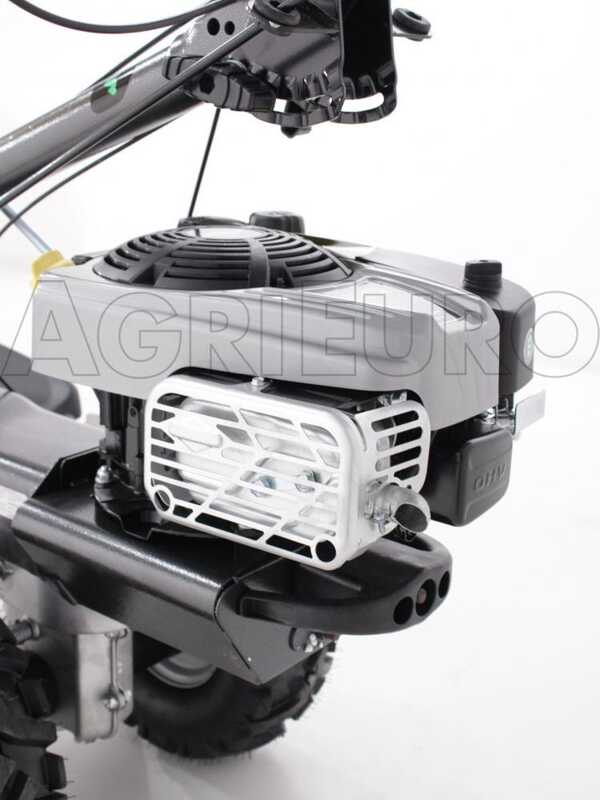

Briggs & Stratton 850E engine

The Briggs & Stratton 850 E engine offers high-level performances, reliability and durability. Large engine capacity: 190 cc
Long-lasting heavy-duty engine series.

Specifications:

Engine type

4-stroke single cylinder OHV

Cylinder type

Aluminium

Cylinder displacement

190 cm³

Bore x stroke

68.3 mm x 51.8 mm

Max rpm

3060 rpm

Torque value

11.5 Nm @ 3’060 rpm

Tank capacity

1,5 Lt

Dry weight

12,5 kg

All-new 4 stroke petrol engine featuring: Err overhead valve system "OHV" and auto-decompression activation.

Easy recoil activation thanks to the fuel self-priming system.

The engine DOES NOT CONTAIN OIL when sold.
Read the instructions manual carefully before starting the engine.

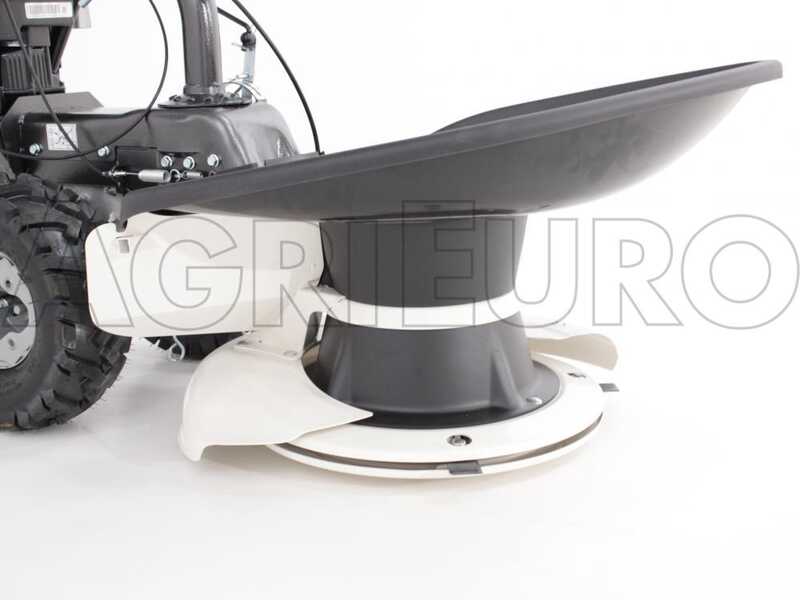

64 cm rotary sickle bar

Cutting diameter: Ø64 cm

Blade rotation speed: 2300 rpm

Cutting height: 36 mm

Cutting system: 4 swing knives that form a 90° angle and feature double edges. The knives slide back inside in case of shocks and collisions with stones or other obstacles.

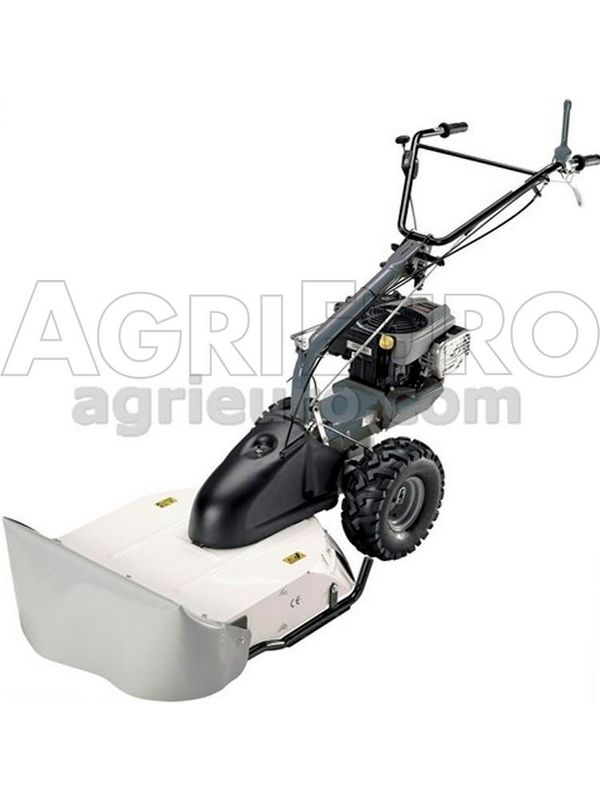

Optional attachments

WARNING:
the following accessories are not included in the machine price.

BRUSH MOWER BLADE DECK: this accessory allows using the machine as a powerful petrol rough-cut mower.

Mulching SICKLE BAR: this accessory allows using the machine as a self-propelled scythe mower.

IRON SPADE LUG WHEELS + ENGINE COUNTER BALANCER

* these two accessories allow working on steep slopes (up to a max. of 30 - 35%) with a sideway motion without causing the wheels to lose grip or traction and preventing engine seizure. It keeps the engine in a stable horizontal position to guarantee correct lubrication. These extra accessories can only be used with the rough cut mower and scythe mower attachments.

Gear shifting system, transmission and tractor wheels

Oil-lubricated worm gear and screw final transmission. Belt central transmission.

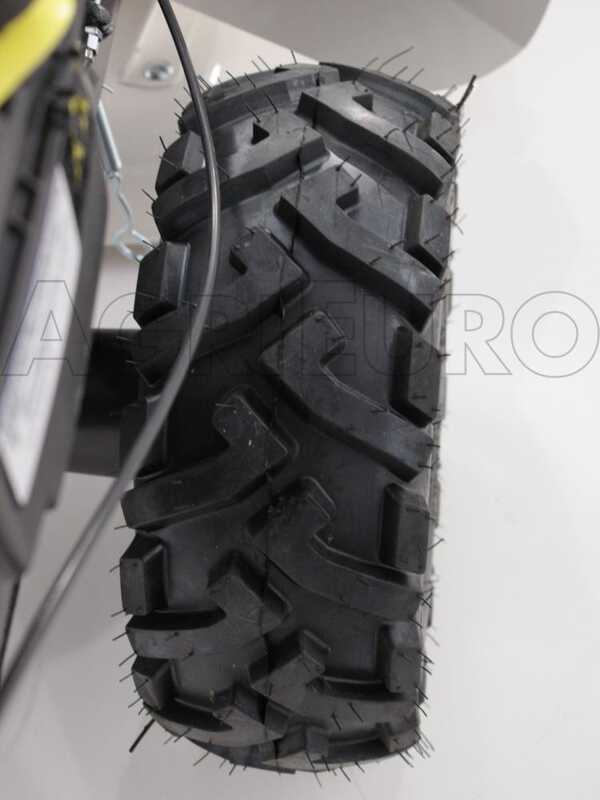

The PM 70 self-propelled drum mower is equipped with large tractor wheels (15x6.00 - 6) to ensure perfect grip.

Sturdy gear shifting system featuring 5 speeds:
- 3 forward speeds
- 2 reverse speeds

The user can select the desired gear by pulling the lever below the steering bars.

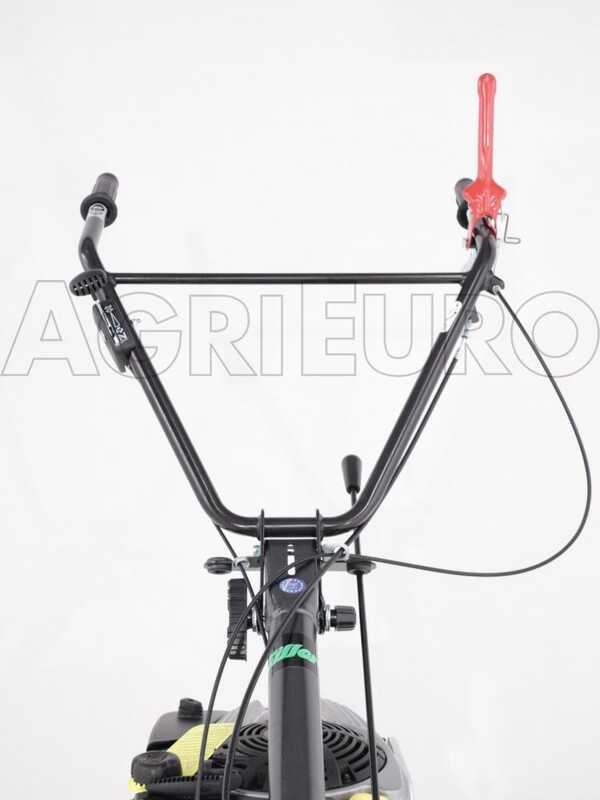

Steering bars and controls

The steering bars can be adjusted both horizontally and vertically.

The red safety lever allows stopping the machine in case of emergency.

Machine activation lever.

Gear stick.

Throttle control.

Free items & Standard equipment

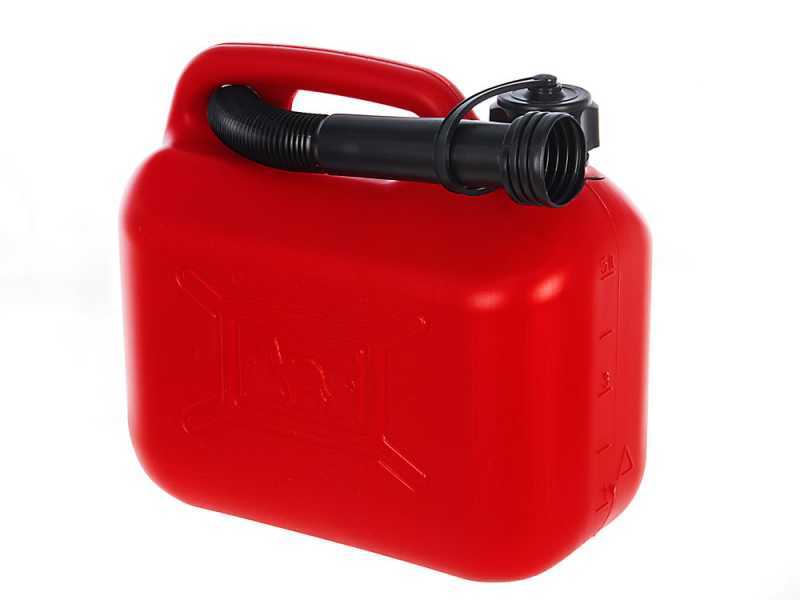

COMPLIMENTARY: Heavy-duty 5L Plastic Fuel Tank With Flexible Pouring Spout

Fuel tank: capacity 5 L

Professional ONU approved tank, made of certified plastic material.

With sealing cap equipped with comfortable anti-fall clamp.

Flexible pouring spout equipped with independent assembling sealing ring.
It allows a simple fuel dosage without the risk of spilling it.

The insides are made of exceptionally thick plastic, which makes these tanks especially sturdy and anti-drilling.

Furthermore, the plastic is red so as not to allow the penetration of light, ensuring the optimal fuel conservation.

Focus on the carrying handle and housing for the flexible pouring spout

WARNING: petrol and mixture tend to lose their characteristics and to deteriorate quickly when in contact with light. For this reason, traditional transparent tanks are strongly discouraged for these fuels (as well as for poor security reasons)

1° GIFT: spare parts, accessories and maintenance kit for B&S 190/223 cc OHV engine

Spare parts and maintenance kit for the following BRIGGS & STRATTON engines:

875 Series
850 Series
825 Series
1000 Series

WARNING: this set is not suitable for other brands or models on market. We do not provide different kits from the ones offered on our website.

The kit includes:

Professional spark plug for the engine.
Multi tool spark plug wrench. Specific for lawn mowers - rough cut mowers - scythe mowers - etc.
Specific syringe for engine oil suction.
Waste oil collection bottle for easy waste oil disposal.
Funnel for oil draining and refilling.

2° GIFT: protection kit

PROTECTION KIT - SAFETY EQUIPMENT

Protective earmuffs to work with maximum comfort
Ear protection must be performed correctly in every working condition. In this case, the earmuffs provided on standard kit are specifically designed to protect the operator against the noise coming from the brush cutter.

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate,equipped with anti-fog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid obfuscation and to improve comfort of use.

Agrieuro headscarf 100% cotton

Cotton gloves with rubber waves, for greater comfort and a secure and stable grip on the equipment

3° GIFT: 1 L oil bottles

FOR FREE: 2x 1 L sae 10W 40 bottles. Specific lubricant for 4-stroke engine-powered gardening machinery featuring up to 10 Hp. Good cleansing and dispersion.

4° GIFT: sharpener for lawn mower blades

The sharpener allows you to sharpen the blades of your lawn mower in a few minutes.

It is very easy to use since it is only necessary to attach it to your screwdriver / drill and then it will be ready to use.

Thanks to its small size, you won’t even need to remove the blade from the lawn mower, thus ensuring an even faster maintenance.

Extra features

The machine will be delivered in its original double packaging.

Instructions manuals included.

WARNING
the engine will not contain oil when delivered - add oil according to the proper oil fill level before starting the machine for the first time.
