Name: Eurosystems TM 70 RB EVO - Petrol Snowplough - B&S 850 E I/C
Brand: Eurosystems
SKU: K502115
Price: 2165.38 EUR
Availability: InStock

Description

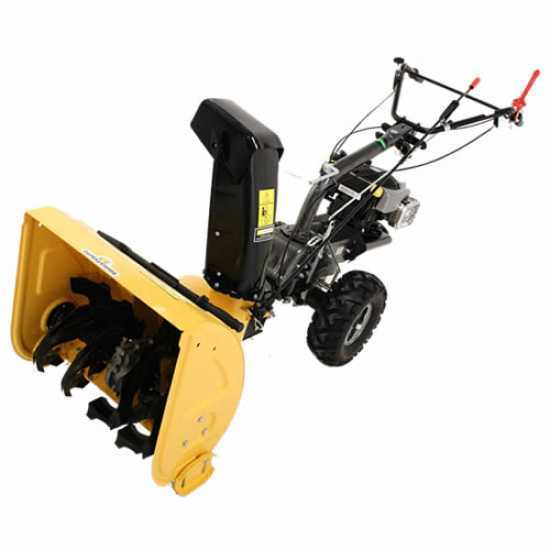

Eurosystems TM 70 RB self-propelled snow blower

The Eurosystems TM 70 RB snow blower is fitted with a 190 cc Briggs&Stratton 850 engine with 6.5 Hp nominal power. The snow thrower attachment (supplied as standard) is a two-stage system with a swivelling discharge chute.

This multi-tool machine can be provided with different accessories thanks to the quick-release system and reversible handlebar.

Eurosystems products are Made in Italy and ensures great reliability and high-quality construction materials.

The gearbox consists of 5 speeds, 3 forward and 2 reverse speeds.

3 forward speeds:
1MA = 1,08 km/h
2MA = 2,51 km/h
3MA = 3,47 km/h

2 reverse speeds:
1RM = 1,07 km/h
2RM = 2,07 km/h

Eurosystems TM 70 RB EVO - Petrol Snowplough - B&S 850 E I/C

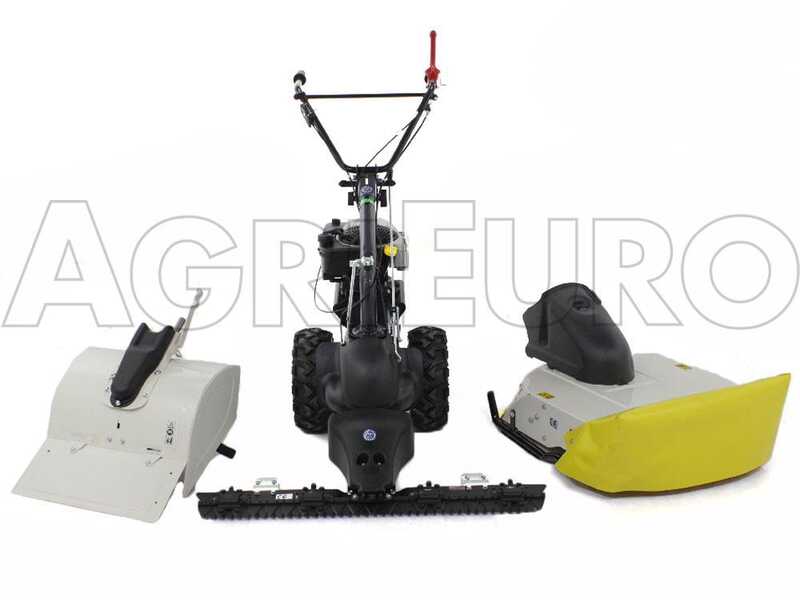

Optional attachments for the Eurosystems rough cut mower

The reversible flail mower allows using this machine for different operations.

Here are some examples of the accessories that can be fitted to the machine:

55 cm AUGER
102 cm SICKLE BAR
RIDGER - FURROWER
SNOW PLOUGH
SCARIFIER
BRUSH SWEEPER
ROTARY SCYTHE
PAIR OF SNOW CHAINS

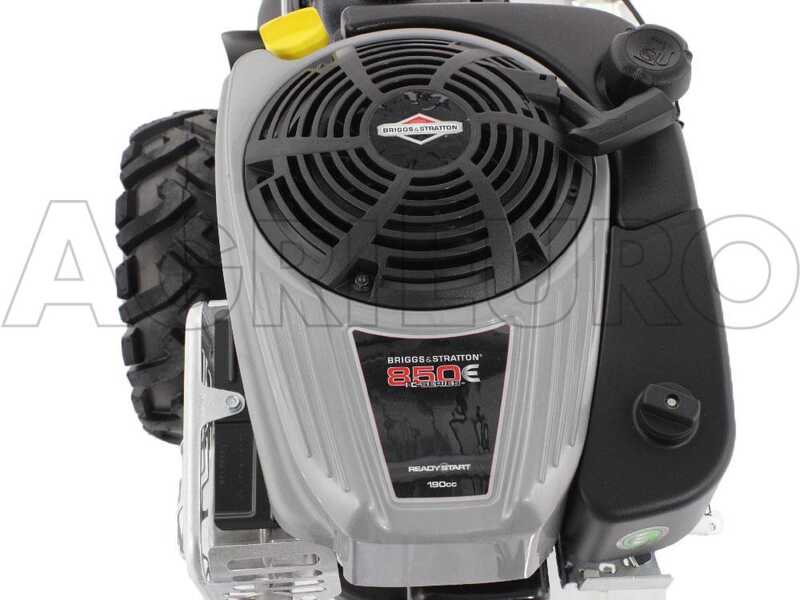

Briggs & Stratton engine - 850 E I/C Series

The Briggs & Stratton 850E Series is a high-performing professional engine which guarantees high reliability and durability, and its 190 cc makes it suitable for works where fair power is required.
It is a professional-level engine that ensureshigh reliability and durability.

Features:

Engine type: 4-Stroke - OHV - single cylinder

Cylinder type: Cast iron

Cubic capacity: 190 cc

Bore/stroke ratio: 68.3 mm x 51.8 mm

Max. rpm: 3060 rpm

Torque value: 11.5 Nm @ 3’ 060 rpm

Fuel tank capacity: 1.1 L

Dry weight: 11.2 Kg

4-stroke Petrol engine of the latest generation overhead valve engine “OHV” and decompressor starting system.

Easy Recoil start thanks to the automatic fuel priming system.

The large majority of agricultural and gardening equipment on the market today is equipped with unbranded (or unknown branded) engines made in China.

The engine is PROVIDED WITHOUT OIL.
Please carefully read the instructions manual before starting the unit.

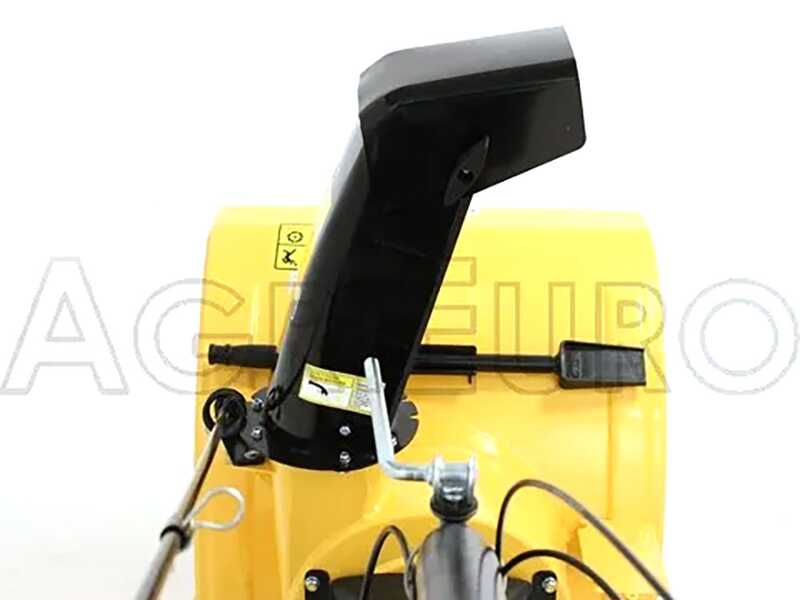

Snow thrower attachments and auger housing

The auger compartment measures 56 cm wide and 55 cm high.

The auger supplied is a heavy-duty type equipped with a steel spiral featuring an optimised profile and serrated edge. It is capable of crushing even the most compact snow.

Two-stage system The snow is efficiently conveyed into the machine by means the auger, and then thrown away through the discharging chute by means an internal high-speed centrifugal fan.

High-speed rotary bevel gearbox.

The adjustable metal side skids allow this snow thrower to work on all types of terrain, from smooth to uneven ones (by raising the working height through the skids). It can also operate on gravel surfaces.

Adjustable chute to decide the direction of the snow discharged.

Adjustable deflector to decide at what distance discharging the snow.

The discharge chute orientation system is worm gear.

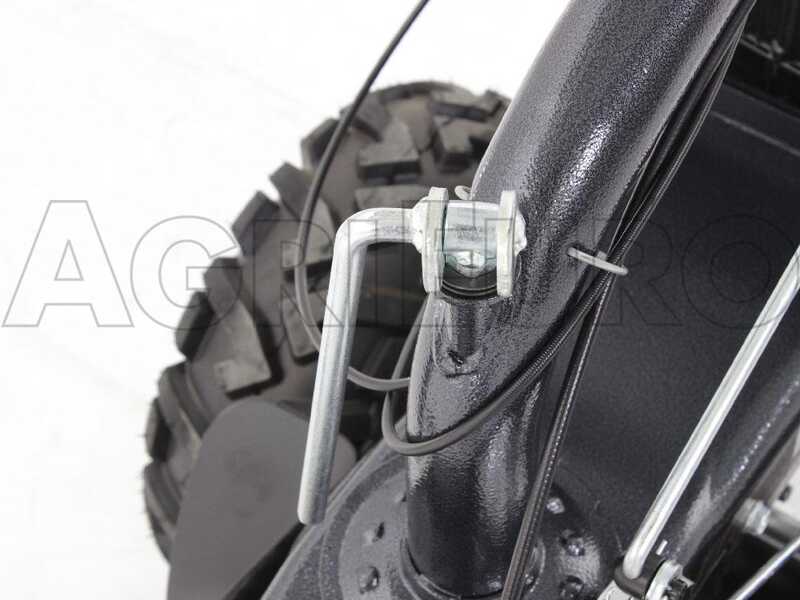

Steering bars and transmission

The steering handles are adjustable and reversible by 180°.

Height adjustable: in different positions thanks to the height-adjusting system on the steering bars.

Focus on the height-adjustment system.

Side-adjustment system:

The steering bars can be set at various angles (sideways) thanks to the fixing lever. This allows the Operator to easily move the machine forward on firm ground.

Soft rubber-coated handles

The reversible steering handles allow several other accessories to be attached (sickle bar, rough cut mower, etc.)

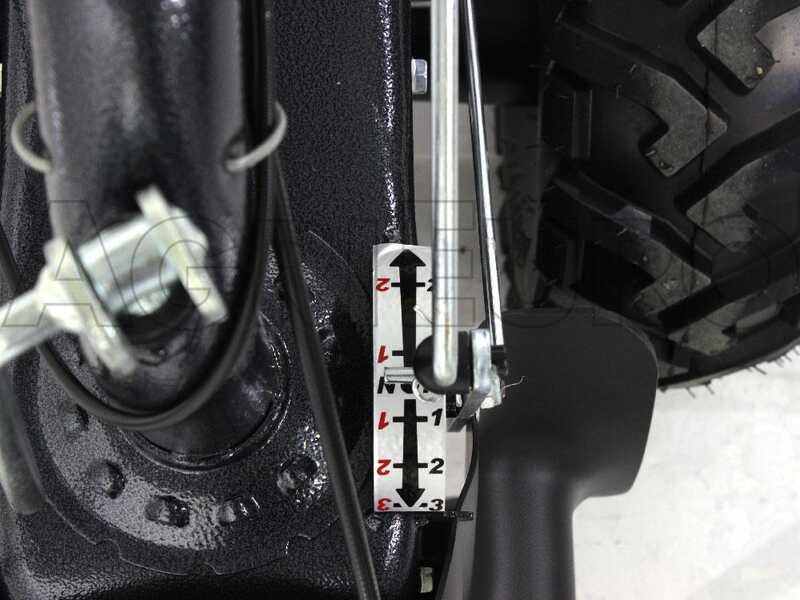

3 + 2 gearbox and other features

5 speeds

3 forward speeds

1MA = 1.08 km/h
2MA = 2.51 km/h
3MA = 3.47 km/h

2 reverse speeds

1RM = 1.07 km/h
2RM = 2.07 km/h

Gear shift lever control

Throttle lever

Main features:

Transmission: Gears and worm screw in oil bath and belt drive
56 cm cutting width
Recoil start system with self-recovery:
Blade engagement / disangament lever on the steering bars
Motion engagement lever on the steering bars
Attachments quick coupling
Reversible and height-adjustable guide handlebars
Large 15 "x6.00-6 heavy-duty pneumatic drive wheels with quick release
Engine cc: 190 cc
Weight: 80 Kg
Dark grey metallic paintwork

Free items & Standard equipment

1° GIFT: spare parts and maintenance kit for petrol engines

Spare parts and accessories set for petrol engine maintenance

WARNING: this set is not suitable for other product brands and models on the market. We do not supply sets other than those already posted on this website.

The maintenance kit includes:

Professional engine spark plug
Multifunction jointed spanner. Specific for lawn mowers - flail mowers - scythe mowers - etc.
Specific syringe for engine oil suction.
Waste oil collection bottle for easy disposal.
Funnel for changing engine oil

2° GIFT: protection kit

SAFETY KIT

Protective earmuffs to work with maximum comfort
Ear protection must be performed correctly in every working condition. In this case, the earmuffs provided on standard kit are specifically designed to protect the operator from the noise coming from the mower.

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate, equipped with antifog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid fogging and to improve comfort of use.

100% cotton Agrieuro bandana

Cotton gloves with rubber ripples for comfort and a secure and stable grip on equipment.

3° GIFT: engine oil

FOR FREE: 2x 600 ml sae 15W 40 oil bottles. Specific lubricant for 4-stroke engine-powered gardening machinery featuring up to 10 HP. Good cleansing and dispersing.
