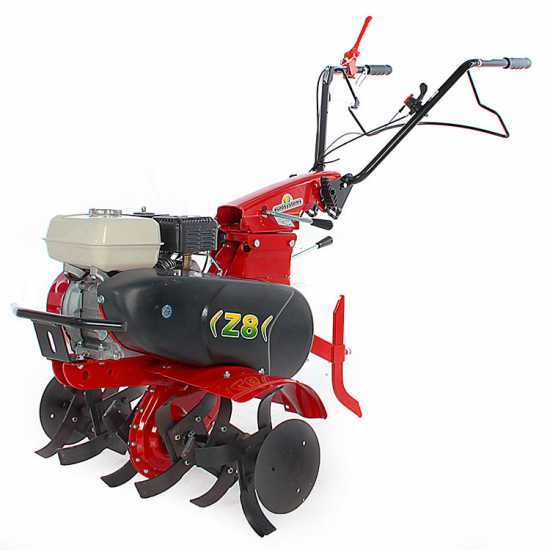

Name: Eurosystems Z8 - 5.5 HP Petrol Garden Tiller - Honda GX 160 OHV Engine
Brand: Eurosystems
SKU: K501918
Price: 1239.78 EUR
Availability: InStock

Description

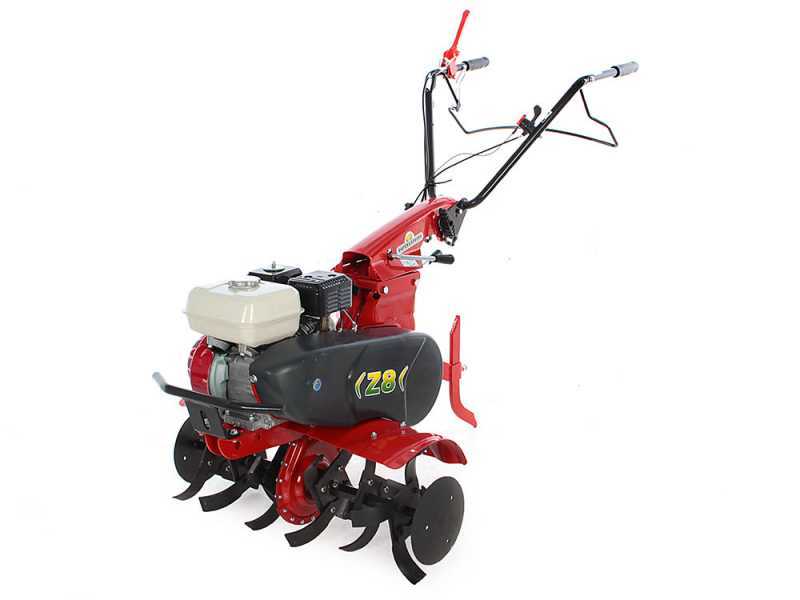

Eurosystems Z8 Garden Tiller with Honda GX 160 Engine

It is a medium-sized garden tiller for domestic use equipped with Honda petrol engine with OHV technology, exceptionally effective in low to medium intensity agricultural work and for tilling work on medium-sized areas.

It mounts a top quality Honda GX 160 engine with OHV technology.

Versatile, sturdy and powerful, perfect for quickly preparing the seedbed by breaking the top crust of the soil and making it finely crushed and well-ventilated, soft and ready for cultivation. On medium-compact soils, the tines mounted on this garden tiller work deeply into the ground in a easy, quick and comfortable way.

The sturdy mechanics, power and elasticity of the engine allows for a hobby use on medium-sized surfaces, even on untilled soils.

COMPLIMENTARY:

GARDEN TILLER MAINTENANCE KIT

Eurosystems Z8 - 5.5 HP Petrol Garden Tiller - Honda GX 160 OHV Engine

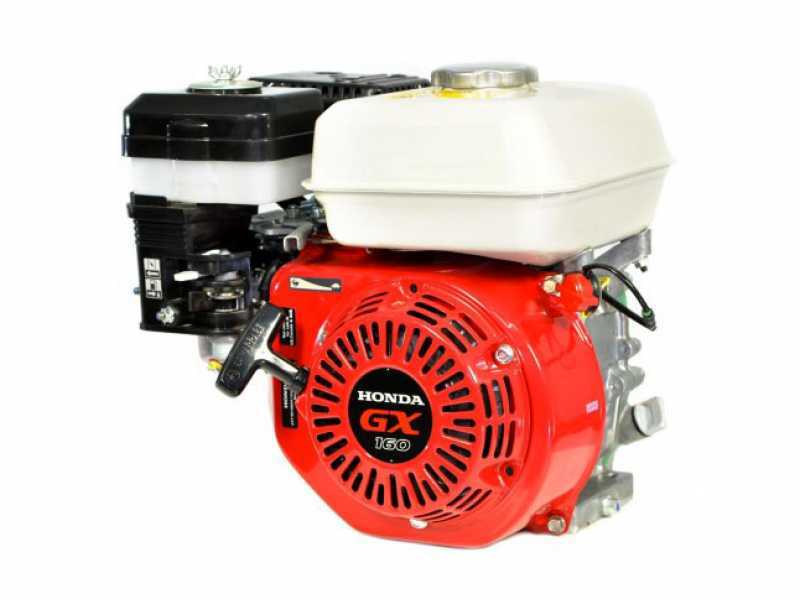

Honda GX 160 engine

The new generation Honda GX 160 engine is professional, powerful and features overhead valve OHV technology.

Features:

Engine type:

4-stroke, single cylinder

Cylinder type:

Aluminium

Cubic capacity:

163 cm³

Compression ratio

9.0: 1

Max. rpm:

3600 rpm

Many garden tillers on the market mount a Chinese engine (recognisable by the unknown or even absent brand name). We therefore do not recommend this type of machine (lacking in reliability, service and spare parts).

The "GX” Series (highly-professional), has been designed for heavy-duty jobs in building and agricultural field for generators, welders etc. It is characterised by great durability and reliability.

The engine is PROVIDED WITHOUT OIL.
Please carefully read the instruction manual before starting the unit.

Nominal Power: 5.5 Hp
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 4.8 Hp (at 3600 rpm)
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from an engine model to another according to the rotation speed provided by the manufacturer.

2+1 gearbox and controls

The gearbox is equipped with 2 forward and 1 reverse gears, which can be engaged by means of the special lever located between the steering handles.

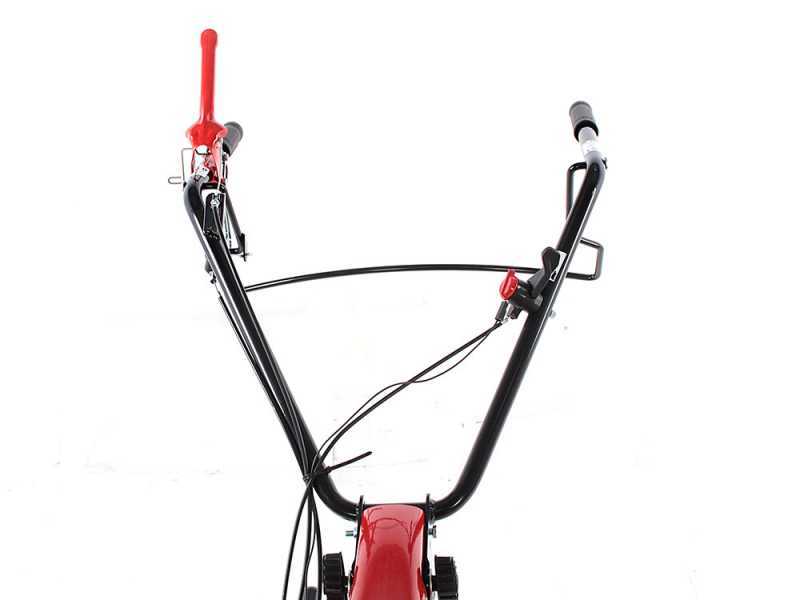

Focus on the steering handles where all the main controls of the machine are located.

Red lever: it is the clutch lever that drives the tines and the machine’s movement.

Focus on the throttle lever and the engine switch off rotary knob.

The steering handles are height adjustable thanks to the special lever.

Side adjustment of the steering handles by means of the lever placed on the left.

Forward gear, transmission and side belt drive

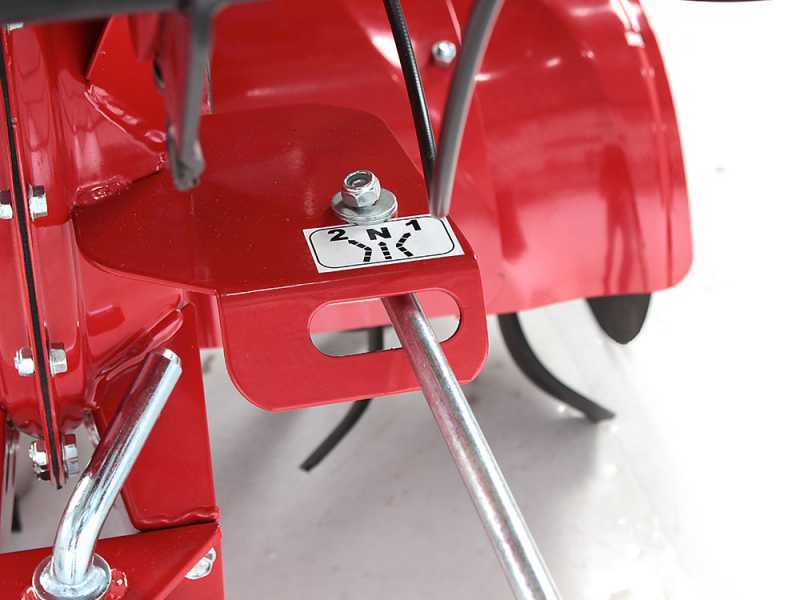

Gears: 2 forward gears + 1 reverse gear engaged through the lever located next the the steering handles.

Sturdy central chain drive in oil bath.

Side belt transmission protected by a sturdy openable housing.

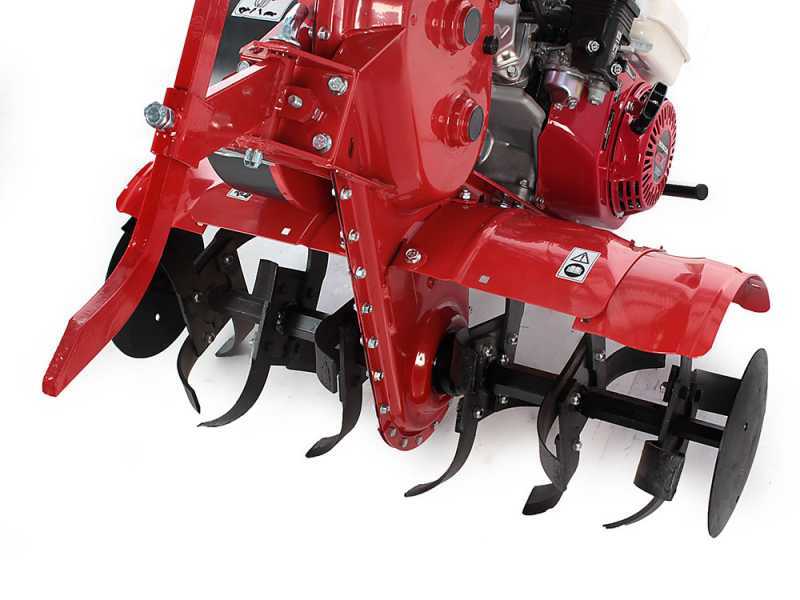

Tine with adjustable cutting width

Tine: 60 cm, with 4 rows of rotary hoes + side crop protection discs.
Easily adjustable to 50 cm with a short operation.

It can be also extended to 72 cm using the additional tine accessory supplied. By mounting both side crop protection discs, the working width is increased to 82 cm.

The working width adjustment can be carried out very easily: just insert or remove the most external element and place the crop protection disc.

The side protections are fixed by means of shaft locking pins and nut and bolt.

Other features

Focus on the rear reinforced stake which can be adjusted in height.

Sturdy front protection bumper.

Tine accessory (for 72 cm tine) supplied.

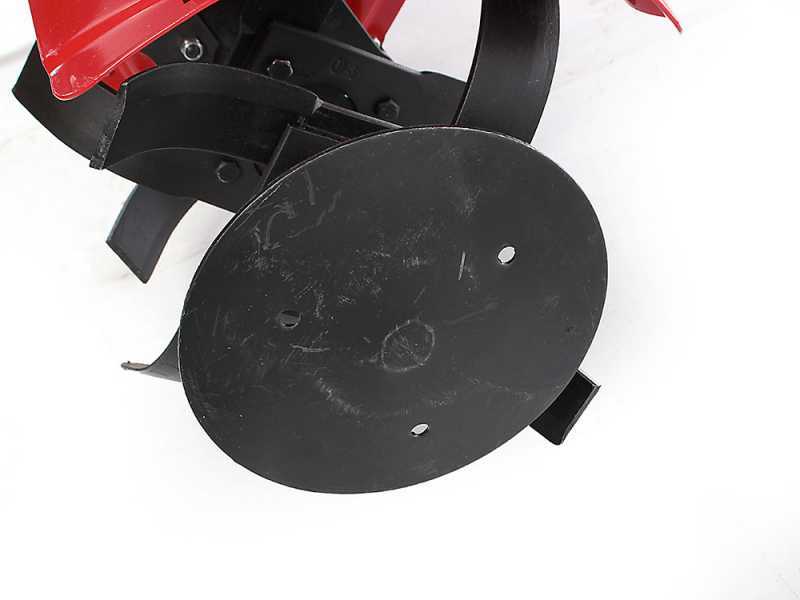

Focus on the crop protection discs with transfer wheels attachment.

Front transport wheel (to be purchased separately): to move around the machine, with the engine switched off, avoiding damage to delicate surfaces and floors. Optimal, for instance, to store the garden tiller. The wheel adjustment operation is extremely quick and easy.Simply pull it out and turn it to the left to fix it in the raised position.

Free items & Standard equipment

1° GIFT: Engine spare parts and maintenance kit

COMPLIMENTARY:

Spare parts set and accessories for the maintenance of the following engines.

Honda GX 120/GX 160/GX 200
Honda GP160/GP 200
Loncin 120/160/196 cc
Axo 120/160/196 cc
Briggs & Stratton 950 series

The set includes:

No. 1 GeoTech spark plug

No. 01 professional joint spark plug wrench specific for riding-on mowers, flail mowers and lawn mowers heavy-duty engines.

No. 01 Spare elliptical pleated paper air filter with sponge cover

No. 01 round foam air filter for engines with oil bath filter unit

WARNING: This kit can’t be used for other brands or models on the market. We don’t provide different kit from the ones offered on our website. We do not guarantee that this kit is valid on products not purchased on our website

2° GIFT: 600 ml Bottles of Engine Oil

COMPLIMENTARY: two 600 ml sae 15W 40 oil bottles. Specific lubricant for 4-stroke gardening machinery with up to 10 Hp of power. Good cleansing and dispersion.

GIFT: SAFETY KIT

SAFETY KIT

Noise-cancelling earmuffs to work with maximum comfort
Hearing protection must be performed correctly in every situation. In this case, the supplied earmuffs are specifically designed to educe machine noise.

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate, equipped with antifog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid fogging and to improve comfort of use.

100% cotton Agrieuro bandana

Cotton gloves with rubber ripples for comfort and a secure and stable grip on equipment.

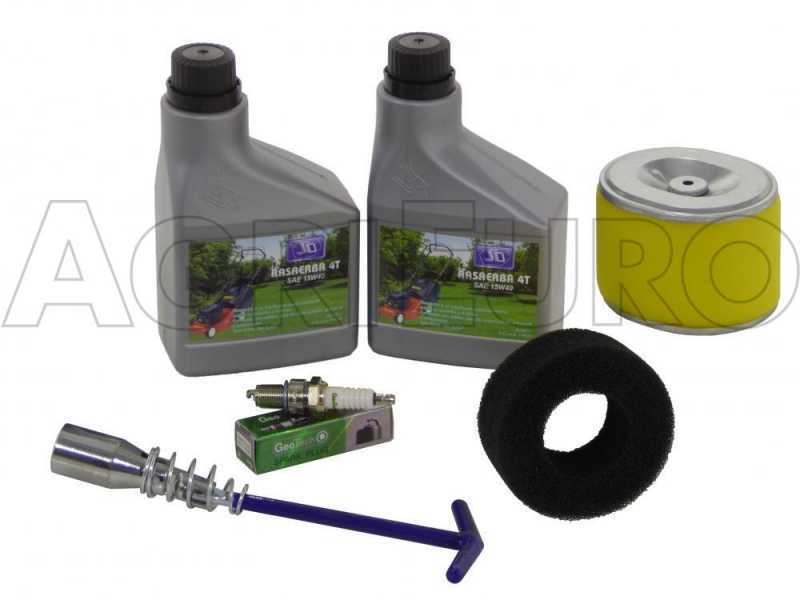

COMPLIMENTARY: Spare parts and maintenance kit specific for engines

The set includes:

No. 2 0.600 GRASS 30W 40 oil bottles Specific lubricant for 4-stroke gardening machinery with up to 10 Hp of power. Good cleansing and dispersion.

No. 1 GeoTech spark plug

No. 01 professional joint spark plug wrench specific for riding-on mowers, flail mowers and lawn mowers heavy-duty engines.

No. 01 spare elliptical foam air filter for the engine

No. 01 round foam air filter for engines with oil bath filter unit
