Fiac AB 100/360 M - Electric belt driven air compressor - Motor 3 HP - 100 l

Questions & Answers (12)
ID: K607858

EAN: 8020119012352

MPN: 1129502834

7,1/10
After-sales assistance & Spare parts
Fiac AB 100/360 M - Electric belt driven air compressor - Motor 3 HP - 100 l
+100 sold
FREE
FIAC compressor maintenance kitFIAC compressor maintenance kit
no. 8 compressor connectionsno. 8 compressor connections
Air compressor tank
100 L
Max. operating pressure
10 bar
Air intake flow
350 L/min
Cylinder head rpm
1500 RPM
Lubrication
Oil
Cooling manifold
Yes
Pump type
Single-stage
Motor type
Induction
Nominal power
3 HP
Operating mode
Single-phase 230 V
Transmission type
Belt
Product Features
Model:
AB 100/360 M
Air compressor type 2:
Belt-driven
Air compressor type:
Horizontal
Operating mode:
Single-phase 230 V
Operating mode:
Electric 230 V
Max. operating pressure:
10 bar
Number of tanks:
1
Air compressor tank:
100 L
Noise level:
95 dB(A)
Manufacturing country:
China
Motor data
Motor type:
Induction
Nominal power:
3 HP
Power supply:
220 V electric
Pump data
Pump brand:
Fiac
Model:
AB 360
Air intake flow:
350 L/min
Pump type:
Single-stage
Lubrication:
Oil
No. of cylinders:
2
Cooling manifold:
Yes
Cylinders material:
Cast iron
Transmission data
Belt-driven:
Transmission type:
Belt
Cylinder head rpm:
1500 RPM
Pulleys material:
Aluminium
Transmission protective cover:
Metal net
Equipment
No. of outlet couplings:
1
Pressure regulator with condensate filter:
No
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics

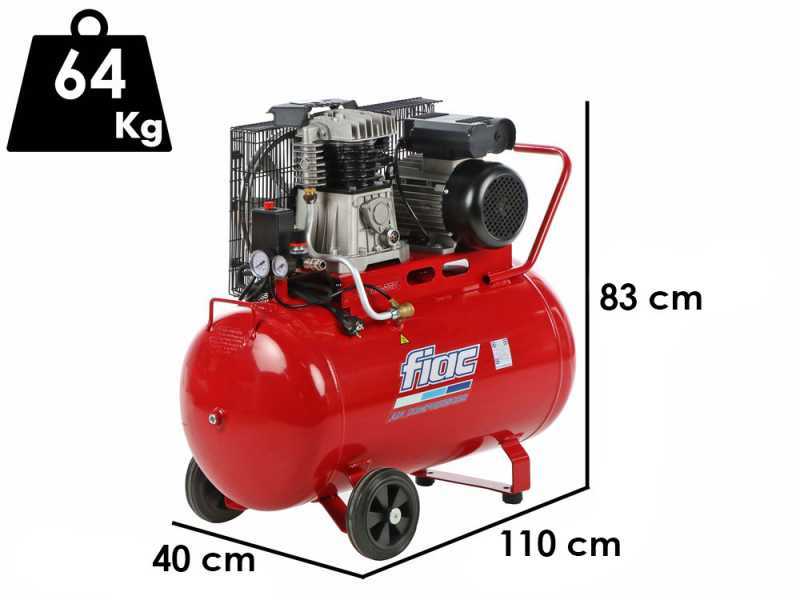

Product dimensions in cm (L x W x H):
40x110x83 cm
Net weight:
64 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
94x42x95
Gross weight (packaging included) :
72 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
15 minutes
Prompt Delivery
56 items in stock
Free Shipping
Estimated delivery: 11/04/2025 - 15/04/2025
€ 576,79
Vat included
You're viewing:
Customers also viewed:
Description

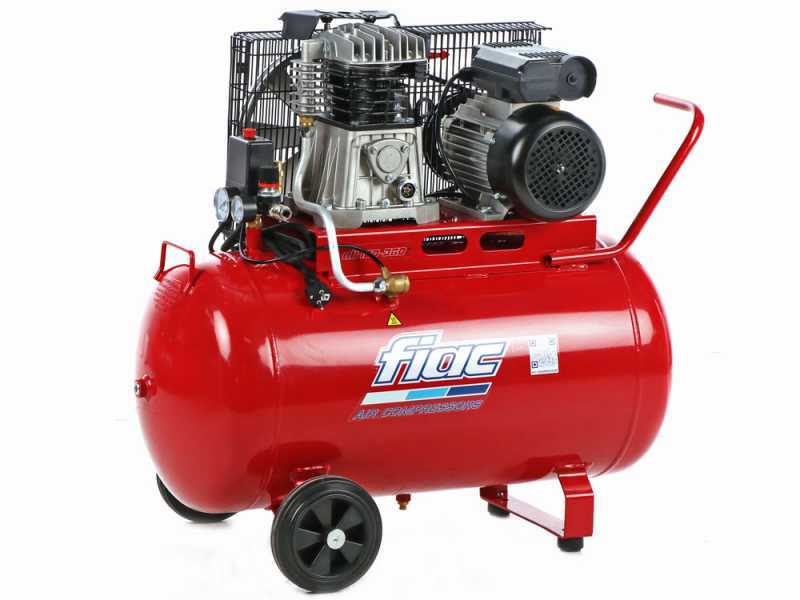

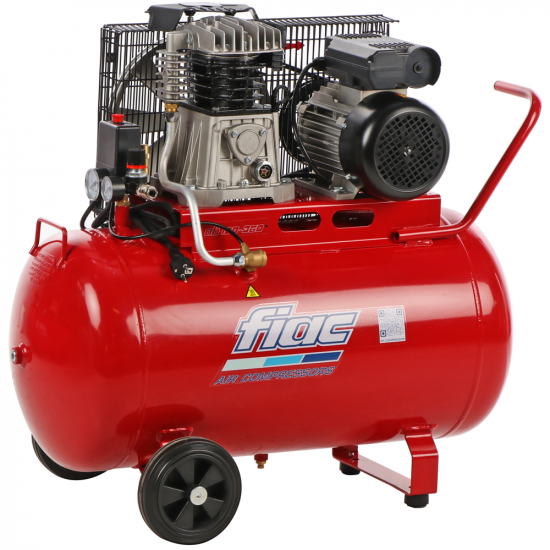

FIAC AB 100/360 Belt-driven Air Compressor - 3 HP Motor - 100 L

The Fiac AB 100/360 M stands as an excellent solution in the panorama of industrial electric compressors, providing an optimal balance between performance, energy efficiency and durability.

Designed to excellently meet the needs of the professional sector, this model combines a number of advanced features that make it one of the most competitive and reliable compressors on the market.

Equipped with a 3 HP electric motor, it boasts a high-quality belt drive, which is characterised by its ability to operate at low speeds.

This feature not only significantly extends compressor life by reducing friction and wear, but also helps to lower operating temperature and noise levels. As a result, it translates into a more serene and comfortable working environment for operators.

With a tank capacity of 100 litres and an air output of 350 litres per minute, supported by a maximum pressure of 10 bar (145 psi), the Fiac AB 100/360 M excels in its class for its ability to deliver a constant flow of high-quality compressed air.

This makes it particularly suitable for a wide range of industrial applications, including, but not limited to, machine shops and production lines, where a reliable source of compressed air is essential.

Despite its high performance, the compressor maintains a low noise level of 95 dB(LWA), highlighting FIAC's commitment to creating solutions that harmonise operational efficiency with the well-being of operators in the workplace.

For companies looking for a robust, reliable and long-term option for their air compression needs, the Fiac AB 100/360 M is the ideal choice.

Offering a significant increase in operational efficiency and productivity, this model also reduces maintenance and operating costs, making it a smart investment to improve industrial operations.

Technical features

Pumping unit type: belt-driven

Litres of air sucked in: 350 L/ min

Pressure: 10 bar

Electric engine power: 3 HP

Tank: 100 litres

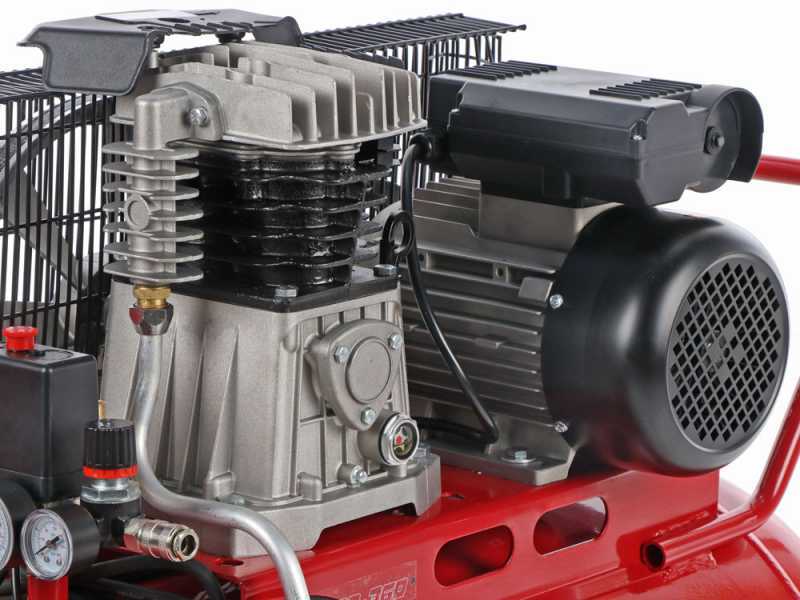

3 Hp Induction Electric Motor

Power supply: 230V

Power: 3 HP

The motor is characterised by a very long service life and low need for maintenance.

This motor is in fact brushless, the brushes being the main component subject to wear in electric motors. The absence of this component gives the motor durability.

It’s a top product for reliability, low noise, durability, energy efficiency and maintenance.

Pumping Unit: Fiac AB 100/360 M

Air displacement: 350 lt/min
Head type: twin-cylinder with cast iron cylinders
Suction type: single stage
Lubrication: oil
Speed: 1500 rpm


The degree of professionalism and more generally the life of the compressor is largely determined by the number of revolutions per minute of the head.

The lower the rpm, the longer the life of the compressor. The reduction ratio of the number of revolutions is obtained by the pulleys of different diameter applied to the engine and cylinder head respectively.

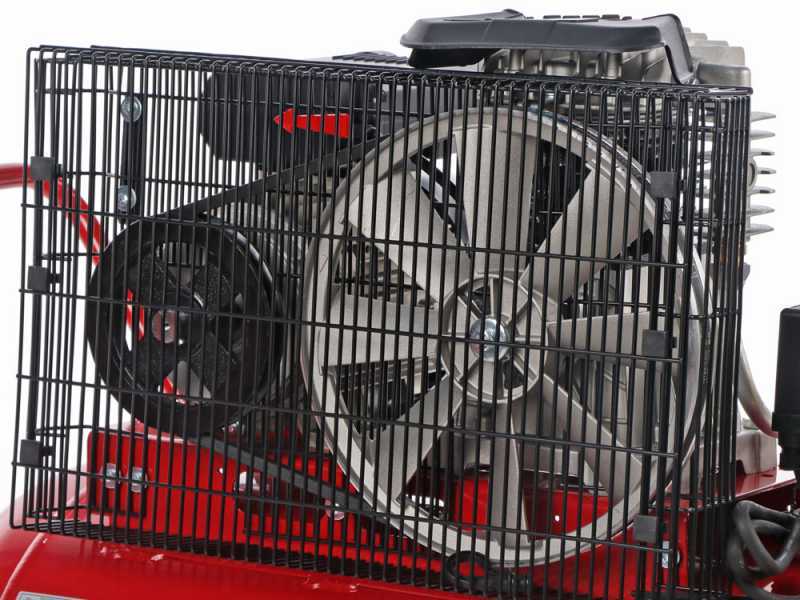

Belt drive

The belt drive is an element that characterizes these FIAC compressors.

The use of the belt, combined with an induction motor, contributes to the durability of this compressor, drastically reducing the number of revolutions of the head, increasing its life and reducing wear.

The grid protection is used to protect the belt and drive from any external objects that could damage it during operation, by bumping into it. It also allows to always have under control the status of the drive belt.

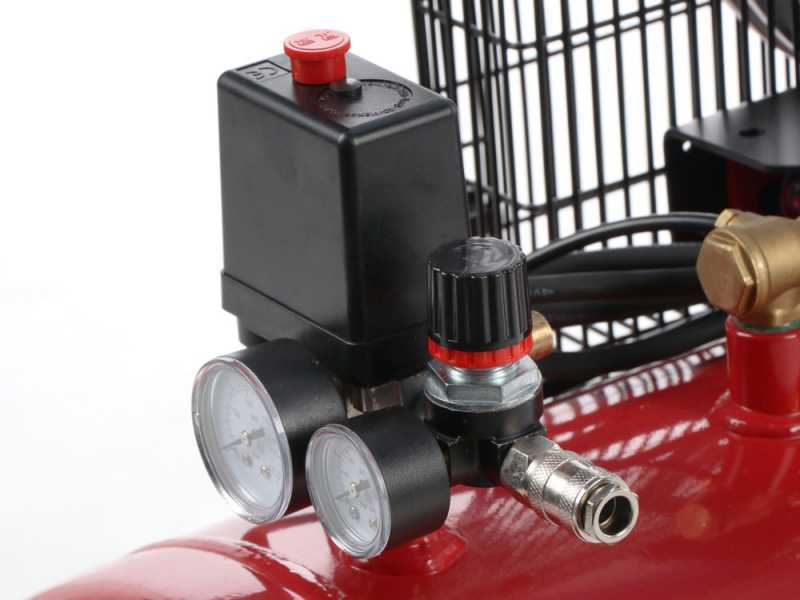

Tank and controls

100 L large tank.

Maximum pressure: 10 bar

The air compressor is equipped with a pressure adjusting knob of the output air pressure which can be checked through a pressure gauge placed just below it, combined with an outlet. The pressure switch, placed next to it, automatically reactivates the air compressor as soon as the pressure drops below a certain threshold.

It includes a single on/off button, a safety valve, that activates in case of excessive pressure in the tank, and the internal tank pressure gauge.

Equipped with two pressure gauges:
- tank pressure
- output pressure adjustable by regulator

Equipped with female quick release coupling as standard

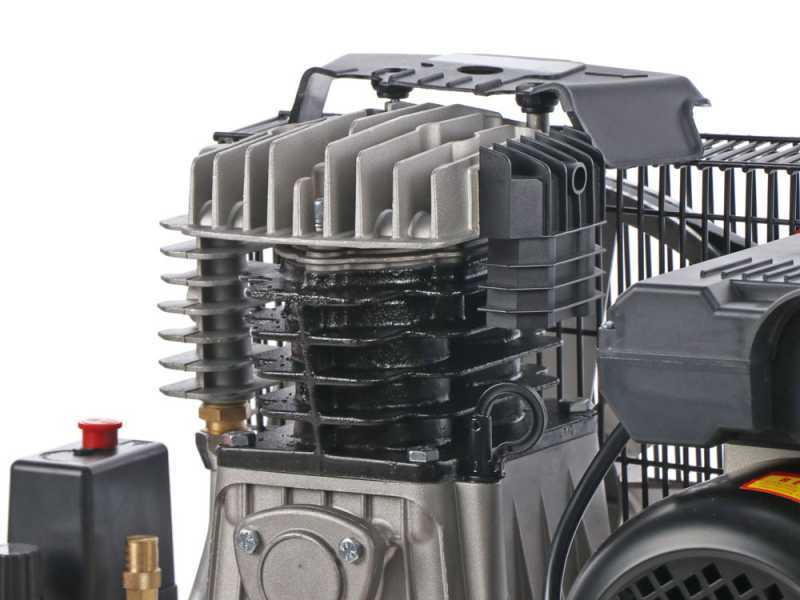

Other features

Weight: 64 kg

Equipped with sturdy front handle for easy grip.

Sturdy wheels

Rubber feet which help stabilise the product.

Tank cap

Free items & Standard equipment

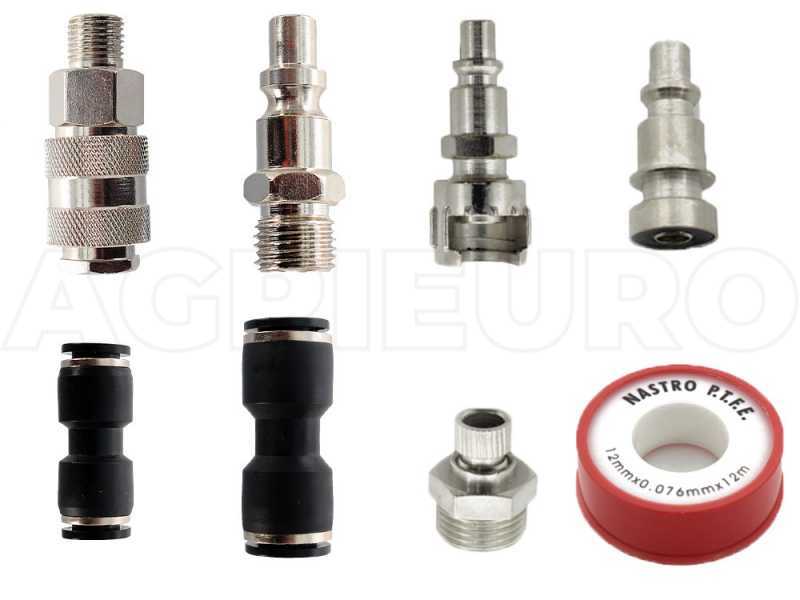

1° GIFT: FIAC/ Michelin Air Compressor Maintenance Kit

The FIAC/ Michelin air compressor maintenance kit includes:
  • 1 "COMPRIX" oil bottle (1 L). High-quality oil specifically created for compressor pump units. Perfect for oil refill and first oil replacement (the compressor is provided with oil)
  • Replacement air filter for the cylinder head

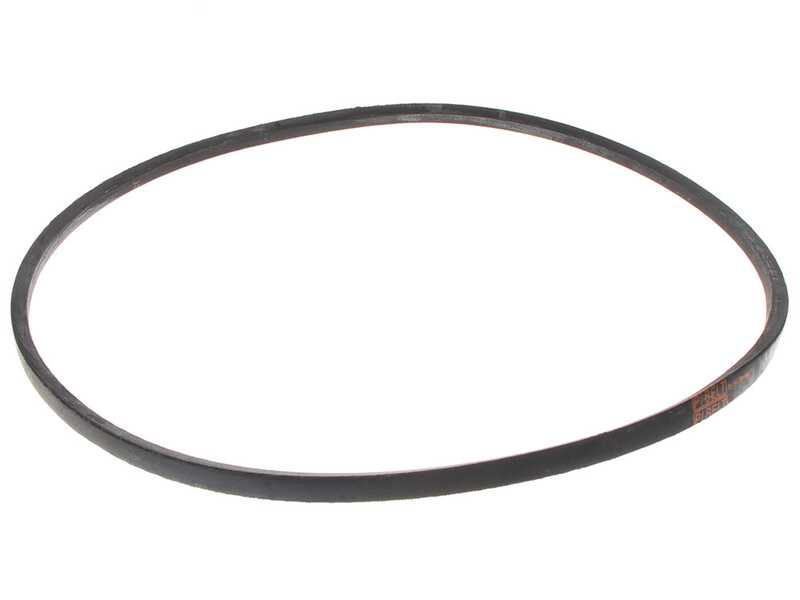

  • Replacement belt
  • Air compressor spare/replacing female output joint
  • Air compressor spare/replacing male output joint (replaceable on equipment with bayonet cap) or usable as spare joint

  • Quick joint to convert all the machineries fitted with standard bayonet cap. It allows easily connecting the units to hoses with female quick joint.

  • Quick joint for converting the female output joint supplied on the compressor into the traditional bayonet cap (also allows the use of the standard hoses with bayonet system)

  • Repair/Junction fitting for Ø 8 hoses
  • Repair/Junction fitting for Ø 10 hoses
  • Lower discharge valve
  • Teflon roll, ideal for the main maintenance operations

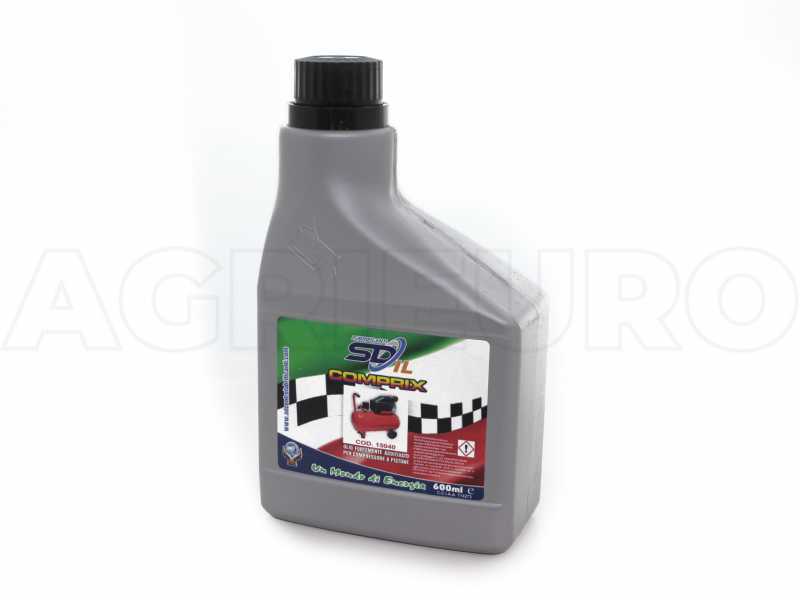

2° GIFT: "COMPRIX" oil bottle 1 L

"COMPRIX" oil bottle (1 L). High-quality oil specifically created for compressor pump units. Perfect for oil refill and first oil replacement (the compressor is provided with oil)

Standard equipment

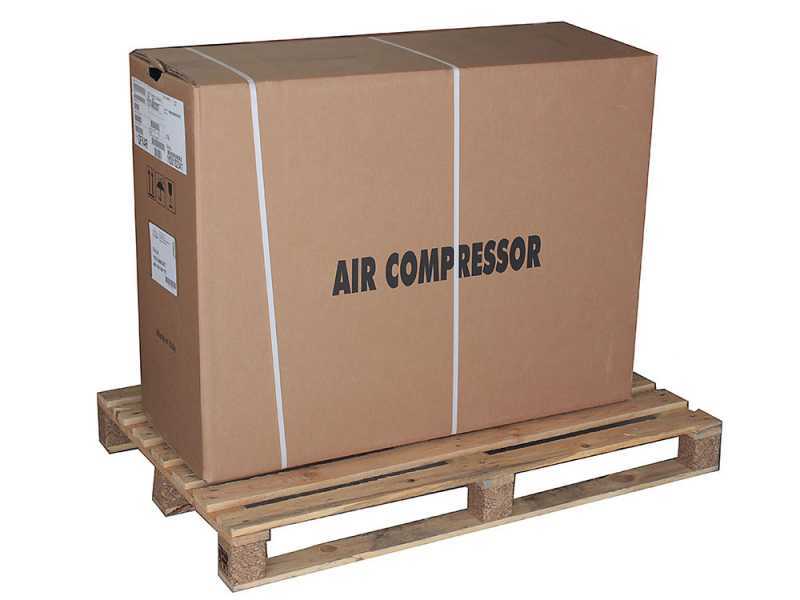

The air compressor is shipped in its original packaging.

Instructions manual included
