Fiac AB 150/348 - Belt driven air compressor - Motor 3 HP - 150 l

Questions & Answers (1)
ID: K607884

EAN: 6975532450194

MPN: 1129741194

7,1/10
After-sales assistance & Spare parts

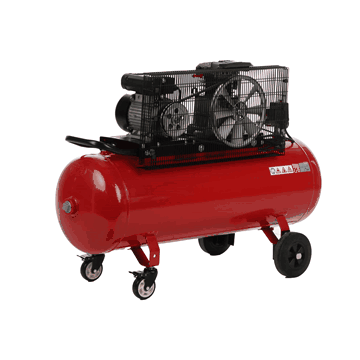

Fiac AB 150/348 - Belt driven air compressor - Motor 3 HP - 150 l
FREE
5-piece kit for compressor5-piece kit for compressor
Protection kit: gloves, googles, ear defenders, Agrieuro headscarf for free!Protection kit: gloves, googles, ear defenders, Agrieuro headscarf for free!
FIAC compressor maintenance kitFIAC compressor maintenance kit
no. 8 compressor connectionsno. 8 compressor connections
Air compressor tank
150 L
Max. operating pressure
10 bar
Air intake flow
300 L/min
Cylinder head rpm
1300 RPM
Lubrication
Oil
Pump type
Single-stage
Motor type
Induction
Nominal power
3 HP
Operating mode
Single-phase 230 V
Transmission type
Belt
Product Features
Model:
AB 150/348
Air compressor type 2:
Belt-driven
Air compressor type:
Horizontal
Operating mode:
Single-phase 230 V
Max. operating pressure:
10 bar
Number of tanks:
1
Air compressor tank:
150 L
Noise level:
95 dB(A)
Manufacturing country:
China
Motor data
Motor type:
Induction
Nominal power:
3 HP
Air compressors engine speed:
1300
Power supply:
220 V electric
Pump data
Pump brand:
FIAC
Air intake flow:
300 L/min
Pump type:
Single-stage
Lubrication:
Oil
No. of cylinders:
2
Cooling manifold:
No
Cylinders material:
Cast iron
Transmission data
Belt-driven:
Transmission type:
Belt
Cylinder head rpm:
1300 RPM
Pulleys material:
Aluminium
Transmission protective cover:
Grid shaped
Equipment
No. of outlet couplings:
1
Front handle:
Yes
Pressure regulator with condensate filter:
No
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics

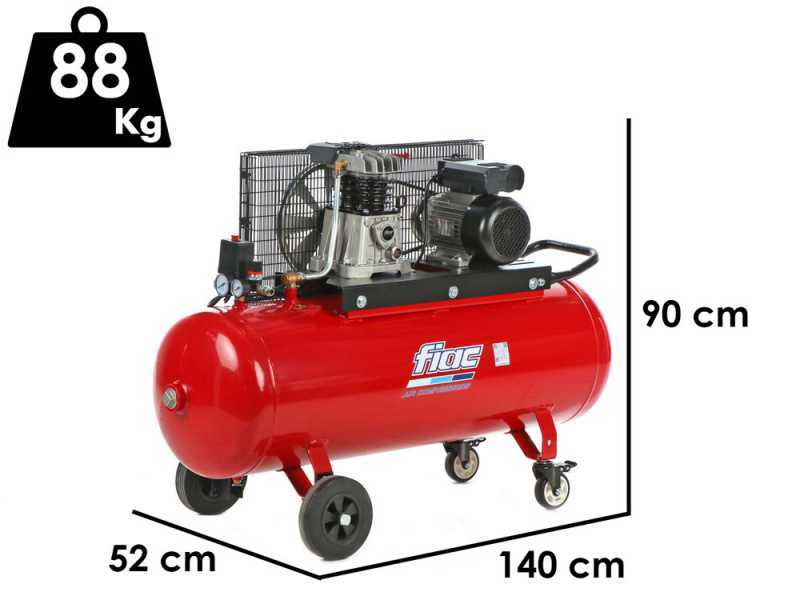

Product dimensions in cm (L x W x H):
140x52x90 cm
Net weight:
88 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
140x48x115
Gross weight (packaging included) :
110 Kg
Assembly time:
15 minutes
Available in 18 days
Free Shipping
Estimated delivery: 19/11/2024 - 21/11/2024
€ 714,42
VAT Included
You're viewing:
Customers also viewed:
Description

Fiac AB 150/348 - Belt-driven Air Compressor - 3 HP Motor - 150L

The Fiac AB 150/348 electric compressor emerges as a premium choice in the industrial compressor sector, standing as one of the most competitive units on the market.

Thanks to a design that puts professional needs first, it flawlessly combines high performance, energy efficiency and long-term durability.

This model is equipped with a 3 HP electric motor, which provides superior belt drive and is marked by its ability to operate at low speeds.

This feature not only extends the life of the compressor by minimising friction and wear, but also helps to significantly decrease both operating temperature and noise levels, thus ensuring a quieter and more pleasant working environment.

With a tank capacity of 150 litres, the Fiac AB 150/348 is characterised by its high air output of 300 litres per minute, supported by a maximum pressure of 10 bar (145 psi).

These features make it ideal for a wide variety of uses in the industrial field, including, but not limited to, machine shops and production facilities, where a constant supply of quality compressed air is required.

Despite its outstanding performance, the compressor maintains a low noise level at 95 dB(LWA), reflecting FIAC's commitment to providing solutions that effectively balance operational efficiency with workplace comfort.

For organisations looking for a robust, reliable and durable compression option, the Fiac AB 150/348 is an optimal choice.

Provides an effective response to increase operational efficiency and productivity while minimising maintenance and operational costs

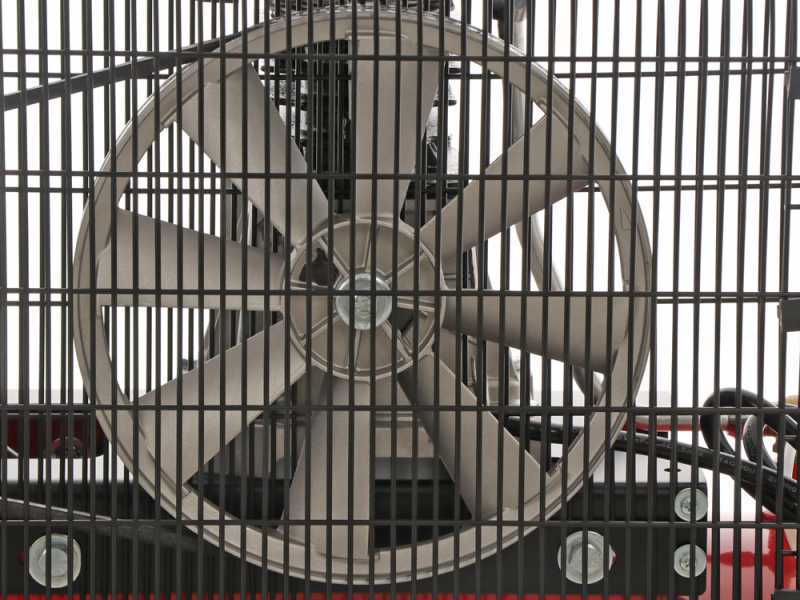

Technical features

Pumping unit type: belt-driven

Litres of air sucked in: 300 L/ min

Pressure: 10 bar

Electric engine power: 3 HP

Tank: 150 litres

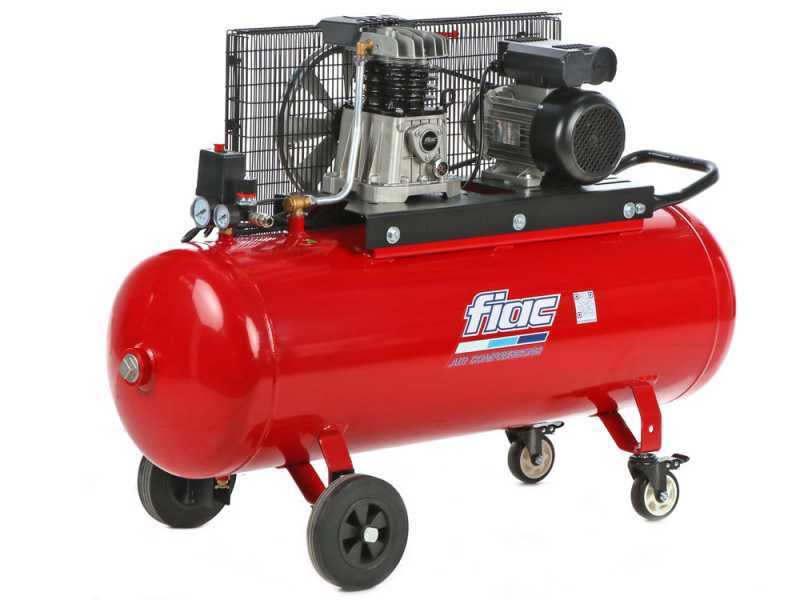

3 HP Induction Electric Motor

Power supply: 230V

Power: 3 HP

The motor is characterised by a very long service life and low need for maintenance.

This motor is in fact brushless, the brushes being the main component subject to wear in electric motors. The absence of this component gives the motor durability.

It’s a top product for reliability, low noise, durability, energy efficiency and maintenance.

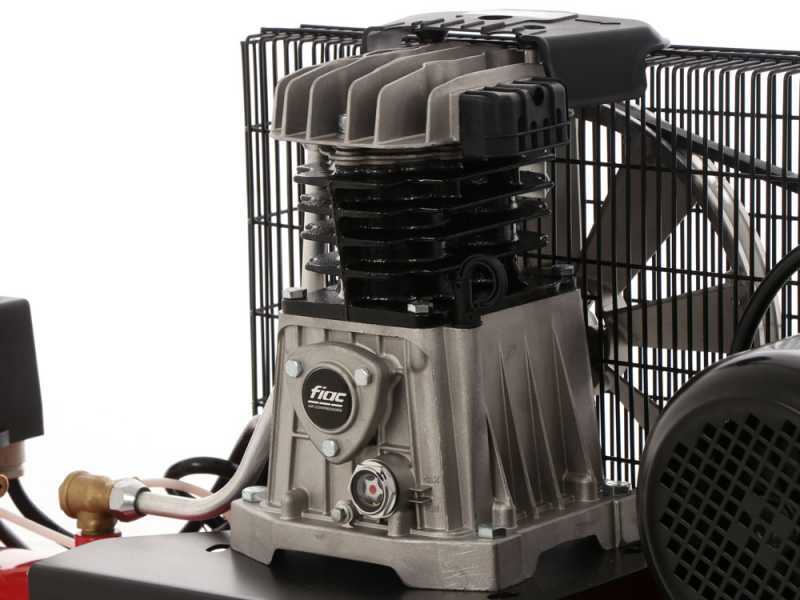

Pumping unit: Fiac AB 150/348

Air displacement: 300 lt/min
Head type: twin-cylinder with cast iron cylinders
Suction type: single stage
Lubrication: oil
Speed: 1300 rpm


The degree of professionalism and more generally the life of the compressor is largely determined by the number of revolutions per minute of the head.

The lower the rpm, the longer the life of the compressor. The reduction ratio of the number of revolutions is obtained by the pulleys of different diameter applied to the engine and cylinder head respectively.

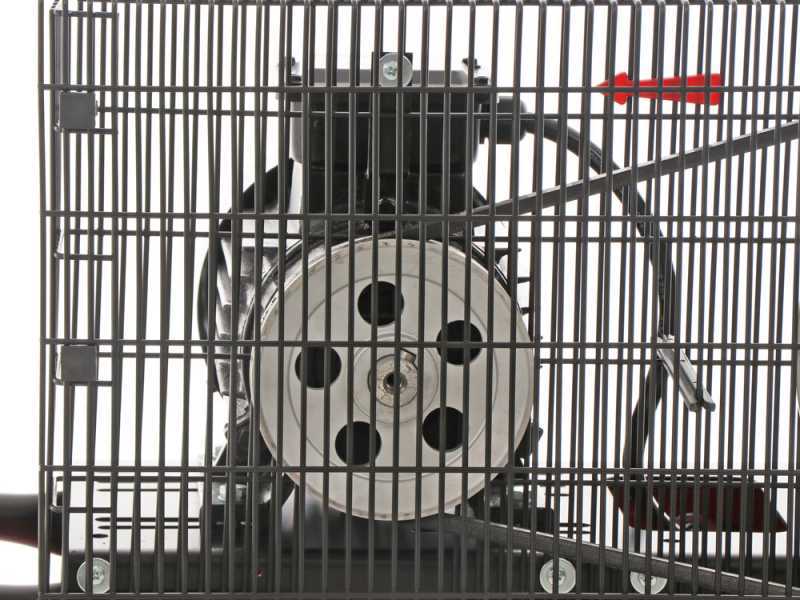

Belt drive

The belt drive is an element that characterizes these FIAC compressors.

The use of the belt, combined with an induction motor, contributes to the durability of this compressor, drastically reducing the number of revolutions of the head, increasing its life and reducing wear.

The grid protection is used to protect the belt and drive from any external objects that could damage it during operation, by bumping into it. It also allows to always have under control the status of the drive belt.

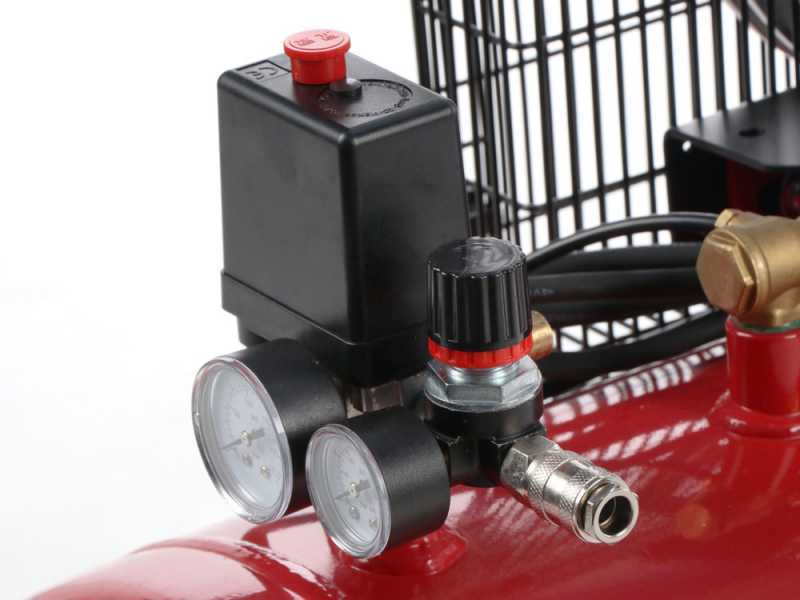

Tank and controls

150 L large tank.

Maximum pressure: 10 bar

The air compressor is equipped with a pressure adjusting knob of the output air pressure which can be checked through of a pressure gauge placed just below it, combined with an outlet.

The pressure switch, placed next to it, automatically reactivates the air compressor as soon as the pressure drops below a certain threshold.

It includes a single on/off button, a safety valve, that activates in case of excessive pressure in the tank, and the internal tank pressure gauge.

Equipped with two pressure gauges:
- tank pressure
- regulated output pressure via regulator

Equipped with female quick release coupling as standard

Other features

Weight: 88 kg

Equipped with a sturdy front handle for easy grip.

Sturdy wheels

Swivelling wheels

Tank cap

Free items & Standard equipment

1° GIFT: FIAC/ Michelin Air Compressor Maintenance Kit

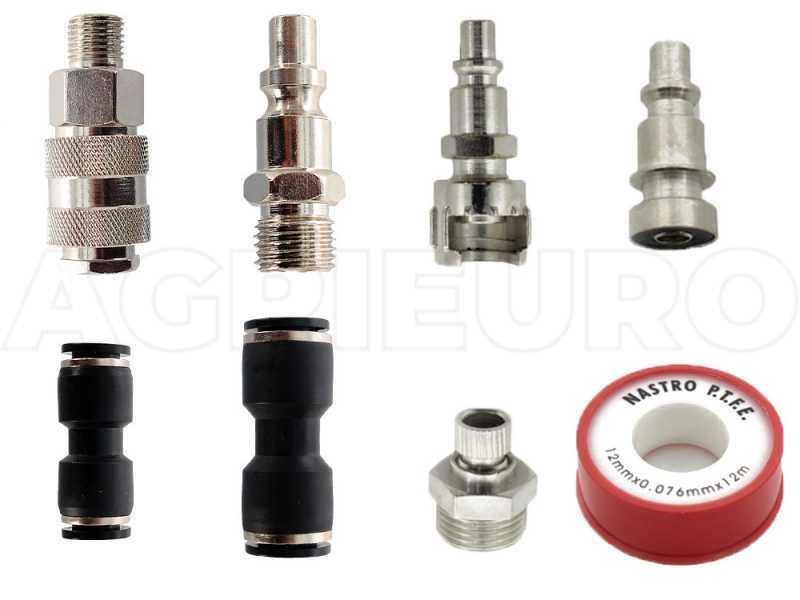

The FIAC/ Michelin air compressor maintenance kit includes:
  • 1 "COMPRIX" oil bottle (1 L). High-quality oil specifically created for compressor pump units. Perfect for oil refill and first oil replacement (the compressor is provided with oil)
  • Replacement air filter for the cylinder head

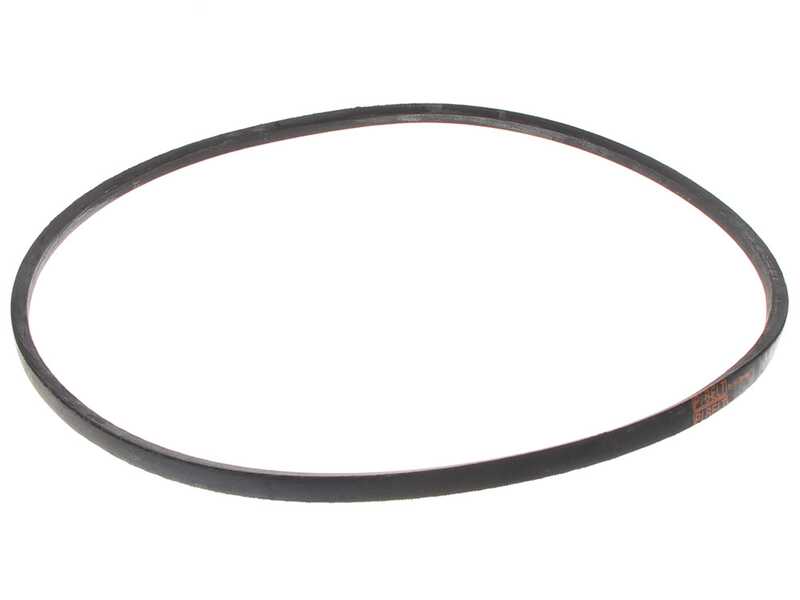

  • Replacement belt
  • Air compressor spare/replacing female output joint
  • Air compressor spare/replacing male output joint (replaceable on equipment with bayonet cap) or usable as spare joint

  • Quick joint to convert all the machineries fitted with standard bayonet cap. It allows easily connecting the units to hoses with female quick joint.

  • Quick joint for converting the female output joint supplied on the compressor into the traditional bayonet cap (also allows the use of the standard hoses with bayonet system)

  • Repair/Junction fitting for Ø 8 hoses
  • Repair/Junction fitting for Ø 10 hoses
  • Lower discharge valve
  • Teflon roll, ideal for the main maintenance operations

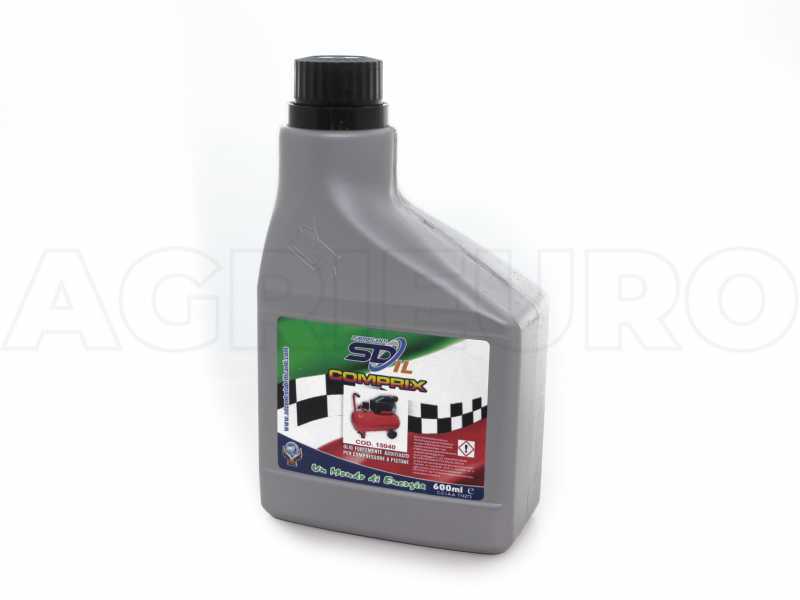

2° GIFT: "COMPRIX" oil bottle 1 L

"COMPRIX" oil bottle (1 L). High-quality oil specifically created for compressor pump units. Perfect for oil refill and first oil replacement (the compressor is provided with oil)

GeoTech accessories kit for air compressor - 5 tools

This extensive air compressor accessory kit includes:

- Tire inflating gun with
integrated pressure gauge

- Wash gun

- Air blowing gun

- Air brushing gun

- Coiled air hose

GIFT: SAFETY KIT

SAFETY KIT

Noise-cancelling earmuffs to work with maximum comfort
Hearing protection must be performed correctly in every situation. In this case, the supplied earmuffs are specifically designed to educe machine noise.

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate, equipped with antifog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid fogging and to improve comfort of use.

100% cotton Agrieuro bandana

Cotton gloves with rubber ripples for comfort and a secure and stable grip on equipment.

Standard equipment

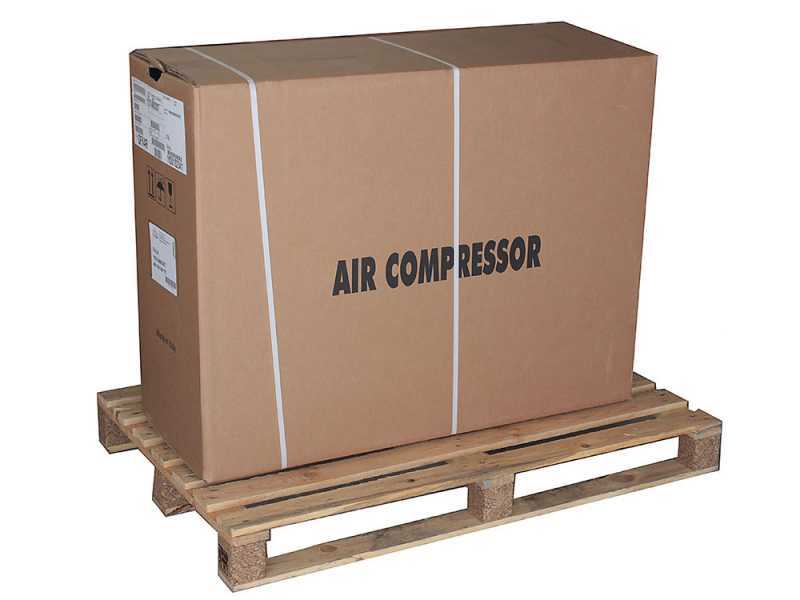

The air compressor is shipped in its original packaging.

Instructions manual included
