Name: FIAC AB 150/415 MC Belt-driven Single-phase Electric Air Compressor - Special Edition
Brand: FIAC
SKU: K600427
Price: 740.5 EUR
Availability: OutOfStock
Rating: 4 (4 reviews)

Description

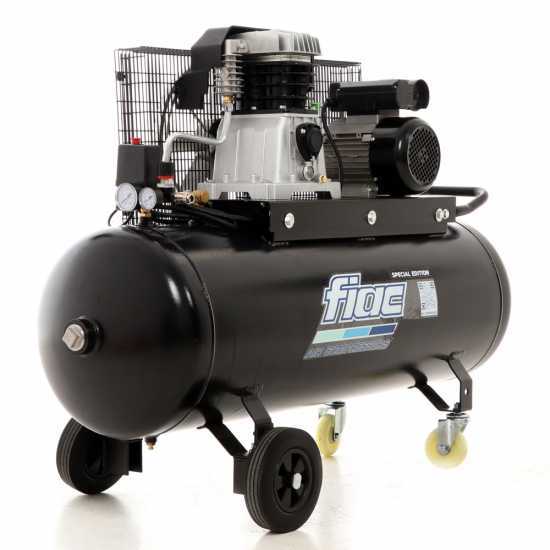

FIAC AB 150/415 MC Air Compressor - Special Edition

FIAC air compressors are regarded as among the absolute best air compressors on the market. The FIAC AB 150/415 MC model is a special edition only available on Agrieuro

This air compressor model is the largest in terms of tank size in the special Black edition, with a tank capacity of 150 L and a compressed air suction capacity of 400 L/min. Also equipped with practical pivoting wheels and handle which make it easy and comfortable to transport the air compressor everywhere. It mounts a 2.2 kW single-phase electric motor and is capable of reaching a maximum pressure of 10 bar.

The FIAC AB 150/415 MC air compressor operates at a low rpm rate of the pumping unit cylinder head, thanks to the belt drive, which reduces wear on the machine and significantly increases the air compressor service life. The low speed also decreases the noise emitted by the air compressor and the temperature during its use.

This type of air compressor is particularly suitable for intensive use at both semi-professional and professional levels.

FIAC AB 150/415 MC Belt-driven Single-phase Electric Air Compressor - Special Edition

3 Hp single-phase electric induction motor

Power supply: 230 V

Power: 3 Hp

The induction motor is characterised by a very long service life and low need for maintenance.

This motor is in fact brushless, the brushes being the main component subject to wear in electric motors. The absence of this component grants high durability to the motor.

It is a top product in terms of reliability, low noise, durability, energy efficiency and maintenance.

FIAC AB 415 cylinder head

Air intake flow: 400 L/min
Cylinder head type: twin-cylinder with cast iron cylinders
Suction type: single-stage
Lubrication: oil
No. of revolutions: 1000 rpm

The degree of professionalism and more generally the life of the air compressor is largely determined by the number of revolutions per minute of the cylinder head.

The lower the rpm, the longer the life of the air compressor. The reduction ratio of the number of revolutions is obtained by the pulleys of different diameter that are fitted to the motor and to the cylinder head respectively. In addition, this model features a side cooling manifold.

Cylinder head protective housing

Belt drive

These FIAC air compressors feature a belt drive.

The use of the belt, combined with an induction motor, contributes to the durability of this air compressor, drastically reducing the number of revolutions of the cylinder head, increasing its life and reducing wear.

The grid protection serves to prevent the drive belt and the transmission from being damaged by external objects that might hit it during operation. It also allows the status of the drive belt to be continuously checked.

Focus on the drive belt.

Tank and controls

150 L large tank.

Maximum pressure: 10 bar

The air compressor is equipped with a pressure adjusting knob for the output air pressure that can be checked by means of a pressure gauge located immediately below it, together with a female outlet.

Focus on the power switch

It includes a single on/off button, a safety valve, that activates in case of excessive pressure in the tank and the tank air pressure gauge.

Other features

Weight: 160 kg

Equipped with front handle

Oil tank cap

Sturdy rear wheels

Front pivoting wheels

Drain valve placed under the tank.

Free items & Standard equipment

COMPLIMENTARY: GeoTech accessories kit for air compressors

This extensive air compressor accessory kit includes:

- Tire inflating gun with
integrated pressure gauge

- Wash gun

- Air blow gun

- Air brushing gun

- Fittings for inflation ideal for inflating camping equipment and/or balloons.

This kit includes

-10 mt professional straight rubber braided hose.

1° GIFT: air compressor maintenance kit with oil bottle and joints

Maintenance kit provided on standard equipment includes:

Air compressor spare/replacing female output joint
Air compressor spare/replacing male output joint (replaceable on equipment with bayonet cap) or usable as spare joint
Quick joint to convert all the machineries fitted with standard bayonet cap. It allows easily connecting the units to hoses with female quick joint.
Quick joint for converting the female output joint supplied on the air compressor into the traditional bayonet cap (also allows the use of the standard hoses with bayonet system)
Repair/Junction fitting for Ø 8 hoses

Repair/Junction fitting for Ø 10 hoses

Lower tank discharge valve replacement air compressor

Teflon roll, ideal for the main maintenance operations

2° GIFT: 600 ml "COMPRIX” oil bottle

COMPLIMENTARY: 600 ml "COMPRIX” oil bottle, professional oil specifically designed for air compressor cylinder heads. Very useful for oil refill and first oil replacement (the air compressor is shipped already filled with oil).

Standard equipment

The air compressor is shipped in its original packaging.

Instructions manual included.
