FIAC Magnum XS258 - Silenced electric air compressor

Add a question
ID: K603913

EAN: 8020119151211

MPN: 1129102958

7,1/10
After-sales assistance & Spare parts
FIAC Magnum XS258 - Silenced electric air compressor
FREE
2 guns with container2 guns with container
2 compressor guns2 compressor guns
Extension hoseExtension hose
Universal adaptors kitUniversal adaptors kit
no. 8 compressor connectionsno. 8 compressor connections
Air compressor tank
10 L
Max. operating pressure
9 bar
Air intake flow
230 L/min
Cylinder head rpm
1430 RPM
Lubrication
Oil-less
Pump type
Single-stage
Silenced
Yes
Nominal power
2 HP
Operating mode
Single-phase 230 V
Product Features
Model:
Magnum XS258
Air compressor type 2:
Oilless
Air compressor type:
Portable
Handheld:
Operating mode:
Single-phase 230 V
Max. operating pressure:
9 bar
Number of tanks:
1
Tank capacity:
10 L
Air compressor tank:
10 L
Noise level:
59 dBA
Manufacturing country:
China
Motor data
Motor type:
Electric single-phase
Nominal power:
2 HP
Silenced:
Yes
Power supply:
220 V electric
Manufacturing country:
China
Pump data
Pump brand:
Fiac
Air intake flow:
230 L/min
Pump type:
Single-stage
Lubrication:
Oil-less
No. of cylinders:
1
Cooling manifold:
No
Manufacturing country:
China
Transmission data
Transmission type:
Coaxial type direct
Cylinder head rpm:
1430 RPM
Equipment
No. of outlet couplings:
1
Rear wheels size:
190 mm
Rubber-coated soft grip:
Yes
Lifting handle:
No
Free gifts/extra features
Wooden pallet (safe shipping):
Yes
Quick reduction coupling:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
38x33x64 cm
Net weight:
28 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
41x34,.5x65 cm
Gross weight (packaging included) :
31 Kg
Assembly time:
Assembled
Prompt Delivery
2 items in stock
Free Shipping
Estimated delivery: 02/04/2025 - 08/04/2025
€ 396,11
Vat included
You're viewing:
Customers also viewed:
Description

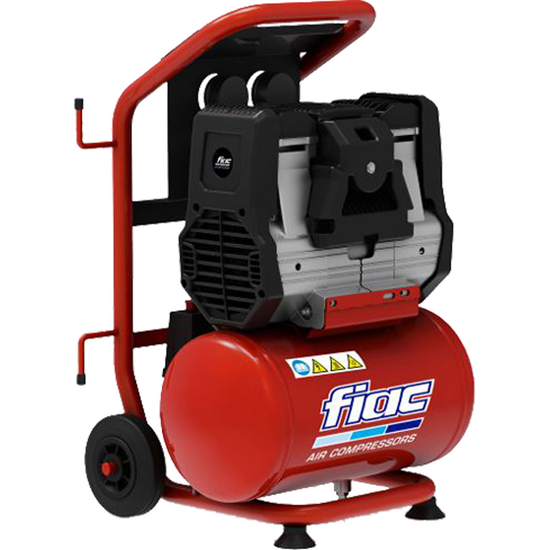

Fiac Magnum XS258 Electric Air Compressor

The Fiac Magnum XS258 electric air compressor is part of the range of products belonging to the Fiac XS series.

Equipped with a silenced piston, the noise level produced is only 59 db.

The made in Italy design of the pumping unit guarantees safety, comfort and high performance at the same time: the XS series reaches 9 bar of pressure, allowing the use of professional tools despite the small size of the compressor.

This range of products is unique designed to drastically constant the noise that is produced every time a standard air compressor is used. Another important feature of these products is their oil-free operation, which allows for easy and limited maintenance.

Ideal for a variety of applications, the FIAC XS series comes in a wide range of power ratings, and, in addition, the direct oil-free unit provides consistent airflow with minimal maintenance required.

In addition to being super silent, the compressor is able to produce a maximum power of 2 HP, which provides a maximum pressure of 9 bar. These technical features allow to obtain an air displacement up to 230 l/min.

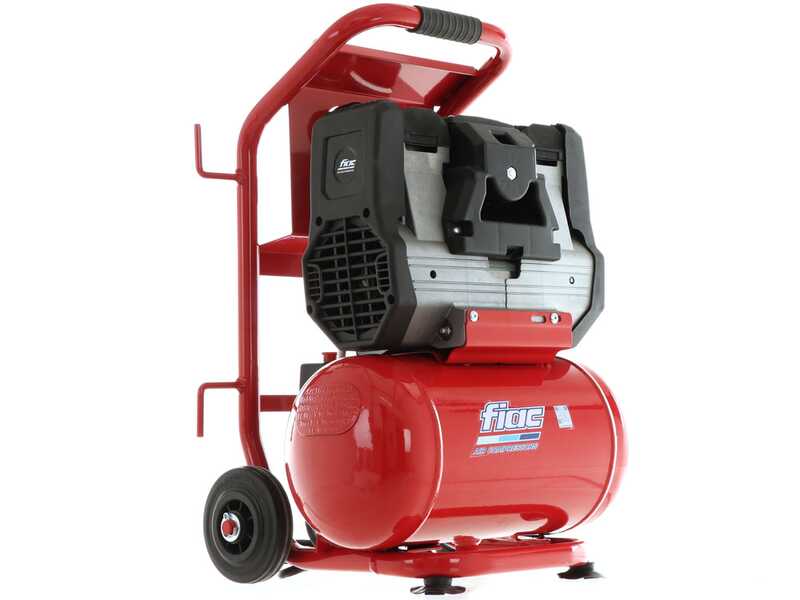

Technical specifications

This compressor represents a high standard of the electric compressor industry. The noise emissions produced are only 59 dB. Designed to overcome the issue related to the noise emissions while operated in working areas. This range of compressors stands out on the market for the low noise level.

Main features:

  • Pump type: Coaxial - Oilless
  • Air displacement: 230 L/min
  • Pressure: 9 bar
  • Electric motors power: 2 HP
  • Tank : 10 L

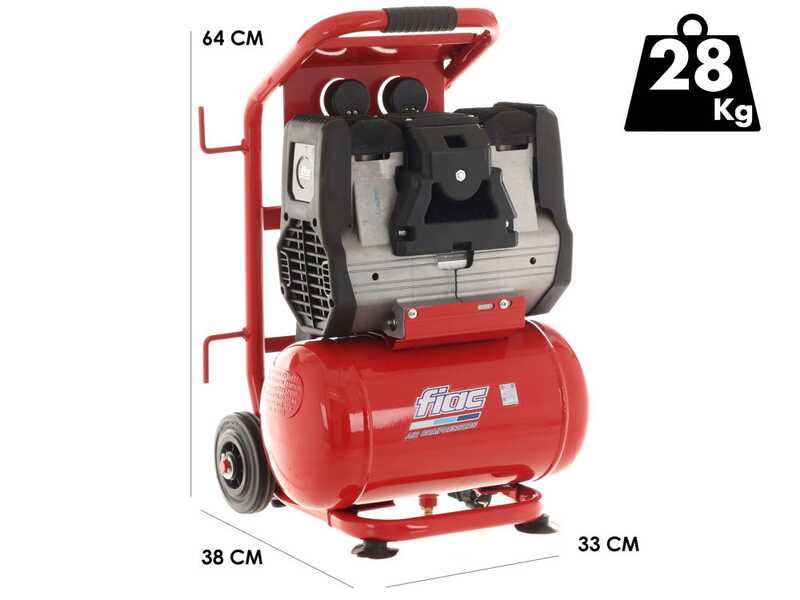

Dimensions:

  • Length: 380 mm
  • Height: 640 mm
  • Depth (or thickness): 330 mm
  • Weight: 28 kg

The two rear wheels and the handle allow the operator to use it in any environment, and it can be safely stored in any corner of your garage.

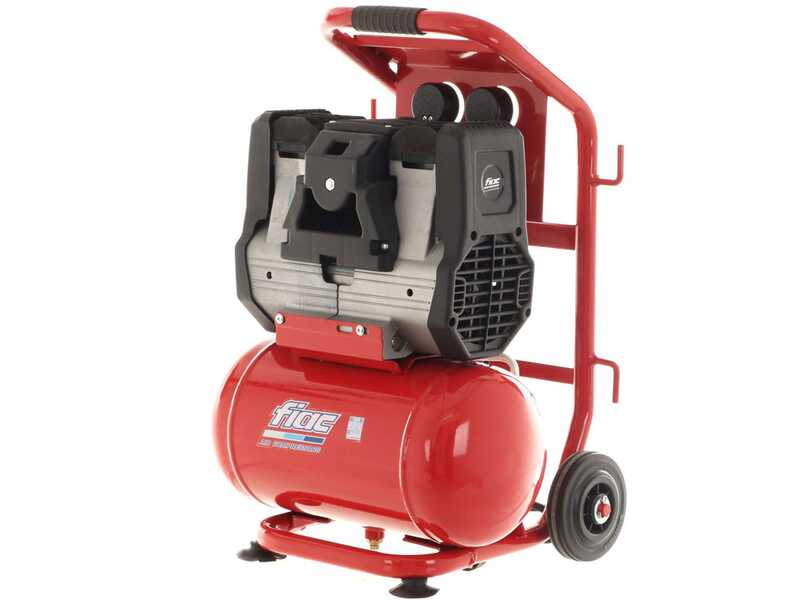

Controls and other features

Easy and user-friendly controls, which are divided into:

Power switch and the control panel in which there are:

  1. Output air pressure gauge and tank air pressure gauge
  2. Female outlet fitting
  3. Pressure adjusting knob

This air compressor is also equipped with:

  • Side hose holder: allows to work in perfect order;
  • Condensate drain valve: protects the valves, pipes and cylinders against condensate formation through an automatic drain of the air tank;
  • Schuko socket: is the common name for an AC plug and socket system
Free items & Standard equipment

COMPLIMENTARY: GeoTech accessories kit for air compressors

This extensive air compressor accessory kit includes:

- Tire inflating gun with
integrated pressure gauge

- Wash gun

- Air blow gun

- Air brushing gun

- Fittings for inflation ideal for inflating camping equipment and/or balloons.

This kit includes

-10 mt professional straight rubber braided hose.

COMPLIMENTARY: Oilless Air Compressor Maintenance Kit

Maintenance kit provided on standard equipment includes:

  • Air compressor spare/replacing female output joint
  • Air compressor spare/replacing male output joint (replaceable on equipment with bayonet cap) or usable as spare joint

  • Quick joint to convert all the machineries fitted with standard bayonet coupling. It allows easily connecting the units to hoses with female quick joint.

  • Quick male joint for converting the female output joint supplied on the air compressor into the traditional bayonet cap (it also allows the use of the standard hoses with bayonet system)

  • Repair/Junction fitting for Ø 8 hoses
  • Repair/Junction fitting for Ø 10 hoses
  • Lower tank discharge valve replacement air compressor
  • Teflon roll, ideal for the main maintenance operations

Standard equipment

The air compressor is shipped in its original packaging

Instructions manual is included.
