Fini Advanced MK 102-100-2M - Belt-driven electric air compressor - 2 Hp Motor - 100 L

Add a question
ID: K603917

EAN: 8017750264264

MPN: BMFC404FNN413

7,3/10
After-sales assistance & Spare parts
Fini Advanced MK 102-100-2M - Belt-driven electric air compressor - 2 Hp Motor - 100 L
FREE
Bottle of 600 ml "COMPRIX" professional oilBottle of 600 ml "COMPRIX" professional oil
no. 8 compressor connectionsno. 8 compressor connections
Air compressor tank
100 L
Max. operating pressure
10 bar
Air intake flow
235 L/min
Cylinder head rpm
1040 RPM
Lubrication
Oil
Pump type
Single-stage
Nominal power
2 HP
Operating mode
Single-phase 230 V
Transmission type
Belt
Manufacturing country
Italy
Product Features
Model:
Advanced MK 102-100-2M
Air compressor type 2:
Twin-cylinder belt-driven - single stage
Air compressor type:
Horizontal
Operating mode:
Single-phase 230 V
Operating mode:
Electric 230 V
Max. operating pressure:
10 bar
Number of tanks:
1
Air compressor tank:
100 L
Noise level:
94 dB(A)
Manufacturing country:
Italy
Motor data
Motor type:
Electric single-phase
Nominal power:
2 HP
Power supply:
220 V electric
Pump data
Pump brand:
FINI
Model:
MK102
Air intake flow:
235 L/min
Pump type:
Single-stage
Lubrication:
Oil
No. of cylinders:
2
Cooling manifold:
No
Manufacturing country:
Italy
Transmission data
Belt-driven:
Transmission type:
Belt
Cylinder head rpm:
1040 RPM
Pulleys material:
Metal alloy
Equipment
No. of outlet couplings:
1
Front handle:
Yes
Folding/removable handle/s:
Yes
Free gifts/extra features
Wooden pallet (safe shipping):
Yes
Oil bottle:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
100x45x83 cm
Net weight:
62 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
104x44x88 cm
Gross weight (packaging included) :
67 Kg
Assembly time:
5 minutes
Prompt Delivery
5 items in stock
Free Shipping
Estimated delivery: 11/04/2025 - 15/04/2025
€ 648,36
Vat included

You're viewing:
Customers also viewed:
Description

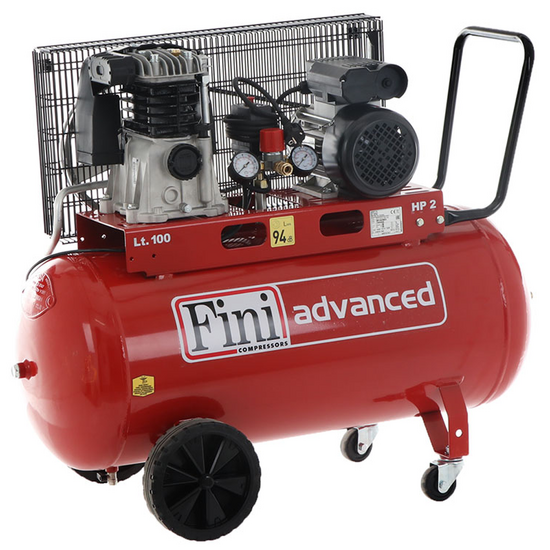

Fini Advanced MK 102-100-2M Electric Air Compressor

The Fini Advanced MK 102-100-2M air compressor is renowned as the best choice among the hobbyists and high-demanding users, who are looking for a reliable, silent, lightweight and high-performing equipment. The motor is protected against overload with manual reset. The air compressor is equipped with an electromechanical pressure switch, pressure reducer with pressure gauge and universal quick release valve.

Powered by a 2 HP electric motor, this air compressor has a 235 L/min of compressed air suction capacity. It’s capable of reaching a 10 bar Max pressure.

It features a large 100 L compressed air storage tank. The compressor weights approximately 62 Kg, but has both rear wheels and a pivoting front wheel that allows to transport the compressor without having to be lifted. There is also an upper handle that facilitates transportation even more.

Fini Compressors is an established brand that provides high quality products.

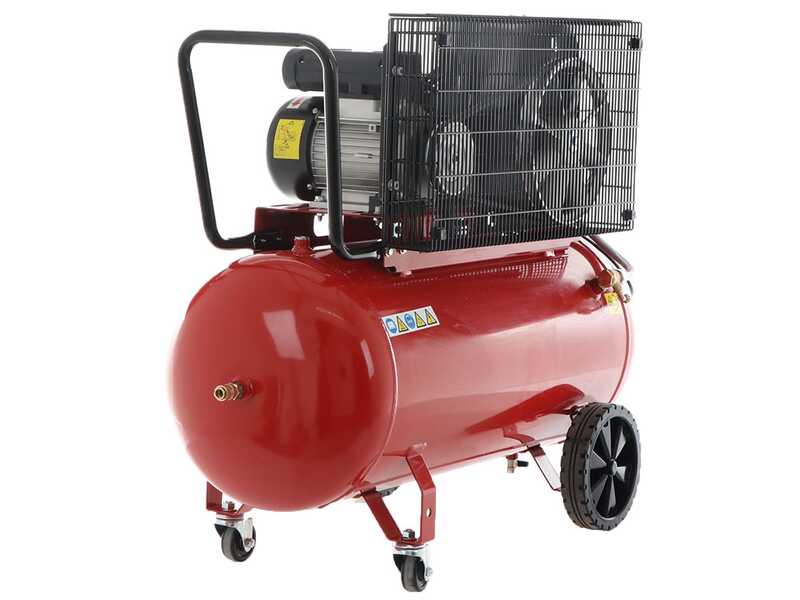

Technical specifications

Air intake flow: 235 L/min

Pump type: belt-driven

Air intake flow: 235L/min

Pressure: 10 bar

Electric motor power: 2 HP

Tank: 10 L

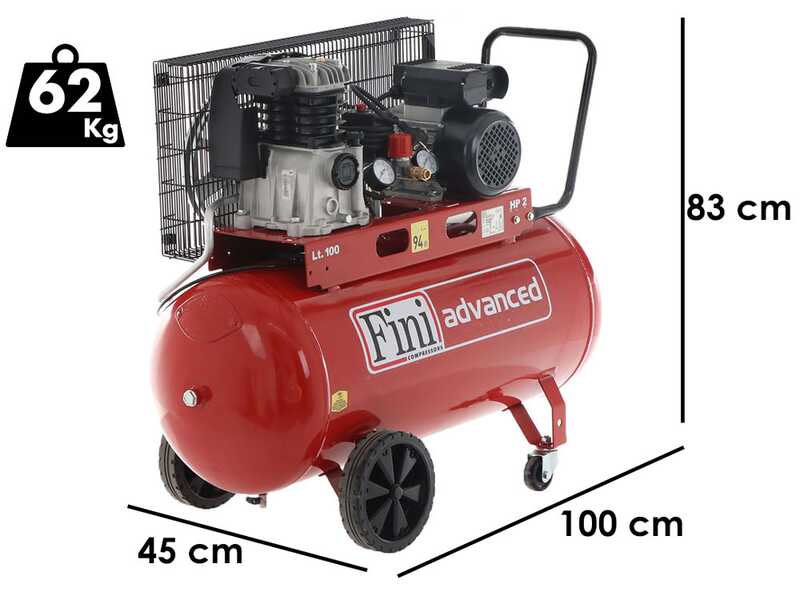

Overall dimensions:
- Length: 1000 mm

- Width: 450 mm

- Height: 830 mm

Weight: 62 kg

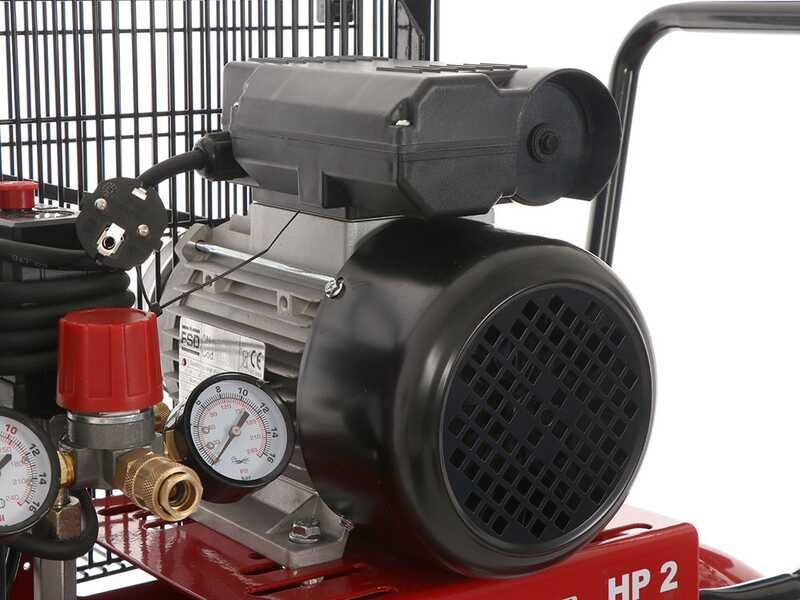

Single-phase electric induction motor 2 hp

Power supply: 230 V

Power: 2 HP
The induction motor is characterized by the long-lasting service life and low maintenance.

This motor is brushless: the brush normally represents the main component subject to wear in electric motors. The absence of this component gives the motor durability.

It’s a top product for reliability, low noise, durability, energy efficiency and maintenance.

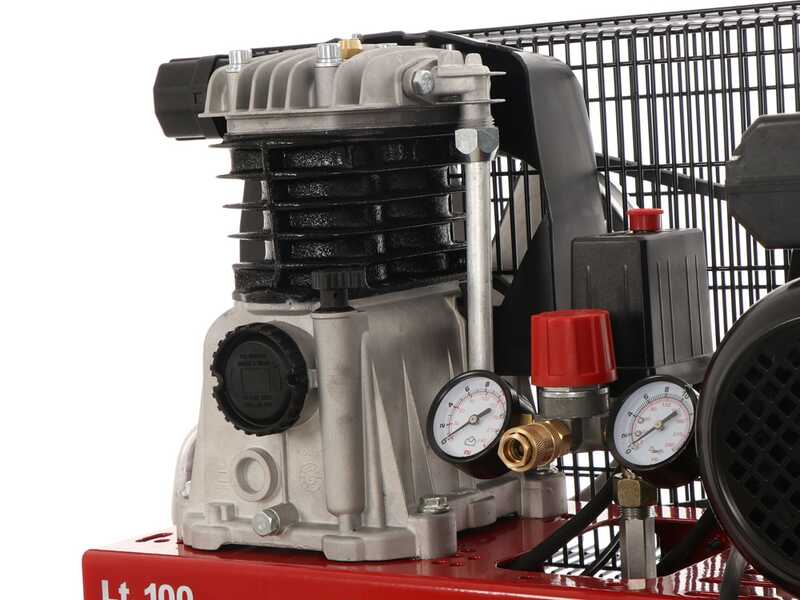

FINI MK 102 Head

Air displacement: 235 lt/min
Head type:twin-cylinder with cast iron cylinders
Suction type:single stage
Lubrication:oil
No. of revolutions: 1040 rpm


The degree of professionalism and more generally the life of the compressor is largely determined by the number of revolutions per minute of the head.

The lower the rpm, the longer the life of the compressor. The reduction ratio of the number of revolutions is obtained by the pulleys of different diameter that are assembled to the motor and to the head unit respectively.

Detail of the oil control dipstick

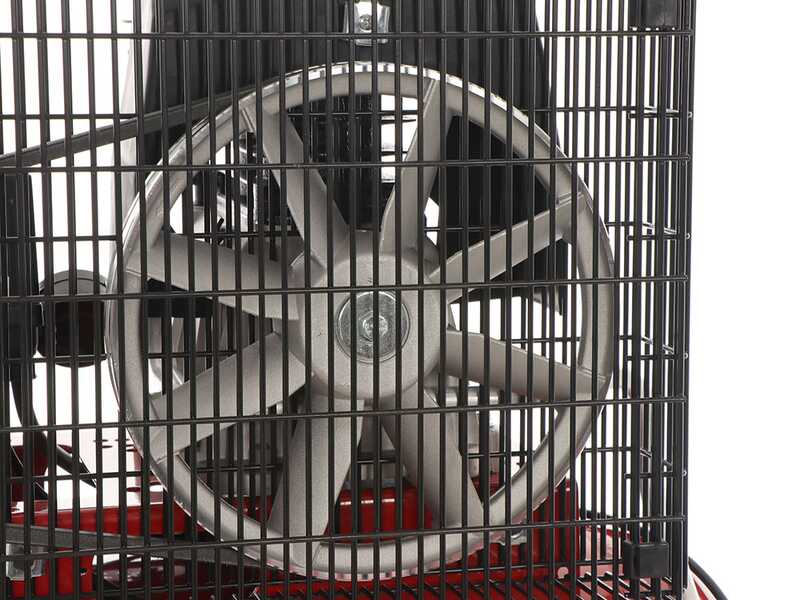

Belt drive

The belt drive characterizes these FINI air compressors.

The use of the belt, combined with an induction motor, contributes to the long-lasting service life of the air compressor, drastically reducing the number of revolutions of the head, increasing its life and reducing wear.

The protective grid is used to protect the belt and drive from any external objects that could damage it during operation. It also allows to always have under control the status of the drive belt.

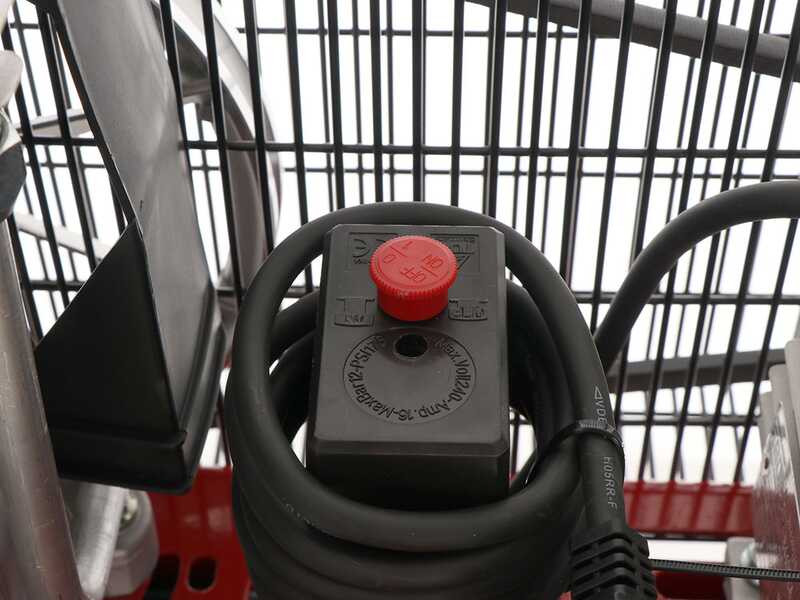

Controls

The Fini Advanced MK102-100-2M air compressor features easy and user-friendly controls, which are divided into:

Power switch

Output air pressure gauge

Tank air pressure gauge

Female outlet fitting

Pressure adjusting knob

Direct tank fitting

Additional features

Schuko socket

Ergonomic handle

Large sturdy plastic wheels

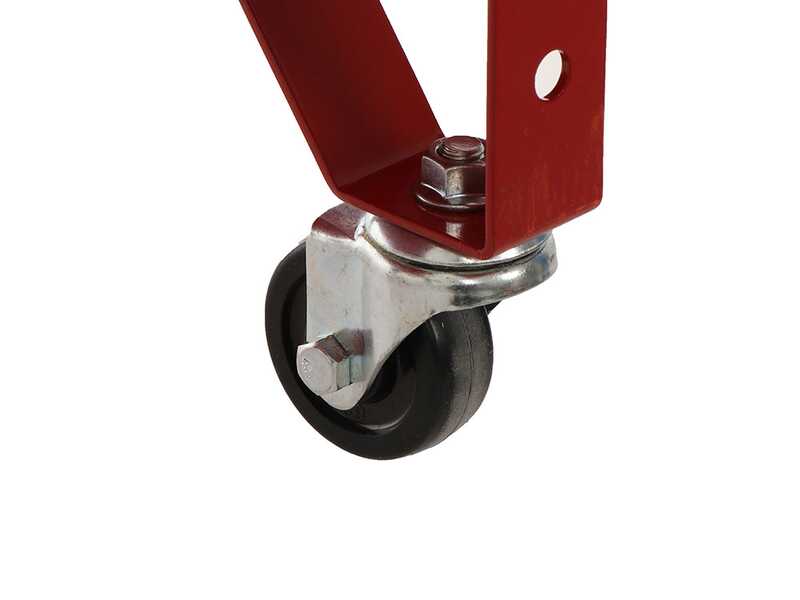

Front pivoting wheels

Condensate drain valve

Direct tank fitting

Free items & Standard equipment

1° GIFT: air compressor maintenance kit with oil bottle and joints

Maintenance kit provided on standard equipment includes:

  • Air compressor spare/replacing female output joint
  • Air compressor spare/replacing male output joint (replaceable on equipment with bayonet cap) or usable as spare joint

  • Quick joint to convert all the machineries fitted with standard bayonet cap. It allows easily connecting the units to hoses with female quick joint.

  • Quick joint for converting the female output joint supplied on the air compressor into the traditional bayonet cap (also allows the use of the standard hoses with bayonet system)

  • Repair/Junction fitting for Ø 8 hoses
  • Repair/Junction fitting for Ø 10 hoses
  • Lower tank discharge valve replacement air compressor
  • Teflon roll, ideal for the main maintenance operations

2° GIFT: 600 ml "COMPRIX” oil bottle

COMPLIMENTARY: 600 ml "COMPRIX” oil bottle, professional oil specifically designed for air compressor cylinder heads. Very useful for oil refill and first oil replacement (the air compressor is shipped already filled with oil).

COMPLIMENTARY: Oilless Air Compressor Maintenance Kit

Maintenance kit provided on standard equipment includes:

  • Air compressor spare/replacing female output joint
  • Air compressor spare/replacing male output joint (replaceable on equipment with bayonet cap) or usable as spare joint

  • Quick joint to convert all the machineries fitted with standard bayonet coupling. It allows easily connecting the units to hoses with female quick joint.

  • Quick male joint for converting the female output joint supplied on the air compressor into the traditional bayonet cap (it also allows the use of the standard hoses with bayonet system)

  • Repair/Junction fitting for Ø 8 hoses
  • Repair/Junction fitting for Ø 10 hoses
  • Lower tank discharge valve replacement air compressor
  • Teflon roll, ideal for the main maintenance operations

Standard equipment

The air compressor is shipped in its original packaging

Instruction manual included.
