Fini Advanced MK 102-90V-2M - Vertical Electric Air Compressor - 2 Hp Motor

Questions & Answers (1)
ID: K601835

EAN: 8017750263977

MPN: BMGY404FNN551

7,3/10
After-sales assistance & Spare parts
Fini Advanced MK 102-90V-2M - Vertical Electric Air Compressor - 2 Hp Motor
FREE
no. 8 compressor connectionsno. 8 compressor connections
Bottle of 600 ml "COMPRIX" professional oilBottle of 600 ml "COMPRIX" professional oil
Air compressor tank
90 L
Max. operating pressure
10 bar
Air intake flow
235 L/min
Cylinder head rpm
1040 RPM
Lubrication
Oil
Pump type
Single-stage
Motor type
Induction
Nominal power
2 HP
Operating mode
Single-phase 230 V
Transmission type
Belt
Product Features
Model:
MK 102-90V-2M
Air compressor type 2:
Twin-cylinder belt-driven - single stage
Air compressor type:
Vertical
Operating mode:
Single-phase 230 V
Operating mode:
Electric 230 V
Max. operating pressure:
10 bar
Number of tanks:
1
Air compressor tank:
90 L
Noise level:
94 Lwa
Manufacturing country:
China
Motor data
Motor type:
Induction
Nominal power:
2 HP
Air compressors engine speed:
2850 RPM
Pump data
Air intake flow:
235 L/min
Pump type:
Single-stage
Lubrication:
Oil
No. of cylinders:
2
Cylinders material:
Cast iron
Transmission data
Belt-driven:
Transmission type:
Belt
Cylinder head rpm:
1040 RPM
Equipment
No. of outlet couplings:
2
Front handle:
Yes
Folding/removable handle/s:
No
Free gifts/extra features
Wooden pallet (safe shipping):
Yes
Oil bottle:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
40x50x111 cm
Net weight:
64.6 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
60x5x113 cm
Gross weight (packaging included) :
66 Kg
Assembly time:
15 minutes
Prompt Delivery
7 items in stock
Free Shipping
Estimated delivery: 12/12/2024 - 16/12/2024
Suggested price:
€ 679,51
€ 543,61
VAT Included
You're viewing:
Customers also viewed:
Description

FINI Advanced MK 102-90V-2M Electric Air Compressor

The FINI Advanced MK 102-90V-2M is a belt-driven single-phase electric air compressor equipped with a powerful 2 Hp electric motor and a 90 L tank. This compact air compressor can be used for a variety of applications. It is the ideal tool for the most demanding craftsmen and hobbyists to carry out domestic work.

Powered by a 1.5 Hp electric motor, this air compressor features a compressed air suction capacity of 235 L and is capable of reaching a maximum pressure of 10 bar.

It comes with a large compressed air storage tank of 90 L. The compressor weighs 64,6 Kg and can be easily transported thanks to its large wheels and the upper handle. Thanks to its compact, vertically developed shape, it takes up little space, allowing it to be easily stored.

Suitable for a number of applications:

  • Air blowing
  • Inflation
  • Air brushing
  • Nailing - Stapling
  • Spraying treatments
  • Painting
  • Professional painting
  • Screw driving

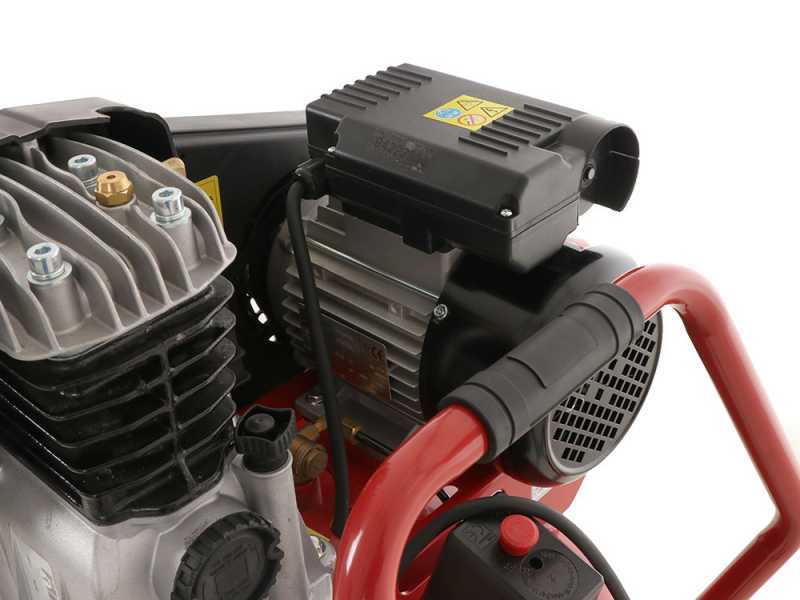

2 Hp induction electric motor

Power supply: 230 V

Power: 2 Hp
The motor is characterised by a very long service life and low need for maintenance.

This motor is in fact brushless, the brushes being the main component subject to wear in electric motors. The absence of this component grants high durability to the motor. It is a top product in terms of reliability, low noise, durability, energy efficiency and maintenance.

Air intake flow: 235 L/min

Motor rpm: 2850 rpm

Pumping unit type: coaxial

Pressure: 10 bar

Tank capacity: 90 L

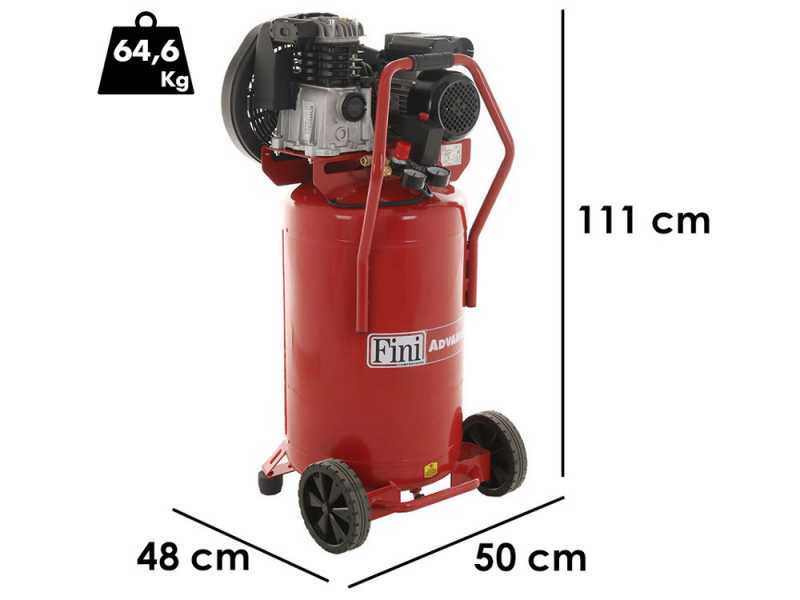

Dimensions:
- Width: 50 cm
- Length: 48 cm
- Height: 111 cm

Weight: 64.6 kg

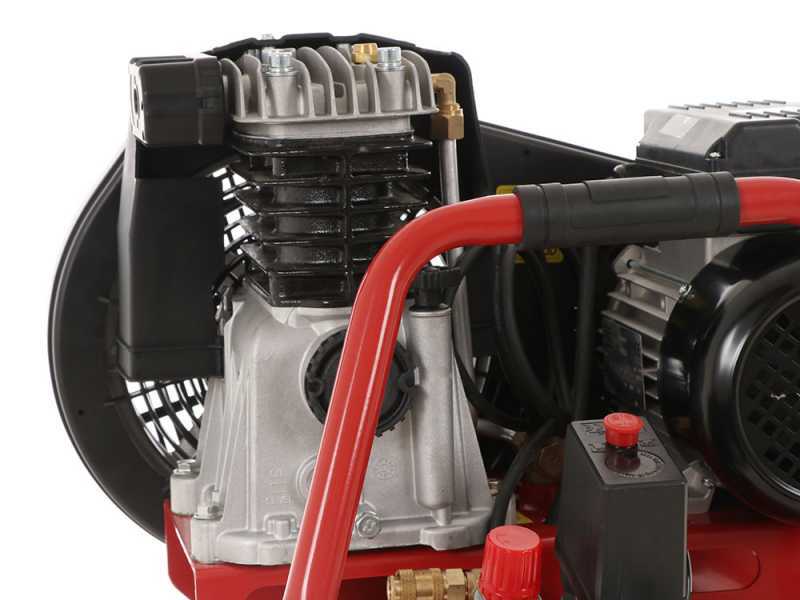

Fini MK102 cylinder head

Air intake flow: 235 L/min
Cylinder head type: twin-cylinder with cast iron cylinders
Suction type: single-stage
Lubrication: oil
No. of revolutions: 1040 rpm


The degree of professionalism and more generally the life of the air compressor is largely determined by the number of revolutions per minute of the cylinder head.

The lower the rpm, the longer the life of the air compressor. The reduction ratio of the number of revolutions is obtained by the pulleys of different diameter that are fitted to the motor and to the cylinder head respectively.

Belt drive

The belt drive characterizes these Fini air compressors.

The use of the belt, combined with an induction motor, contributes to the durability of this compressor, drastically reducing the number of revolutions of the cylinder head, increasing its life and reducing wear.

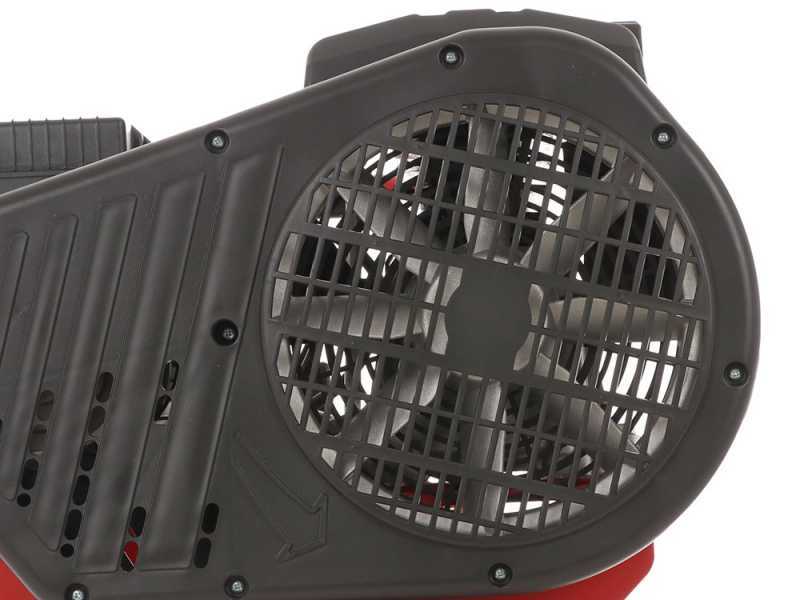

The grid protection serves to prevent the drive belt and the transmission from being damaged by external objects that might hit it during operation. It also allows the status of the drive belt to be continuously checked.

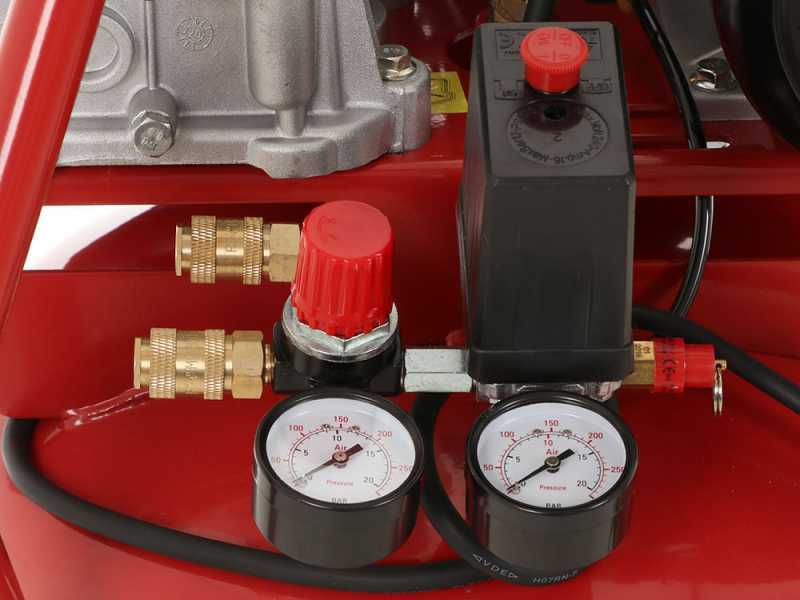

Controls

The air compressor features easy and user-friendly controls, which are divided into:

Power switch

Tank air pressure gauge

Output air pressure gauge

Air compressor female outlet fittings

Pressure adjusting knob

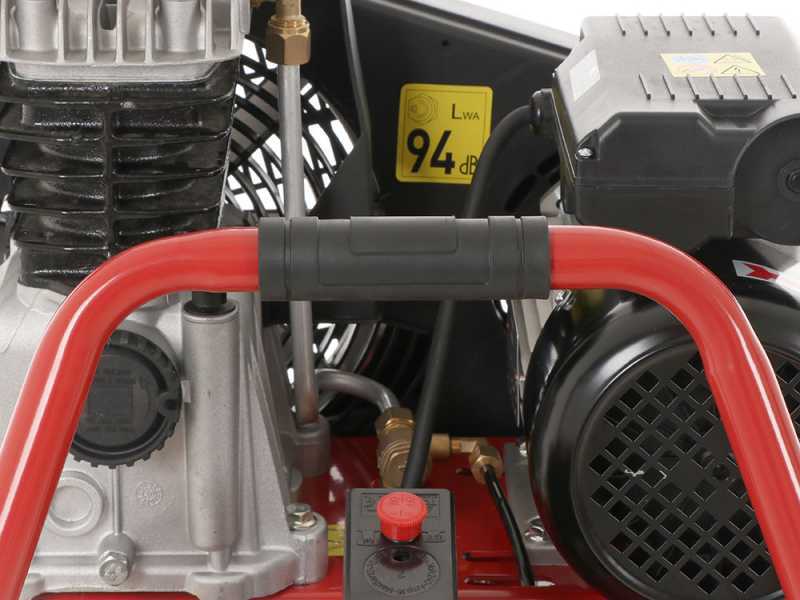

Other features

The air compressor is powered by a Schuko plug

Ergonomic lifting handle

Anti-vibration rubber pads

Large wheels for transportation

Condensate drain valve

Free items & Standard equipment

1° GIFT: air compressor maintenance kit with oil bottle and joints

Maintenance kit provided on standard equipment includes:

  • Air compressor spare/replacing female output joint
  • Air compressor spare/replacing male output joint (replaceable on equipment with bayonet cap) or usable as spare joint

  • Quick joint to convert all the machineries fitted with standard bayonet cap. It allows easily connecting the units to hoses with female quick joint.

  • Quick joint for converting the female output joint supplied on the air compressor into the traditional bayonet cap (also allows the use of the standard hoses with bayonet system)

  • Repair/Junction fitting for Ø 8 hoses
  • Repair/Junction fitting for Ø 10 hoses
  • Lower tank discharge valve replacement air compressor
  • Teflon roll, ideal for the main maintenance operations

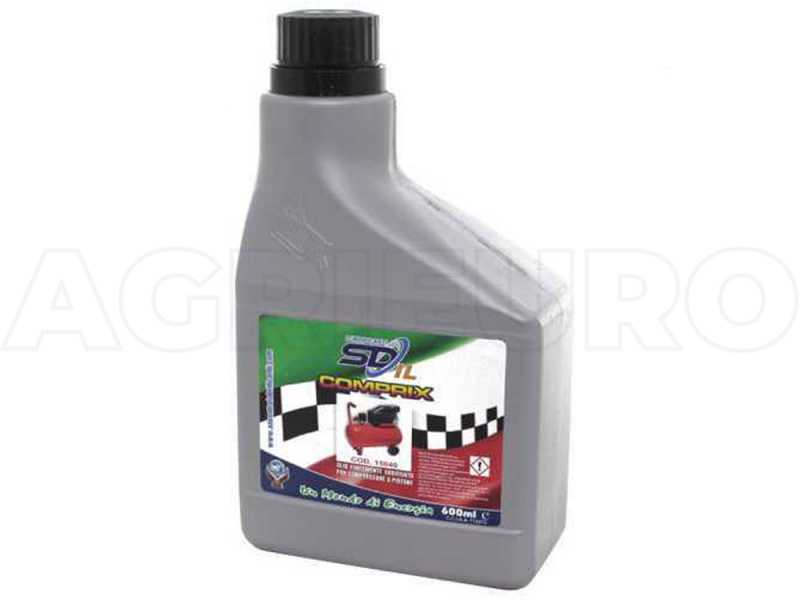

2° GIFT: 600 ml "COMPRIX” oil bottle

COMPLIMENTARY: 600 ml "COMPRIX” oil bottle, professional oil specifically designed for air compressor cylinder heads. Very useful for oil refill and first oil replacement (the air compressor is shipped already filled with oil).

Standard equipment

The air compressor is shipped in its original packaging.

Instructions manual included.
