Fini Genius 230/50 - Wall-mounted air compressor with hose reel - 160 l/min

Questions & Answers (1)
ID: K604274

EAN: 8016738806809

MPN: 8215400FNN435

7,3/10
After-sales assistance & Spare parts
Fini Genius 230/50 - Wall-mounted air compressor with hose reel - 160 l/min
FREE
no. 8 compressor connectionsno. 8 compressor connections
Max. operating pressure
8 bar
Air intake flow
160 L/min
Cylinder head rpm
2000 RPM
Lubrication
Oil-less
Pump type
Single-stage
Nominal power
1.5 HP
Operating mode
Single-phase 230 V
Wall-mounted
Product Features
Model:
Genius 230/50
Air compressor type 2:
Oilless
Air compressor type:
Wall-mounted
Wall-mounted:
Operating mode:
Single-phase 230 V
Max. operating pressure:
8 bar
Manufacturing country:
China
Motor data
Motor type:
Electric single-phase
Nominal power:
1.5 HP
Silenced:
No
Power supply:
220 V electric
Pump data
Pump brand:
Fini
Air intake flow:
160 L/min
Pump type:
Single-stage
Lubrication:
Oil-less
No. of cylinders:
1
Transmission data
Transmission type:
Coaxial type direct
Cylinder head rpm:
2000 RPM
Equipment
No. of outlet couplings:
1
Lifting handle:
No
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
30x31x32 cm
Net weight:
7 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
50x34x32 cm
Gross weight (packaging included) :
8.5 Kg
Assembly time:
Assembled
Prompt Delivery
6 items in stock
Free Shipping
Estimated delivery: 22/11/2024 - 26/11/2024
Suggested price:
€ 225,72
€ 202,00
VAT Included

You're viewing:
Customers also viewed:
Description

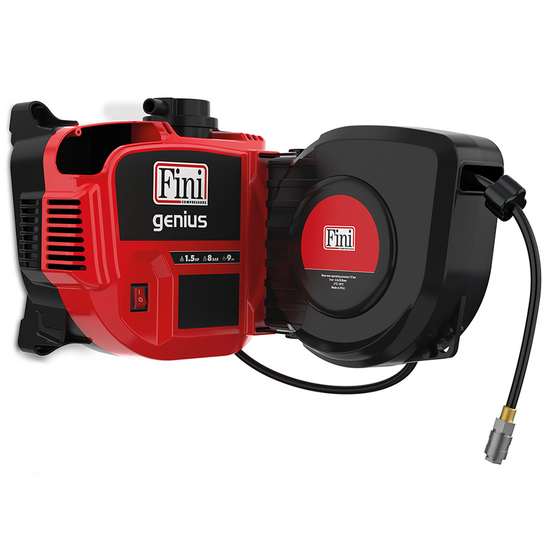

Fini Genius 230/50 Electric Air Compressor

The Fini Genius 230/50 is a compressed air compressor without tank that is very comfortable and easy to use due to its wall-mounted design.

The compressor is immediately ready for use thanks to the ignition button located on the front. It is very compact in size and equally light, so it is comfortable to hang to the wall, weighing only 7 kg.

It comes with a internal 9 meters hose reel which allows to work in maximum comfort while keeping the workstation tidy. Once installed, the product has the ability to rotate 180 degrees allowing you to easily work even in those places that are hard to reach.

Powered by a 1.5 HP electric motor, this air compressor has a 70 L/min compressed air suction capacity. It is capable of reaching a 8 bar maximum pressure.

Maintenance operations are also reduced, as no control or topping up of lubricating oil is required, as well as the transportability of these compressors, since there is no risk of oil leakage even when the compressor is laid down on its side, for example to load it into the trunk of a car.

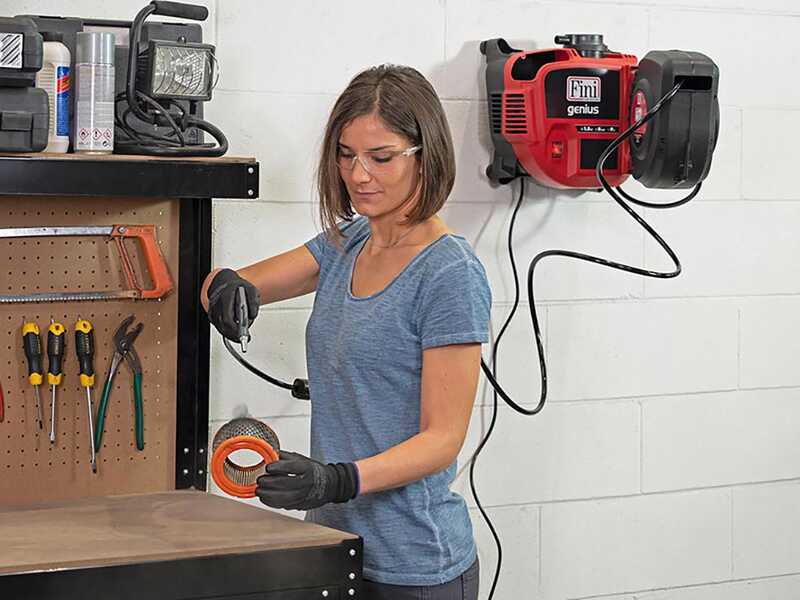

Wall-mounted installation

The main innovative feature of this new Fini air compressor is that it can be installed directly to the wall, thus allowing a better stability and greater ease of use.

Once installed, the product has the ability to rotate 180 degrees allowing you to easily work even in those places that are hard to reach.

It is also equipped with a quick hose reel which allows to store the hose very quickly and efficiently.

Hose length 9 m

Cable length 1.5 m

Technical specifications and other features

Here below are the main technical specifications and characteristics of the Fini Genius:

  • Air intake flow: 160 L/min
  • Pump type: coaxial
  • Air displacement: 160 L/min
  • Pressure: 8 bar
  • Electric motor power: 1.5 HP

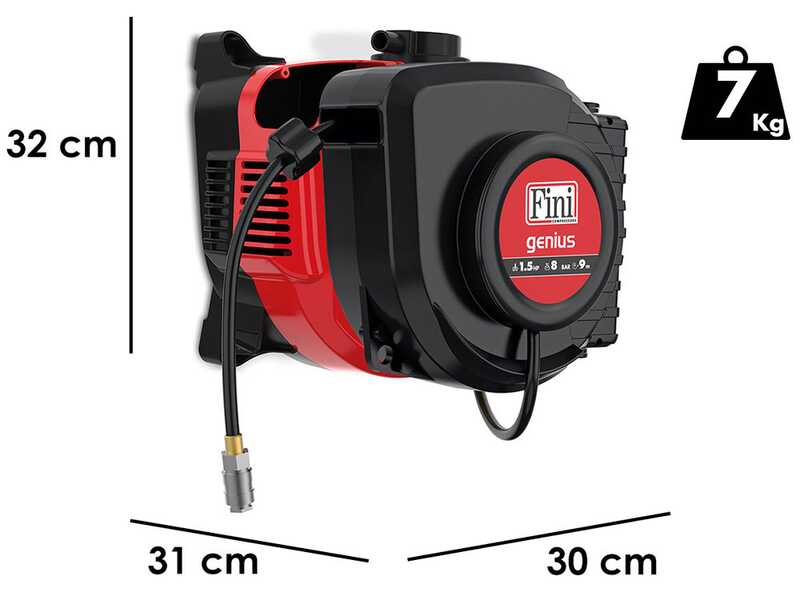

Dimensions:

  • Length: 300 mm
  • Width: 310 mm
  • Height: 320 mm
  • Weight: 7 Kg

Focus on the Schuko plug

Hose: 9 m

Detail of the air filter

Focus on the quick coupling

Focus on the brackets for fixing the compressor to the wall

Power switch

Free items & Standard equipment

COMPLIMENTARY: Oilless Air Compressor Maintenance Kit

Maintenance kit provided on standard equipment includes:

  • Air compressor spare/replacing female output joint
  • Air compressor spare/replacing male output joint (replaceable on equipment with bayonet cap) or usable as spare joint

  • Quick joint to convert all the machineries fitted with standard bayonet coupling. It allows easily connecting the units to hoses with female quick joint.

  • Quick male joint for converting the female output joint supplied on the air compressor into the traditional bayonet cap (it also allows the use of the standard hoses with bayonet system)

  • Repair/Junction fitting for Ø 8 hoses
  • Repair/Junction fitting for Ø 10 hoses
  • Lower tank discharge valve replacement air compressor
  • Teflon roll, ideal for the main maintenance operations

Free items included

The air compressor is shipped in its original packaging.

Instruction manual is included in the package.
