Fiorentini U.B. ECOSTAR55 - Cordless floor washer - 3 in 1: washes, dries and vacuums

Add a question
ID: K602978

EAN: 8054141544666

MPN: ECOSTARC55N1

7,8/10
After-sales assistance & Spare parts
Fiorentini U.B. ECOSTAR55 - Cordless floor washer - 3 in 1: washes, dries and vacuums
FREE
Protection and storage tarp coverProtection and storage tarp cover
Ride-on
Self-propelling
Traction / self-propelled
Brush type
Disc
Brush width
55 cm
Pressure on the brush
35 Kg
Detergent tank capacity
90 L
Recovery tank capacity
92 L
Motor type
Battery-powered
Battery type
Lead-acid
Voltage
48 V
Battery Amperes
110 Ah
Assisted steering system (power steering)
Yes
Manufacturing country
Italy
Product Features
Model:
U.B. ECOSTAR55
Operation:
with squeegee
Body material:
PVC
Operating mode:
Battery-powered
Self-propelling:
Traction / self-propelled
Drying function:
Yes
Dirt vacuuming function :
Yes
Brush width:
55 cm
Brush type:
Disc
Hourly performance:
2750 m²/h
Squeegee width:
79 cm
Squeegee lifting:
Lever-operated
Brush hook:
Quick
Pressure on the brush:
35 Kg
Vacuum depression:
150 mmH20
Number of tanks:
2
Assisted steering system (power steering):
Yes
Detergent tank capacity:
90 L
Recovery tank capacity:
92 L
Ride-on :
Manufacturing country:
Italy
Motor data
Motor no.:
1
Motor brand:
Fiorentini
Motor type:
Battery-powered
Battery type:
Lead-acid
Brush motor power:
400 W
Motor power (max.):
350 W
Voltage:
48 V
Battery Amperes:
110 Ah
Working autonomy:
5 h
Working autonomy:
300 min
Noise level:
50 dB(A)
Equipment
Height-adjustable handle:
Yes
Rubber-coated soft grip:
Yes
Folding/removable handle/s:
Yes
Analogue dashboard with indicator lights:
Yes
Free gifts/extra features
Wooden pallet (safe shipping):
Yes
Battery charger:
Yes
Instructions manual:
Yes
Dimensions and logistics

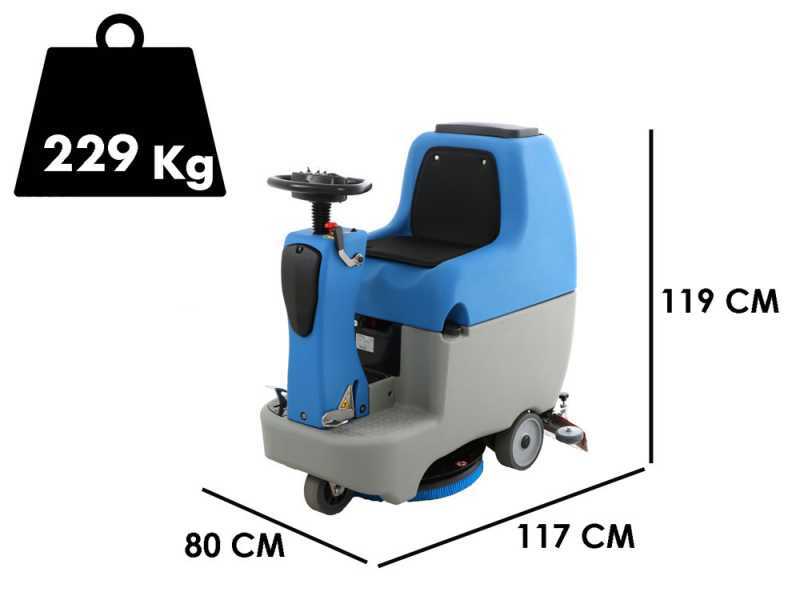

Product dimensions in cm (L x W x H):
117x80x119 cm
Net weight:
229 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
143x63x120 cm
Gross weight (packaging included) :
250 Kg
Assembly time:
Assembled
10 - 12 days from purchase
Free Shipping
You're viewing:
Customers also viewed:
Description

Fiorentini U.B. ECOSTAR55 Floor Scrubber Dryer

Fiorentini U.B. floor scrubber dryer. ECOSTAR55 battery powered floor scrubber allows the operator to get on board and have maximum control of the scrubber. It will be possible to activate the brush or the suction process comfortably seated above the machine.

The scrubber is equipped with a pressure safety system located underneath the seat. This is why you can not start the machine unless the operator is sitting, so as to prevent an unwanted or incorrect use of the machine.

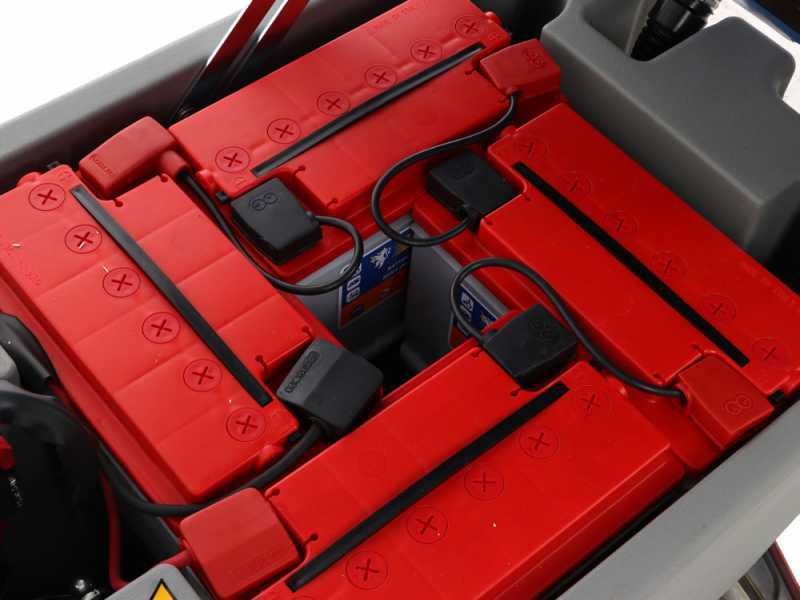

It features 4 12V and 110Ah batteries which power the entire machine including the electric controls. With 4 batteries this model has a power superior to the rest of the scrubbers, it has an autonomy of 5 hours of work.

It has two large tanks, one 90L tank for clean water and a 92 L tank for dirty water to allow the machine to perform cleaning of work areas up to 2750mq.

This floor scrubber and dryer is an ideal battery scrubber for cleaning small to medium size floors, especially if there are people or furniture, such as spas, clinics and medical environments in general, gyms, shops, workshops, stores in general.
The ease of maneuver, the quietness, the immediate drying allow to work safely even in the presence of passage of people during the open hours.

For cleaning, it uses a nylon bristle brush with a working width of 550mm, while the 790mm rear squeegee allows to collect the dirty water and channelling it below the suction tube.

Ideal for cleaning surfaces up to 2750 square meters.

Why choose the disc brush?

  • Prolonged mechanical action of the bristles on the surface, suitable for persistent dirty;
  • the special inclination of the cleaning body allows a balanced dragging effect and balanced machine, favoring the maneuverability;
  • It allows the complete washing even close to walls;
  • The lowest washing mode to penetrate under the shelves

Highly effective cleaning with innovative rotating brush that removes deep dirt without being aggressive or leave stains

Technical Features

Quick release of the disc brush:

The exclusive system allows the automatic coupling of the disc brush in the ignition phase and allows the quick release manually and without the aid of tools.

Quick access to the recovery tank, easy to check. Machine stop content thanks to the ease of construction and maintenance. Highly effective cleaning with both sides of the brush, even in hard to reach places. Large rotation of the squeegee for a rapid replacement.

The machine tends to slow down while turning, allowing you to have greater control of the machine even in case of tight curves.

the machine also has a sensor inside of the recovery tank which turns it off once filled.

- Indicator clean water tank level.

- Openable compartment

- Battery operated

- Batteries

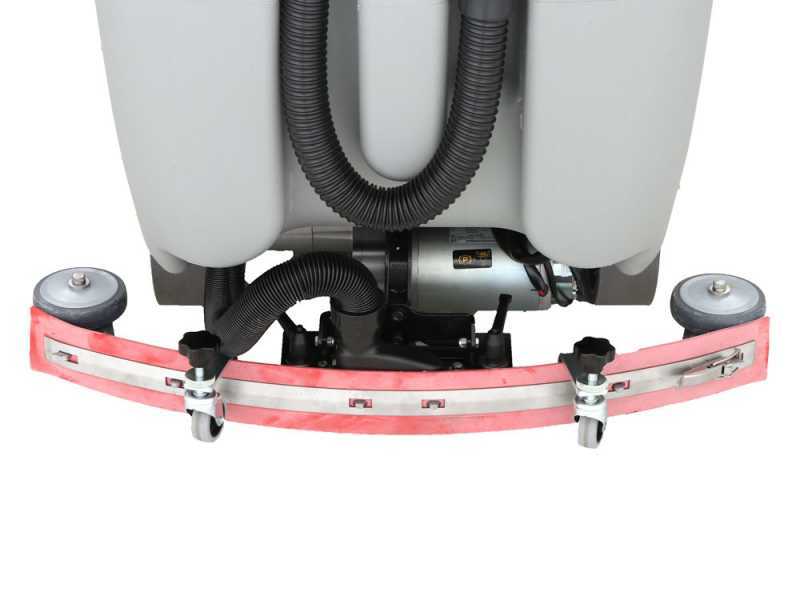

Brush and Squee-gee

Very affordable and environmentally friendly: with the use of water alone can already get decent cleaning results.

In case of stubborn dirt the detergent can be added to the solution (it is advisable to add the detergent to the solution to have really optimal performance). The detergent input is carried out from a conduit that is seen in the front of the machine.

Lifting system squee-gee operated by a lever placed in the back.

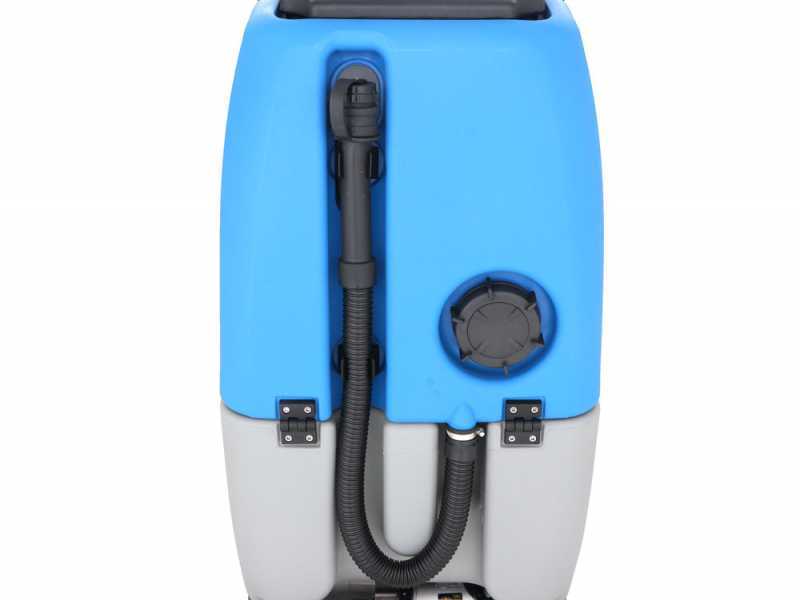

Extreme accessibility and inspection of the components

Liquid discharge plug

Large load capacity of 2 tanks (water-detergent solution and dirty water) for a long autonomy of operation:

1- Red Tank => dirty water

1-Gray Tank => clean water

Non-marking wheels

Regulators squee-gee inclination.

Quick release for rubber squee-gee replacement.


- The squee-gee has wheels at the ends, to facilitate cleaning in corners.

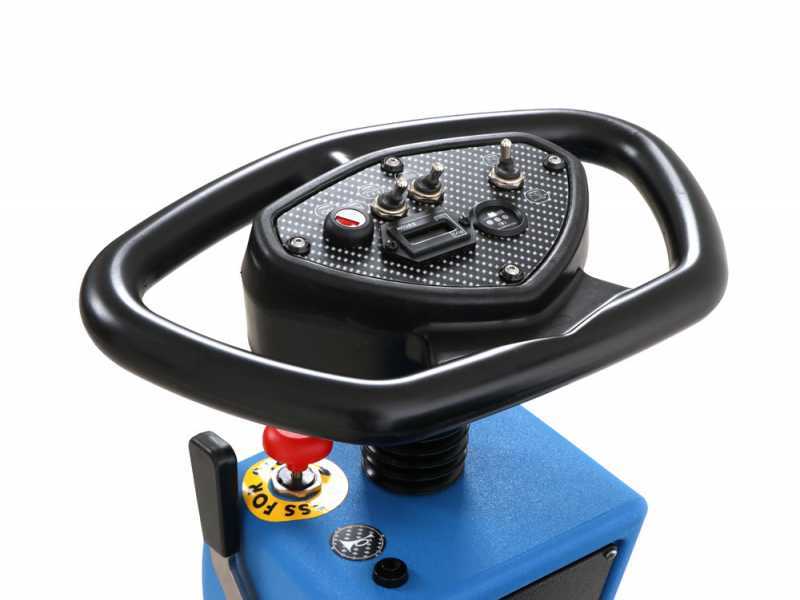

Controls

The control panel controls all functions of the machine through the control panel it is possible to implement the following functions.

1- Ignition of the rotating brush

2- Activate the suction engine

3- Switch the machine on and off

4-Open the tap for water leakage.

5- Lower or lift the squeegee

6- lever to stop the engine, makes it possible to move the floor scrubber manually without lighting.

7- Horn.

8- Forward pedal.

9- Battery level indicator.

10- Hour meter.

11- Safety brake.

Technical Features

Power supply: 4x 12V 110Ah Battery

Working width/ squeegee: 550 / 790mm

Working capacity: 2750 m2/h

Detergent tank capacity: 90 l

Stop recovery tank capacity: 92 L

Brush motor power: 1x400W

Suction motor power: 1x350W
Dimensions: 117x80x119 cm

Supplied accessories:

  • Brush
  • Rear Squeegee Rubber
  • Battery charger
  • Batteries
Free items & Standard equipment

COMPLIMENTARY: large protection and storage cover

Essential for protecting your machine when stored.

This cloth is quick and easy to apply; in a few seconds, your machine will be protected against dust and humidity.

It is equipped with an elastic band on the lower edge to perfectly fit the machine.

It is easy to fold and store in its box without taking up space!

(The pictures are for illustrative purposes only)

Free Items Included

The floor scrubber and dryer is shipped in its original packaging. Instruction manual

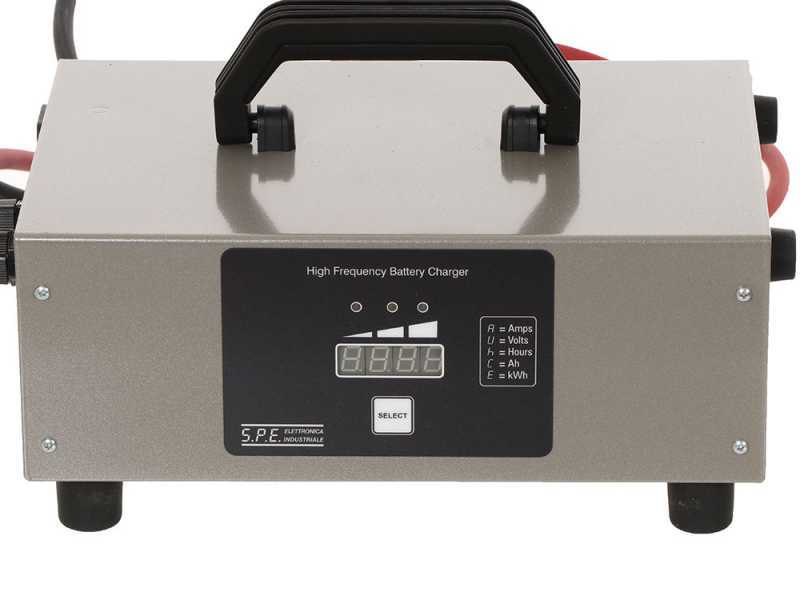

Battery charger included
