GeoTech 160 cm - Tractor-mounted Hydraulic Loader Bucket - Heavy Series - 700 Kg Loading Capacity

Questions & Answers (2)
ID: 102098

EAN: 8053435090070

8,9/10
After-sales assistance & Spare parts
GeoTech 160 cm - Tractor-mounted Hydraulic Loader Bucket - Heavy Series - 700 Kg Loading Capacity
Special offer
+100 sold
Sturdiness/Series
Heavy
Body material
Enamelled steel
Load capacity
700 Kg
Body tipping
Hydraulic
Paddle length
160 cm
Paddle depth
78 cm
Body dimensions
160 x 78 x 50 cm
Product Features
Model:
Hydraulic loader bucket 160 cm
Type:
Rear tractor loader
Body material:
Enamelled steel
Sturdiness/Series:
Heavy
Operating mode:
Tractor-driven PTO
Load capacity:
700 Kg
Body tipping:
Hydraulic
Body dimensions:
160 x 78 x 50 cm
Paddle length:
160 cm
Paddle depth:
78 cm
Manufacturing country:
China
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
160 x 120 x 100 cm
Net weight:
162 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
117 x 172 x 130 cm
Gross weight (packaging included) :
190 Kg
Assembly time:
15 minutes
Prompt Delivery
26 items in stock
Free Shipping
Estimated delivery: 11/04/2025 - 15/04/2025
Lowest price:
€ 1.276,05
-3 %
€ 1.235,16
Vat included
You're viewing:
Customers also viewed:
Description

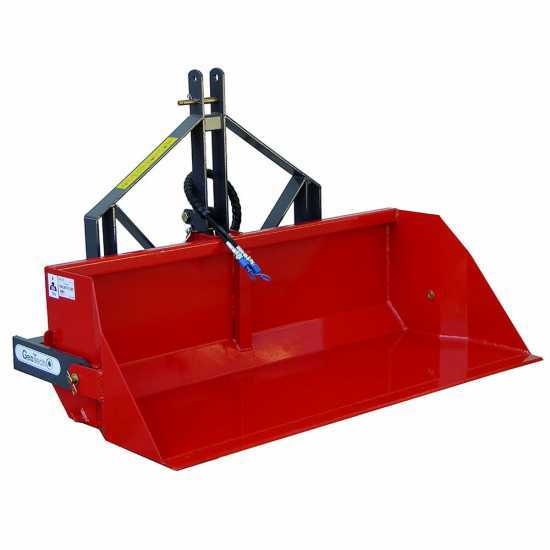

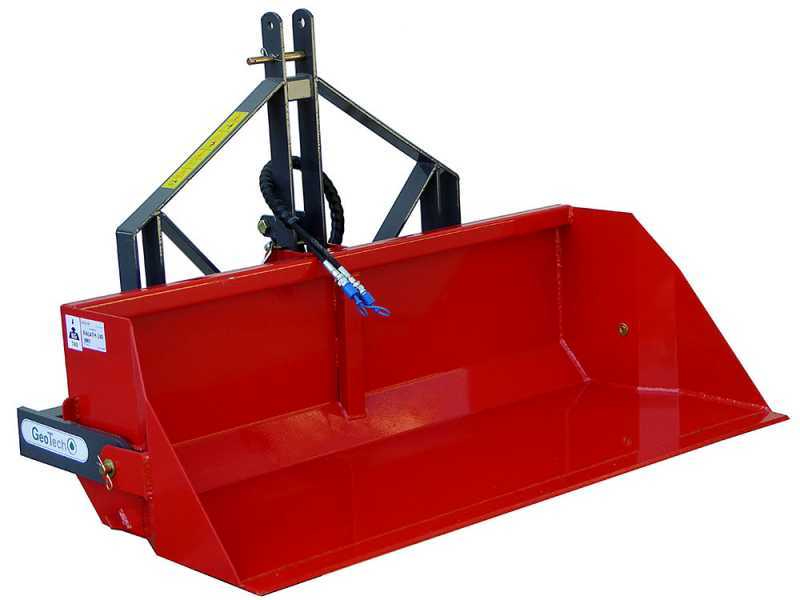

GeoTech tractor-mounted rear hydraulic loader bucket

The GeoTech rear tractor loader bucket is ideal for moving, transporting, lifting and loading each kind of material.

Provided with tractor three-point hitch and hydraulic tipping system, the GeoTech loader bucket is ideal for moving tools, fuel tanks, sprayers, generators and dirt around even from the roughest soils.

Main features:

  • Sturdy weld blade of 180 cm width
  • HYDRAULIC tipping system
  • Easy to store
  • Sturdy design

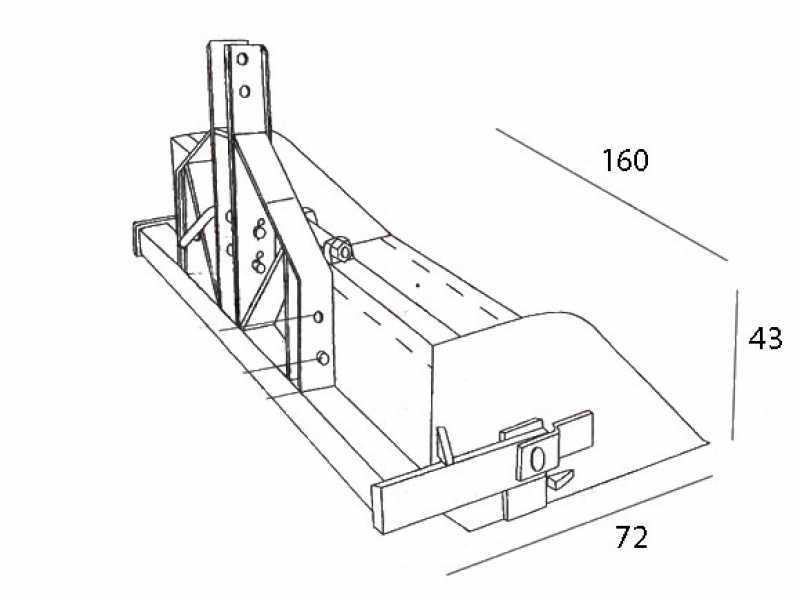

  • Overall dimensions: 160x78x50 cm
  • Supporting bar: 9x9 cm
  • Universal 3-point hitch, 1-2 Cat.
  • Tip in 1 cm thick anti-fold material
  • Suitable for 30-60 hp tractors

Tractor 3-point hitch

This rear tractor loader bucket is suitable for moving and loading light and granular materials. Therefore, whether solid or more compact materials have to be loaded, they should be moved by specific load shovels.

Hydraulic tipping and other features

The GeoTech rear tractor loader bucket is provided with hydraulic tipping system, which allows a gradual tipping with no kickbacks.

Ideal for easy transport, unloading and lifting of each type of material.

The loader bucket tipping is managed by a hydraulic cylinder that has to be engaged to the tractor hydraulic system by means of the specific hooks provided.

  • Focus on the loader bucket mounted on the rear part of the tractor
  • Ensure that all the bolts of the hydraulic cylinder are always sufficiently tightened before operating the machine.

Focus on the tractor 3-point hitch

Focus on the supporting mount

Focus on the blade profile shape

35 mm diameter piston

Free items & Standard equipment

Standard equipment

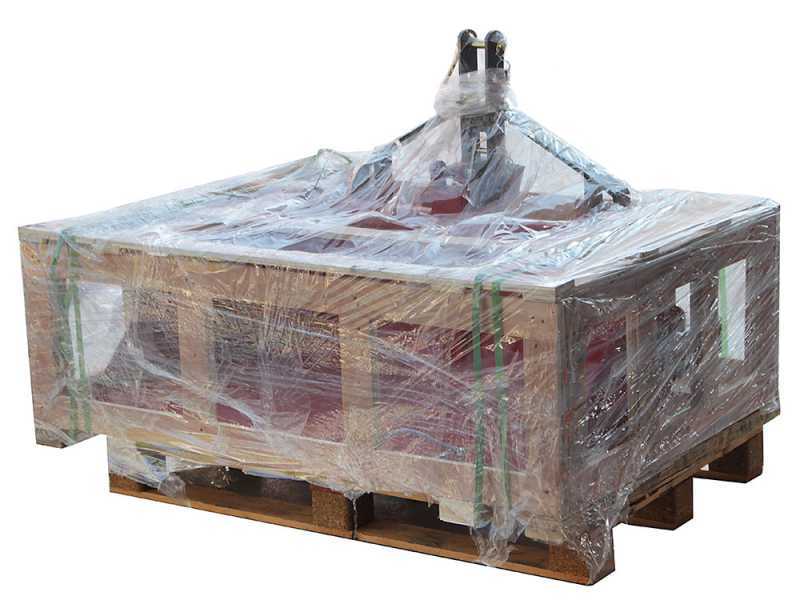

The tractor loader bucket is shipped on a pallet.

Extremely easy and fast assembly.
