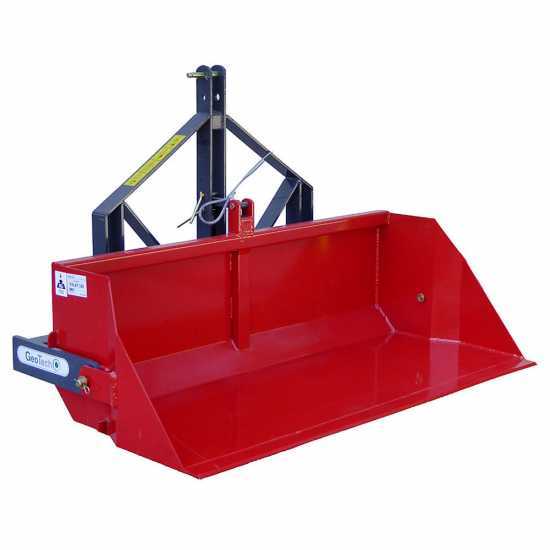

GeoTech 180 cm - Tractor-mounted Rear Loader Bucket - Heavy Series - 700 Kg Loading Capacity

Semi-Pro
Add a question
ID: 102095

EAN: 8053435090049

GeoTech
Catalog GeoTech
8,9/10
After-sales assistance & Spare parts
32Pictures
2Customer pics
GeoTech 180 cm - Tractor-mounted Rear Loader Bucket - Heavy Series - 700 Kg Loading Capacity
GeoTech 180 cm - Tractor-mounted Rear Loader Bucket - Heavy Series - 700 Kg Loading Capacity
GeoTech 180 cm - Tractor-mounted Rear Loader Bucket - Heavy Series - 700 Kg Loading Capacity
GeoTech 180 cm - Tractor-mounted Rear Loader Bucket - Heavy Series - 700 Kg Loading Capacity
GeoTech 180 cm - Tractor-mounted Rear Loader Bucket - Heavy Series - 700 Kg Loading Capacity
GeoTech 180 cm - Tractor-mounted Rear Loader Bucket - Heavy Series - 700 Kg Loading Capacity
Sturdiness/Series
Heavy
Body material
Enamelled steel
Load capacity
700 Kg
Body tipping
Manual
Paddle length
180 cm
Paddle depth
78 cm
Product Features
Model:
180 cm tractor loader bucket
Type:
Rear tractor loader
Body material:
Enamelled steel
Sturdiness/Series:
Heavy
Operating mode:
Tractor-driven PTO
Load capacity:
700 Kg
Body tipping:
Manual
Paddle length:
180 cm
Paddle depth:
78 cm
Manufacturing country:
China
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
180 x 120 x 100 cm
Net weight:
232 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
117 x 192 x 130 cm
Gross weight (packaging included) :
255 Kg
Assembly time:
15 minutes
Prompt Delivery
4 items in stock
Free Shipping
Estimated delivery: 06/01/2025 - 10/01/2025
Free returns (up to 30 days after receipt) *
€ 1.193,32
Vat included
5% off from the second item in your cart
Are you a business? Check out prices tailored to you!
You're viewing:
Customers also viewed:
Description

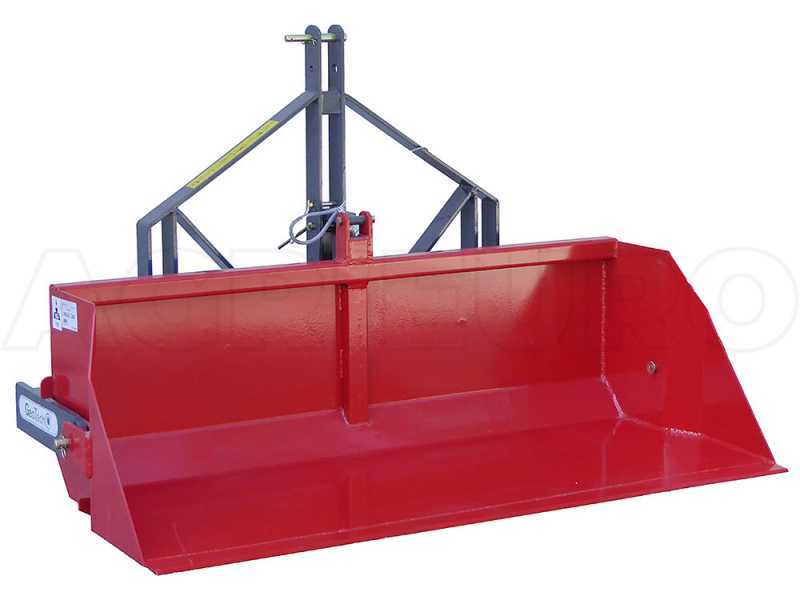

GeoTech rear tractor-mounted loader bucket - mechanical tipping

The GeoTech rear tractor loader bucket is ideal for moving, transporting, lifting and loading each kind of material.

Provided with tractor three-point hitch and mechanical quick release system, the GeoTech loader bucket is ideal for moving tools, fuel tanks, sprayers, generators and dirt around even from the roughest soils.

Main features:

  • Sturdy weld blade of 180 cm width
  • Mechanic tipping system with quick release
  • Easy to store
  • Sturdy design

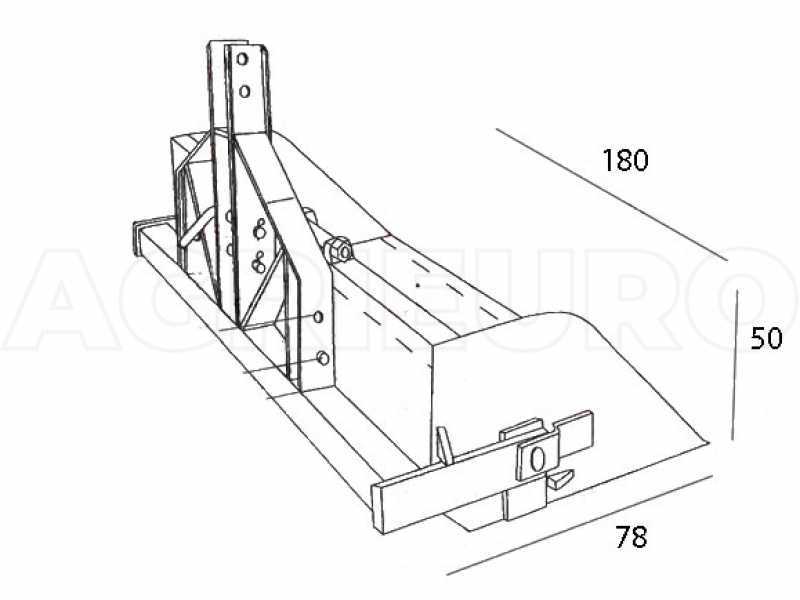

  • Bucket overall dimensions: 180x78x50 cm
  • Supporting bar: 9x9 cm
  • Cat.1-2 standard tractor hitch
  • Special bend material bucket: 1 cm thickness
  • Suitable for 50/100 hp tractors

Tractor 3-point hitch

This rear tractor loader bucket is suitable for moving and loading light and granular materials. Therefore, whether solid or more compact materials have to be loaded, they should be moved by specific load shovels.

GeoTech 180 cm - Tractor-mounted Rear Loader Bucket - Heavy Series - 700 Kg Loading Capacity
GeoTech 180 cm - Tractor-mounted Rear Loader Bucket - Heavy Series - 700 Kg Loading Capacity GeoTech 180 cm - Tractor-mounted Rear Loader Bucket - Heavy Series - 700 Kg Loading Capacity GeoTech 180 cm - Tractor-mounted Rear Loader Bucket - Heavy Series - 700 Kg Loading Capacity GeoTech 180 cm - Tractor-mounted Rear Loader Bucket - Heavy Series - 700 Kg Loading Capacity GeoTech 180 cm - Tractor-mounted Rear Loader Bucket - Heavy Series - 700 Kg Loading Capacity GeoTech 180 cm - Tractor-mounted Rear Loader Bucket - Heavy Series - 700 Kg Loading Capacity GeoTech 180 cm - Tractor-mounted Rear Loader Bucket - Heavy Series - 700 Kg Loading Capacity GeoTech 180 cm - Tractor-mounted Rear Loader Bucket - Heavy Series - 700 Kg Loading Capacity GeoTech 180 cm - Tractor-mounted Rear Loader Bucket - Heavy Series - 700 Kg Loading Capacity GeoTech 180 cm - Tractor-mounted Rear Loader Bucket - Heavy Series - 700 Kg Loading Capacity GeoTech 180 cm - Tractor-mounted Rear Loader Bucket - Heavy Series - 700 Kg Loading Capacity GeoTech 180 cm - Tractor-mounted Rear Loader Bucket - Heavy Series - 700 Kg Loading Capacity

Manual release mechanical tipping

The GeoTech rear tractor loader bucket consists of manual quick release managing the mechanical tipping.

The tractor loader bucket quick-release rope allows the unit quick release and tipping by simply pulling this rope.

Procedure:

  • Loader bucket release by pulling the rope.
  • Loader bucket tipping.
  • Focus on the tractor hitch

Focus on the tractor 3-point hitch

Focus on the supporting mount

Focus on the blade profile shape

Focus on the spring for the tractor hitch



GeoTech 180 cm - Tractor-mounted Rear Loader Bucket - Heavy Series - 700 Kg Loading Capacity
GeoTech 180 cm - Tractor-mounted Rear Loader Bucket - Heavy Series - 700 Kg Loading Capacity GeoTech 180 cm - Tractor-mounted Rear Loader Bucket - Heavy Series - 700 Kg Loading Capacity GeoTech 180 cm - Tractor-mounted Rear Loader Bucket - Heavy Series - 700 Kg Loading Capacity GeoTech 180 cm - Tractor-mounted Rear Loader Bucket - Heavy Series - 700 Kg Loading Capacity GeoTech 180 cm - Tractor-mounted Rear Loader Bucket - Heavy Series - 700 Kg Loading Capacity GeoTech 180 cm - Tractor-mounted Rear Loader Bucket - Heavy Series - 700 Kg Loading Capacity GeoTech 180 cm - Tractor-mounted Rear Loader Bucket - Heavy Series - 700 Kg Loading Capacity GeoTech 180 cm - Tractor-mounted Rear Loader Bucket - Heavy Series - 700 Kg Loading Capacity GeoTech 180 cm - Tractor-mounted Rear Loader Bucket - Heavy Series - 700 Kg Loading Capacity GeoTech 180 cm - Tractor-mounted Rear Loader Bucket - Heavy Series - 700 Kg Loading Capacity GeoTech 180 cm - Tractor-mounted Rear Loader Bucket - Heavy Series - 700 Kg Loading Capacity GeoTech 180 cm - Tractor-mounted Rear Loader Bucket - Heavy Series - 700 Kg Loading Capacity GeoTech 180 cm - Tractor-mounted Rear Loader Bucket - Heavy Series - 700 Kg Loading Capacity GeoTech 180 cm - Tractor-mounted Rear Loader Bucket - Heavy Series - 700 Kg Loading Capacity GeoTech 180 cm - Tractor-mounted Rear Loader Bucket - Heavy Series - 700 Kg Loading Capacity GeoTech 180 cm - Tractor-mounted Rear Loader Bucket - Heavy Series - 700 Kg Loading Capacity GeoTech 180 cm - Tractor-mounted Rear Loader Bucket - Heavy Series - 700 Kg Loading Capacity GeoTech 180 cm - Tractor-mounted Rear Loader Bucket - Heavy Series - 700 Kg Loading Capacity

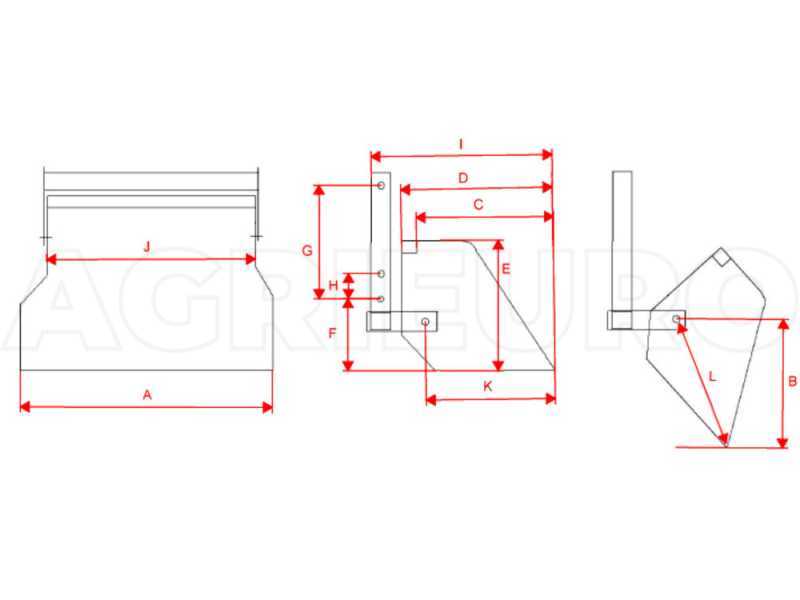

Loader bucket technical overall dimensions

Here below the loader bucket overall dimensions in millimeters (mm):

  • A = 1800
  • B = 530
  • C = 720
  • D = 780
  • E = 510
  • F = 310
  • G = 480
  • H = 100
  • I = 1010
  • J = 1700
  • K = 540
  • L = 570
  • LOWER END THICKNESS = 10
  • PLATE THICKNESS = 6
GeoTech 180 cm - Tractor-mounted Rear Loader Bucket - Heavy Series - 700 Kg Loading Capacity
GeoTech 180 cm - Tractor-mounted Rear Loader Bucket - Heavy Series - 700 Kg Loading Capacity
Free items & Standard equipment

Standard equipment

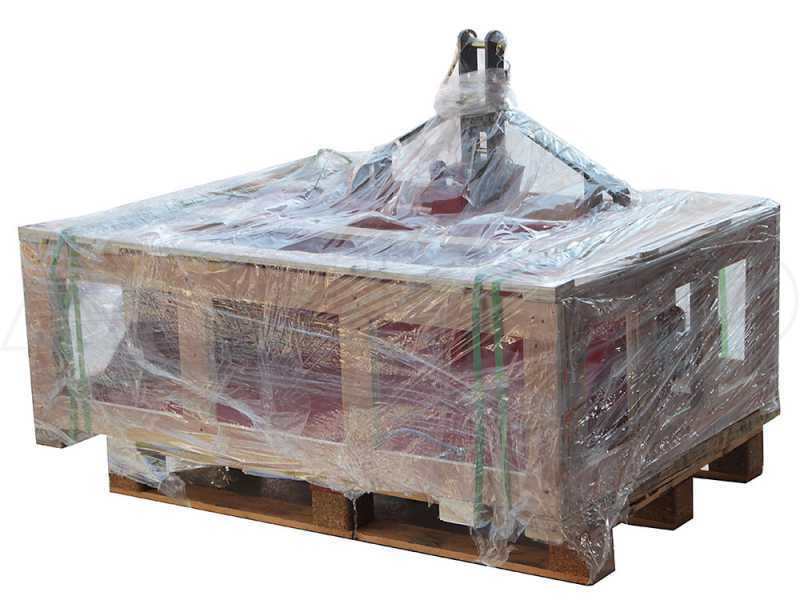

The tractor loader bucket is shipped on a pallet.

Extremely easy and fast assembly.



GeoTech 180 cm - Tractor-mounted Rear Loader Bucket - Heavy Series - 700 Kg Loading Capacity
GeoTech 180 cm - Tractor-mounted Rear Loader Bucket - Heavy Series - 700 Kg Loading Capacity GeoTech 180 cm - Tractor-mounted Rear Loader Bucket - Heavy Series - 700 Kg Loading Capacity
