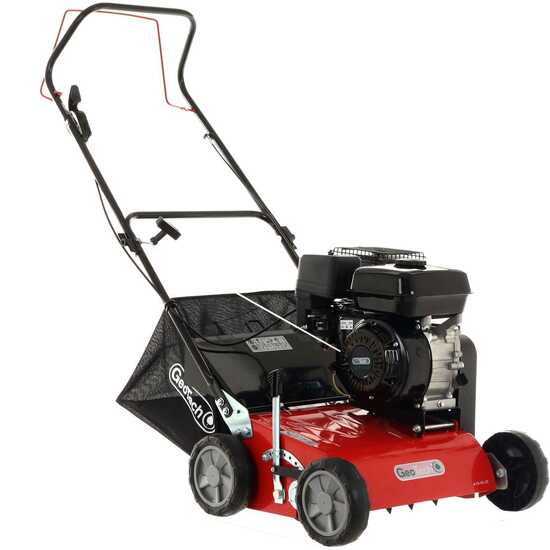

GeoTech ATR 65-25 - Lawn Scarifier with Fixed Blades

The GeoTech ATR 65-25 lawn scarifier is the ideal choice for taking care of your garden. This machine will help you solving many issues with your lawn, giving it new life and bringing it back to health. Suitable for those looking for a sturdy, high-performance machine.

This scarifier is powered by a 212 cc 4-stroke petrol engine that develops a rated power of 7 Hp. Furthermore, the machine is provided with a 40 cm working width thanks to the 17 fixed stainless steel double blades which ensure reliability and sturdiness.

Fitted with 8 working depth options adjustable from -15 mm to 5 mm. This makes this scarifier a truly versatile product, that can meet the needs of every user. It is one of the most compact scarifying machines in its class, combining ease of use with excellent work performance.

It is a very versatile tool, which can operate as a lawn scarifier and raker. Ultimately, the GeoTech ATR 65-25 guarantees excellent results on all types of terrain.

WARNING:

Aeration must be performed STRICTLY with the garden previously and abundantly watered.

* The right time for this operation is Spring, after the first mowing and depending on the area and climate (generally around March/April). For a perfect lawn care, it is highly recommended to repeat the operation in Autumn as well, thus removing the harder moss.

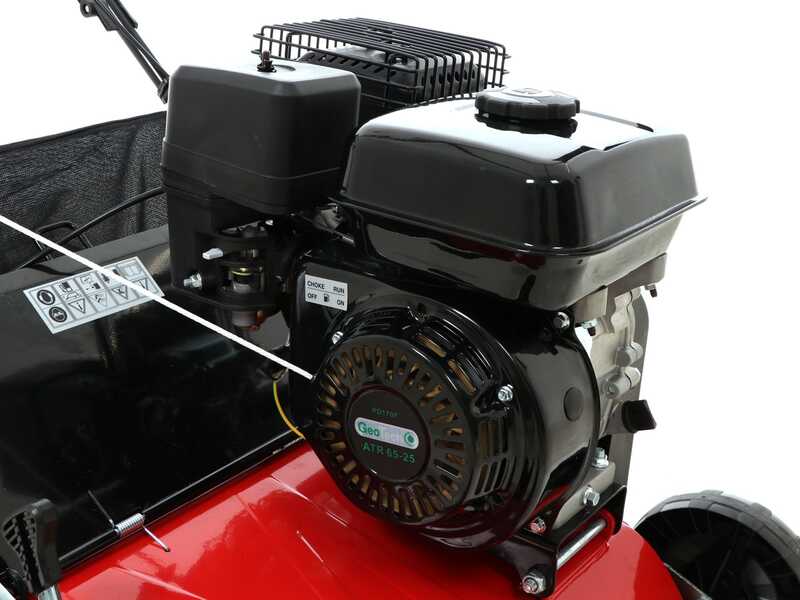

The 4-stroke petrol engine is suitable for works where a great power is required, and which is ensured by the high 212 cc.

Features:

• Engine type: 4-Stroke - OHV - single cylinder
• Cylinder type: aluminium
• Cubic Capacity: 212 cc
• Nominal power: 7 Hp
• Rated power: 5.6 Hp
• Rpm: 3600 rpm
• Tank capacity: 3.6 L
• Oil tank capacity: 0.6 L

4-stroke petrol engines with OHV (overhead valve) feature many advantages, including:

• This system allows the cylinder head to take up less space.
• Easier system: compared to the DOHC system, it is easier to design due to its smaller size.
• Reduced maintenance times: this is due to the structure and control of the system, which allows gaskets or other components to be replaced without having to disassemble the transmission.

Focus on the air filter

Focus on the recoil start and spark plug.

This lawn scarifier is equipped with 2 different types of rotors, easily interchangeable:

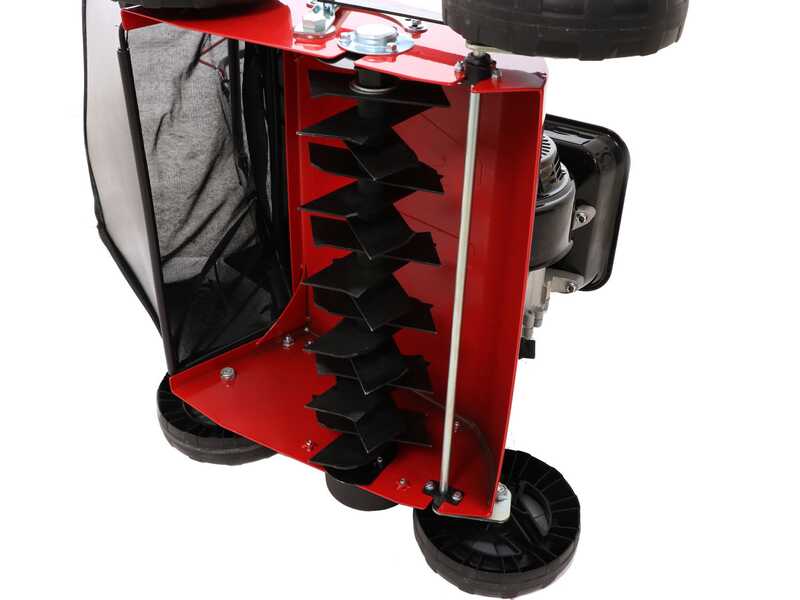

Rotor with blades: recommended for the “scarifying process”.

This rotor type allows a more intensive lawn care thanks to the possibility to work the soil in depth. Indeed, the 17 sharpened blades penetrate vertically the lawn allowing the complete removal of moss, felt and weeds. This feature ensures a lawn that is regenerated enhancing its oxygenation, drainage and uptake of nutrients.

The rotor is fitted with 17 steel double blades with a 151 mm diameter each.

Rotor with springs (NOT included in the package but purchasable as an accessory separately): recommended for the “aeration process”, it consists of a sturdy roller fitted with 28 springs.

With this rotor, the turf is combed lightly thanks to its steel spring design, which pinches and pulls away the felt and moss (also preventing regrowth).

* The right time for this operation is Spring, after the first mowing and depending on the area and climate (generally around March/April). For a perfect lawn care, it is highly recommended to repeat the operation in Autumn as well, thus removing the harder moss.

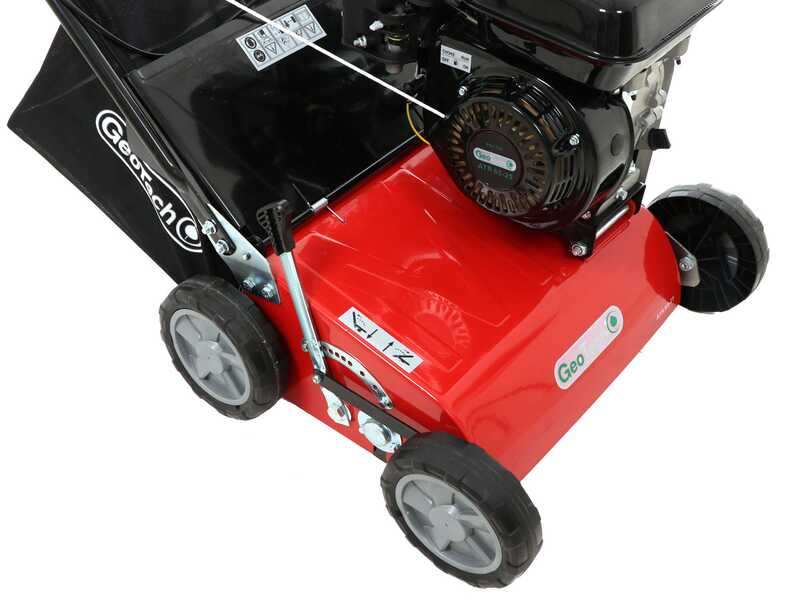

The centralised working depth adjustment makes this machine extremely easy to use and intuitive.

This scarifier is provided with 8 different working depth positions from -15 mm to 5 mm.

[1] [2] [3] [4] [5] [6] [7] [8]

Large 17 cm diameter wheels.

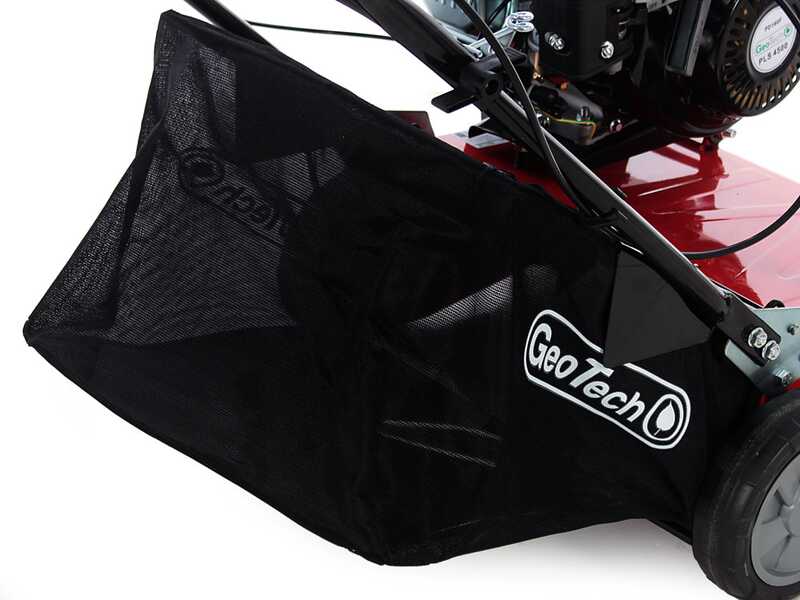

The machine is equipped with a large 45 L collection bag.

Possibility to work without rear collection bag, thanks to the proper deflector that crushes aeration debris on the ground.

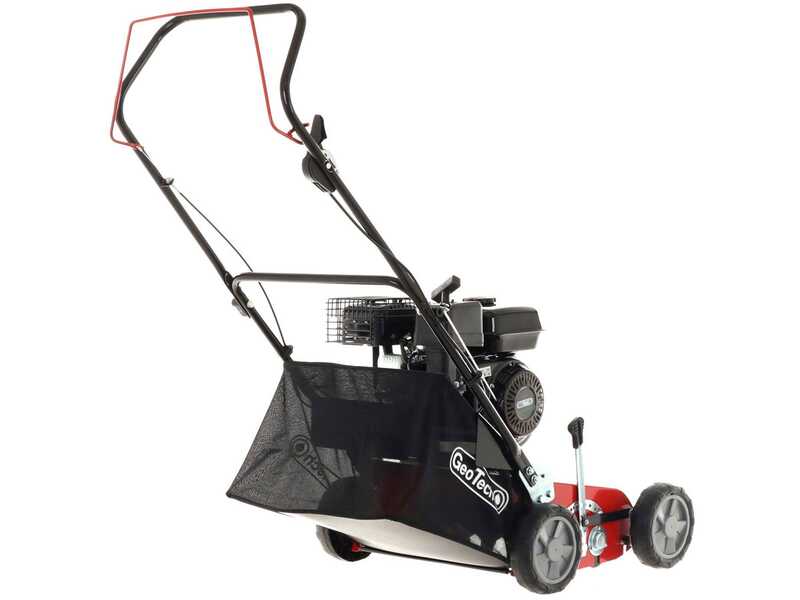

The controls are all placed on the handlebar.

Throttle lever

Safety lever and engine brake. By releasing the lever, the engine turns off.

Thanks to the knob screws folding the handlebar will be easy and fast, making the machine compact for easy storage.

Focus on the pull rope guide.
