Geotech BACP100-10-3 - Belt-driven Electric Air Compressor - 3 Hp Motor - 100 L - 10 bar

Semi-Pro
Questions & Answers (4)
ID: K600097

EAN: 9999237542074

GeoTech-Pro
Catalogue GeoTech-Pro
8,9/10
After-sales assistance & Spare parts
34Pictures
4Videos
38Customer pics
Geotech BACP100-10-3 - Belt-driven Electric Air Compressor - 3 Hp Motor - 100 L - 10 bar
Geotech BACP100-10-3 - Belt-driven Electric Air Compressor - 3 Hp Motor - 100 L - 10 bar
Geotech BACP100-10-3 - Belt-driven Electric Air Compressor - 3 Hp Motor - 100 L - 10 bar
Geotech BACP100-10-3 - Belt-driven Electric Air Compressor - 3 Hp Motor - 100 L - 10 bar
Geotech BACP100-10-3 - Belt-driven Electric Air Compressor - 3 Hp Motor - 100 L - 10 bar
Geotech BACP100-10-3 - Belt-driven Electric Air Compressor - 3 Hp Motor - 100 L - 10 bar
+700 sold
FREE
Bottle of 600 ml "COMPRIX" professional oilBottle of 600 ml "COMPRIX" professional oil
no. 8 compressor connectionsno. 8 compressor connections
Air compressor tank
100 L
Max. operating pressure
10 bar
Air intake flow
250 L/min
Cylinder head rpm
1050 RPM
Lubrication
Oil
Cooling manifold
Yes
Pump type
Single-stage
Nominal power
3 HP
Operating mode
Single-phase 230 V
Transmission type
Belt
Product Features
Model:
BACP100-10-3
Air compressor type 2:
Belt-driven
Air compressor type:
Horizontal
Operating mode:
Single-phase 230 V
Operating mode:
Electric 230 V
Max. operating pressure:
10 bar
Number of tanks:
1
Air compressor tank:
100 L
Noise level:
97 dB(A)
Manufacturing country:
China
Motor data
Motor type:
Electric single-phase
Nominal power:
3 HP
Air compressors engine speed:
2800
Power supply:
220 V electric
Pump data
Pump brand:
Geotech-Pro
Model:
BACP100-10-3
Air intake flow:
250 L/min
Pump type:
Single-stage
Lubrication:
Oil
No. of cylinders:
1
Cooling manifold:
Yes
Manufacturing country:
China
Transmission data
Belt-driven:
✔
Transmission type:
Belt
Cylinder head rpm:
1050 RPM
Equipment
No. of outlet couplings:
2
Front handle:
Yes
Free gifts/extra features
Wooden pallet (safe shipping):
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
94 x 45 x 85 cm
Net weight:
55 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
101,5 x 37,5 x 79,5 cm
Gross weight (packaging included) :
65 Kg
Assembly time:
5 minutes
Prompt Delivery
89 items in stock
Free Shipping
Estimated delivery: 09/05/2025 - 13/05/2025
Free returns (up to 30 days after receipt) *
Suggested price:
€ 577,74
€ 433,30
Vat included
5% off from the second item in your cart
Are you a business? Check out prices tailored to you!
You're viewing:
Customers also viewed:
Description

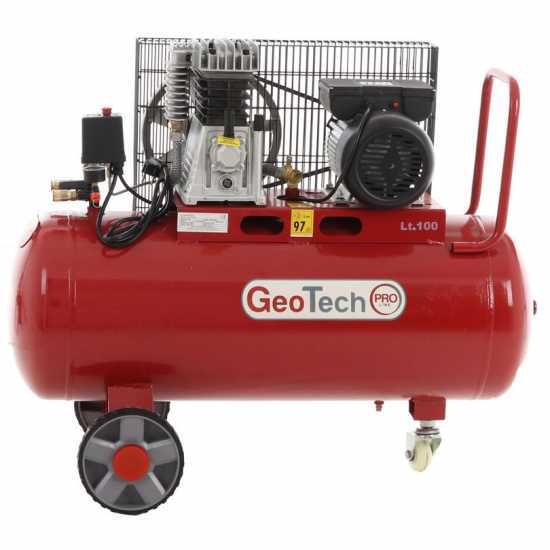

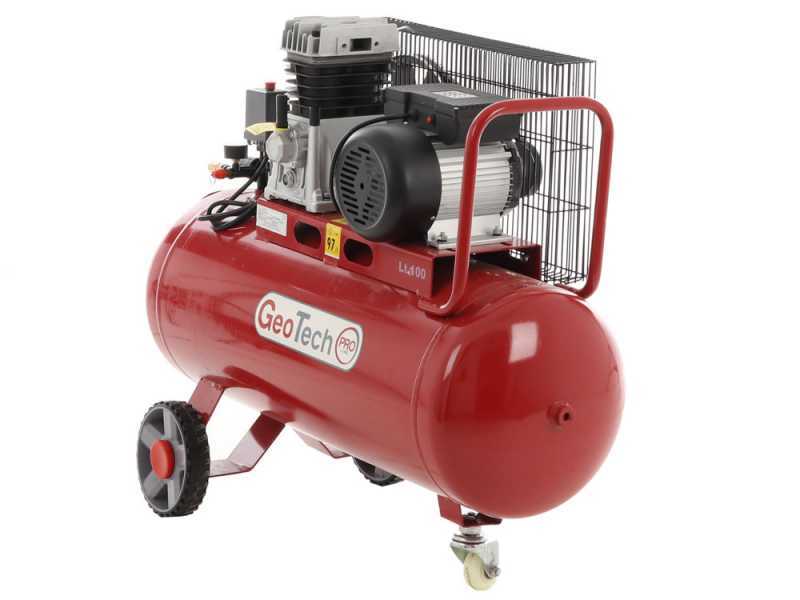

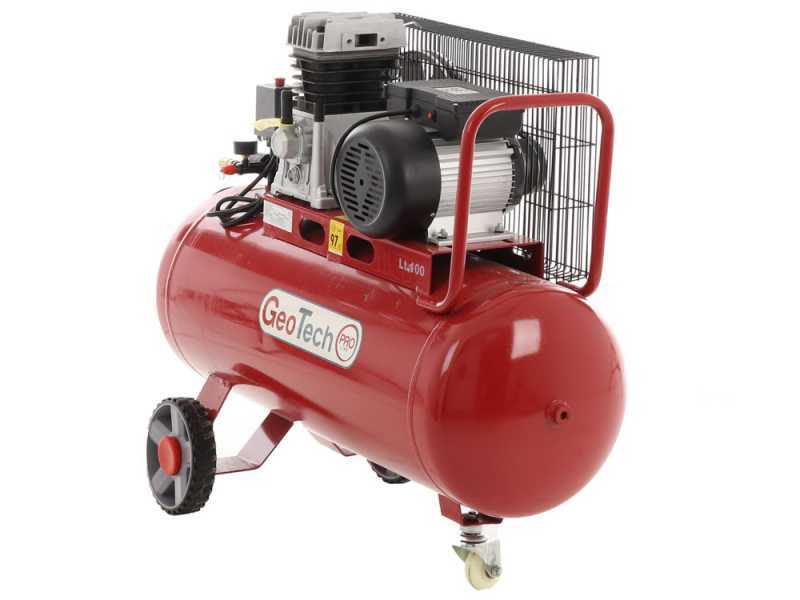

Geotech BACP100-10-3 Single-cylinder Electric Air Compressor

Geotech BACP100-10-3 Air Compressor
Main features:

B = Belt (belt)

AC = Air Compressor

P = Geotech Pro Line

100 = 100 L tank

10 = 10 bar Maximum tank pressure

3 = 3.0 Hp Motor power

The GeoTech BACP100-10-3 air compressor is an efficient, belt-driven machine for hobby use.

Powered by a 3.0 Hp electric motor, this air compressor features a compressed air suction capacity of 250 L. It is capable of reaching a maximum pressure of 10 bar.

It comes with a large 100 L compressed air storage tank. The weight of the air compressor is about 55 Kg, but has both rear wheels and a pivoting front wheel that allows to easily transport the air compressor without lifting it. Also equipped with an upper handle that further facilitates transportation.

Geotech BACP100-10-3 - Belt-driven Electric Air Compressor - 3 Hp Motor - 100 L - 10 bar
Geotech BACP100-10-3 - Belt-driven Electric Air Compressor - 3 Hp Motor - 100 L - 10 bar Geotech BACP100-10-3 - Belt-driven Electric Air Compressor - 3 Hp Motor - 100 L - 10 bar Geotech BACP100-10-3 - Belt-driven Electric Air Compressor - 3 Hp Motor - 100 L - 10 bar Geotech BACP100-10-3 - Belt-driven Electric Air Compressor - 3 Hp Motor - 100 L - 10 bar Geotech BACP100-10-3 - Belt-driven Electric Air Compressor - 3 Hp Motor - 100 L - 10 bar Geotech BACP100-10-3 - Belt-driven Electric Air Compressor - 3 Hp Motor - 100 L - 10 bar Geotech BACP100-10-3 - Belt-driven Electric Air Compressor - 3 Hp Motor - 100 L - 10 bar Geotech BACP100-10-3 - Belt-driven Electric Air Compressor - 3 Hp Motor - 100 L - 10 bar Geotech BACP100-10-3 - Belt-driven Electric Air Compressor - 3 Hp Motor - 100 L - 10 bar Geotech BACP100-10-3 - Belt-driven Electric Air Compressor - 3 Hp Motor - 100 L - 10 bar Geotech BACP100-10-3 - Belt-driven Electric Air Compressor - 3 Hp Motor - 100 L - 10 bar Geotech BACP100-10-3 - Belt-driven Electric Air Compressor - 3 Hp Motor - 100 L - 10 bar

Technical features

Air intake flow: 250 L/min

Pumping unit type:belt-driven - oil-free

Pressure: 10 bar

Electric motor power: 3 Hp

Tank: 100 L

Overall dimensions:
- Width: 450 mm
- Height: 850 mm
- Length: 940 mm

Weight: 55 kg

Geotech BACP100-10-3 - Belt-driven Electric Air Compressor - 3 Hp Motor - 100 L - 10 bar
Geotech BACP100-10-3 - Belt-driven Electric Air Compressor - 3 Hp Motor - 100 L - 10 bar Geotech BACP100-10-3 - Belt-driven Electric Air Compressor - 3 Hp Motor - 100 L - 10 bar Geotech BACP100-10-3 - Belt-driven Electric Air Compressor - 3 Hp Motor - 100 L - 10 bar Geotech BACP100-10-3 - Belt-driven Electric Air Compressor - 3 Hp Motor - 100 L - 10 bar

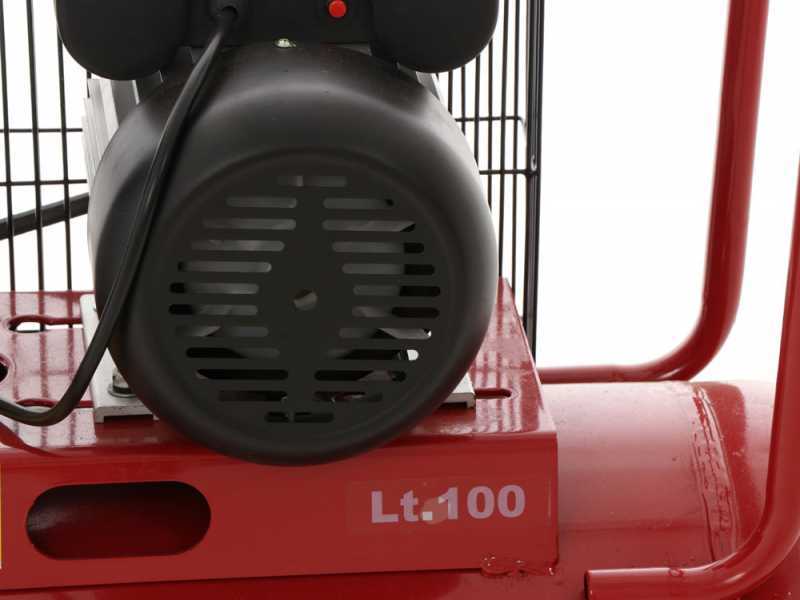

3 Hp single-phase induction electric motor

Power supply: 230 V single-phase

Power: 3 Hp
The induction motor is characterised by a very long service life and low maintenance requirements.

This motor is in fact brushless, the brushes being the main component subject to wear in electric motors. The absence of this component grants high durability to the motor.

It’s a top product for reliability, low noise, durability, energy efficiency and maintenance.

Geotech BACP100-10-3 - Belt-driven Electric Air Compressor - 3 Hp Motor - 100 L - 10 bar
Geotech BACP100-10-3 - Belt-driven Electric Air Compressor - 3 Hp Motor - 100 L - 10 bar Geotech BACP100-10-3 - Belt-driven Electric Air Compressor - 3 Hp Motor - 100 L - 10 bar Geotech BACP100-10-3 - Belt-driven Electric Air Compressor - 3 Hp Motor - 100 L - 10 bar Geotech BACP100-10-3 - Belt-driven Electric Air Compressor - 3 Hp Motor - 100 L - 10 bar

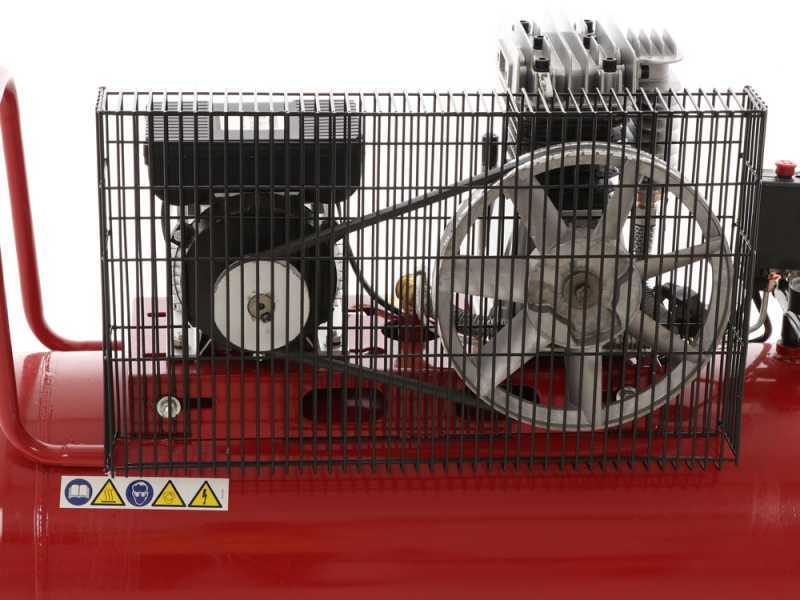

Belt drive

These air compressors feature a belt drive.

The use of the belt, combined with an induction motor, contributes to the durability of this air compressor, drastically reducing the number of revolutions of the cylinder head, increasing its life and reducing wear.

The grid protection serves to prevent the drive belt and the transmission from being damaged by external objects that might hit it during operation. It also allows the status of the drive belt to be continuously checked.

Geotech BACP100-10-3 - Belt-driven Electric Air Compressor - 3 Hp Motor - 100 L - 10 bar
Geotech BACP100-10-3 - Belt-driven Electric Air Compressor - 3 Hp Motor - 100 L - 10 bar Geotech BACP100-10-3 - Belt-driven Electric Air Compressor - 3 Hp Motor - 100 L - 10 bar Geotech BACP100-10-3 - Belt-driven Electric Air Compressor - 3 Hp Motor - 100 L - 10 bar Geotech BACP100-10-3 - Belt-driven Electric Air Compressor - 3 Hp Motor - 100 L - 10 bar

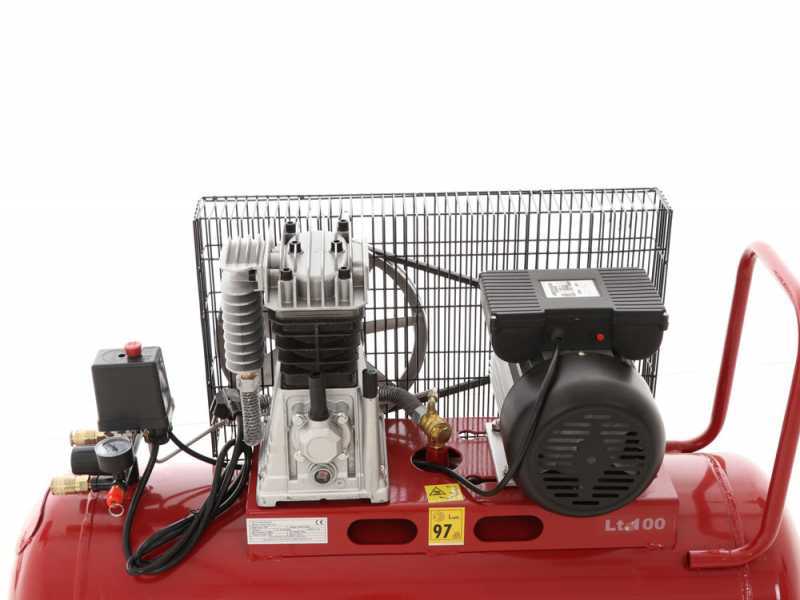

Cylinder head

Air intake flow: 250 L/min
Cylinder head type: twin-cylinder
Suction type: single-stage
Lubrication: oil
No. of revolutions: 2800 rpm

The degree of professionalism and more generally the life of the air compressor is largely determined by the number of revolutions per minute of the cylinder head.

The lower the rpm, the longer the life of the air compressor. The reduction ratio of the number of revolutions is obtained by the pulleys of different diameter that are fitted to the motor and to the cylinder head respectively.

The pumping unit is equipped with portholes for oil control

Focus on the cooling side manifold, it keeps the compressed air outlet temperature low.

Geotech BACP100-10-3 - Belt-driven Electric Air Compressor - 3 Hp Motor - 100 L - 10 bar
Geotech BACP100-10-3 - Belt-driven Electric Air Compressor - 3 Hp Motor - 100 L - 10 bar Geotech BACP100-10-3 - Belt-driven Electric Air Compressor - 3 Hp Motor - 100 L - 10 bar Geotech BACP100-10-3 - Belt-driven Electric Air Compressor - 3 Hp Motor - 100 L - 10 bar Geotech BACP100-10-3 - Belt-driven Electric Air Compressor - 3 Hp Motor - 100 L - 10 bar

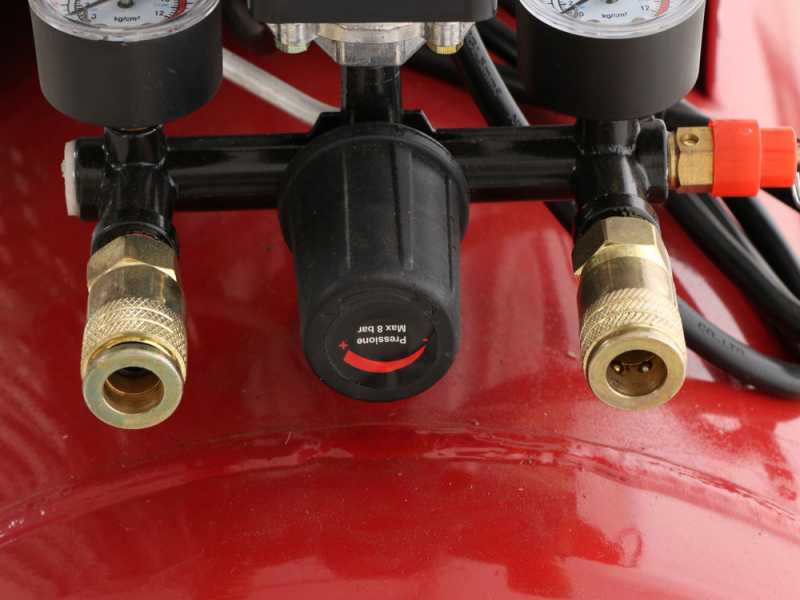

Controls and other features

The GeoTech-Pro air compressor features easy and user-friendly controls, which are divided into:

Power switch

Pressure gauges

Air compressor female outlet fittings

Pressure adjusting knob

Handle for transportation

Geotech BACP100-10-3 - Belt-driven Electric Air Compressor - 3 Hp Motor - 100 L - 10 bar
Geotech BACP100-10-3 - Belt-driven Electric Air Compressor - 3 Hp Motor - 100 L - 10 bar Geotech BACP100-10-3 - Belt-driven Electric Air Compressor - 3 Hp Motor - 100 L - 10 bar Geotech BACP100-10-3 - Belt-driven Electric Air Compressor - 3 Hp Motor - 100 L - 10 bar Geotech BACP100-10-3 - Belt-driven Electric Air Compressor - 3 Hp Motor - 100 L - 10 bar Geotech BACP100-10-3 - Belt-driven Electric Air Compressor - 3 Hp Motor - 100 L - 10 bar
Free items & Standard equipment

1° GIFT: air compressor maintenance kit with oil bottle and joints

Maintenance kit provided on standard equipment includes:

  • Air compressor spare/replacing female output joint

  • Air compressor spare/replacing male output joint (replaceable on equipment with bayonet cap) or usable as spare joint

  • Quick joint to convert all the machineries fitted with standard bayonet cap. It allows easily connecting the units to hoses with female quick joint.

  • Quick joint for converting the female output joint supplied on the air compressor into the traditional bayonet cap (also allows the use of the standard hoses with bayonet system)

  • Repair/Junction fitting for Ø 8 hoses
  • Repair/Junction fitting for Ø 10 hoses
  • Lower tank discharge valve replacement air compressor
  • Teflon roll, ideal for the main maintenance operations
Geotech BACP100-10-3 - Belt-driven Electric Air Compressor - 3 Hp Motor - 100 L - 10 bar
Geotech BACP100-10-3 - Belt-driven Electric Air Compressor - 3 Hp Motor - 100 L - 10 bar Geotech BACP100-10-3 - Belt-driven Electric Air Compressor - 3 Hp Motor - 100 L - 10 bar

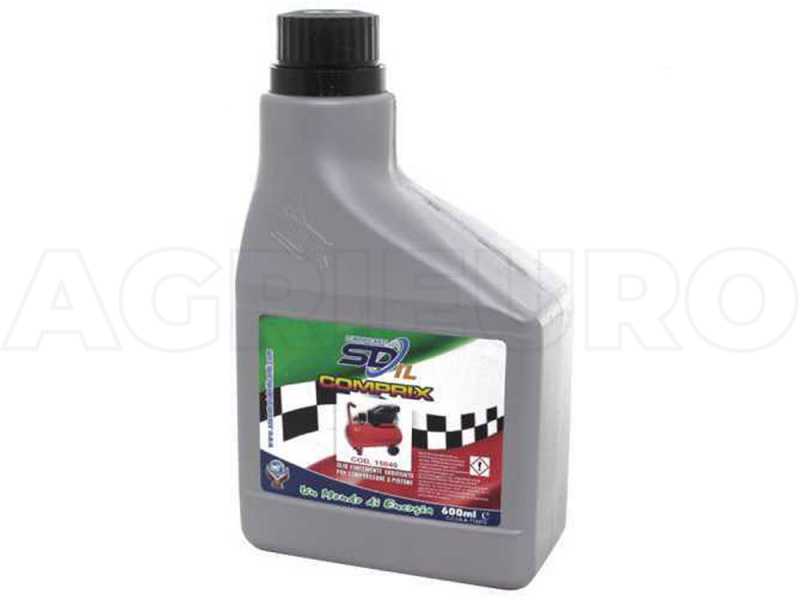

2° GIFT: 600 ml "COMPRIX” oil bottle

COMPLIMENTARY: 600 ml "COMPRIX” oil bottle, professional oil specifically designed for air compressor cylinder heads. Very useful for oil refill and first oil replacement (the air compressor is shipped already filled with oil).

Geotech BACP100-10-3 - Belt-driven Electric Air Compressor - 3 Hp Motor - 100 L - 10 bar
Geotech BACP100-10-3 - Belt-driven Electric Air Compressor - 3 Hp Motor - 100 L - 10 bar

Standard equipment

The air compressor is shipped in its original packaging.

Instructions manual included.

Geotech BACP100-10-3 - Belt-driven Electric Air Compressor - 3 Hp Motor - 100 L - 10 bar
Geotech BACP100-10-3 - Belt-driven Electric Air Compressor - 3 Hp Motor - 100 L - 10 bar Geotech BACP100-10-3 - Belt-driven Electric Air Compressor - 3 Hp Motor - 100 L - 10 bar
