GeoTech CZ100C - Sprayer Tank for Riding-on Mower - 12V Pump - 100L

Questions & Answers (10)
ID: 102053

EAN: 9999237531887

8,9/10
After-sales assistance & Spare parts
GeoTech CZ100C - Sprayer Tank for Riding-on Mower - 12V Pump - 100L
+900 sold
Configuration
For platforms
Water pump type
Mini diaphragm
Flow rate
3 L/min
Max. operating pressure
4 bar
Tank capacity
100 l
Motor type
Battery-powered
Voltage
12 V
Product Features
Model:
CZ100C
Configuration:
For platforms
Motor type:
Battery-powered
Operating mode:
Battery-powered
Configuration:
For load platforms
Items included:
Battery and battery charger included
Flow rate:
3 L/min
Max. operating pressure:
4 bar
Wheeled trolley:
No
Tank capacity:
100 l
Differential lock:
Manufacturing country:
China
Motor data
Motor type:
Battery-powered
Removable battery:
No
Voltage:
12 V
Pump data
Water pump type:
Mini diaphragm
Flow rate:
2,1~2,7 lt/min
Manufacturing country:
China
Free gifts/extra features
Hose length:
5 m
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
92 x 48 x 40 cm
Net weight:
13 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
96 x 51 x 50 cm
Gross weight (packaging included) :
13.6 Kg
Assembly time:
15 minutes
Prompt Delivery
173 items in stock
Free Shipping
Estimated delivery: 10/04/2025 - 14/04/2025
Suggested price:
€ 314,77
€ 236,08
Vat included

You're viewing:
Customers also viewed:
Description

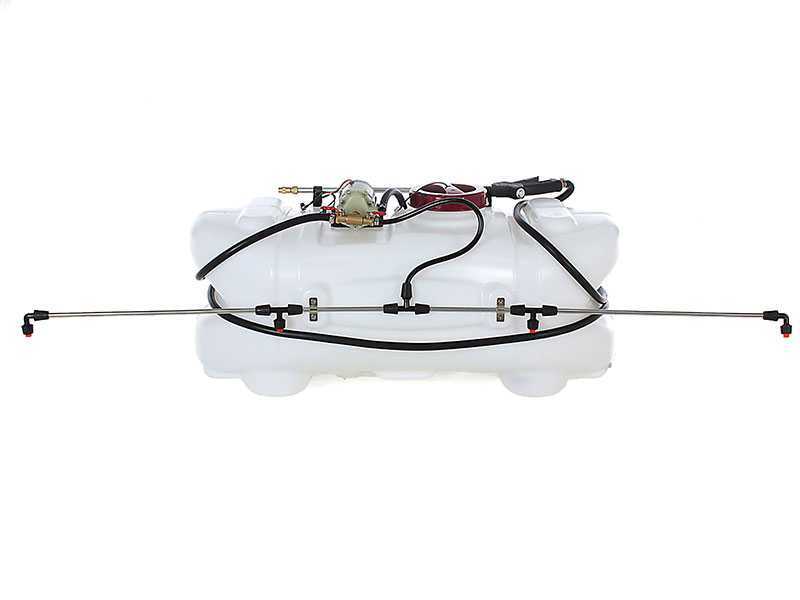

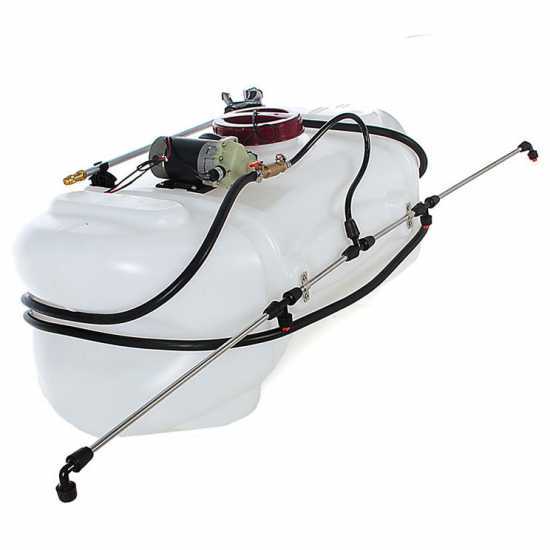

100 L Electric Sprayer Pump for Riding-on Mower

Suitable for any rear trolley for riding-on mowers. Connect the cables to the riding-on mower battery to power the pump.

Equipped with two different spraying devices:
- hand-operated lance for plant treatments
- 4-nozzle horizontal boom for weeding operations on the ground

This sprayer tank is supplied with all hoses and connections to the two accessories. It is shipped ready to use. It comes without battery; in fact, you have to connect it to the battery of the towing vehicle, for example, a riding-on mower or an atv, through the dedicated cable.

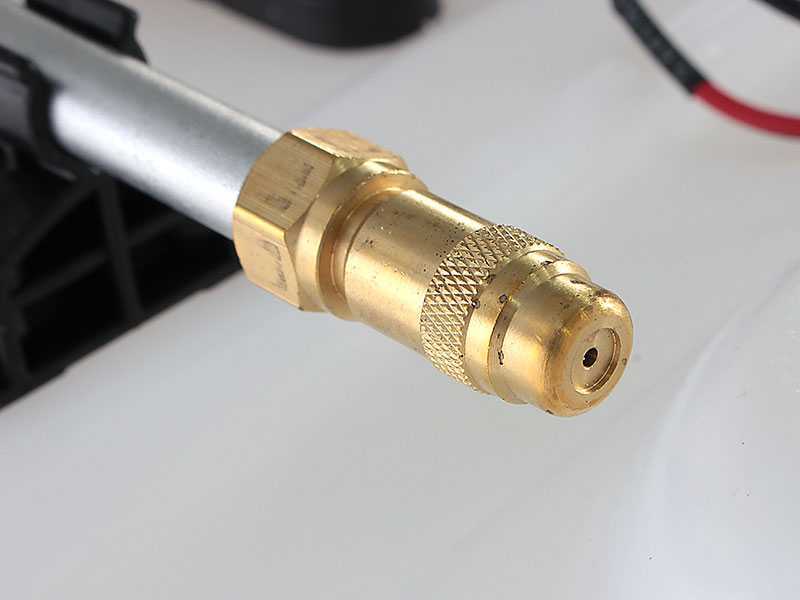

The hand-operated lance supplied is equipped with robust stainless steel rod and heavy-duty brass nozzle. The weeding boom is equipped with 4 nozzles, lightweight thanks to the use of aluminium tubes, and equipped with plastic connection fittings. Easy to disassemble and store. Equipped with the pump connection hose. You just have to mount the boom to the back of the trolley or platform where the tank is placed, or simply to the back of the riding-on mower or atv. Few operations are required to mount it.


ATTENTION
: This sprayer tank is suitable for small gardening jobs. It is not suitable for agricultural land, intensive use or high trees (see more performing and heavy-duty machines in the category "spraying pumps")

The machine is designed for occasional use on a garden with preferably no more than 4-5 trees to treat.

Free Items Included

Tank features:
Tank: made of polyethylene with graduated scale
Capacity: 100 L
Pump:12V electric - medium series
Dimensions: 92 x 48 x 40 cm


Pump features:

Operating pressure: adjustable up to 4 bar
Flow rate: up to 2.7 l/min.


Free items:
- Spraying lance with steel rod
- 5 mt. high-pressure hose for lance
- 4-nozzle horizontal boom for weeding operations, it can be disassembled in 3 sections
- Clamps for boom fixing
- belts for tank fixing (to secure the tank to the platform)
- electric connection cable with battery clamps


Specific discharge/flow rate data of the two devices (it depends on the set pressure or the atomising adjustment set on the nozzle):
- Boom: max. flow rate - 2.1 ~ 2.7 L/min
- Lance: max. flow rate - 2.2 ~ 2.5 L/min
- Pressure: adjustable from min. 2 to max. 4 bar


Focus on the power cable connected to the pump. For its operation, in fact, it is necessary to connect the other two ends to the middle of the battery used, whether it be a tractor or a quad or otherwise.

Focus on the brass selector equipped with double valve. Just open one of the two valves to operate one of the two devices (lance or boom).

FREE ITEMS:
- 1 electric connection cable
- 1 horizontal bar with 4 nozzles
- 1 lance
- 2 belts

Installation Example

Example of installation on metal trolley for riding-on mower or atv.

The image has illustration purposes only.
