GeoTech DP16 - Tractor-Mounted Single Furrow Plough with Short Plough

Questions & Answers (12)
ID: 102105

EAN: 8053435090148

8,9/10
After-sales assistance & Spare parts
GeoTech DP16 - Tractor-Mounted Single Furrow Plough with Short Plough
+300 sold
Type
single ploughshare
Sturdiness/Series
Light
Weight
52 Kg
Power tractor
Up to 20 HP
Working width
41 cm
Shift
Manual
Product Features
Model:
DP16
Power tractor:
Up to 20 HP
Sturdiness/Series:
Light
Shift:
Manual
Manual shift:
Operating mode:
Tractor-driven PTO
Manufacturing country:
China
Cutting data
Type:
single ploughshare
Working width:
41 cm
Equipment
Three-point-hitch:
Yes
Free gifts/extra features
Small depth wheels:
Iron
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
120 x 60 x 86 cm
Net weight:
52 Kg
Packaging:
Original wooden box
Original packaging/s dimensions in cm (L x W x H):
96 x 67 x 50 cm
Gross weight (packaging included) :
72 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
15 minutes
Arriving on 12/01/25
Free Shipping
Estimated delivery: 21/01/2025 - 24/01/2025
€ 429,52
Vat included
You're viewing:
Customers also viewed:
Description

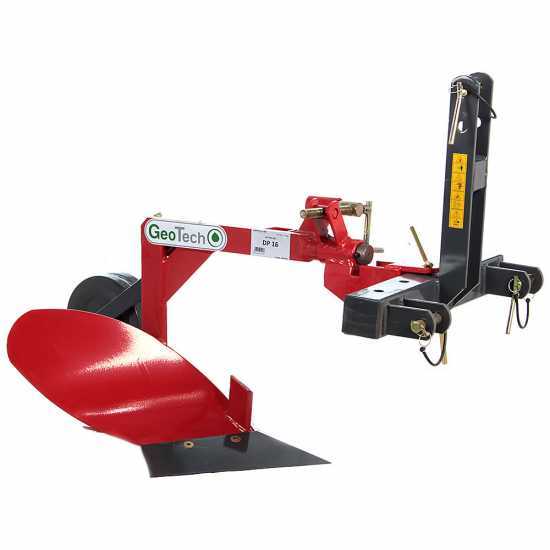

GeoTech DP16 tractor-mounted single furrow plough - short ploughshare

The GeoTech DP16 tractor-mounted single furrow plough is intended for small tractors with 4-wheel drive or rear drive.

Equipped with a standard Category I 3-point hitch, the single furrow plough is an indispensable tool for tilling the soil and preparing the field for cultivation.

The ploughshare consists of a reinforced pointed steel part (the part that will cut and penetrate the soil) and a curved sheet metal upper part that turns the clump over and thus creates a furrow in the soil by penetrating it 20 cm while the tractor moves forward.

Single furrow plough main features:

  • Ploughshare position and furrow depth can be adjusted with simple screw adjustments, so as to adjust tilling operations according to the working area.
  • Short ploughshare Ideal fro crush the soil near trees or vineyards.
  • Depth wheel included
  • It can be moved laterally and tilted

Technical features

Focus on the 3-point hitch.

The side-shift system is completely adjustable in 5 positions via the locking pin on the 3-point hitch bar.

The reinforced ploughshare is made of special anti-kink material and can be easily removed and replaced.

The plough is supplied with a metal depth wheel.

The plough inclination can be adjusted by means a convenient screw knob.

Focus on the single furrow plough size.

Side shift and tilting

The plough can be tilted (for more or less intense tilling operations) or moved sideways (for perfect tilling finishing at the edges of the field).

Focus on some possible adjustments:

Example 1

Example 2

Example 3

Focus on the side shift:

Example 4

Example 5

Example 6

Free items & Standard equipment

Standard equipment

The plough is shipped on pallet.

Instructions and assembly manual included.
