GeoTech DP35 - Tractor-mounted Single Furrow Plough

Questions & Answers (11)
ID: 102107

EAN: 8053435090162

8,9/10
After-sales assistance & Spare parts
GeoTech DP35 - Tractor-mounted Single Furrow Plough
+100 sold
Type
single ploughshare
Sturdiness/Series
Light
Weight
113 Kg
Power tractor
From 25 to 30 HP
Working width
43 cm
Shift
Manual with screw
Product Features
Model:
DP35
Power tractor:
From 25 to 30 HP
Sturdiness/Series:
Light
Shift:
Manual with screw
Operating mode:
Tractor-driven PTO
Manufacturing country:
China
Transmission data
Screw:
Cutting data
Type:
single ploughshare
Working width:
43 cm
Equipment
Three-point-hitch:
Yes
Free gifts/extra features
Small depth wheels:
Iron
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
120 x 90 x 95 cm
Net weight:
113 Kg
Packaging:
Original wooden box
Original packaging/s dimensions in cm (L x W x H):
80 x 106 x 65 cm
Gross weight (packaging included) :
133 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
15 minutes
Prompt Delivery
11 items in stock
Free Shipping
Estimated delivery: 15/04/2025 - 17/04/2025
Suggested price:
€ 1.007,93
€ 755,95
Vat included
You're viewing:
Customers also viewed:
Description

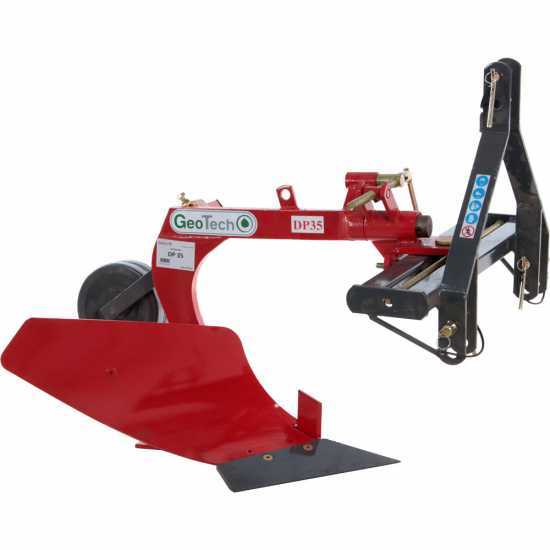

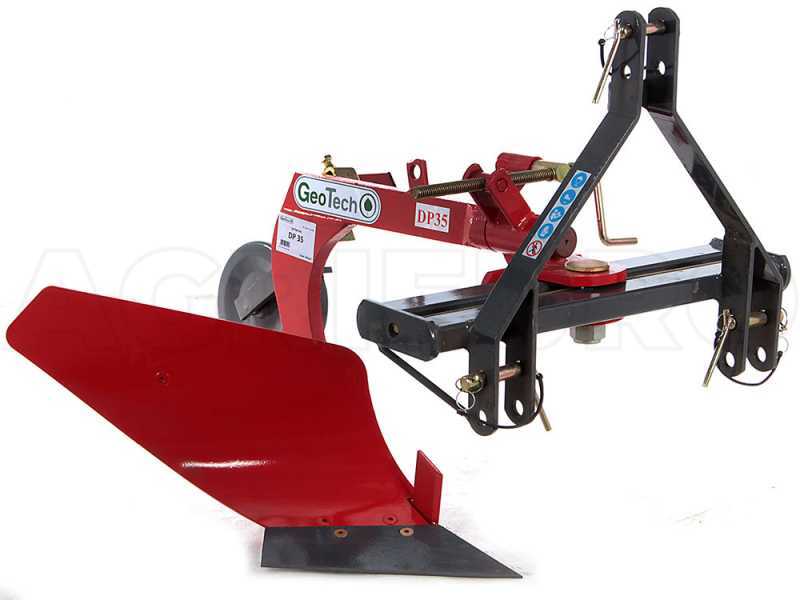

GeoTech DP35 tractor-mounted single furrow plough

The GeoTech DP35 tractor-mounted single furrow plough is a machine designed for small/medium-sized tractors with four or rear-wheel drive, equipped with a reinforced structure, suitable for operating in open fields and vegetable gardens.

Equipped with a standard Category I 3-point hitch, the single furrow plough is an indispensable tool for tilling the soil and preparing the field for cultivation.

The ploughshare consists of a reinforced pointed steel part (the part that will cut and penetrate the soil) and a curved sheet metal upper part that turns the clump over and thus creates a furrow in the soil by penetrating it 20 cm while the tractor moves forward.

Single furrow plough main features:

  • Ploughshare position and furrow depth can be adjusted with simple screw adjustments, so as to adjust tilling operations according to the working area.
  • Reinforced structure for tilling in open fields
  • Depth wheel included
  • It can be moved laterally and tilted

Technical features

Focus on the 3-point hitch.

The side-shift system is completely adjustable via the adjustment screw on the 3-point hitch bar.

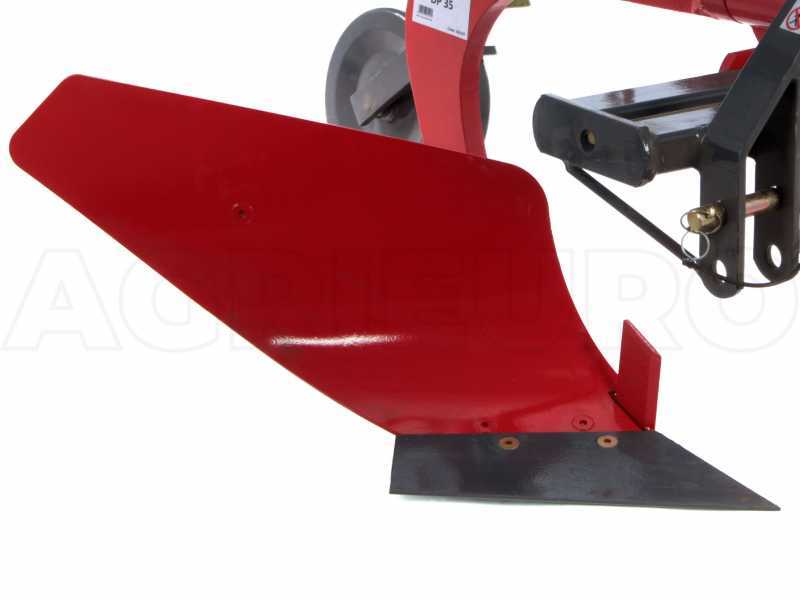

The reinforced ploughshare is made of special anti-kink material and can be easily removed and replaced.

The plough is supplied with a metal depth wheel.

The plough inclination can be adjusted by means a convenient screw knob.

Focus on the single furrow plough size.

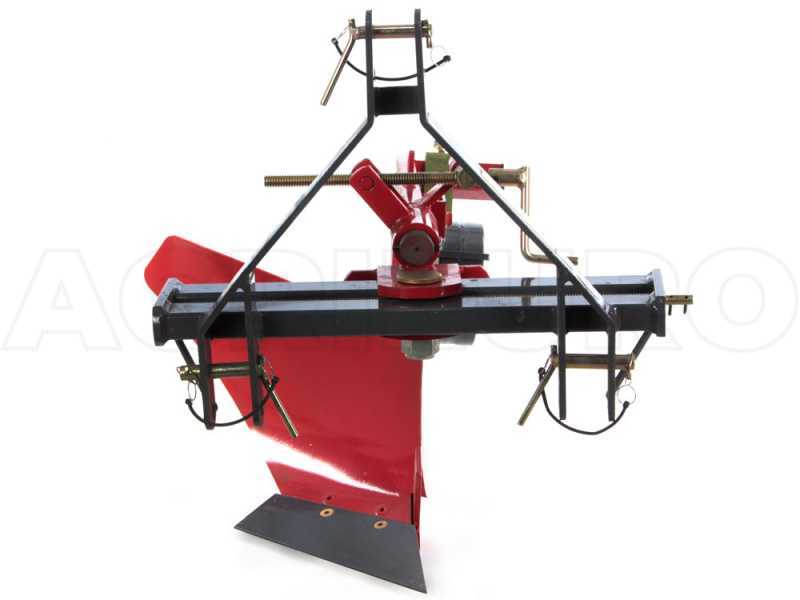

Side shift and tilting

The plough can be tilted (for more or less intense tilling operations) or moved sideways (for perfect tilling finishing at the edges of the field).

Focus on some possible adjustments:

Example 1

Example 2

Example 3

Focus on the side shift:

Example 4

Example 5

Free items & Standard equipment

Standard equipment

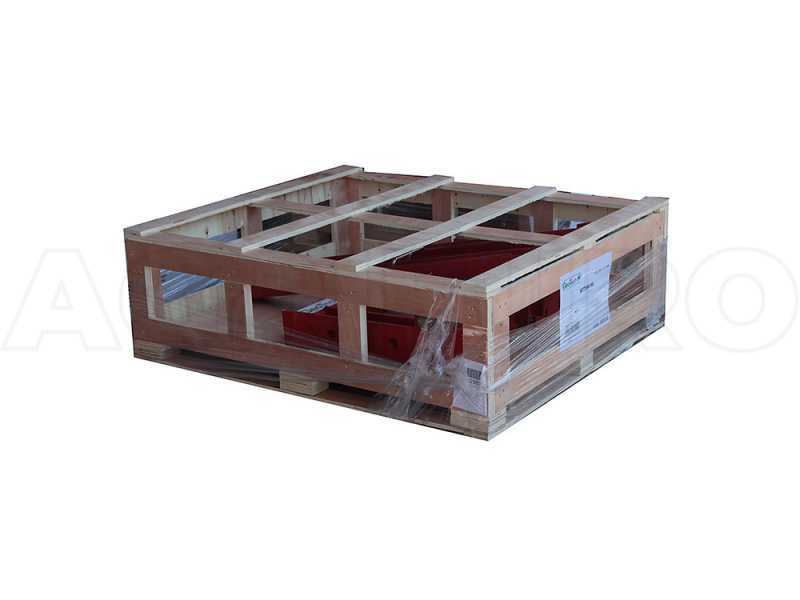

The plough is shipped on pallet.

Instructions and assembly manual included in the package.
