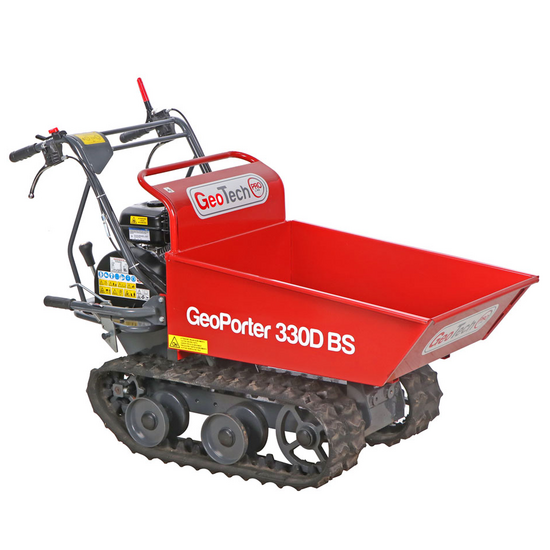

GeoTech GeoPorter 330D BS - Wheelbarrow - dump body capacity 300 kg

The GeoPorter 330D BS, a high-quality dump truck, is designed to efficiently handle the most demanding material handling jobs. With its 300 kg load capacity, it stands out as an essential tool for various work application.

The robust steel frame ensures durability and strength, which are key elements for coping with the difficult conditions on construction sites.

The wheelbarrow's gearbox configuration, with three forward and one reverse gear, provides exceptional versatility, making it easy for the operator to adapt to various working environments.

A distinctive strength of the GeoPorter 330D BS is its manual hydraulic tipping system, an innovative solution that significantly reduces the effort required to unload materials, making operations faster and more efficient.

In addition, the wheelbarrow is equipped with a speed control lever, allowing precise control that can be adapted to the specific needs of the terrain and load, thereby optimising operational efficiency and time management.

The efficiency of the GeoPorter 330D BS is further enhanced by its self-propelled track drive and Briggs & Stratton CR950 engine, which enable it to operate efficiently even on difficult and sloping terrain.

This combination of features makes the wheelbarrow ideal for all types of transportation, especially in demanding work environments where mobility and power are essential.

In conclusion, the GeoPorter 330D BS with dumper body and Briggs & Stratton CR950 engine is the ideal solution for professionals looking for a reliable, powerful and versatile piece of equipment that can effectively meet their daily material handling needs.

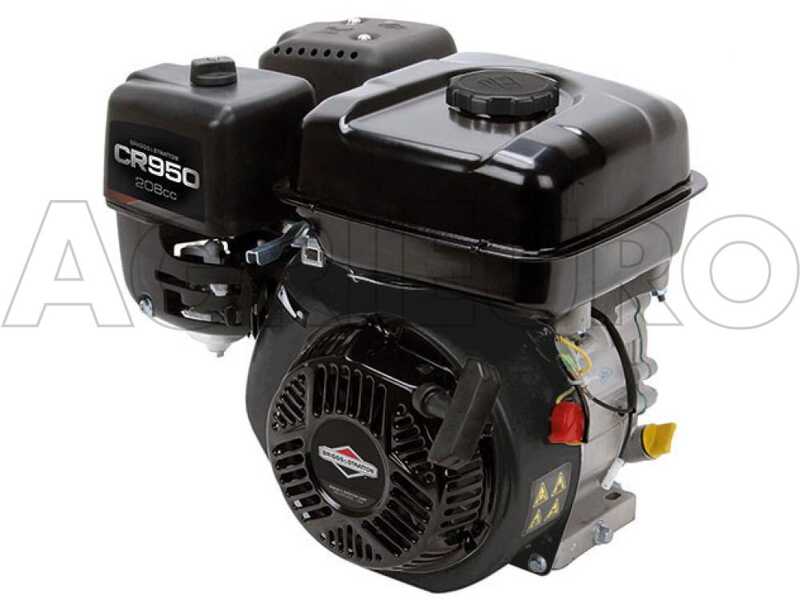

High performance Briggs & Stratton 950 Series engine intended for heavy-duty applications requiring high power, which is reached thanks to the 208 cc.

Specifications:

Latest 4 stroke petrol powered engine with overhead valve technology "OHV" and automatic decompressor.

Recoil starter with self-priming petrol-powered system.

Motor NOT PROVIDED WITH OIL.
Read the instructions manual carefully before starting the unit.

Gross Power: 7 HP
The appropriate wording is actually “Power Rating” as it is the classic standard terminology for power. All the largest engine manufacturers have officially used this definition up until a few years ago.

* For the most part, this is still the information that all the main commercial and sales channels provide, even though it is higher than the net power output.

Net Power: 4.70 HP (at a 2600 rpm rate)
This is the actual power transferred to the drive shaft. Engine manufacturers disclose this power information in the instructions manuals or technical data sheets as official.

* This information may vary for the same engine model because the equipment manufacturer establishes the rpm rate of the engine that is mounted on said equipment

Gearbox: large-sized gearbox, certainly the highest reliable and efficient on the market. Comfortable and user-friendly. Fully Italian manufactured product.

Speeds:
3 forward speeds

1 reverse speed

Breaking system:

They are connected to the transmission gear in order to ensure higher balance and safety. Release the controls to operate the brakes automatically (the machine will be kept totally blocked even on steep slopes and even in neutral).

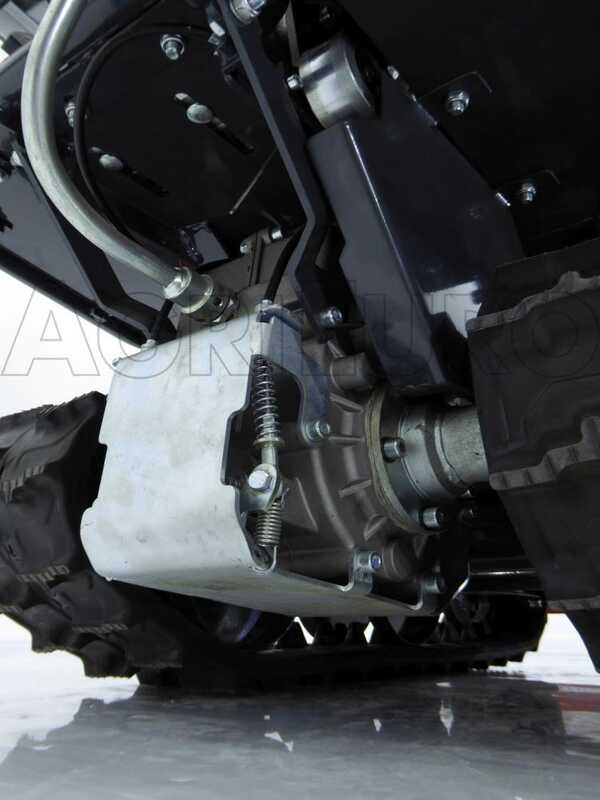

Transmission:
The sturdy and strong transmission allows managing the power steering, interrupting the track rotation singularly.

The machine is supplied by the manufacturer with transmission oil level. Anyway, oil levels must ALWAYS be checked before operating the unit as specified in the instruction and maintenance manual.

Their width and structure ensure extra-grip and balance on any ground type. They are made of reinforced rubber, which ensures extra grip on any surface and step.

The rear side of the track features a sharp upper angle, which allows moving the unit even on steps or any possible obstacles the power barrow may meet ahead.

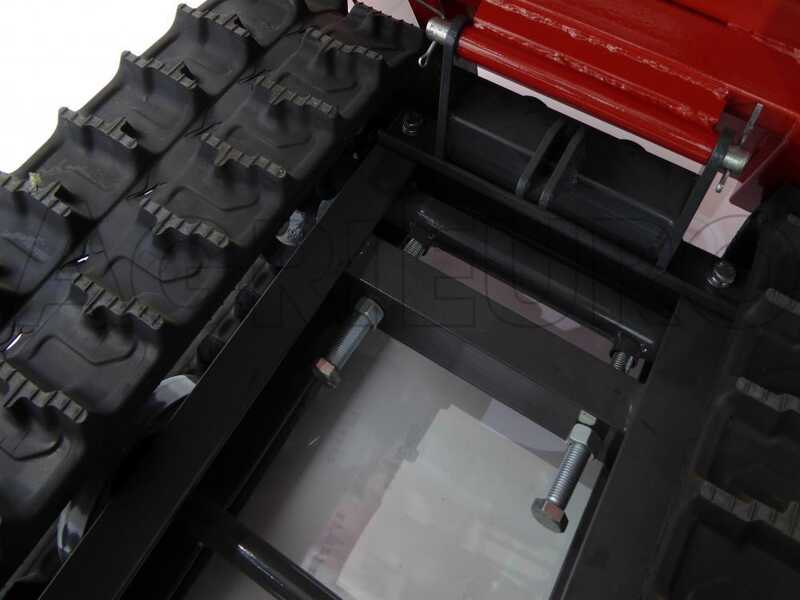

The sturdy frame with thick steel box-section prevents vibrations and noise. The low machine centre of gravity ensures a great balance while working. The engine and the transmission are easily accessible to apply maintenance operations.

Automatic track tensioning adjustment by means of the tensioning springs.

High-resistance steel skip, specifically reinforced with tubular steel construction on the underside of the machine. Its structure makes the unit suitable for carrying any load even in case of overstress. The loading platform is located at the minimal distance from the ground in order to enhance the loading/unloading operations.

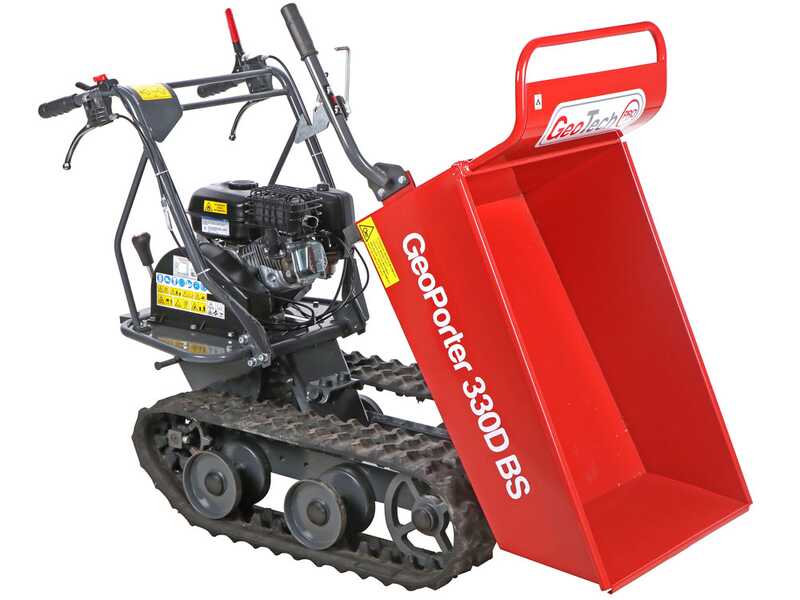

Hydraulic tipping: use the proper rubber lever with spring to release it by hand. It is easy to use even with heavy loads by means of the tipping control lever on the side.

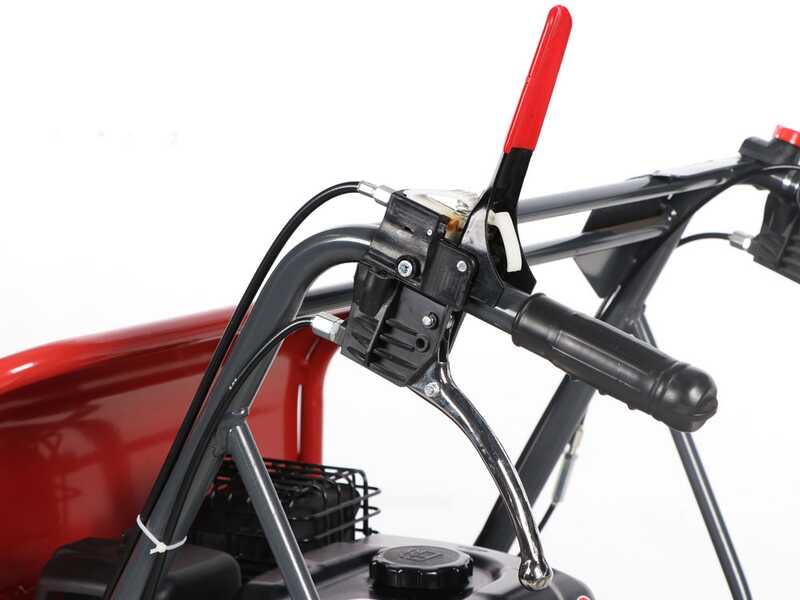

Controls: use-friendly and ergonomics, ensuring the highest-levels in terms of efficiency and control of the power barrow.

Large-sized red start lever.

Two steering triggers on the underside, on the right and the left respectively.

Possibility to control the steering by means of the control lever, which allows an easy manageability of the unit. By pulling one of the two levers partially, the track on that side will turn in that direction partially as well. Therefore, the Operator can steer the tracked power barrow very easily, avoiding sudden and accidental motions.

Safety brake to immediately stop the machinery.

Throttle lever and power switch
