GeoTech LSP9 HE EVO - Electric Log Splitter - Horizontal - 230V

Questions & Answers (4)
ID: 103217

EAN: 8054141547131

8,9/10
After-sales assistance & Spare parts
GeoTech LSP9 HE EVO - Electric Log Splitter - Horizontal - 230V
+400 sold
Max. trunk diameter
35 cm
Piston stroke
50 cm
Max. pressure
210 bar
Operating mode
Single-phase 230 V
Nominal power
2.8 HP
Engine
Induction
Nominal power (W)
2100 W
Nominal splitting force
8 t
Product Features
Model:
LSP9 HE EVO
Type:
Horizontal
Double speed:
No
Operating mode:
Single-phase 230 V
Nominal splitting force:
8 t
Piston stroke:
50 cm
Adjustable piston stroke (for short logs):
Yes
Worktop log cutting:
No
Ground splitting system:
No
Manufacturing country:
China
Motor data
Motor type:
Electric single-phase
Engine:
Induction
Nominal power:
2.8 HP
Nominal power (W):
2100 W
Power supply:
220 V electric
Manufacturing country:
China

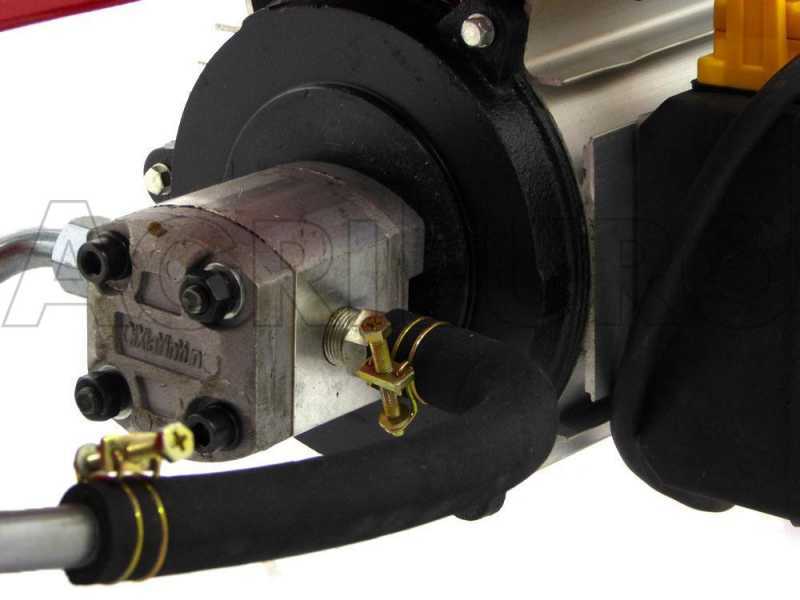

Pump data
Pump type:
Hydraulic
Max. pressure:
210 bar
Oil tank:
Yes
Piston diameter:
35 mm
Manufacturing country:
China
Cutting data
Max. trunk length:
52 cm
Max. trunk diameter:
35 cm
Equipment
Frame:
Standard
Pump:
Standard
Vertical log splitter safety lever:
No
Retaining side arms:
No
Retaining side supports:
Yes
Trunk lifting system:
No
Retractable piston for transport:
No
Tractor three-point hitch:
No
Replaceable wedge guides:
No
Cartridge oil filter :
No
CE-compliant safety switch:
CE-compliant
Wheeled trolley for transport:
Yes
Rear wheels size:
20 cm
Free gifts/extra features
4-way wedge:
No
Splitting wedge:
No
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
166x44x90
Net weight:
91 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
120x36x60
Gross weight (packaging included) :
100 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
60 minutes
Prompt Delivery
22 items in stock
Free Shipping
Estimated delivery: 15/04/2025 - 17/04/2025
Suggested price:
€ 870,84
€ 653,13
Vat included
You're viewing:
Customers also viewed:
Description

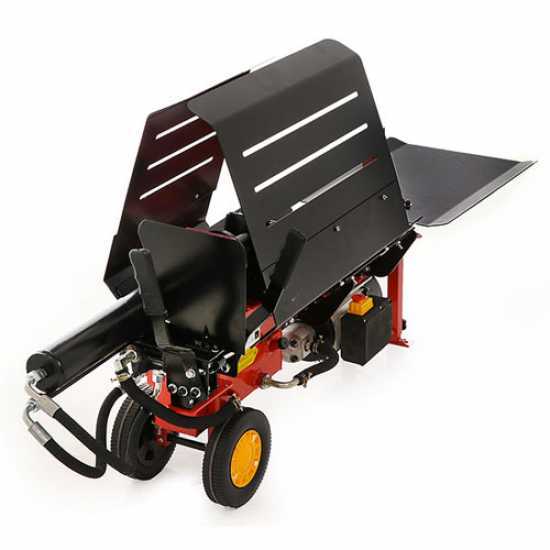

Geotech LSP 90 HE EVO electric horizontal log splitter

The GeoTech LSP9 HE EVO is a small-sized electric log splitter powered by a 220V single-phase motor that can develop a splitting force of 8 tons, intended for a hobby, domestic use. This machine allows you to split logs efficiently, effortlessly and safely.

Free items included: side guards.

HORIZONTAL STRUCTURE: it allows you to split even large-sized logs without having to lift them up (you can place them on the machine without any effort, given the low height of the support leg)

This log splitter is provided with 8 tons splitting force.
Boot diameter: from 7 to 35 cm

Max. Boot height: 52 cm

Oil tank capacity: 3.5 L

Equipped with a handle and wheels for easy transport.

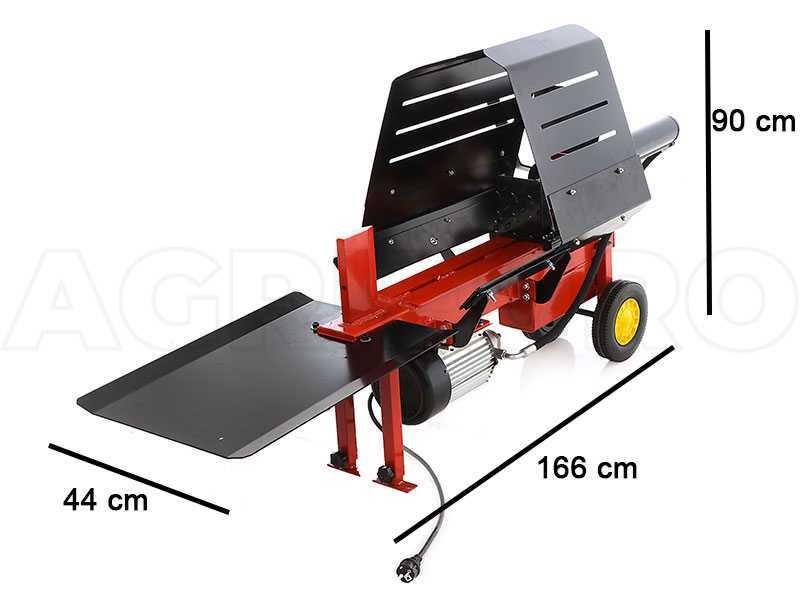

Overall dimensions (with guards assembled): 166 x 44 x 90 cm

Weight: 91 kg


WARNING:

The log splitters included in this category are not suitable for processing wood with particularly twisted fibres such as poplar or pine, large-diameter logs and wood types with frequent knots in the wood. In this case, it is advisable to use heavy-duty models intended for a professional use. Furthermore, the logs should only be split once dried, not green; when the wood is green, it has less tendency to split and open and is therefore less suitable to be split with the log splitter. Once dried, however, it can be split and becomes ready for use in fireplaces, stoves, ovens, etc.

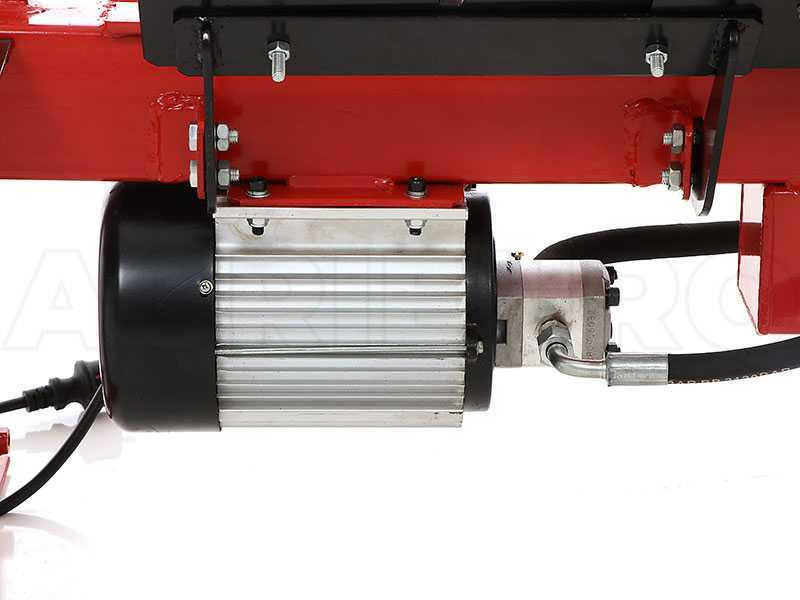

2.8 Hp electric single-phase motor

This horizontal log splitter is powered by a single-phase electric motor.

Electric consumption: 2100 W

Power: 2.8 Hp

Power supply: 230 V 50 Hz

Piston, liner and frame

Focus on the sturdy frame

Piston head made of cast alloy

Focus on the oil tank cap that must be unscrewed to ensure that air escapes from the system during use.

General features

Ignition with two hands:

1) Focus on the button for operating the pump

2) Focus on the two levers that operate the piston to start the splitting phase.

Sturdy splitting wedge

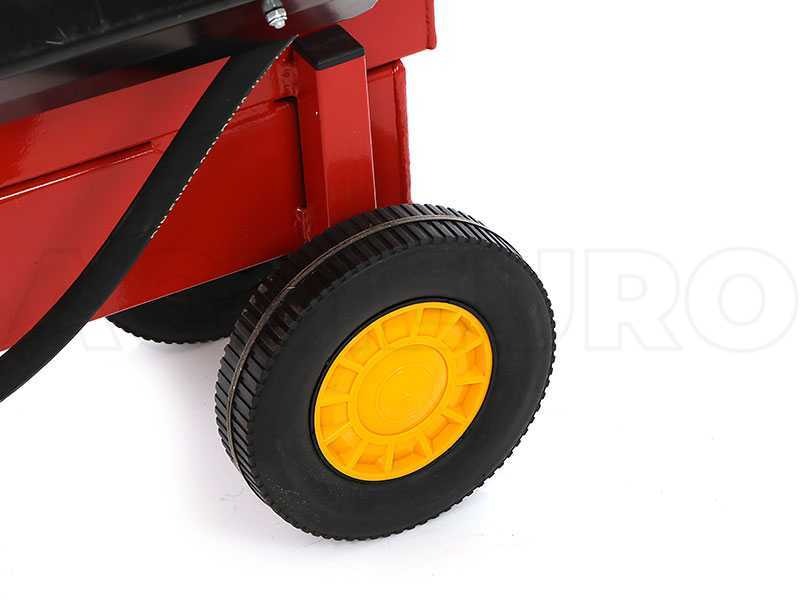

Wheels for transport

Focus on the side guards.

Free items & Standard equipment

Standard equipment

The log splitter is shipped in its original packaging.

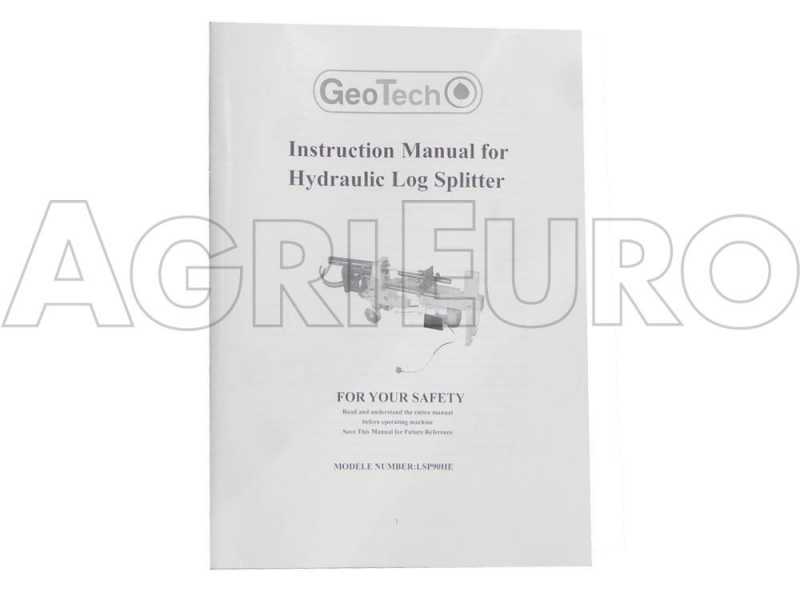

Instructions manual included in the package.
