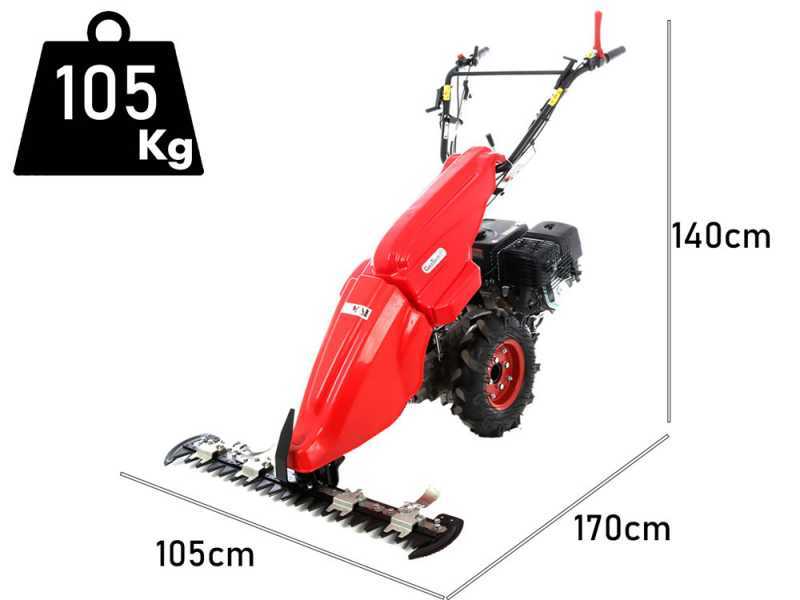

Geotech MCT900 - Multifunctional motor mower - Loncin G270F

Self-propelled petrol scythe mower featuring large pneumatic tractor wheels.

The 97 cm sickle bar attachment (provided on standard kit) is a mulching cutter bar with standard single-blade action . A MULCHING blade is particularly effective thanks to the blade shape and sharpness. Achieving SINGLE-BLADE ACTION requires a 2-blade cutter bar. The transmission system engages the upper blade through an oscillating motion, while the lower blade is fixed. This system allows chopping the grass effectively thanks to the position of the fixed lower blade that acts like a counter-blade.

Semi-professional machinery.

This self-propelled scythe mower is also powered by a reliable Loncin petrol engine 270 cc (9.5 HP). Multi tool equipment that allows connecting a number of optional accessories to perform various tasks.

Suitable for mowing overgrown and tall grass. This type of scythe mower is very popular among users who need to re-use the grass to feed livestock.

The machine is equipped with a reverse clutch system, protecting the operator from possible accidents.

WARNING!

Engine and transmission are provided without oil. Make sure to add oil before the first use.

WARNING! The following accessories are not provided with the machine, but they can be purchased separately.

72 cm Rear tiller with 6 elements, Each element consists of 4 blades of 28 cm diameter.

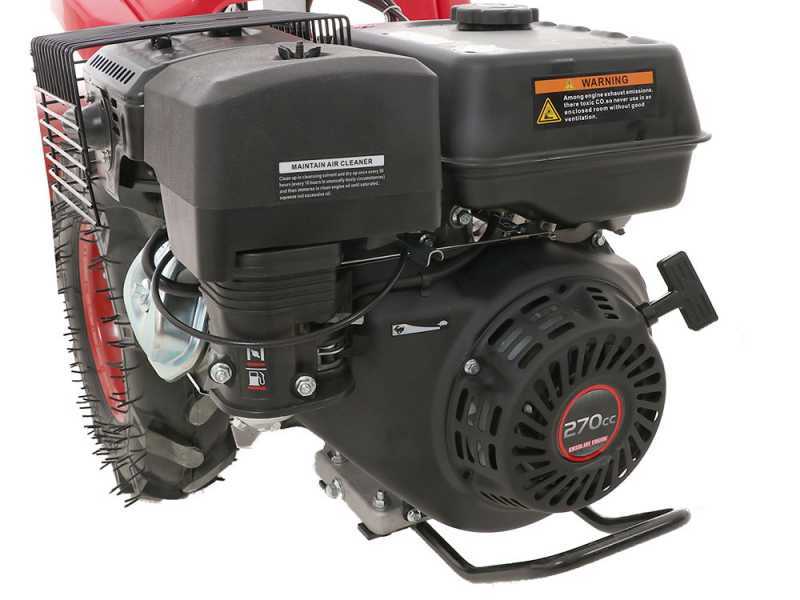

Loncin G270F petrol engine 270cc (9.5 HP) renowned for the great power ensured.

Technical features:

Focus on air filter

Fuel Tank (6 L)

Engine double oil cap (Single tank)

WARNING!

The engine is PROVIDED WITHOUT OIL.
Before starting, please read the instruction manual.

Rated Power: 9.5 HP

The correct term would be "Commercial” Power, meaning the classic standard of definition of power officially used until a few years ago by all leading engine manufacturers. * This technical detail is even more widespread and advertised in the leading commercial channels, although it is a matter that it is higher than the actual power.

Effective power: 8 HP

* It corresponds to the real power expressed working organ in the use phase. This is the power indicated as official in the manual or in the technical data of the motor’s manufacturer.

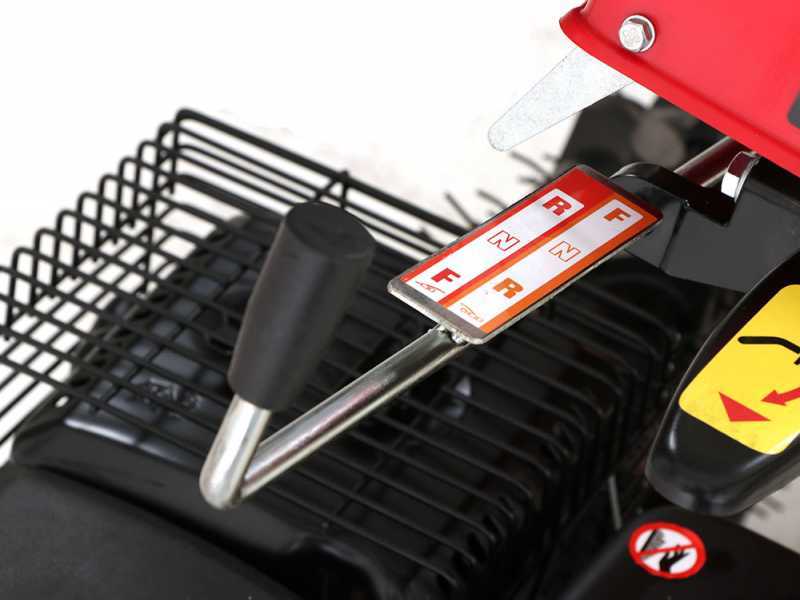

The machine is equipped exchange divided into:
- 3 forward
- 3 reverse gears

They are selectable through the appropriate lever.

The other lever (Inverter) is able to select them the motion of the machine. (Forward, neutral, reverse).

robust and reliable central transmission.

red oil check plug for change.

WARNING!

The oil-free transmission, to be added before the first use.

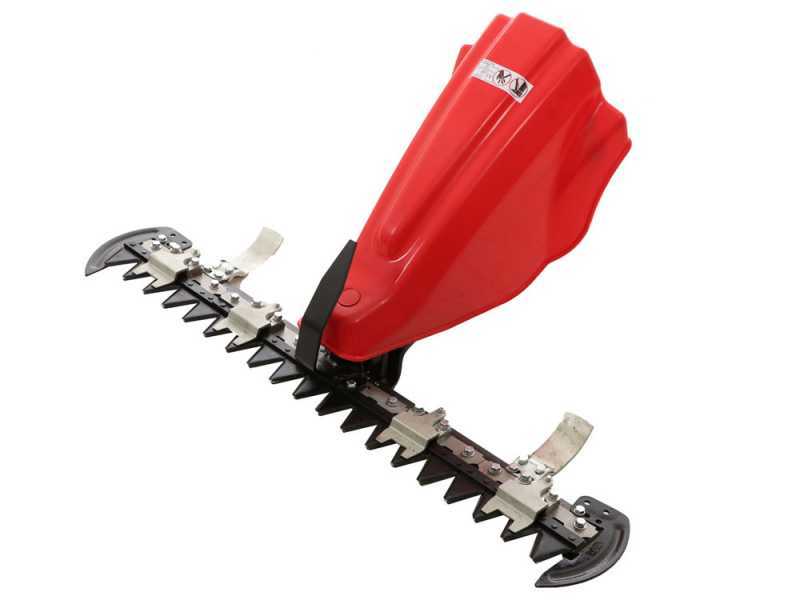

Sickle bar cutting width: 97 cm

Mulching cutting system: the sickle bar consists of a lower blade and an upper blade, which moves with an oscillatory motion in contact with the lower blade that is fixed and acts as a counter-blade. This type of mulching cutting system is possible thanks to the blade shape, which allows making clean cuts and chopping very tall and thick grass.

The user can adjust the cutting height by setting the 2 rear runners angle.

Swinging sickle bar.

Front protection shield.

External protection which allows limiting damages of small trees.

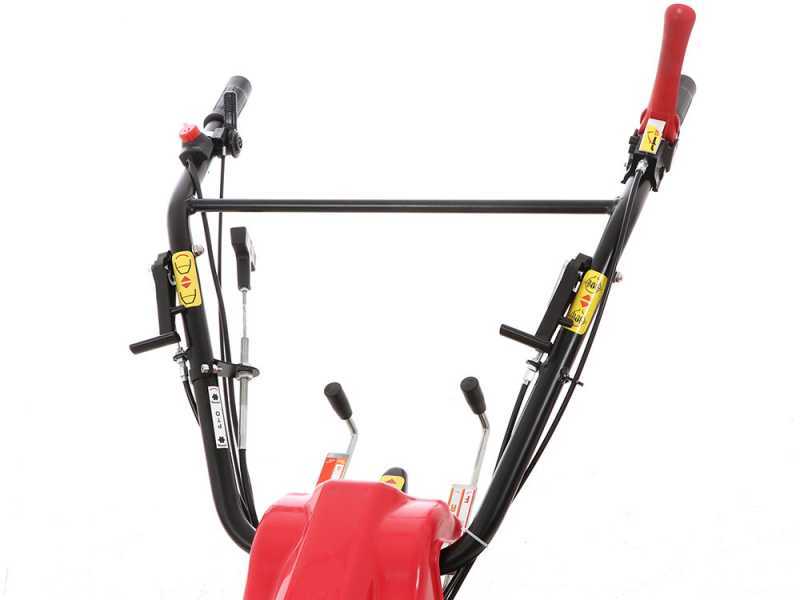

Focus on a detail of the steering bars(handlebars). All the main controls are placed in this area.

Black knob: it manages the machine motion.

Red lever: (clutch lever), it starts the equipment. Make sure to press the white safety button before operating the lever in order to unlock the handle.

Focus on the handlebar height adjustment.

Focus on the locking system and handle bar rotation by means of the (180°) lever.

Throttle lever

ON/OFF button

Differential locking lever

Sickle bar height adjusting system (slides)

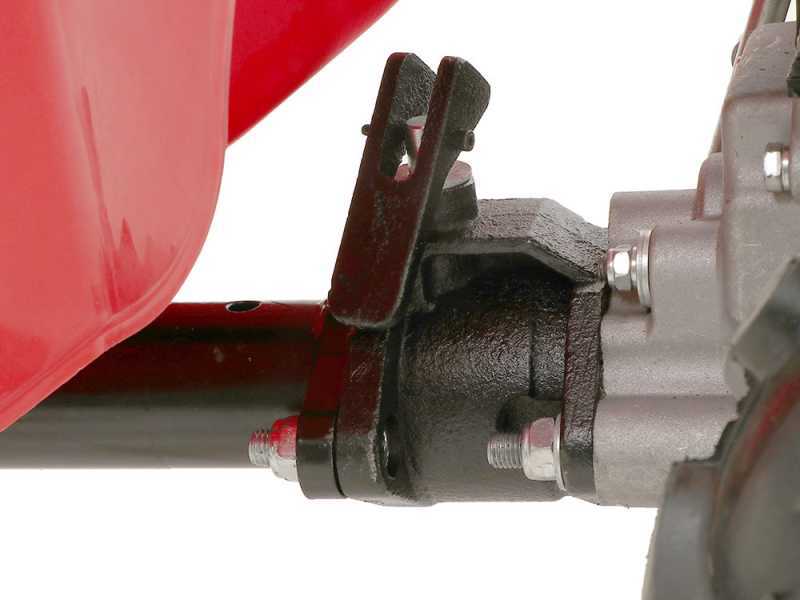

Engagement / release lever of the attachment to be fitted to the quick coupling system.

PTO drive

- Quick coupling (50mm)

- Large tractor wheels

- Wheel drive transmission

- Machine-Accessory fitting: make sure to carefully check the proper connection of the attachment to the machine body before use

- Protection bumper

- Handlebar protection cover

- Towing hook
