GeoTech Pro AKF130 - Side mulcher for tractor - Lightweight series

Questions & Answers (2)
ID: 103942

EAN: 9999237540902

8,9/10
After-sales assistance & Spare parts
GeoTech Pro AKF130 - Side mulcher for tractor - Lightweight series
+70 sold
Tractor power
From 35 to 40 HP
Sturdiness/Series
Light
Weight
260 Kg
Cutting width
130 cm
Shift
Hydraulic
Standard cutting tools
Hammer flails
Internal gearbox
Embankment shredder
Hammer flail weight
0.4 Kg
Cardan shaft
Yes
Double spiral rotor
Product Features
Model:
AKF 130
Mulcher type:
Side mulcher
Tractor power:
From 35 to 40 HP
Sturdiness/Series:
Light
Shift:
Hydraulic
Embankment shredder:
Double spiral rotor:
3-point hitch category:
First
Internal gearbox:
Cardan shaft rotation:
Standard
Manufacturing country:
China
Transmission data
Integrated free wheel device:
Yes
Side drive belts:
3
Cutting data
Cutting width:
130 cm
Wood diameter:
Up to 25 mm
No. of blades:
22
Standard cutting tools:
Hammer flails
Hammer flail weight:
0.4 Kg
Cutting width:
130 cm
Equipment
Counter-blade:
Single row
Hydraulic Piston for moving:
Yes
Rear support roller:
Yes
Free gifts/extra features
Cardan included:
Yes
Cardan shaft:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
145x160x70 cm
Net weight:
260 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
145x85x60 cm
Gross weight (packaging included) :
302 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
60 minutes
Prompt Delivery
12 items in stock
Free Shipping
Estimated delivery: 23/04/2025 - 25/04/2025
Suggested price:
€ 2.963,79
€ 2.222,84
Vat included
You're viewing:
Customers also viewed:
Description

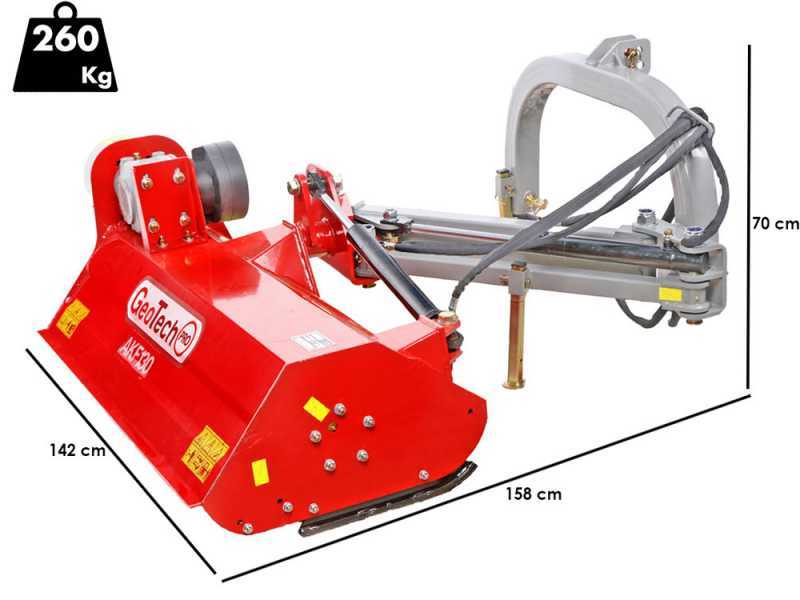

Side-arm flail mower for tractor

The GeoTech Pro AKF 130 side-mounted embankment mower is a lightweight series implement designed for efficiency and versatility in a variety of operating contexts. This model combines a competitive price/quality ratio with technical features ideal for use on sloping terrain, roadsides and ditches.

The lightweight yet robust design allows it to operate with low horsepower tractors while maintaining high levels of performance. The hydraulic boom displacement system offers dual flexibility: both horizontal and vertical movement. This configuration allows the mower to be used to work outside the tractor or in a vertical position, making it ideal for operations such as cleaning roadsides, embankments and cutting hedges or bushes.

The GeoTech Pro AKF 130 is distinguished by its tree lateral belt drive system, which guarantees efficient power transfer and long service life. Hydraulic side-shift is controlled by two robust pistons, designed to withstand heavy-duty use.

Main features:

  • Working width: 130 cm, ideal for precision work in confined spaces.
  • Overall width: 145 cm, including side skids for greater stability.
  • Weight: 260 kg, optimum for balanced and easily manoeuvrable equipment.
  • Versatile use: for sloping ground, ditches, roadsides, hedges and bushes.
  • Hydraulic movement: dual horizontal and vertical function for maximum flexibility.
  • Robust transmission: 3-belt system for long-lasting performance.

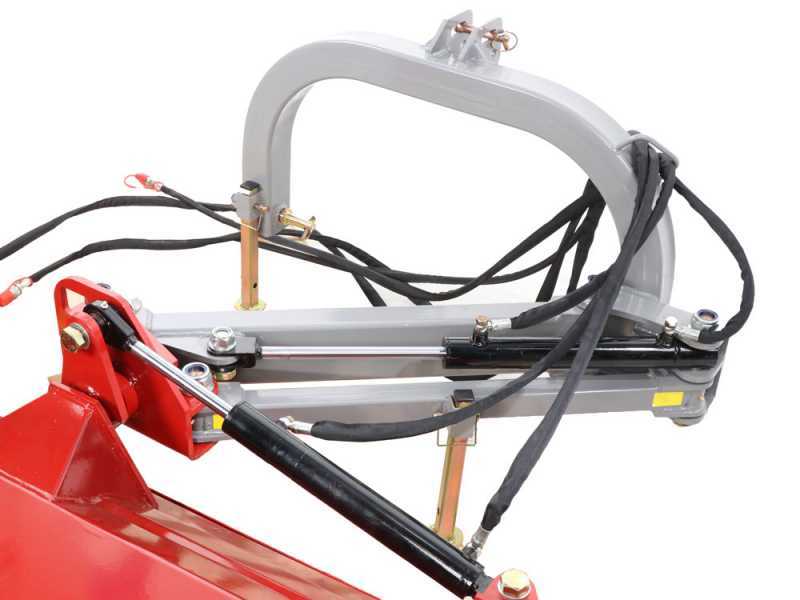

Hydraulic side and vertical shift

Hydraulic lateral and vertical movement is controlled by means of 2 pistons.

Equipped with 4 hoses that are connected to the hydraulic couplings on the tractor.

This is a very robust displacement system. It is structured on articulated arms.

The mower can work up to 90° vertically upwards and -40° downwards.

Cutting tools: hammer flails

No. of hammers fitted as standard: 22

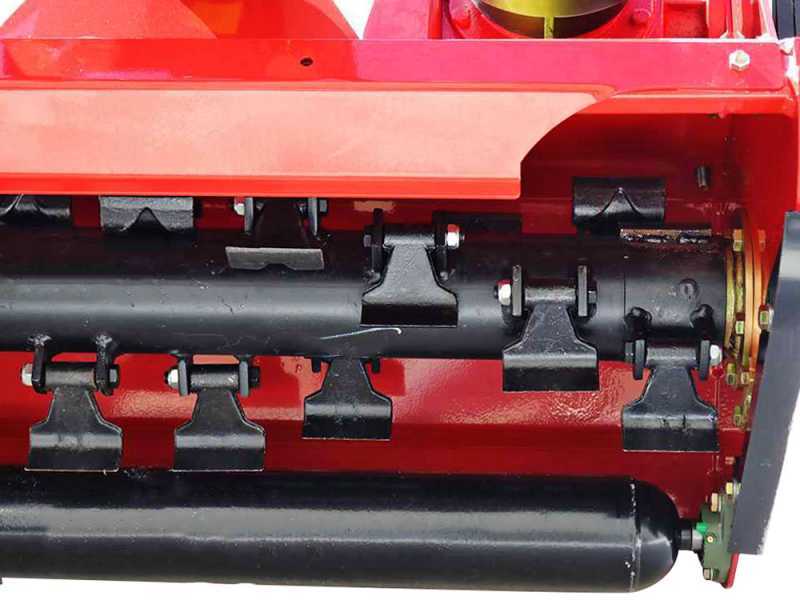

Close-up of the hammers (mallets), mounted on supports welded to the rotor, which reduce the wave effect of the turf and provide excellent shredding action.

Detail of the lateral support with internal fixing bearing of the knife rotor.

Detail of the rotor's external anchor plate, with central cavity with grease nipple

Figurative image of the double spiral rotor.

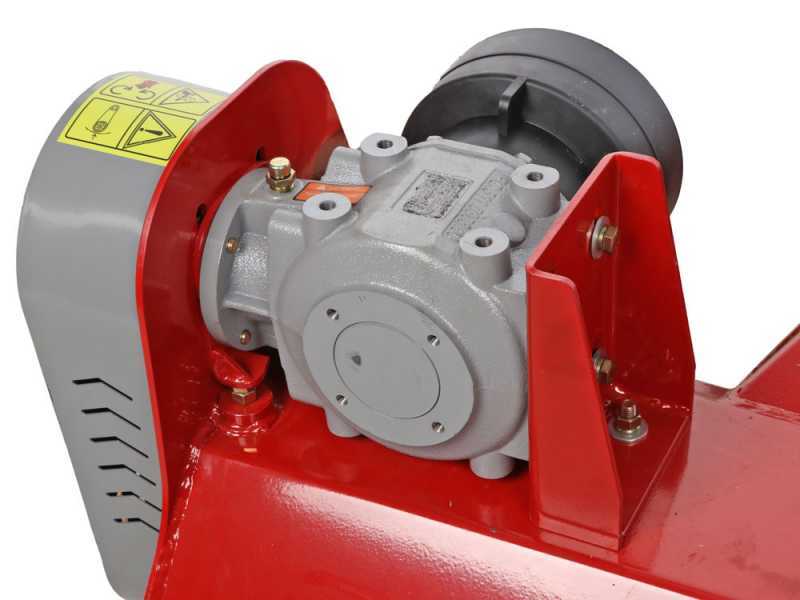

Side belt transmission and reduction gearbox group

Gearbox with gears in oil bath.

Large-section 3-belt side transmission with side belt guard equipped with various ventilation openings (for regular cooling).

Detail of the side grease nipple on the transmission side, located in a convenient position, accessible through the dedicated window

The power take-off is the standard 1 3/8’ z6 type (suitable for all current and recently manufactured tractors): If you have a very old tractor, check that it is equipped with the same power take-off and with normal clockwise (right) rotation direction

OIL level INCLUDED

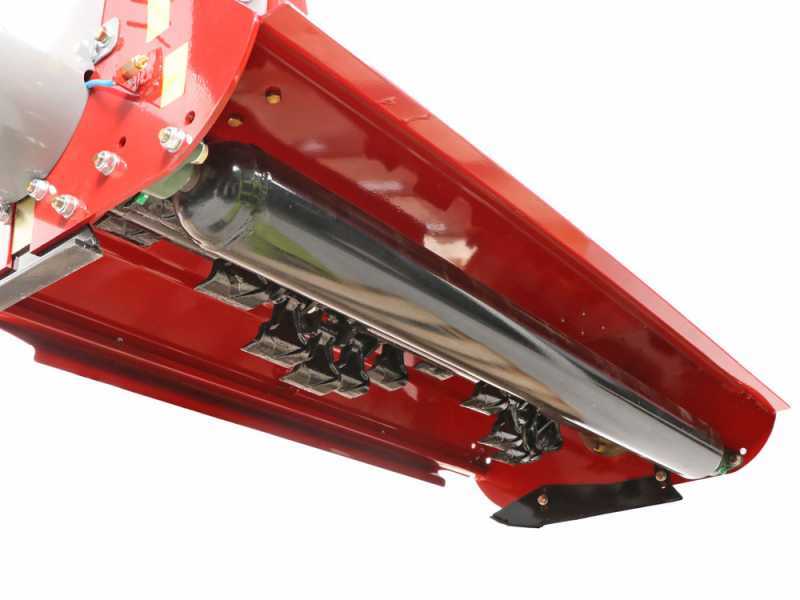

Stabilizer accessories - rear roller and side skids

Rear support roller supplied as standard.

Support feet.

Support skids.

Free items & Standard equipment

Standard Equipment

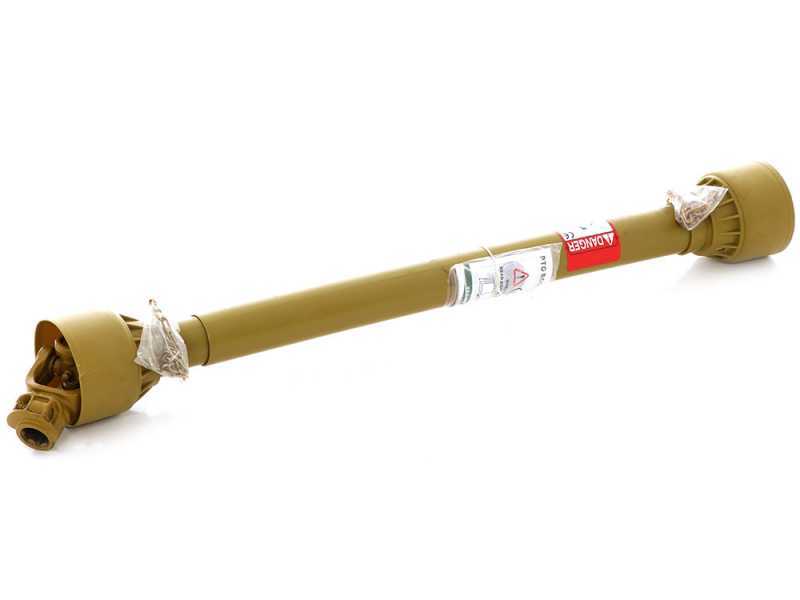

The mower is supplied in its original cage, including the Cardan shaft
