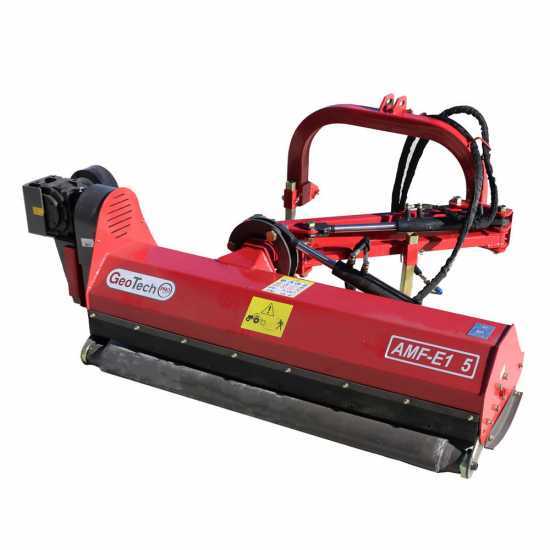

The GeoTech-Pro AMF-E 145 side flail mower of the light series is a machine with unlimited configurations for the maintenance of the green areas.
Suitable to small tractors, the pantograph arm and the compact design enable to work in any situation and to adapt to any request.

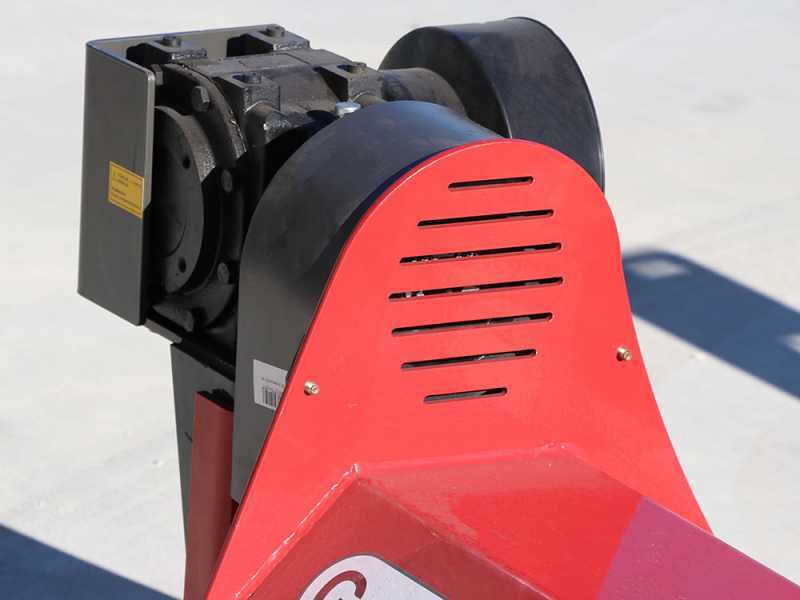

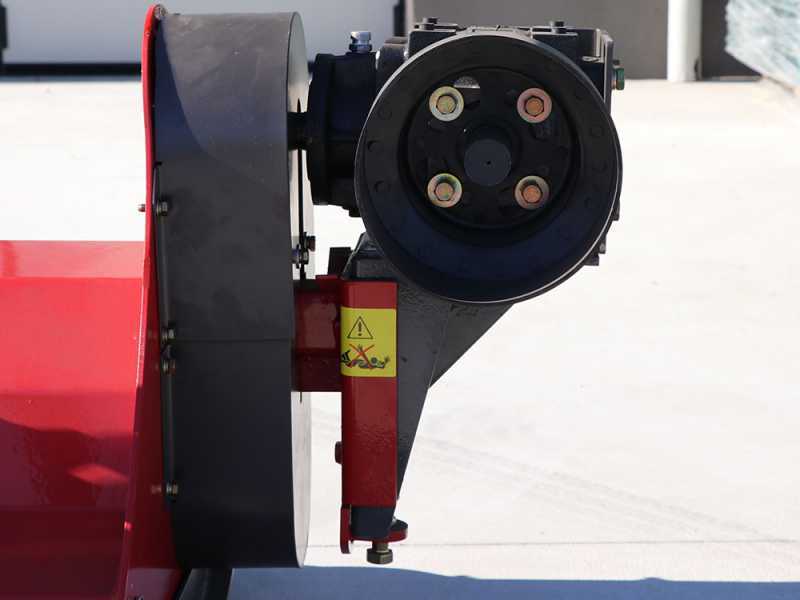

The transmission gearbox of this model is located outside; this enables a further movement towards outside, thus maintaining the cardan shaft in movement even in detached position and without too much effort.

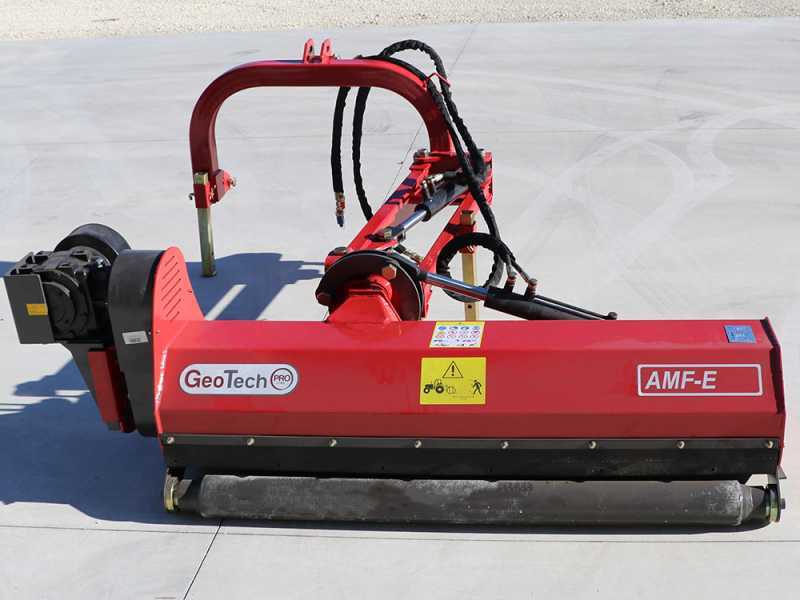

This model represents the maximum level of flexibility of the flail mowers, in fact, the (totally hydraulic) movement is both horizontal and vertical.
It can be used to clean street edges, banks and moats where it is requested that the flail mower works sideways to the tractor or even in vertical for the hedge and bush cutting.
- Ideal for municipal works, ditches, embankments and inclined lands in general.
The hydraulic side shift is carried out by two sturdy pistons and the side transmission is made by 3 belts.
TECHNICAL DETAILS (in summary):

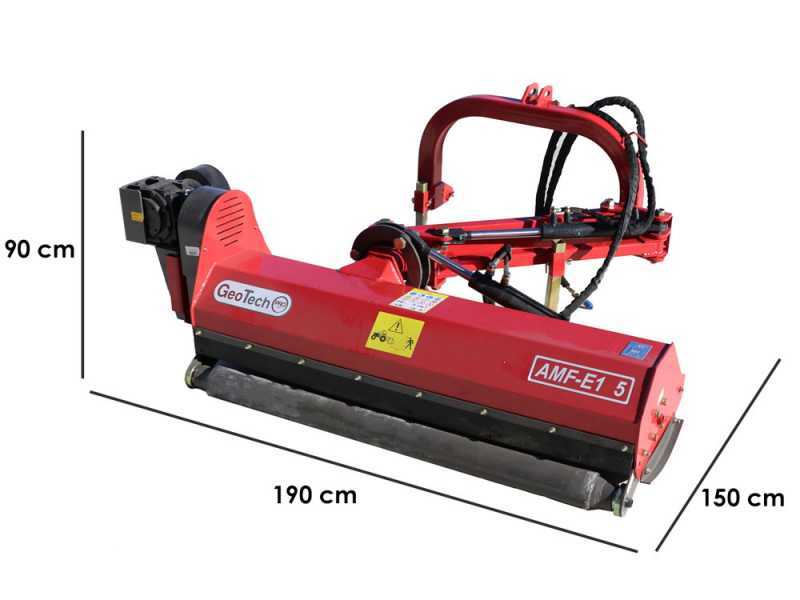

- Real working width: 140 cm
- Real width occupied: 190 cm
- Weight: 280 kg
STANDARD EQUIPMENT (in summary):
- Universal 3 point hitch
- Rear roller
- Greasing points
