Name: GeoTech Pro AMF125 - Side bank cutter for tractor - Light series
Brand: GeoTech-Pro
SKU: 103938
Price: 1897.84 EUR
Availability: InStock
Rating: 4.33 (12 reviews)

Description

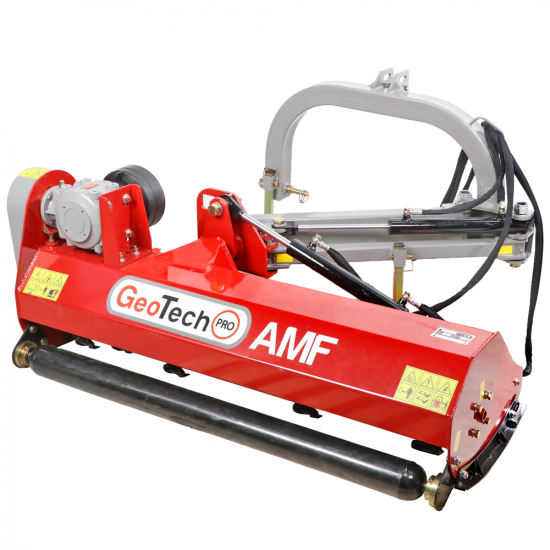

Side flail mower with arm for tractor

The GeoTech-Pro AMF 125 side flail mower with arm is a versatile tool, designed for managing greenery in difficult areas such as roads, ditches and hedges. Thanks to its light and elastic structure, it offers excellent flexibility and customization of operations. This model combines practicality and performance, making it ideal for users looking for a quality product at a competitive price.

Main Features

The GeoTech-Pro AMF 125 shredder guarantees high operational versatility thanks to a completely hydraulic movement system. The arm can perform both horizontal and vertical movements, adapting to different working conditions. It is specifically indicated for:

Cutting grass on flat and inclined surfaces
Shredding of stalks and light pruning.
Cleaning of ditches, embankments and sloping terrain
Maintenance of hedges and shrubs

The hydraulic lateral movement system is supported by two robust pistons, ensuring reliability and precision.

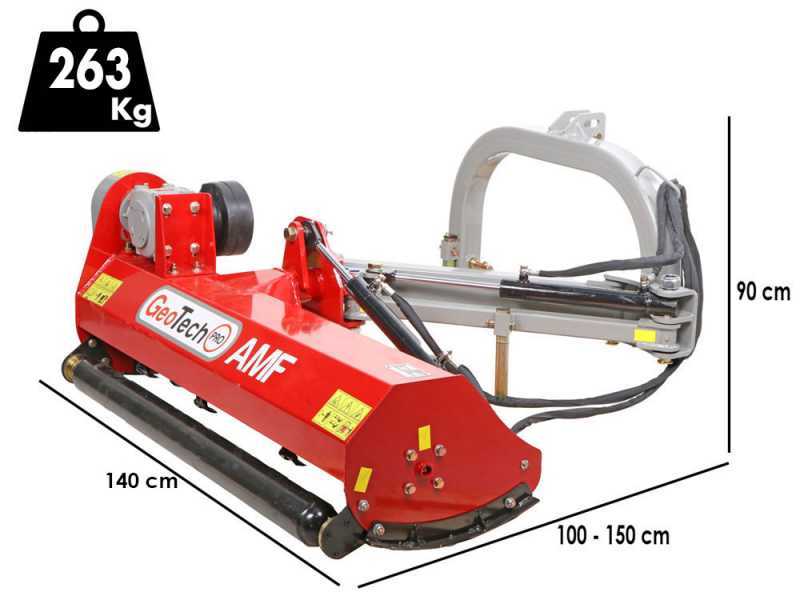

Technical details

Effective working width: 125 cm
Effective overall width: 140 cm
Overall weight: 263 kg
Lateral transmission: entrusted to 3 belts for maximum efficiency

GeoTech Pro AMF125 - Side bank cutter for tractor - Light series

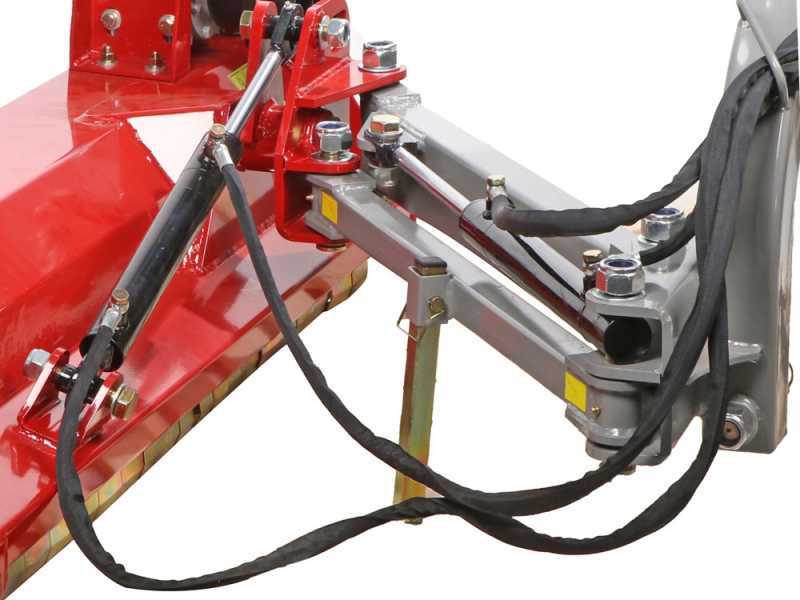

Hydraulic side and vertical shift

The hydraulic lateral and vertical movement is controlled by 2 pistons. Equipped with 4 hoses that must be connected to the hydraulic connections on the tractor.

This is a very robust movement system. It is structured on articulated arms.

The shredder can work up to 90° vertically upwards and -40° downwards.

Hammer and rotor cutting tools

No. of hammers mounted as standard: 18

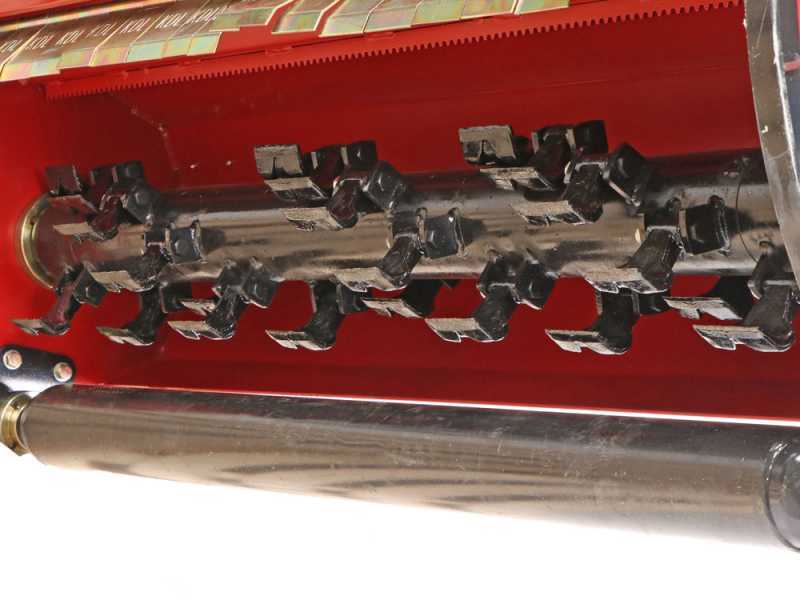

Close-up of the hammers (mallets), which reduce the wave effect of the turf and perform an excellent shredding action.

Detail of the lateral support with internal fixing bearing of the knife rotor.

Detail of the external anchoring plate of the rotor, with central cavity with grease nozzle.

Figurative image of the double spiral rotor.

Side belt transmission and reduction gearbox group

Gear reducer box in oil bath..

Lateral transmission with 3 large section belts with lateral belt protection casing, equipped with various ventilation openings (for regular cooling).

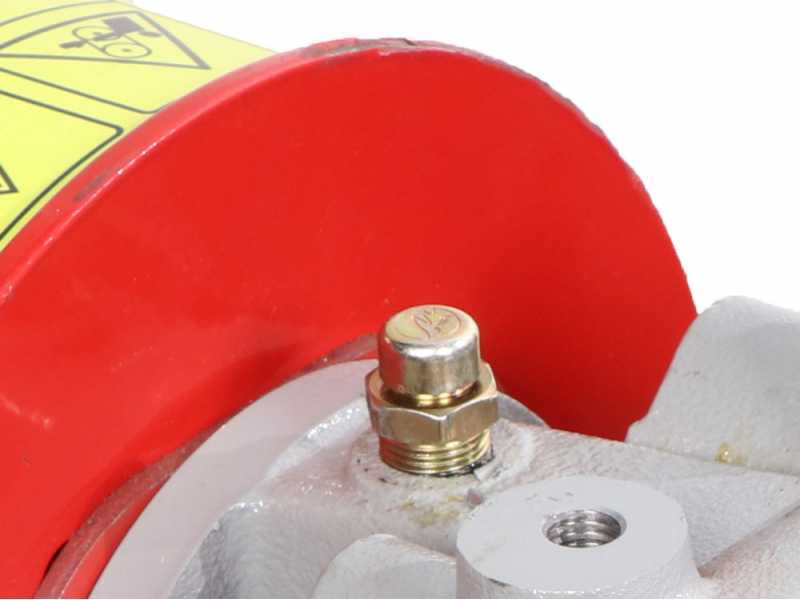

Detail of the lateral grease nozzle on the transmission side, placed in an easy position, accessible through the dedicated window

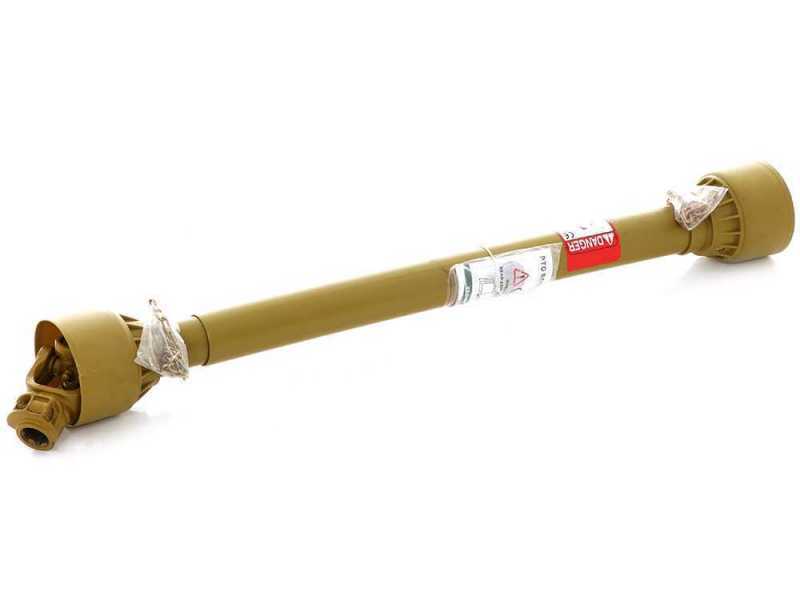

The power take-off is the standard one, type 1 3/8" z6 (suitable for all current and recent production tractors): If you have a very old tractor, check that it is equipped with the same power take-off and with normal clockwise rotation direction (right)

OIL level INCLUDED
