Description

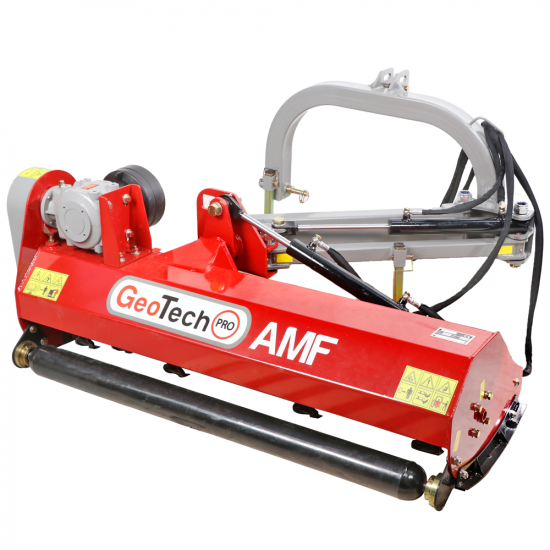

Side flail mower with arm for tractor

The GeoTech Pro AMF 165 side-arm flail mower is a versatile tool designed for green management in difficult areas such as roads, ditches and hedges. Thanks to its light and flexible construction, it offers excellent flexibility and customisation of operations. This model combines practicality and performance, making it ideal for users looking for a quality product at a competitive price.

Key Features

The GeoTech Pro AMF 165 mower provides high operational versatility thanks to a fully hydraulic movement system. The arm can move both horizontally and vertically, adapting to different working conditions. It is specifically designed for:

Cutting grass in flat and inclined surfaces
Shredding of stalks and light pruning
Cleaning ditches, embankments and sloping terrain
Maintenance of hedges and shrubs

The hydraulic lateral movement system is supported by two robust pistons, ensuring reliability and precision.

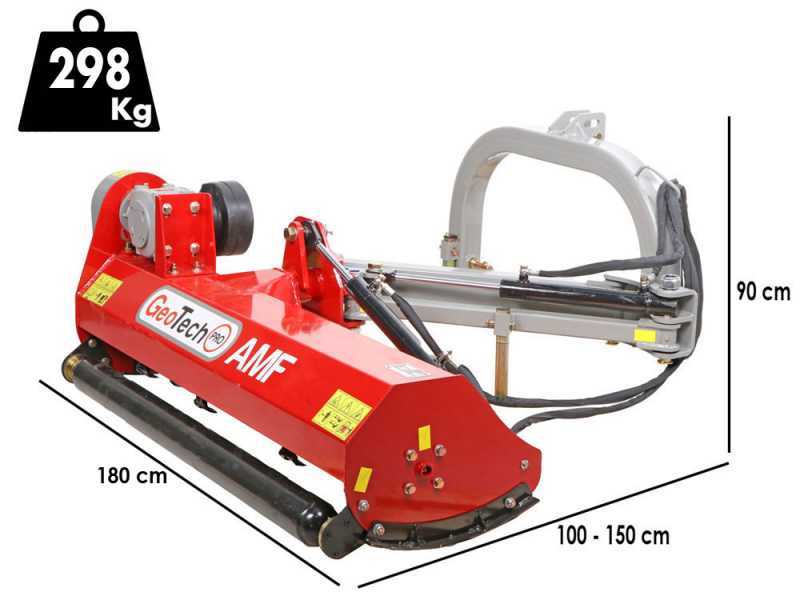

Technical details

Effective working width: 165 cm
Effective overall width: 180 cm
Overall weight: 298 kg
Lateral transmission: entrusted to 3 belts for maximum efficiency

GeoTech Pro AMF165 - Side mulcher for tractor - Lightweight series

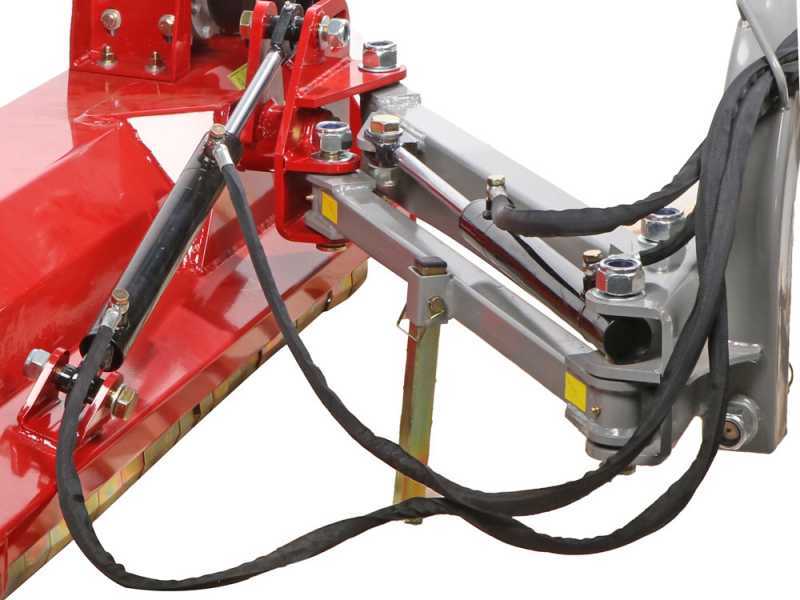

Hydraulic side and vertical shift

Side and vertical movement actioned by means of 2 cylinders. Provided with four fast linkage tubes to be connected to the tractor’s hydraulic joints.

It is a very solid movement, structured by means of flexible arms.

The flail mower can work up to 90° vertical upwards and -50° downwards.

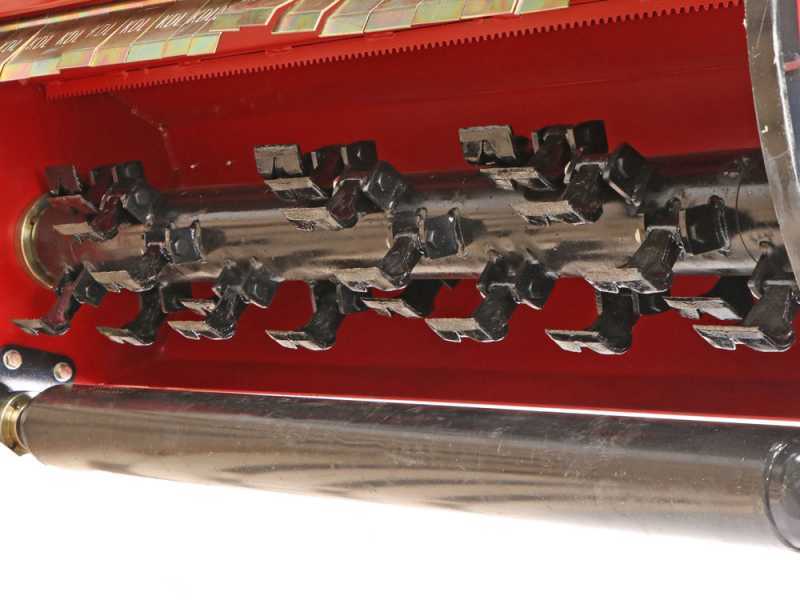

Hammer and rotor cutting tools

N. of hammers mounted as standard: 26

Close-up of the hammers (mallets), which reduce the wave effect of the turf and perform an excellent shredding action.

Detail of the lateral support with internal fixing bearing of the knife rotor.

Detail of the external anchoring plate of the rotor, with central cavity with grease nipple.

Figurative image of the double spiral rotor.

Side belt transmission and reduction gearbox group

Gear reducer box in oil bath.

Lateral transmission with 3 large section belts with lateral belt protection casing, equipped with various ventilation openings (for regular cooling).

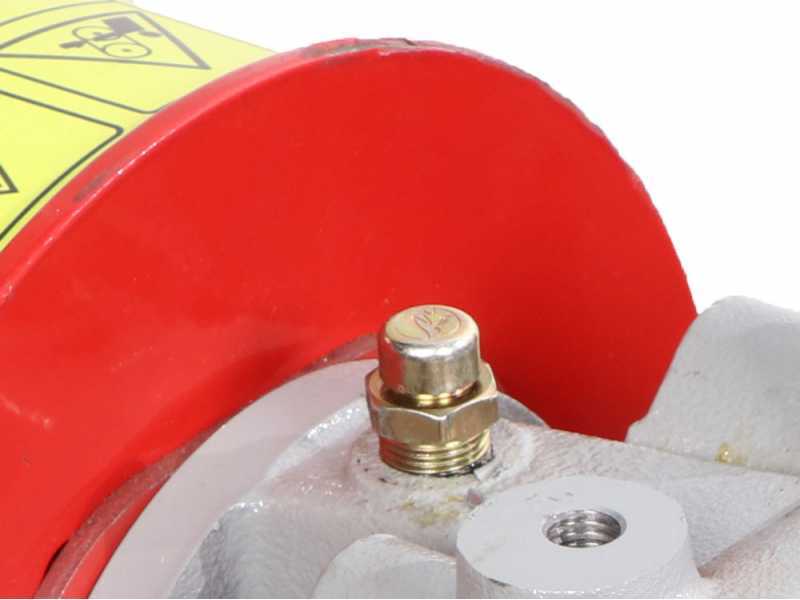

Detail of the lateral grease nipple on the transmission side, placed in an easy position, accessible through the dedicated window

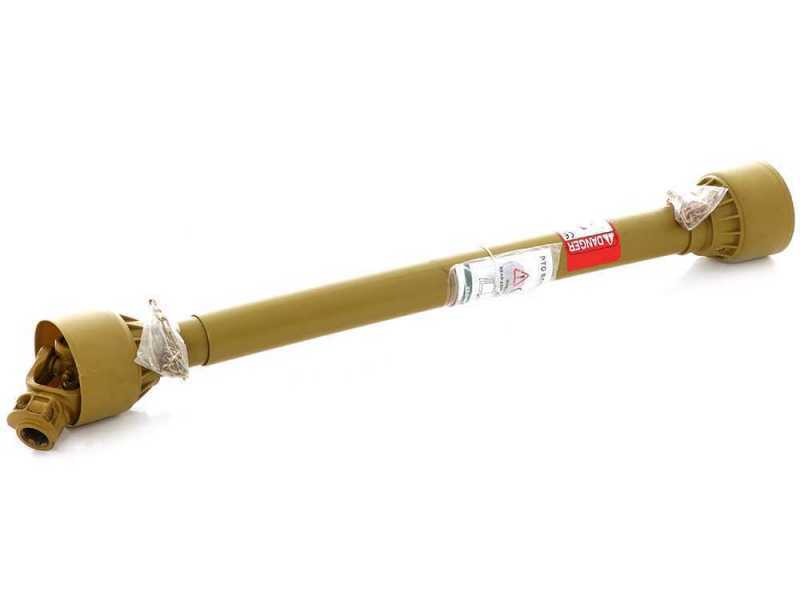

The power take-off type 1 3/8" z6 (suitable for all current and recent production tractors): If you have a very old tractor, check that it is equipped with the same power take-off and with normal clockwise rotation direction (right)

OIL level INCLUDED
