GeoTech PRO GGP 6500 ESA - 5.4 kW Wheeled Power Generator with AVR and Electric Start - DC 5 kW Single-phase

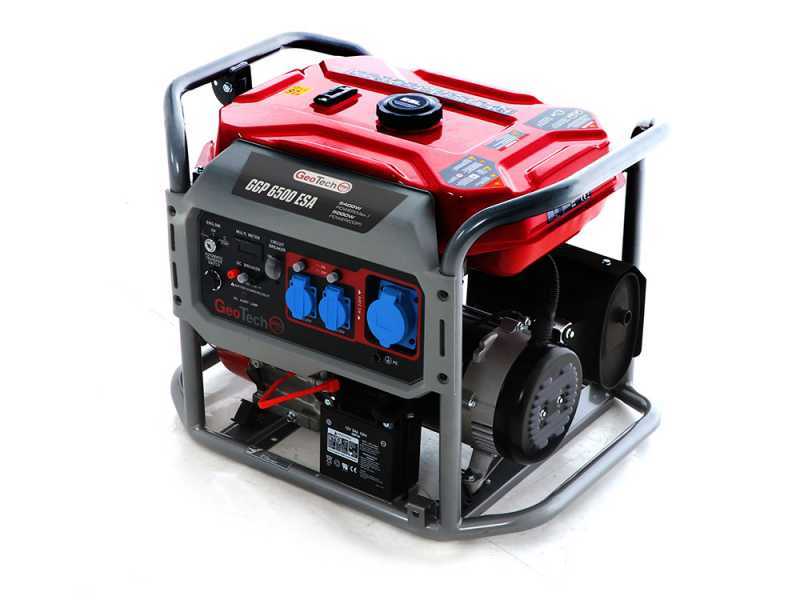

The GeoTech GGP 6500 ESA electric single-phase spark ignition generator:

GG: Gasoline Generator, petrol generator

P: ProLine

6500: This machinery has a maximum value of 6500 KVA which can be connected externally with ATS (purchased separately) through the specif plug located on the control panel.

ES: Electronic Start, electric ignition with key.

A: ATS, possibility of connecting with ATS (sold separately)

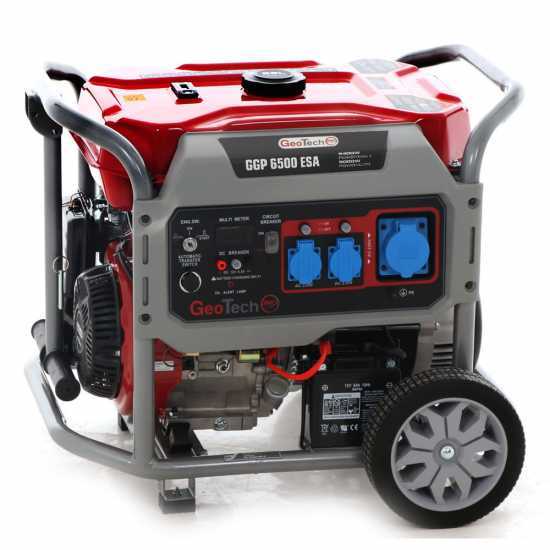

This generator is a product which guarantees great performances and, at the same time, it is easy to transport and maneuver thanks to the wheels and the handle, that can be closed, of which it is equipped. This machinery allows to have power wherever needed. (The handle and the wheels are standardly equipped and can be assembled by any user)

This is practical and with great performances.

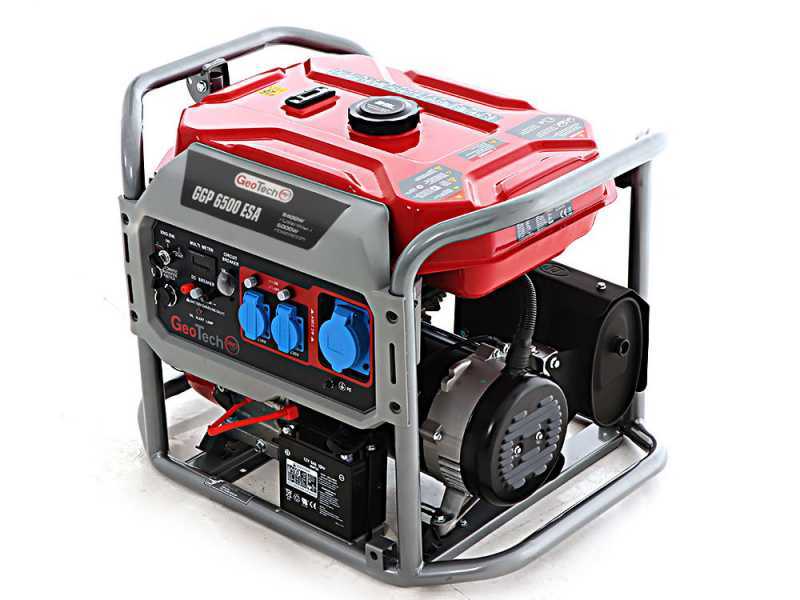

This generator can also be used in the portable non wheeled version, you just need to not apply the wheels and the handle.

The generator has a tank with a maximum capacity of 25 L and permits the prolonged use of the machine.

This generator is equipped with a spark ignition 420 cc 12 Hp engine and has an alternator with copper winding which generates a maximum power of 5.4 Kw.

Equipped with AVR board: the current generator has an electronic card that automatically adjusts the output voltage, keeping it constant under varying load conditions

WARNING: all these models of generators that do not belong to the PROFESSIONAL series (considering the product level evaluation used by our website) are not intended for more than 3-4 hours continuous work in order not to reduce the alternator durability as well as that of one of the other machine components due to the unit overheating or wear. As regards a home or intensive use of these generators, it is important to follow the indications mentioned above. In all these conditions, we highly recommend focusing the attention on the purchase of generators renowned as PROFESSIONAL by the product level classification made in our website.

This GeoTech Pro generator can also be used in the simple non wheeled version, making it a portable generator ready to meet the user’s specific needs.

Easy to use, versatility and guaranteed performance are features of this product

The GeoTech GGP 6500 generator’s alternator presents a copper winding.

Maximum single-phase nominal power* emergency conditions LTP: 5.5KW

* in case of an emergency the generator can reach this maximum power

Nominal power* in continuous running PRP: 5.0KW

*This is the data that should be taken into consideration as an effective and constant data for the generator output (it guarantees the product an infinite duration)

The GeoTech generator is equipped with AVR board: an electric device which automatically regulates the output of tension, making it constant as the load varies.

Focus on the sturdy anti-vibration grommets that ensure the alternator to the frame.

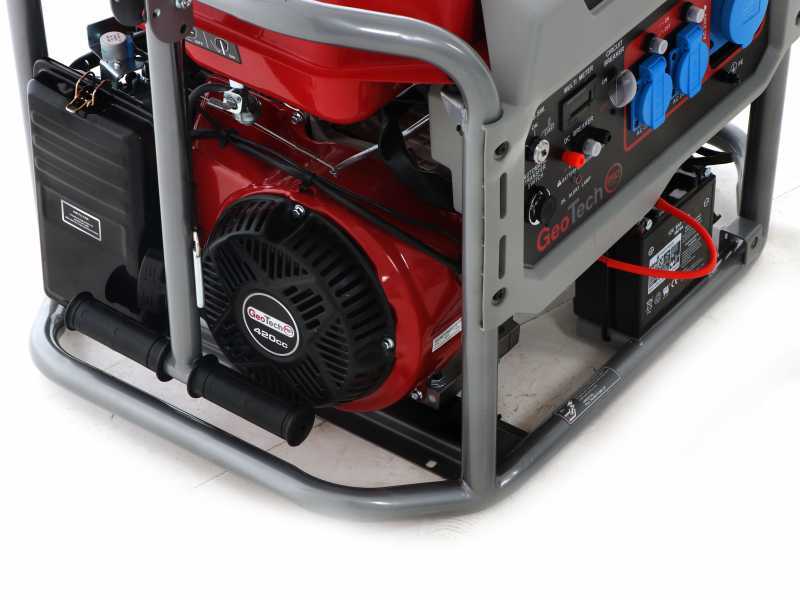

Engine specifications:

Type: 4 stroke, single-cylinder, air-cooled, OHV, horizontal shaft

Displacement: 420 cc

Power: 12 Hp

Fuel: petrol

Tank: 25 L

Oil capacity: 1.1 L

Ignition mode: Electric with key

The engine is equipped with a 25 L metal tank with tap to stop the petrol.

Focus on the engine air filter

The gas-regulating and the acceleration of the engine is made in a automatic manner via the AVR card to vary the load connected.

OHV technology

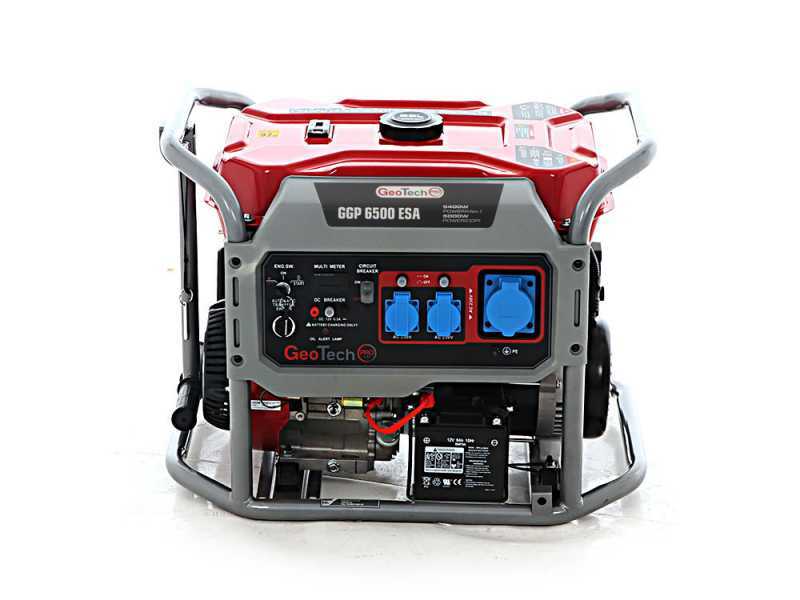

The GeoTech Pro control panel of the generator is comprehensive and rich in features.

• Multi Meter Digital Panel 5 V-A-F-P-T functions:
  • Voltage
  • Amperage
  • Frequency
  • Power:
  • Time (Ignition)
• 2 AC 230V Schuko power outlet
• 1 Industrial electrical socket AC 230V(this must be used to access all the generator’s power, so with high absorptions and starting coefficient above 3.5 KW like in sanders, electric pump, compressors, welders, etc.)
• Ground discharge
• oil level indicator: it has the task of signaling the presence of insufficient oil for lubricating the engine. In this case, the generator will stop automatically to prevent damage to the engine.
• Contact breaker
• This generator is also equipped with battery charger suitable for charging of all the 12 volts batteries. WARNING: This is not a 12 volts power delivery system for operating equipment at 12 volts. We reiterate that this is a standard charger.
• Electric start with ignition key
• ATS board connection

Very large tank of 25 L capacity. This makes sure that the generator can guarantee an high autonomy. This tank is designed in metal and is equipped with an external diesel control system.

Focus on the support anti-vibration grommets.

Grommets which support both the engine and the alternator.

Handle that can be closed to ease transport

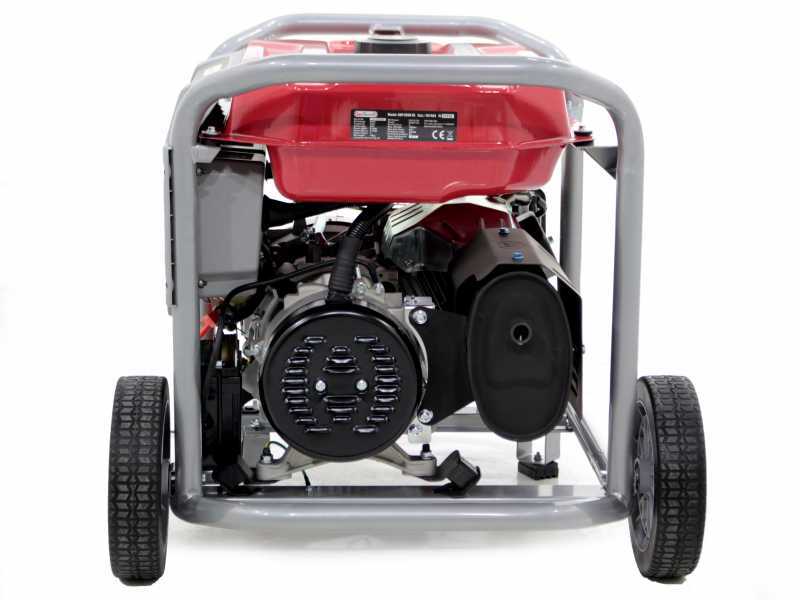

Large rear wheels for transport

• Voltage: 230 Volts
• Frequency: 50 Hz
• Power factor: 1
• Tank capacity: 25 L
• Noise level: 97 dB(A)/7m

As far as the needed power is concerned, we now provide you with an handy chart to help you navigate among consumption, starting coefficients and watt.

The best criteria is to pinpoint first which are the instruments we need to power with the generator and, consequently perform a simple calculation, as explained below, to identify the needed power that the generator need to eject.

Power required = Electric appliance consumption X Breakaway starting coefficient

The starting coefficient is a fundamental characteristic of any instrument which works with electric current because it indicates how much the consumption of the object increases. Therefore, this is needed to concretely determine how many WATT are necessary during the start up operations.

Example: Compressor (1500 Watt ) X Starting coefficient (2) = 3000 Watt Hence you should orientate towards a generator which has a WATT power equal or superior to the result (*)

Check the consumption of the appliance on the instruction and maintenance manual or on the plate attached to the machine.

WARNING: the chart is purely indicative. Thanks to the formula above you can easily calculate the power a generator should deliver to connect and start some specific products and select the model of generator which best suits your needs. And remember that to operate the electronic equipment (computers, televisions and all the equipment equipped with an electronic card) must purchase a current with "inverter" generator (which stabilizes the output current).

• The generator can be exclusively used to power single electrical appliances (with respect to the produced KW power in relation to the absorption during the starting phase that must be lower than the power supplied by the generator).

• The generator can be used to power household device in emergency conditions (no current service provided by the domestic household), exclusively on the models that are specifically provided with ATS (Automatic Transfer Switch) device (specifically designed for this purpose and provided with connecting systems to your household electrical power).

• The generator was NOT designed for PROFESSIONAL use, it is therefore apt for occasional use (not frequent). The working sessions must no be over 3-4 continuous hours (which would cause the alternator to overheat and wear, especially in its internal components rotor and stator) If you need a generator for frequent use (for example once a week), the user shoudl look towards another type of generator, specifically intended for a frequent use and precisely a PROFESSIONAL or even INDUSTRIAL quality-level generator (that is not provided with a standard 3000 rpm alternator as this models is, but one which is designed with a professional alternator with low speed; 1500 rpm - with liquid-cooled engine and alternator - which have a level of specific characteristic and price point very different from this model’s);

The generator is not designed to be installed in photovoltaic or solar energy systems for energy production nor for the recharging or maintenance of batteries of these specific or other electric systems. Indeed, it may damage seriously the generator on its internal components (alternator, engine and electrical component). Each photovoltaic system requires a generator for INDUSTRIAL use (not for domestic use as this present model), specifically designed and manufactured for this purpose. WE DO NOT PROVIDE WARRANTY on generators connected to photovoltaic systems, as this entails an IMPROPER USE OF THE UNIT.
