GeoTech-Pro GT-MR 76 Mini Rider - Riding-On Mower - 432 cc Engine with Electric Start

The Mini-rider GeoTech-Pro GT-MR 76 riding-on mower is the ideal machine for grass cutting.

The riding-on mower is equipped with transmatic transmission that allows controlling the forward speed and engine rpm by means a lever.

A powerful, sturdy, stable and comfortable machine; the riding-on mower is perfect for professional grass cutting in all conditions: whether for large lawns, gardens or fields or even for parks to be maintained and wherever you need to mow grass around trees and flowerbeds with little effort and in total comfort.

The driving systems features 5 different forward speeds, a neutral and a reverse speed.

3 in 1 cutting systems: Grass collection, side discharge and mulching.

The riding-on mower is equipped with a 12 V lead-acid battery for electric start (battery supplied)

The sturdy cutting deck features a 76 cm cutting width.

The centralised cutting height is adjustable in 6 positions: from 20 mm to 85 mm.

Rear wheels size 38 cm front wheels size 25 cm

Warning: never cross sideways on high slopes to avoid the machine overturning.

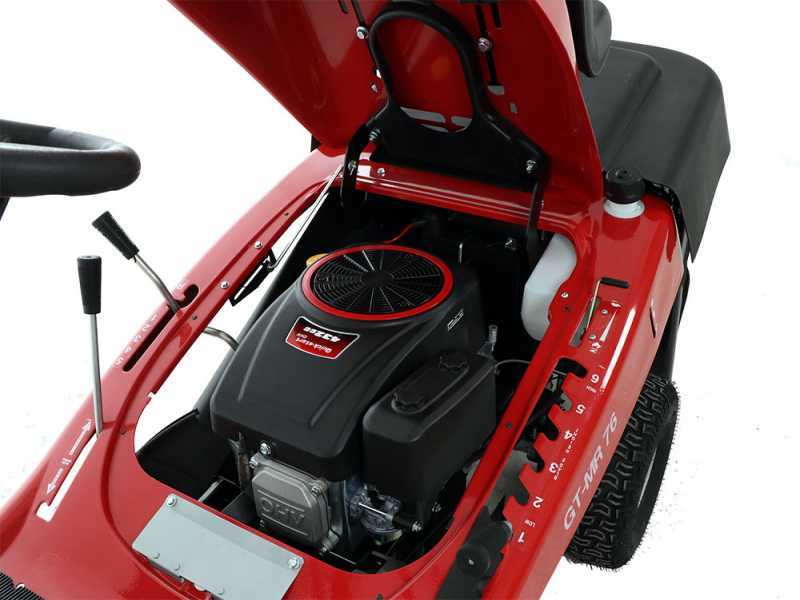

The 1P90F-1 is an air cooled 4-stroke petrol engine with aluminium cylinder.

Petrol engine with 436 cc that develops a high power (15 Hp).

The machine is provided with electric start.

SIDE DISCHARGE:

For cutting grass without collecting it into the grass collector (suitable for maximising cutting performance in the shortest time; with this system it is possible to cut grass even slightly higher than normal)

MULCHING:

this grass mowing system allows crushing grass clippings and dropping them on the ground. The resulting grass particles are so small, they will be barely noticeable on the lawn. This eliminates the problem of its disposal (reducing any effort and shortening the time-saving). Moreover, grass clippings will break down into nutrients and water for the lawn (grass is 80% water) and will thus ensure a perfectly balanced biological cycle. However, it is worth remembering that, to ensure the greatest mulching results, the lawn should be irrigated and the grass needs cutting at least once a week. Converting the machine from a cutting system to the other one is very easy.

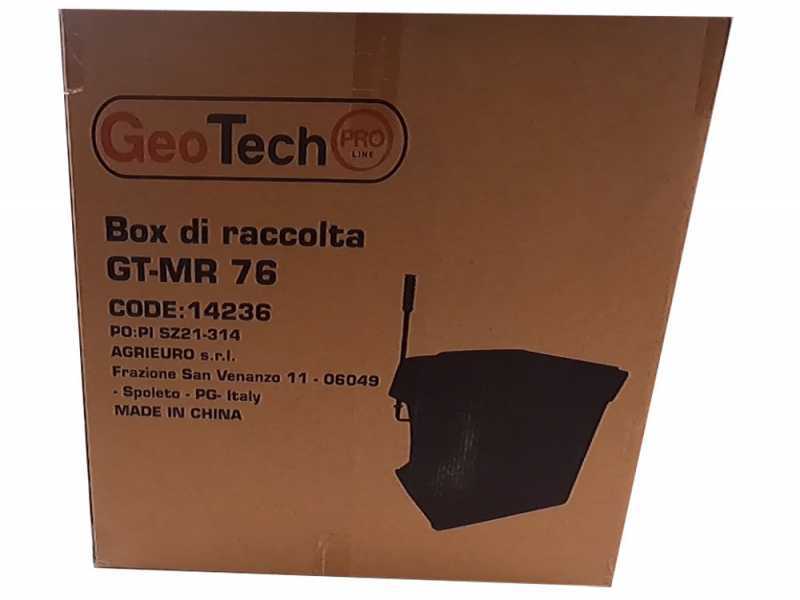

GRASS COLLECTION SYSTEM:

The grass collector assembly is very easy and requires only a few minutes.

It is not necessary to remove the grass collector to operate with the side discharge or mulching cutting system. Just remove the hose that connect the cutting deck to the rear grass collector and leave it attached even while not in use. An operation that requires only a few minutes.

Grass collector: 170 L.

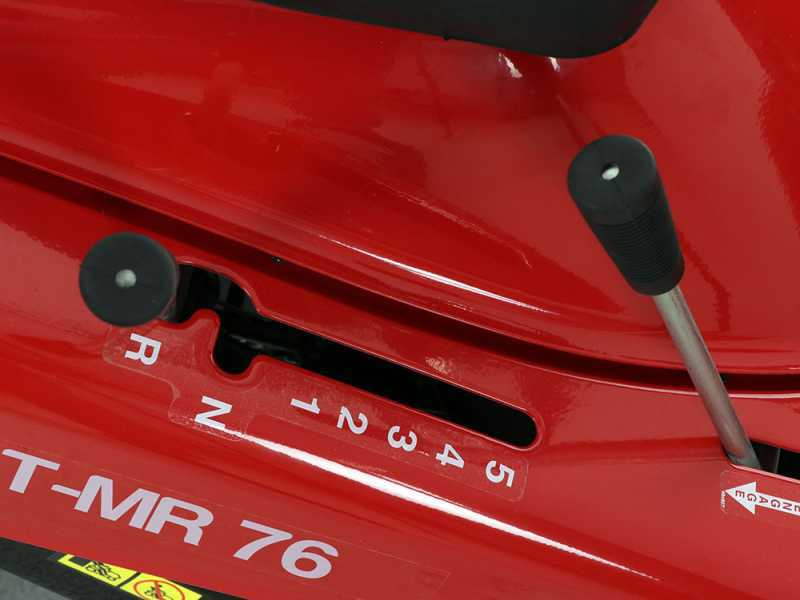

The GeoTech-Pro GT-MR 76 riding-on mower is provided with a gear selector which allows selecting:

• Forward speed with 5 different driving speeds.
  • 1
  • 2
  • 3
  • 4
  • 5
• Neutral (N)
• Reverse gear (R)

Focus on the engine rpm adjustment lever

Once selected one of the 5 gears, you’ll get the possibility to adjust the speed (reducing it) by simply adjusting the pressure on the braking pedal (decelerating in the brake circuit).

Releasing the brake pedal, the riding-on mower will automatically return to the gear that has been previously selected.

Focus on the gear transmatic transmission.

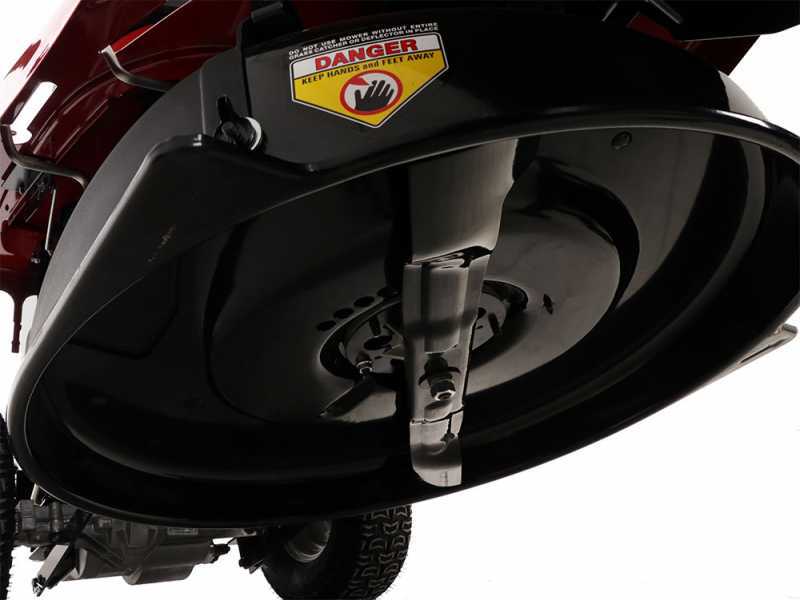

GeoTech-Pro GT-MR 76 riding-on mower cutting system features:

Sturdy double-blade cutting deck: 76 cm real cutting width.

The riding-on mower comes with a universal blade already assembled.

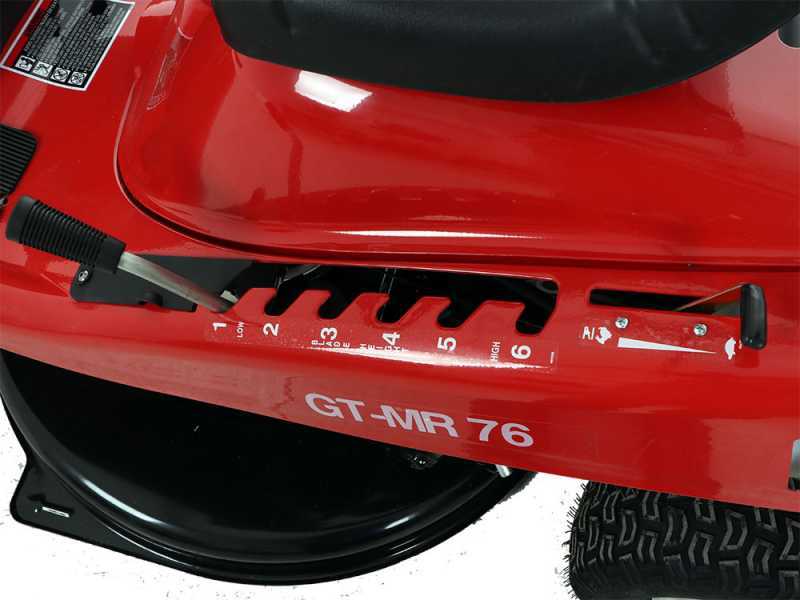

Adjustable cutting height in 6 different positions from 20 mm to 85 mm by means the proper lever.

• 1
• 2
• 3
• 4
• 5
• 6
• 7 WARNING DO NOT USE THIS POSITION FOR CUTTING THE GRASS (it is used to level the cutting deck, carefully read the instructions manual before use.

The blade is operated by means the proper blade engagement lever.

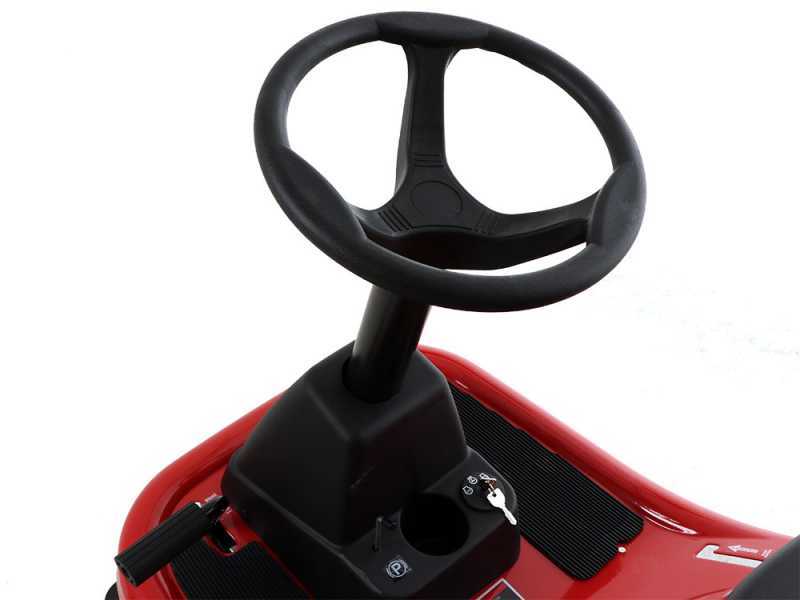

Easy and user-friendly controls.

Once started engine, it is possible to easily select the gear, the forward speed under the steering wheel, operate the machine brake and adjust the blade height and rotation, all directly from the Operator's seat.

Ignition lock with key: electric starting

Blade engagement lever

Braking pedal

Engine rpm adjustment lever

Cutting height adjustment lever in 6 different positions from 20 to 85 mm.

Parking brake engagement lever

Forward, reverse and neutral gear speed selection lever.

GeoTech-Pro GT-MR 76 riding-on mower additional features:

• Large-sized tyres: they ensure higher care of the lawn and great adherence to the ground and traction on a riding-on mower.
• Large-sized comfortable Operator’s seat
• Ergonomic steering wheel
• Electric start with 12 V lead-acid battery
