GeoTech-Pro HRM 80 - Tractor mower arm

Questions & Answers (7)
ID: 111873

EAN: 8053435095167

MPN: AM220-C80

8,9/10
After-sales assistance & Spare parts
GeoTech-Pro HRM 80 - Tractor mower arm
+30 sold
Independent Oil Tank
Yes
Tractor power
From 25 to 60 HP
Double spiral rotor
Cutting width
80 cm
Standard cutting tools
Knives
Remote control
Cardan shaft
Yes
Product Features
Model:
HRM 80
Tractor power:
From 25 to 60 HP
Double spiral rotor:
Operating mode:
Tractor-driven PTO
Independent Oil Tank :
Yes
Remote control:
Manufacturing country:
China
Cutting data
Cutting width:
80 cm
Standard cutting tools:
Knives
Free gifts/extra features
Cardan shaft:
Yes
Instructions manual:
Yes
Dimensions and logistics

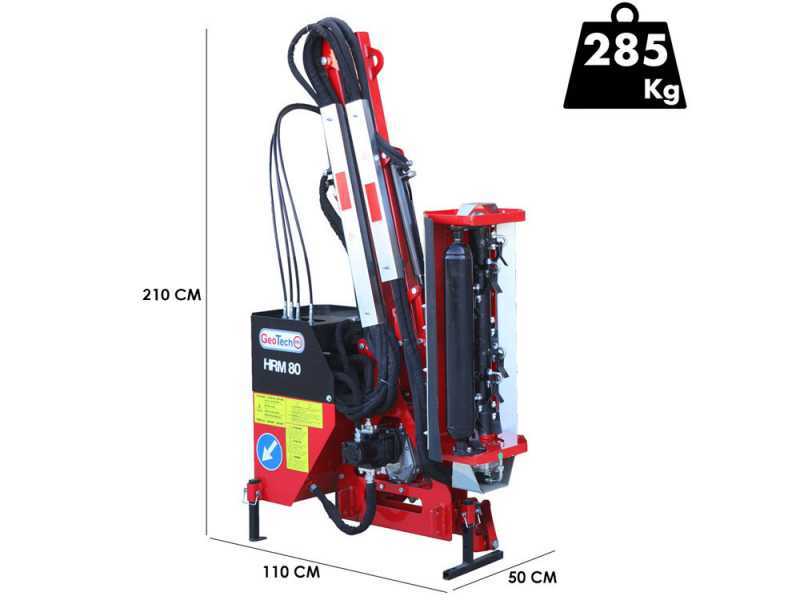

Product dimensions in cm (L x W x H):
110x50x210 cm
Net weight:
285 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
117x54,5x212 cm
Gross weight (packaging included) :
305 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
Assembled
Arriving on 14/01/25
Free Shipping
Estimated delivery: 23/01/2025 - 29/01/2025
€ 4.403,25
Vat included
You're viewing:
Customers also viewed:
Description

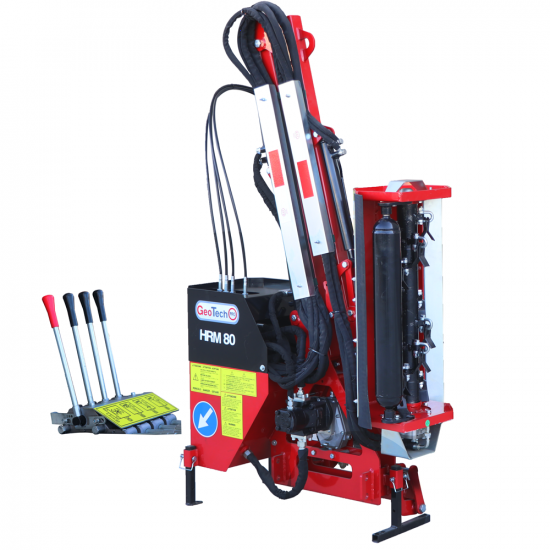

GeoTech-Pro HRM 80 brushcutter arm

The GeoTech-Pro HRM 80 brush cutter arm is a highly recommended tool for handling various types of vegetation, including grass, plant residues, bushes and pruning:

  • Versatile uses: Suitable for the removal of overgrowth in various areas, such as traffic islands, roadside verges and service roads. In addition, this tool proves extremely useful in the cleaning and maintenance of grounds in the vicinity of private homes, public parks and recreational areas, ensuring maximum efficiency and safety at all times.

  • Reliability and Quality: The brush cutter arm is distinguished by its reliability and build quality. It is made up of high-end components, carefully designed in Italy, ensuring optimum durability and performance.

  • Remote Control with 4 Levers and Flexible Hoses: The arm is equipped with a remote control system with four levers, allowing precise and intuitive control during cutting. The included hoses allow the control panel to be positioned directly on the tractor.
  • Hydrocontrol hydraulic distributor: The hydraulic system of the brush cutter is supplied by Hydrocontrol, a renowned Italian brand. This hydraulic distributor is synonymous with excellent quality, ensuring precise and reliable control in clearing operations.

  • Casappa Double Hydraulic Pump: The brush cutter arm is equipped with a double hydraulic pump, manufactured by Casappa. This double pump is known for its efficiency and robustness, facilitating the simultaneous handling of the boom movement and the chopping process, thus greatly improving work efficiency.

  • Casappa mulcher hydraulic motor: For chopping, a hydraulic motor, also supplied by Casappa, is used. The choice of this component further underlines the commitment to quality and reliability of the equipment, ensuring a high level of performance.

  • Versatility of Functions: When used out of shape and inclined, it is ideal for cleaning road edges and embankments. Finally, its use in a horizontal position makes it suitable for inter-row work in specific agricultural contexts.

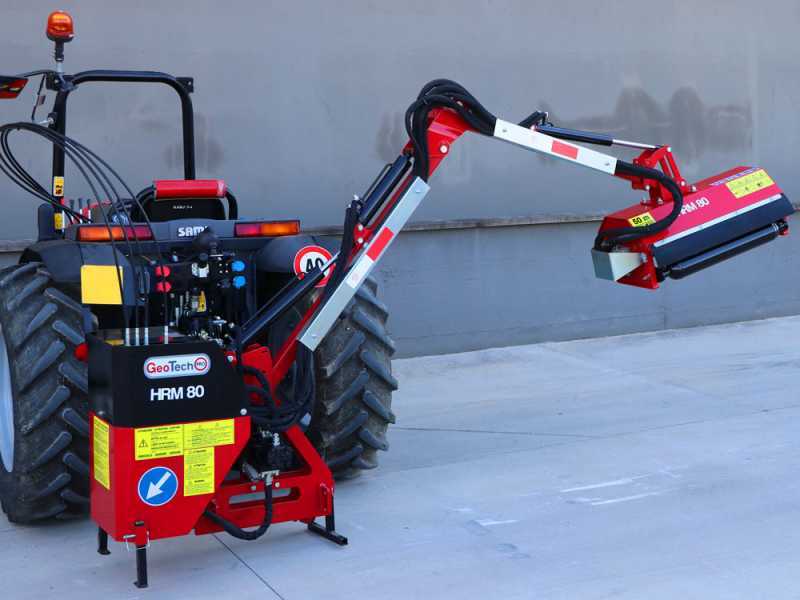

Brushcutter arm

The arm of this brush cutter is designed with a maximum length of 270 cm, which makes it easy to reach hard-to-reach areas. Its adjustable extension allows the operator to adapt the length of the arm to the specific needs of the job.

In addition, the arm can be tilted up to a maximum angle of 123°, allowing the cutting head to be swivelled in various directions to tackle dense vegetation and obstacles efficiently. This versatility allows you to cut grass, shrubs and vegetation even in hard-to-reach places.

Movement 1

Movement 2

Movement 3

Photo diagram

A 270 cm

B 350 cm

C 320 cm

a 176°

b 116°.

y 123°.

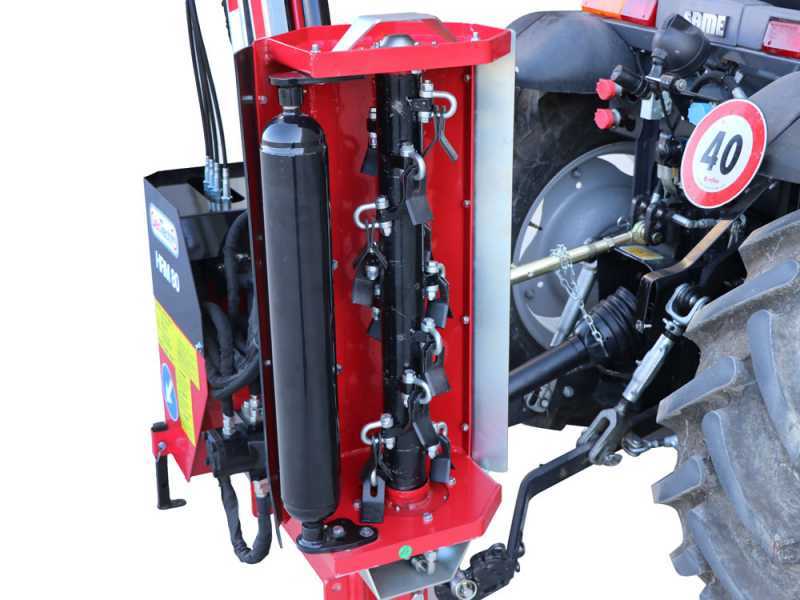

Set-up with Y knives and roller

The brush cutter arm is equipped with a Y-knife rotor, this feature allows the machine to have a cleaner and more uniform cut, reducing the risk of bogging even in dense vegetation conditions. The machine guarantees a cutting width of 80 cm.

The number of knife pairs is 16 with a total of 32 knives.

Support roller

Detail of the mechanism for adjusting the cutting height up to 3 levels

The head can be rotated up to 176° for greater versatility.

Detail of the hydraulic motor of the mulcher.

Movement 1

Movement 2

Movement 3

Other features

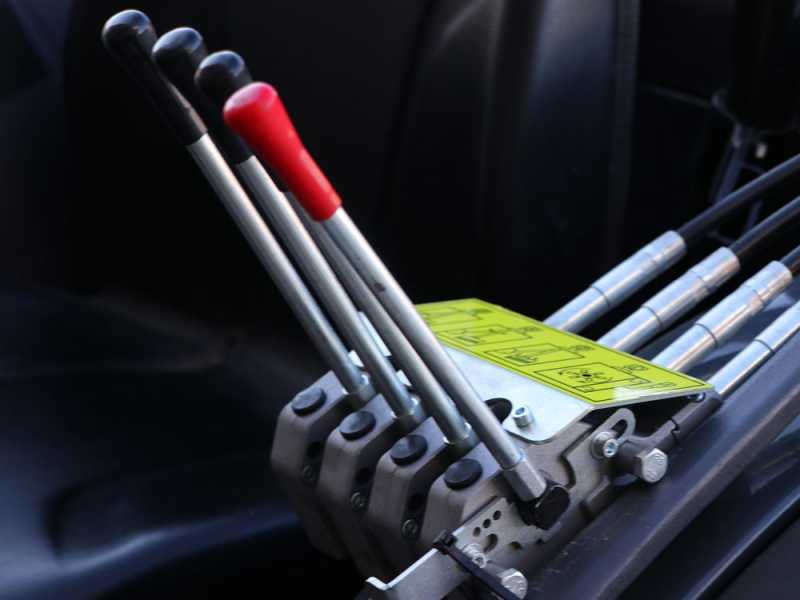

Control unit remote 4 levers

Oil tank with capacity: 55 L

Hydraulic distributor: Hydrocontrol (Made in Italy)

Double hydraulic pump: Casappa (Made in Italy) that allows you to move the arm and shred at the same time.

Safety hooks

Adjustable feet for stable ground support of the machine at rest

Hardened and ground hardened steel pins and bushings, lubricated with greaser

Free items & Standard equipment

Equipment

The product is delivered in its original cage with Cardan shaft.
