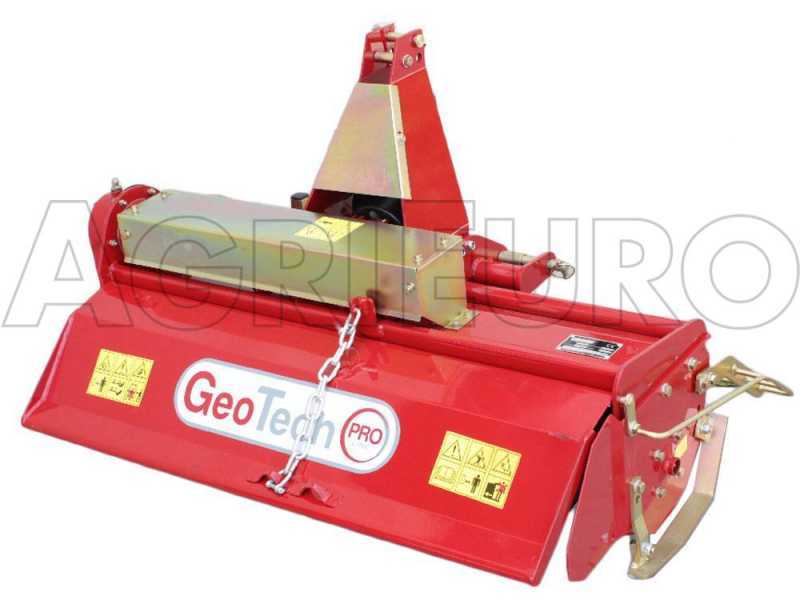

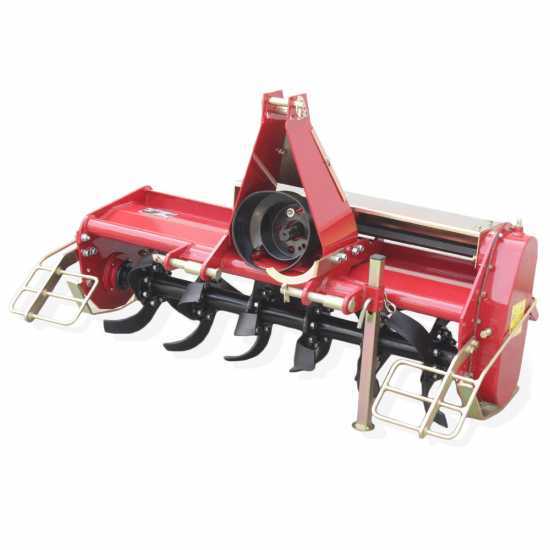

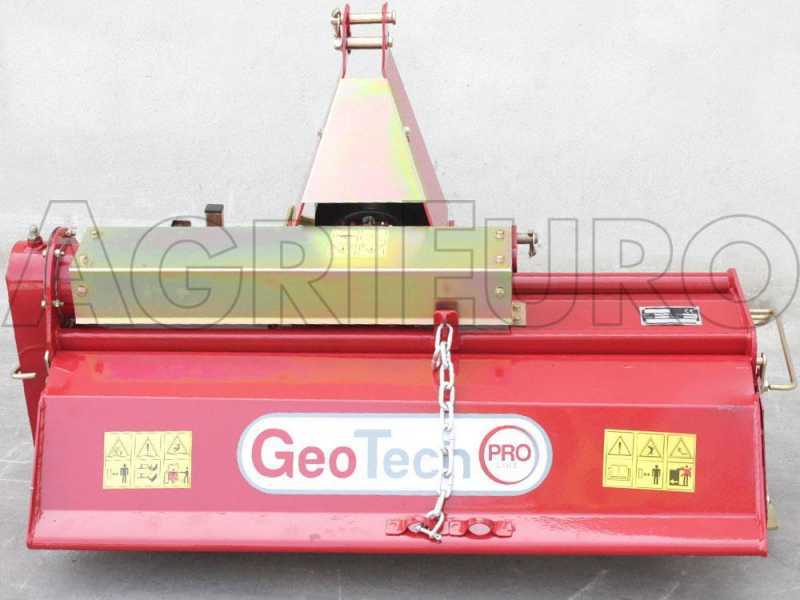

GeoTech Pro LRT-135 Tractor rotary tiller

LIGHT series

Useful working width: 130 cm. Suitable for tractors from 20-30 HP

The GeoTech Pro LRT series rotary tiller is a light with manual side shift designed for working with medium and small tractors.

for hobby use
for medium and small surfaces
for light use and soils enough free of stones.

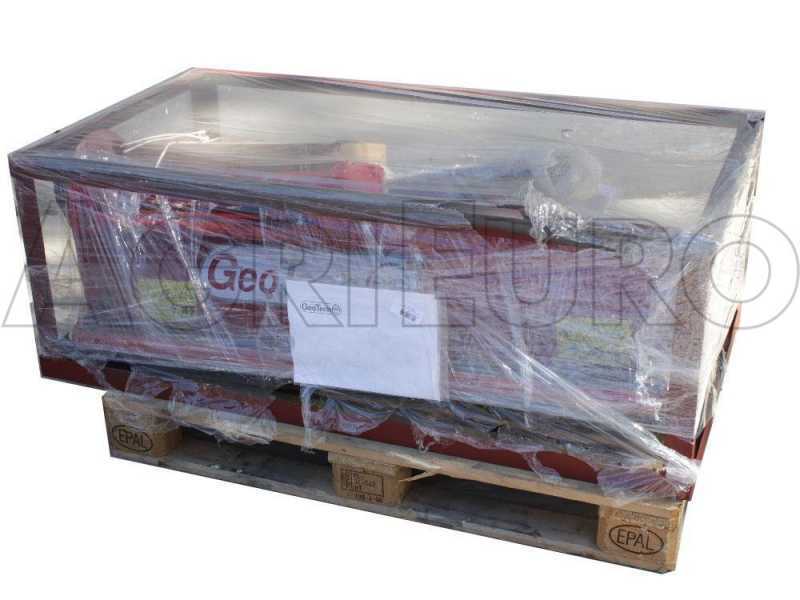

Attention: this machine is shipped ready for use. After the assembly, check for bolts tightening.
Before using this product, please carefully read the instructions manual.

Assembly all these units parts and check the boolts are correctly tightened.

Please carefully read the instructions manual before using.

GeoTech Pro LRT-135 - Light Series Tractor Rotary Tiller - Manual Displacement

Technical features

Rotary tiller's features:

Outer dimension: 155 cm
Real working width: 130 cm
Weight: 152 kg
Indicated demand: 25-30 HP
Working height: 18–20 cm
Hoes for flange: 4
Number of hoes: 28
Hoes supports: 7

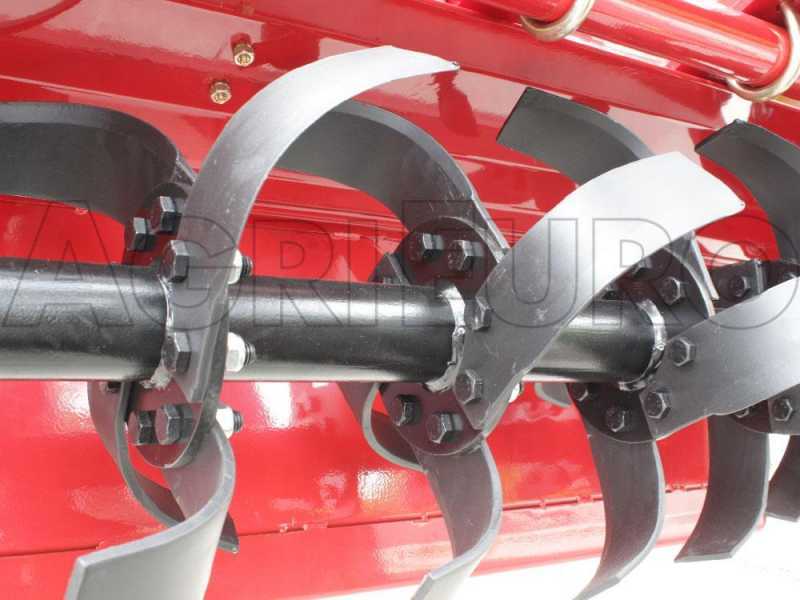

Hoes

Steel hoes:

7 blades attachments
4 hoes each attachment (28 in total)

Focus on the side support of the rotor's fixing by the inside.

Focus on the outer rotor's anchoring, with greaser hole in the middle.

ATTENTION:

All rotovators have to work on "clean soil", that is to say without stones and rocks of a size that could damage not only the hoes but in the worst case even the rotor, frame or several transmission components (ball bearings, oil retainers, etc.).

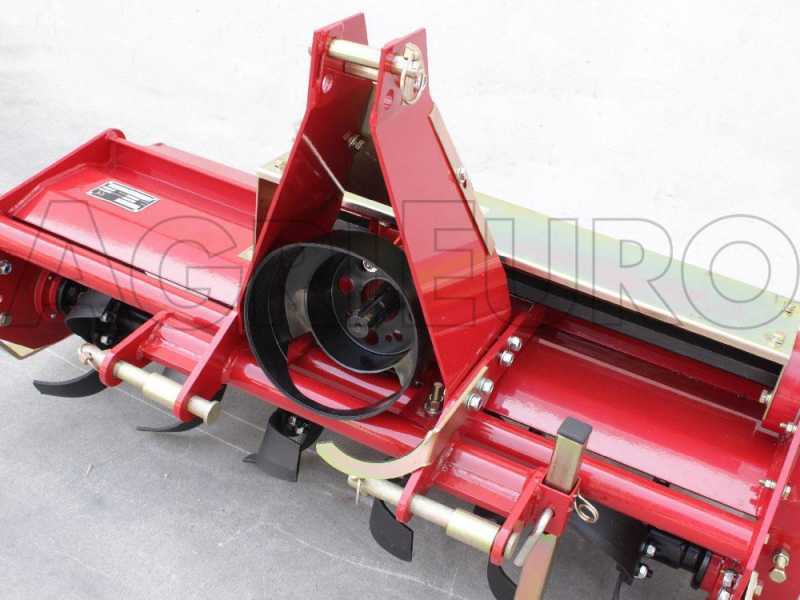

Hydraulic side shift and 3 points hitch

Equipped with manual side shift.

It is possible to move the 3 point hitch along the shift bar by loosing the locking bolts. It will slide along the full rotary tiller's length.

Some positioning examples:

Position 1
Position 2
Position 3

Focus on thesetting holes.

Universal type PTO ( 1 3/8" Z6 )

Connections areuniversal type for all tractors on market.

Transmission and other features

Height adjustable side skids

Movable rear hood with levelling action on the hoed ground

Adjustable hood by means of proper chain

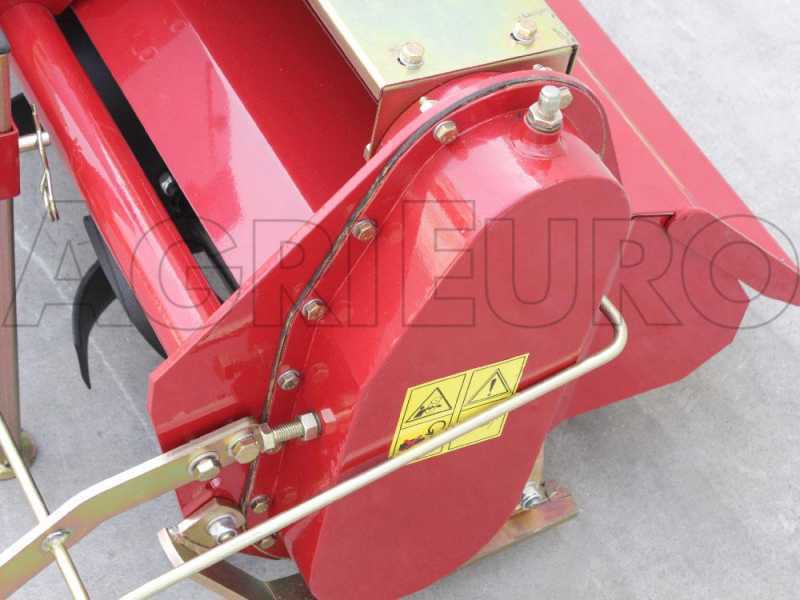

Sturdy oil bath big chain side transmission

Cast iron oil bath sturdy gear box

Universal standard power take-off ( 1 3/8" Z6 )

Universal lifter linkage pins (with two section’s diameter each, adaptable to any tractor on market)

Cardan provided on standard equipment is equipped with safety bolt.

The torque limiter shear bolt is designed to protect the machine from damages due to mechanical overload caused by unforecasted or excessively high torque. This means if the torque force is higher than the one the bolt can bear, the bolt snaps off. To reactivate transmission, the shear bolt shall be replaced with a new one having the same features.

WARNING!

The machine is shipped with the oil already at the correct level.

The gearbox of this machine cannot contain more than 0.5 L of oil.

The unit with the oil-bath chain cannot contain more than 2L of oil.

Please carefully read the instruction manual before using.
