GeoTech-Pro MFM-175 - Tractor mower - Medium series

Questions & Answers (4)
ID: 100137

EAN: 8054141549111

MPN: 100137

8,9/10
After-sales assistance & Spare parts
GeoTech-Pro MFM-175 - Tractor mower - Medium series
Special offer
+200 sold
Tractor power
From 40 to 45 HP
Sturdiness/Series
Medium
Weight
293 Kg
Cutting width
175 cm
Standard cutting tools
Hammer flails
Hammer flail weight
0.8 Kg
Cardan shaft
Yes
Fixed hitch
Double spiral rotor
Product Features
Model:
MFM 175
Mulcher type:
Standard rear mulcher
Tractor power:
From 40 to 45 HP
Sturdiness/Series:
Medium
Shift:
Fixed hitch
Fixed hitch:
Double spiral rotor:
Operating mode:
3-point hitch category:
First
Cardan shaft rotation:
Standard
Manufacturing country:
China
Transmission data
Integrated free wheel device:
Yes
Side drive belts:
3
Cutting data
Cutting width:
175 cm
Wood diameter:
Up to 35 mm
No. of blades:
28
Standard cutting tools:
Hammer flails
Hammer flail weight:
0.8 Kg
Blades bolt diameter:
16 mm
Hammer width:
9 cm
Max. cutting height:
90 mm
Min. cutting height:
20 mm
Cutting width:
175 cm
Equipment
Counter-blade:
Single row
Rear support roller:
Yes
Free gifts/extra features
Side skids:
Yes
Cardan included:
Yes
Cardan shaft:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
190x80x88 cm
Net weight:
293 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
192x85x75 cm
Gross weight (packaging included) :
304 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
15 minutes
Prompt Delivery
63 items in stock
Free Shipping
Estimated delivery: 30/04/2025 - 05/05/2025
Lowest price:
€ 1.806,00
-5 %
€ 1.715,70
Vat included
You're viewing:
Customers also viewed:
Description

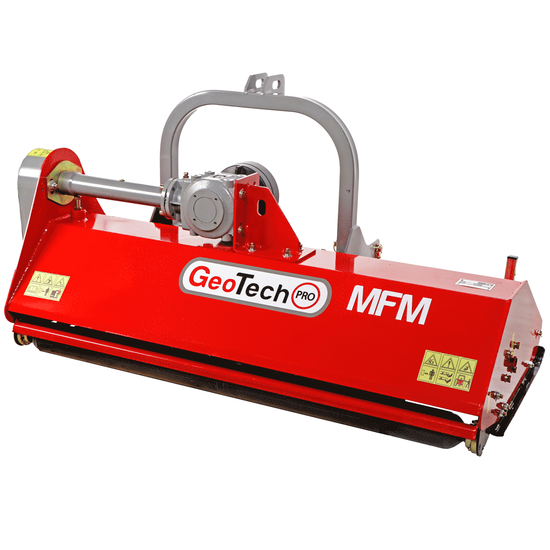

MFM 175 GeoTech tractor flail mower

The GeoTech-Pro MFM 175 tractor mower is an agricultural equipment designed for shredding light prunings, grass and small shrubs. Due to its medium structure, it is ideal for hobby and semi-professional use. Its compact design and robust construction allow it to be used on a variety of terrains, ensuring high cutting efficiency.

This horizontal-axle tractor-mounted flail mower is equipped with a first-class 3-point hitch, compatible with most small and medium-sized tractors. The 3-belt drive ensures even power transfer and greater wear resistance. The adjustable rear roller allows the cutting height to be adjusted, improving chopping quality and reducing blade wear.

The effective working width of 172 cm allows a large area to be covered in a single pass, increasing productivity. With an overall width of 190 cm, the flail mower maintains a compact design while providing good operational stability. The 293 kg weight ensures solidity and resistance even on uneven ground.

Main features:

  • Medium structure : suitable for hobby and semi-professional work, perfect for prunings, grass and small shrubs.
  • First-class three-point hitch, compatible with most small and medium-sized tractors.
  • 3-belt drive: ensures wear resistance and even power distribution.
  • Adjustable rear roller : improves cutting uniformity and protects the blades.
  • Working width of 172 cm: allows efficient coverage of the ground in every pass.

Hammer and rotor cutting tools

No. of hammers fitted on standard equipment: 28

These hammers are mounted on a sturdy 16 mm diameter hardened steel bolt. (90mm length)

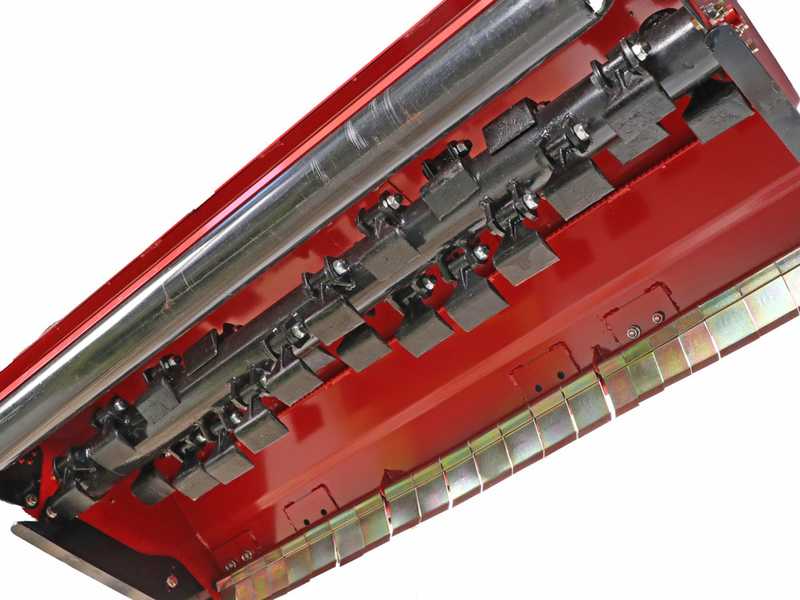

Close-up of the cutting clubs, mounted on the rotor. Thanks to the latter, a good cut is achieved on gardens, lawns and urban areas.

It finely shreds grass and twigs, while simultaneously rolling the turf. Thanks to the high number of rotor revolutions and the number of hammers (hammer flails), it allows reducing the wave impact of the grass cover and performing excellent shredding operations.

Side support with internal rotor attachment bearing to hammers.

Focus on the double row of under frame counter-hammers.

Detail of the external rotor anchor with central cavity with grease nozzle.

Figurative image of the double-spiral rotor.

Side belt transmission and gearbox

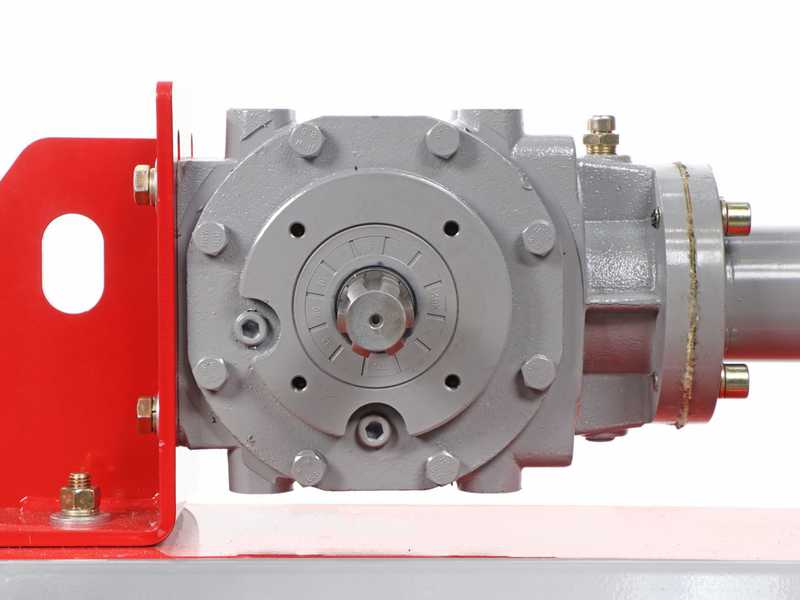

Gearbox in oil bath.. The housing is made of cast iron, while the internal gears are made of hardened steel. Equipped with lubricated extension.

This machine is equipped with a freewheel device (or additional joint) built in the gearbox; this ensures a long service life of all the moving parts of the machine, preventing the kickback that would be caused by changing from 540 rpm to 0 rpm and allowing the rotor to turn freely until it stops.

3-belt side transmission (most tractor-mounted mowers in this weight category are equipped with normal 2-belt transmission).

Detail of side belt guard.

Focus on the side grease nipple on the transmission side, laced in a convenient position, accessible through the proper opening.


The gearbox of this machine can contain no more than 1L of lubricating oil.

Please carefully read the instructions manual before starting the unit.

Standard 1 3/8” z6 PTO (suitable for all current and recently manufactured tractors): whether you own a particularly old tractor, make sure that it s equipped with the same PTO and with standard clockwise rotation (right-side).

Other features

Height-adjustable rear supporting roller provided on standard equipment.

Focus on the roller fastening bearing.

Focus on the roller support provided with holes for adjusting its height. It is height-adjustable in 6 different positions.Standard

side support skids, also adjustable in 4 different positions.

Support stand for storage.

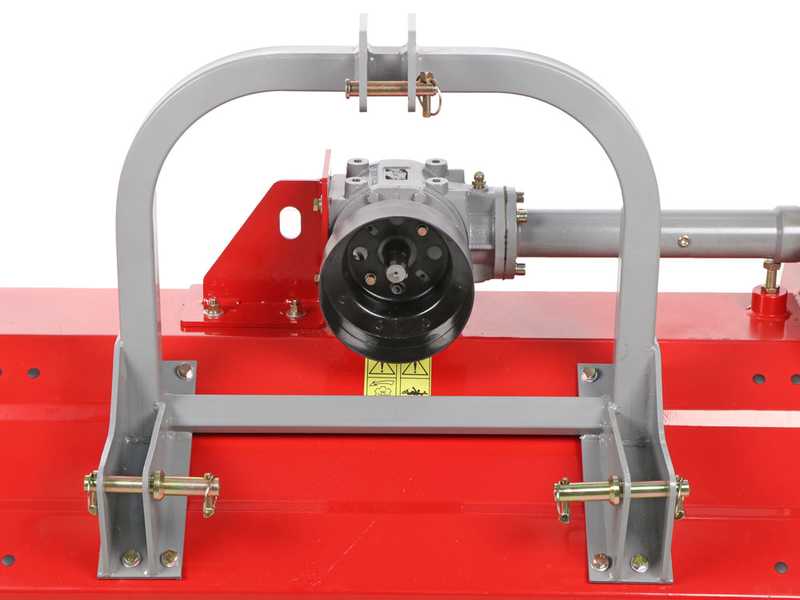

3-point hitch: first category.

Free items & Standard equipment

Free gifts & Standard equipment

The flail mower is shipped partially assembled on pallet (you’ll only have to assemble the 3-point hitch and a few other small components)

Cardan shaft included in the package.

Instruction and assembly booklet.
