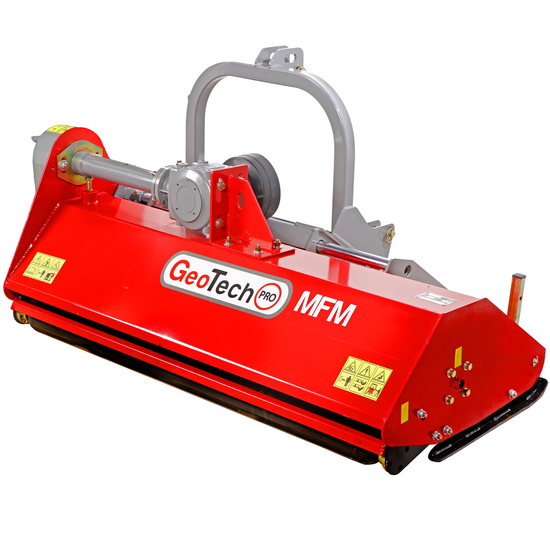

GeoTech Pro MFM145-H - Tractor-mounted Flail Mower - Medium Series - Hydraulic Shift

The GeoTech-Pro MFM 145-H tractor-mounted flail mower is a medium-strength farm equipment designed for the maintenance of lawns, orchards, forests and fallow land. Its use is ideal for shredding grass, light prunings and small shrubs, ensuring an even cut and perfect management of plant residue.

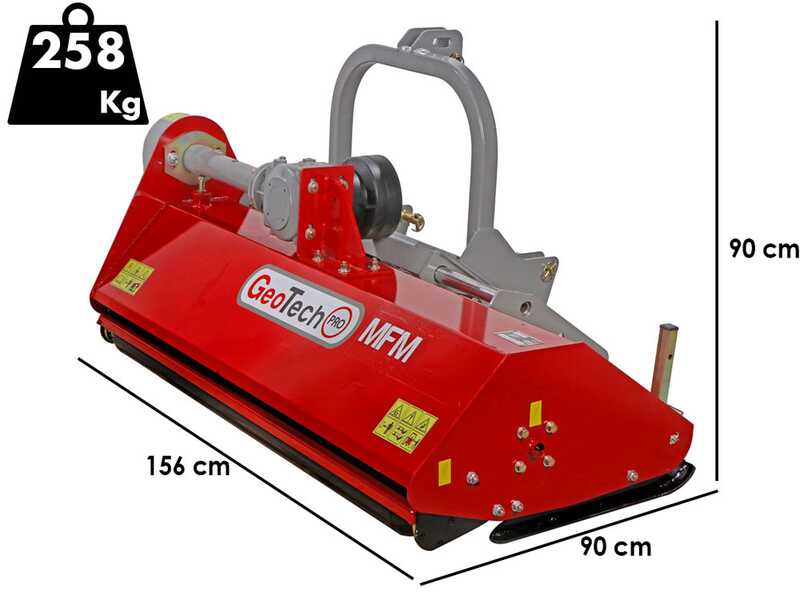

This tractor-mounted mower is equipped with hydraulic side-shift, which allows the position of the implement to be adjusted relative to the tractor's roadway, facilitating operations near obstacles such as trees and fences. The effective working width is 142 cm, while the overall structure, including side slides, has a total width of 156 cm.

The transmission is by a 3-belt system, which provides excellent strength and reduces the risk of slippage. The adjustable rear roller allows the cutting height to be adjusted according to the type of soil and vegetation to be treated. The weight of the machine, which is 258 kg, ensures stability and robustness during use.

First-class three-point hitch, compatible with tractors of different power ratings.

Main features:

• Working width of 142 cm, suitable for medium terrain.
• Hydraulic side shift, for greater flexibility of use.
• 3-belt drive for excellent power transmission.
• Adjustable rear roller, for smooth and precise cutting.
• First-class three-point hitch, Compatible with medium power tractors.

Warning: the machine is shipped ready for use Once mounted all the parts check the bolts tightening.
Please carefully read the instructions manual before starting the unit.

The flail mower is equipped with hydraulic shift.

The 3-point hitch slides on a sturdy tube that runs the full width of the flail mower.

Focus on the piston that controls the hydraulic shift of this flail mower.

Universal standard PTO ( 1 3/8" Z6 )

Universal joints suitable for all tractors on the market.

Focus on the sturdy 1° category 3-point hitch.

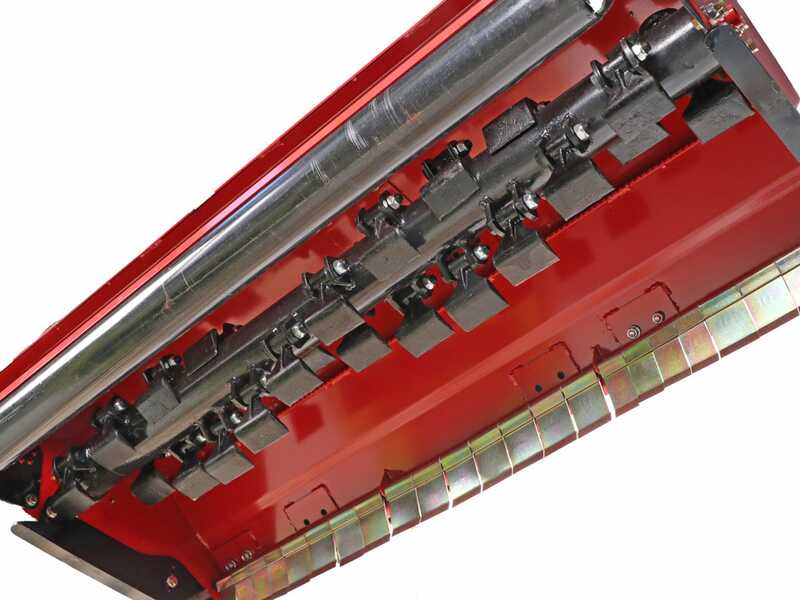

No. of hammers fitted on standard equipment: 22

These hammers are mounted on a sturdy 16 mm diameter hardened steel bolt. (90mm length)

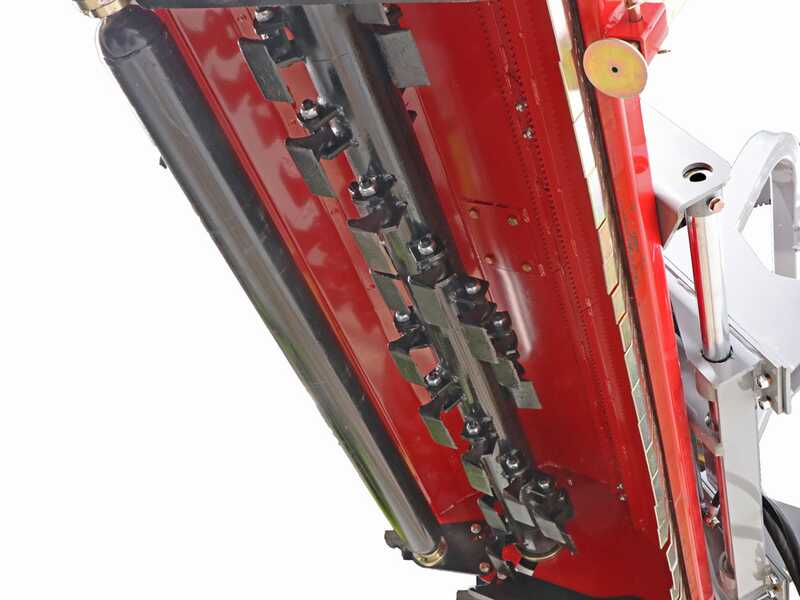

Close-up of the cutting clubs, mounted on the rotor. Thanks to the latter, a good cut is achieved on gardens, lawns and urban areas.

It finely shreds grass and twigs, while simultaneously rolling the turf. Thanks to the high number of rotor revolutions and the number of hammers (hammer flails), it allows reducing the wave impact of the grass cover and performing excellent shredding operations.

Side support with internal rotor attachment bearing to hammers.

Focus on the double row of under frame counter-hammers.

Detail of the external rotor anchor with central cavity with grease nozzle.

Figurative image of the double-spiral rotor.

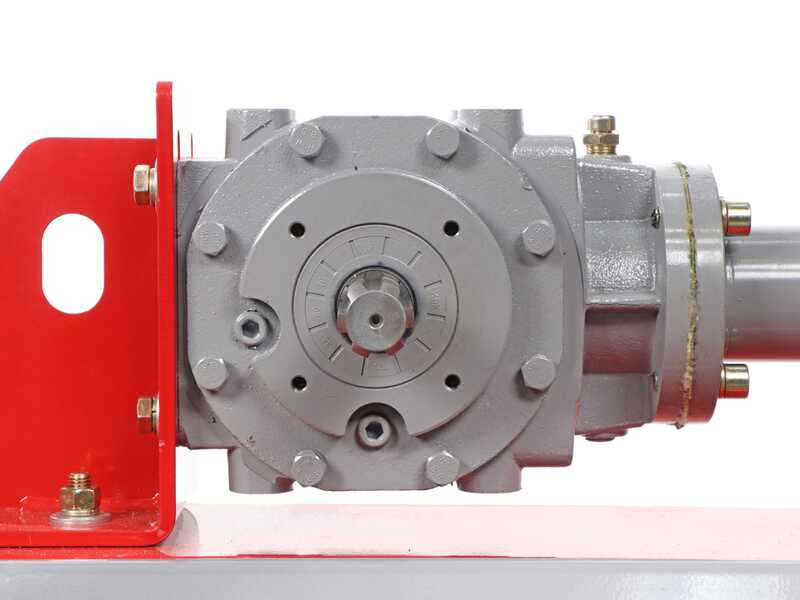

Gearbox in oil bath.. The housing is made of cast iron, while the internal gears are made of hardened steel. Equipped with lubricated extension.

This machine is equipped with a freewheel device (or additional joint) built in the gearbox; this ensures a long service life of all the moving parts of the machine, preventing the kickback that would be caused by changing from 540 rpm to 0 rpm and allowing the rotor to turn freely until it stops.

3-belt side transmission (most tractor-mounted mowers in this weight category are equipped with normal 2-belt transmission).

Detail of side belt guard.

Focus on the side grease nipple on the transmission side, laced in a convenient position, accessible through the proper opening.

The gearbox of this machine can contain no more than 1L of lubricating oil.

Please carefully read the instructions manual before starting the unit.

Standard 1 3/8” z6 PTO (suitable for all current and recently manufactured tractors): whether you own a particularly old tractor, make sure that it s equipped with the same PTO and with standard clockwise rotation (right-side).

Height-adjustable rear supporting roller provided on standard equipment.

Focus on the roller fastening bearing.

Focus on the roller support provided with holes for adjusting its height. It is height-adjustable in 6 different positions.Standard

side support skids, also adjustable in 4 different positions.

Support stand for storage.
