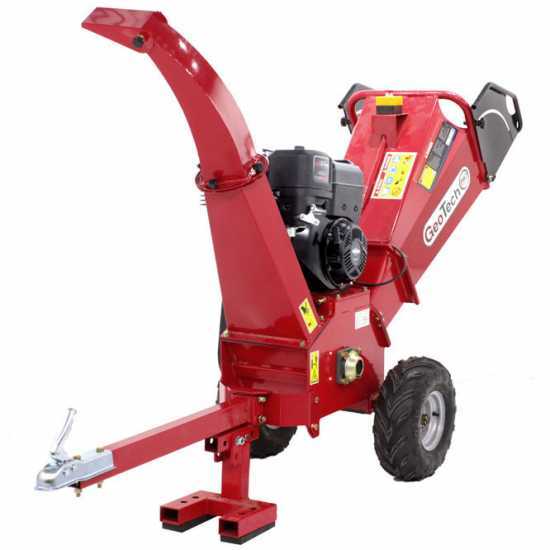

GeoTech-Pro PCS 155 BSE - Professional petrol garden shredder - B&S engine - Electric start

Questions & Answers (13)
ID: K500424

EAN: 9993089412004

MPN: 500424

8,9/10
After-sales assistance & Spare parts
GeoTech-Pro PCS 155 BSE - Professional petrol garden shredder - B&S engine - Electric start
+1000 sold
FREE
Two spare blades for freeTwo spare blades for free
Pair of transmission belts included for freePair of transmission belts included for free
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Motor type
4-stroke
Motor brand
Briggs&Stratton
Motor Model
XR2100
Cubic capacity
420 cm³
Nominal power
15.5 HP
Cutting Rotor Type
Heavy roller
No. of blades
2
Max. Branch Diameter
90 mm
Wood Chip size
4 - 5 cm
N° of hoppers
1
Safety button
Yes
Upper discharge system
Discharge chute rotation
Manual
Electric start
Yes
Transmission type
Belt
Battery type
Lead
Tow hook
Yes
Weight
185 Kg
Product Features
Model:
PCS 155 BSE
Operating mode:
Spark ignition
Hydraulic self-dragging:
No
Discharge chute:
High - rotating
N° of hoppers :
1
Hopper opening size (height):
43 cm
Hopper opening size (width):
49 cm
Self-propelling:
Towed
Electric start:
Yes
Safety button:
Yes
Tow hook:
Yes
Manufacturing country:
China
Motor data
Motor brand:
Briggs & Stratton
Motor Model:
XR2100
Motor type:
4-stroke
Battery type:
Lead
Cubic capacity:
420 cm³
No. of cylinders:
1
Nominal power:
15.5 HP
Rated power (HP):
13.5 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Manufacturing country:
USA
Transmission data
Transmission type:
Belt
Cutting data
Body material:
Hardened steel
Max. Branch Diameter:
90 mm
Cutting Rotor Type:
Heavy roller
No. of blades:
2
Blade movement:
Rotating
Counter blades:
1
Wood Chip size:
4 - 5 cm
Equipment
Battery for electric start:
Yes
Discharge chute rotation:
Manual
Electric start with key :
Yes
Recoil start system (with rope):
Yes
Front handle:
Yes
Rear wheels size:
16 x 8-7
Start safety sensor:
Yes
Free gifts/extra features
Engine oil bottle for free:
2
Spark plug wrench:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
265x80x150 cm
Net weight:
185 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
89x75x123 cm
Gross weight (packaging included) :
205 Kg
Assembly time:
60 minutes
Prompt Delivery
17 items in stock
Free Shipping
Estimated delivery: 02/01/2025 - 07/01/2025
€ 1.738,64
Vat included
You're viewing:
Customers also viewed:
Description

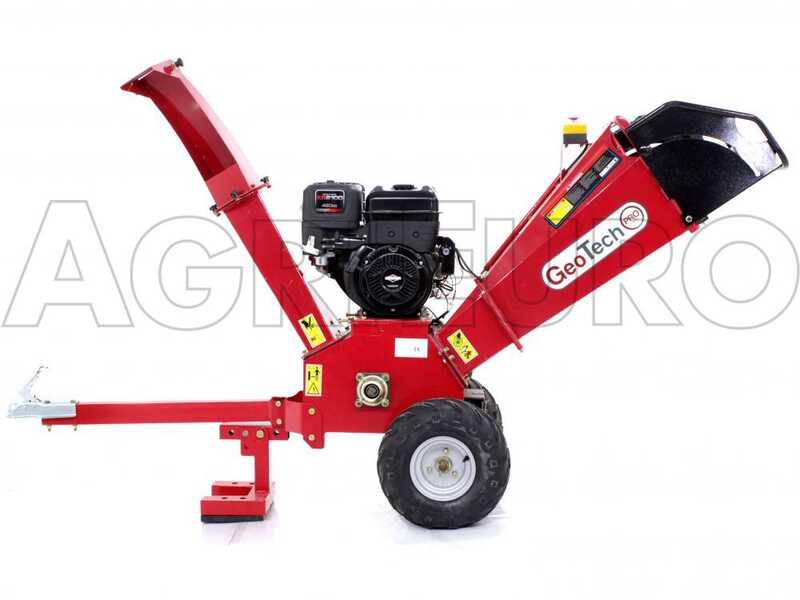

GeoTech PCS 155 BSE garden shredder

GeoTech Pro PCS 155 BSE overview:

PCS: Professional Chipper Shredder, heavy-duty wood chipper

155: engine nominal power (rated power, lower)

BSE: Briggs & Stratton Electric, stands for the engine brand and electric start.

The GeoTech Pro PCS 155 BSE garden

shredder is specifically designed for shredding medium and large-sized branches and small logs, reducing their volume up to 5/6 times. Ideal for forestry and public green maintenance companies that need to quickly remove and grind biodegradable waste from the soil. It is provided with a towing hook, which allows the transport by any means. It is also equipped with the modern electrical safety devices which meet the CE standards.

Major strengths of this machine:

  • Sturdiness thanks to the system with steel rotor.
  • Cutting diameter (easily reaches 90 mm on green wood, not dry, compared to the 80 mm max. cutting diameter reached by petrol garden shredders);
  • Exceptional working capacity, it can carry out intense and demanding operations even when constantly grinding large diameter wood.
  • High hourly output, over the standard petrol wood chippers consisting of rotor with blades and hammers (it can reach 4/6 mc/h).

Limitations: The final size of the shredded wood is larger than average due to the lack of centrifugal hammers. The shredder produces fragments of approximately 4-5 cm and is not suitable for shredding leaves or other small green material. These shredders are specifically for chipping medium to large diameter branches (depending on the maximum cutting diameter indicated on each model), not suitable for leaves and small green material, and not very suitable for small diameter branches.

It can also be used for shredding palm trees.

PRODUCT NOT HOMOLOGATED FOR ROAD USE.


Warning: Like all wood chippers and garden shredders, it is not suited for shredding grass, leaves, pine needles, etc. (it is intended to shred branches, but it can also grind leaves, needles and others)

Garden shredders intended use:
- The wood chipper must grind only green branches and not dried ones (which would limit its shredding capacity and lead to quick deterioration of the blades);
- The branches must be preferably long, smooth and not knobby (otherwise the cutting diameter would be reduced);
- The branch cutting diameter indicated is the maximum, so it is advised not to shred larger branches. In this case, it would be better to purchase a shredder with a larger branch cutting diameter;
- The cutting diameter can vary according to the amounts of wood (e.g: oak, olive, plum and peach are hardwood and can reduce the cutting capacity of the wood chipper);

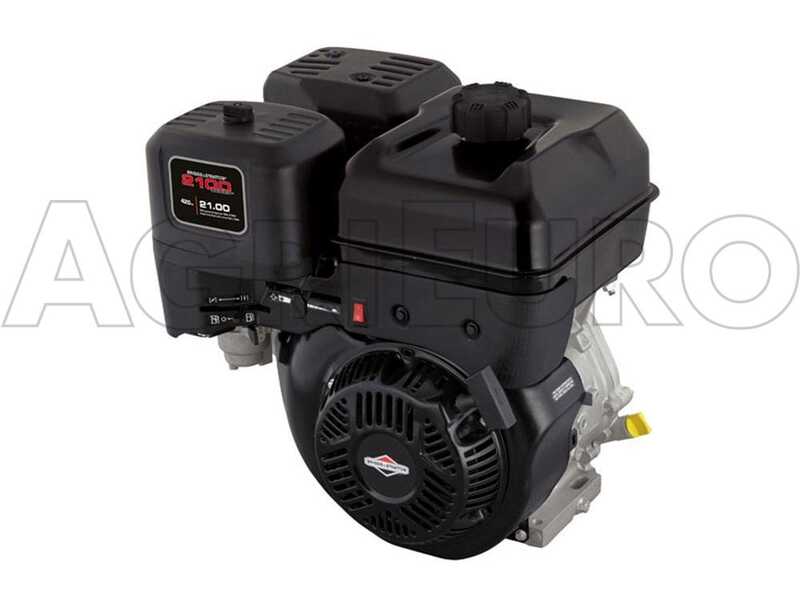

Briggs&Stratton XR2100 Series engine

Features:

Engine model and brand:
Briggs & Stratton XR2100 series
Engine type.
Single cylinder 4 stroke - OHV
Cylinder type
Aluminium
Displacement
420 cm³
Type of starter
electric with key

Thanks to the convenient electric start with key, starting the shredder has never been easier.

Focus on the battery compartment

Focus on the recoil starter.

This garden shredder, like all petrol shredders with roller rotor, must be strictly used at max. engine speed; the shredding rotor is large and must reach the max. speed to ensure high results by harnessing its centrifugal force.

WARNING: operating it at less than full speed can lead to several problems and the wood chipper won’t be able to shred large branches ensuring high quality performance.
- Slowdown or engine shut-down during use;
- quick worn of drive belts between motor and rotor;
- damage to the centrifugal clutch which does not fully expand if the engine is not at maximum speed, leading the engine to wear out and irreparably damaging it;


 ATTENTION!

The engine is PROVIDED WITHOUT OIL.
Please carefully read the instructions manual before starting the unit.

Nominal power: 15.5 Hp
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 13.5 Hp
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

The machine is provided with centrifugal clutch. It is important to let the engine running at high speed in order to ensure a proper functioning.

Belt drive

It is the only machine of its category with intermediate 2-belt drive transmission.

This feature gives high sturdiness to the unit, protecting both the engine and all the shredding system from every possible internal hit or kickback.

Higher durability over time compared to the standard system of all the manufacturers of petrol-powered machineries, as the transmission is directly connected to the shredding cutting system.

The transmission is also equipped with special centrifugal clutch.

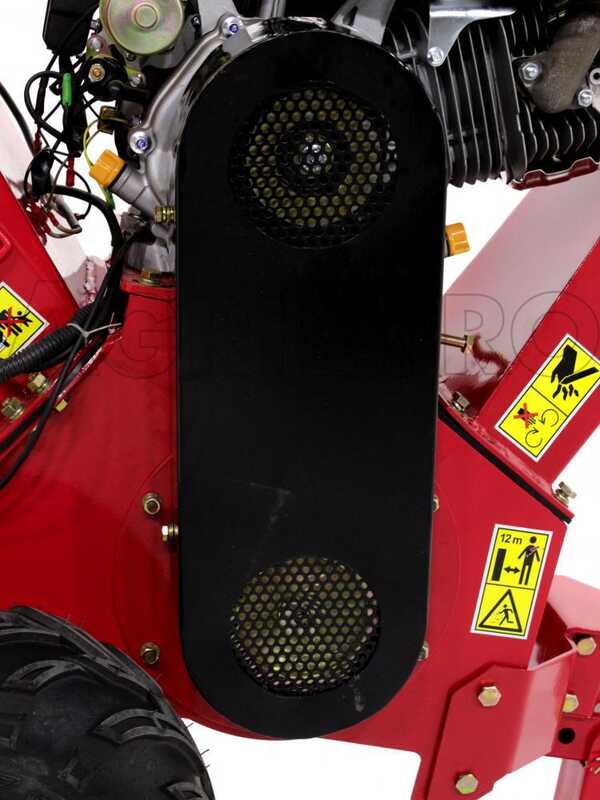

Focus on the protection cover with dual ventilation air intake.

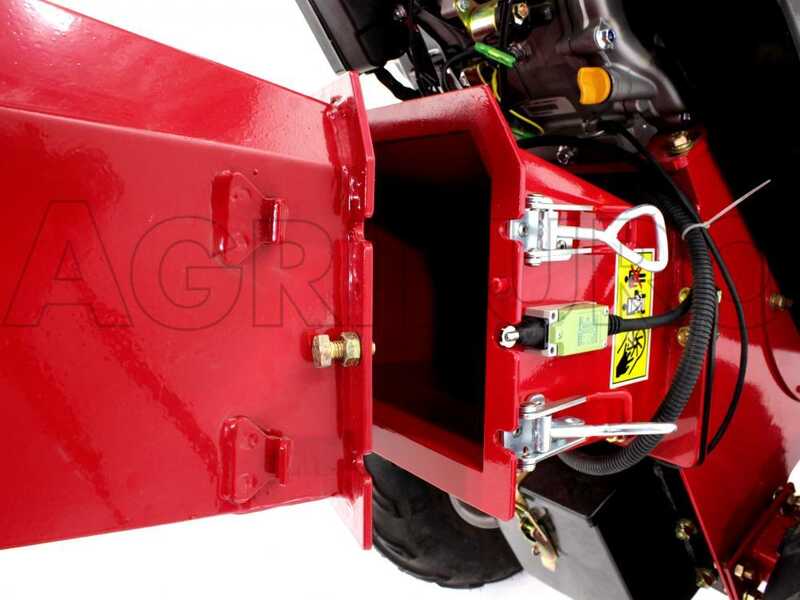

Unified hopper

UNIFIED: considerably simplifies and speeds up operations compared to shredders featuring two feeding hoppers.

SIZE: (Wx H) 49 x 43 cm * This value refers to the useful inlet size of the hopper

SELF-FEEDING: once introduced the branches into the hopper, the shredder draws them inside the shredding chamber autonomously.

HOPPER: the hopper can be opened by means 2 quick-release devices and hinges, allowing quick inspection, both in case of clogging and periodic maintenance as well as for checking the condition of the blades.

SAFETY SISTEMS: Hopper opening sensor. It prevents the machine operating if the hopper is opened.

SAFETY SISTEM: emergency button In case of danger it is possible to immediately stop the machine both for personal safety, and in case of clogging.

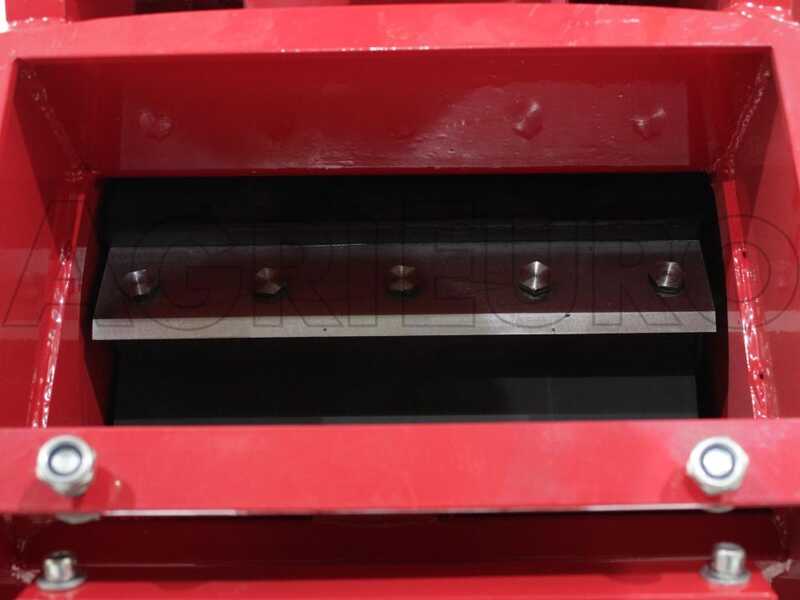

Shredding system with 2 blades and counter-blade

Large and highly-thick 2 shredding blades mounted on a steel spinning rotor.

The dual blade system also includes a counter-blade placed in the shredding chamber.

This ensures high-quality wood chips with a hourly output varying from 4 to 6 mc/h.

Inner blade-holder rotor with shaft made by balancing operation.

All roller shredders like this one allow high performance by entering leafless and cleaned branches (not thick and with too twigs);
they are ideal for quite large branches and not for many thin or green branches featuring many twigs; this is because the roller system is technically unsuitable for grinding small diameters branches, or green material in general, while they really give their best with larger branches.
This is due to their less "centrifugal" power compared to standard disc and blade models, and to the "greater distance between blade and counter-blade", designed for single branches that are already well cleaned but with a large diameter.

Main features

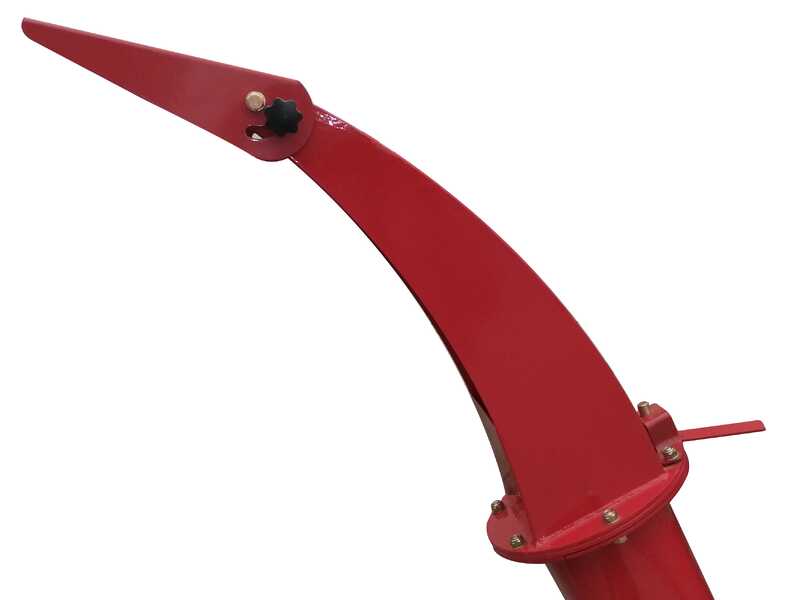

Adjustable discharge chute, 1.5 m from the ground, equipped with adjustable-tilting deflector.

It allows discharging the wood chips directly into a box.

Further to the deflector tilt, it is also possible to adjust the discharge chute: indeed it can rotate and simply adjusted either to right or left by manually loosening or tightening the proper knobs.

Focus on the tow hitch.

The front support stand is very large and provides stability to the machine. This allows distributing the weight over a greater surface area, thus preventing the garden shredder sinking into soft grounds.

Compared to the previous version, this new model of the GeoTech PCS155LE shredder has been equipped with a folding support stand to facilitate moving and minimise space requirements.

The wood chipper is also provided with large wheels that ensure easy transport.

Free items & Standard equipment

Free Items Included

Complimentary:

2 bottles of 10W40 oil, specific for 4-stroke engines

Free items included

Free items:

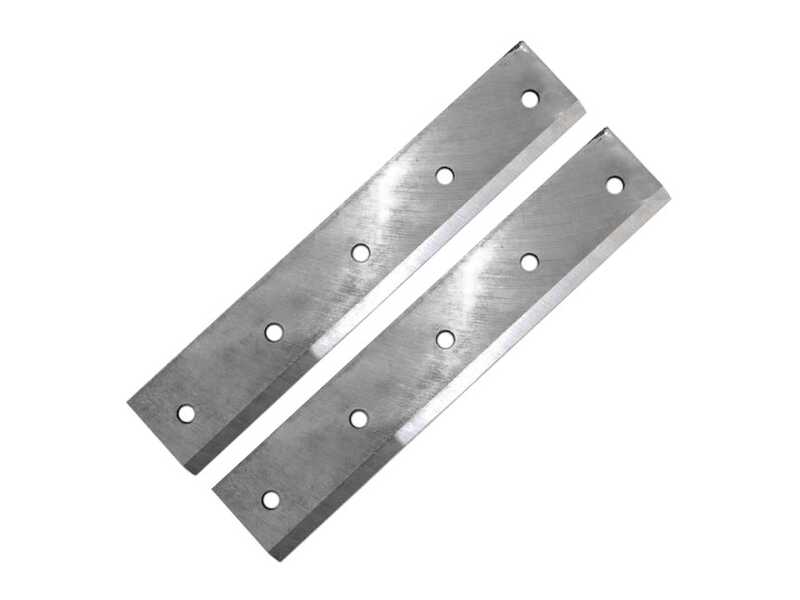

  • Pair of spare blades
  • Pair of drive belts

Standard equipment

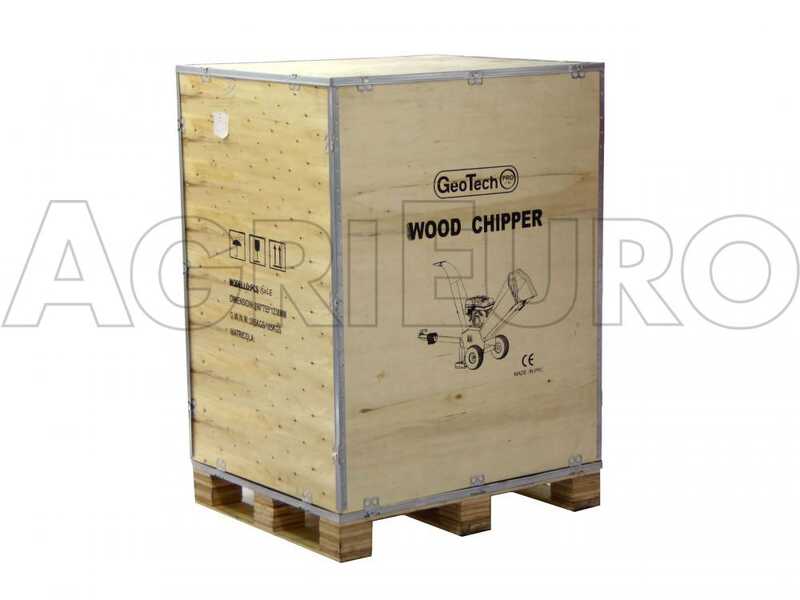

The wood chipper is shipped in its original wooden packaging on pallet

Operation and maintenance instructions manual
