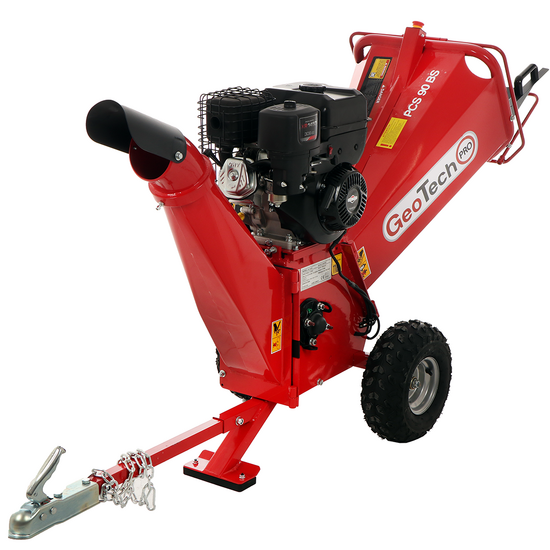

GeoTech PRO PCS 90 BS - Professional petrol garden shredder - Brigss&Stratton engine

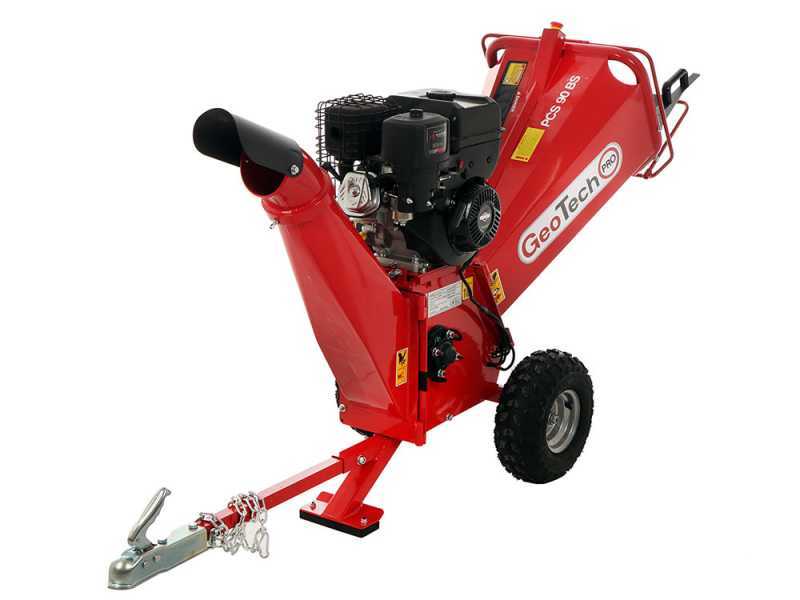

Heavy-duty GeoTech PRO PCS 90 BS petrol garden shredder:

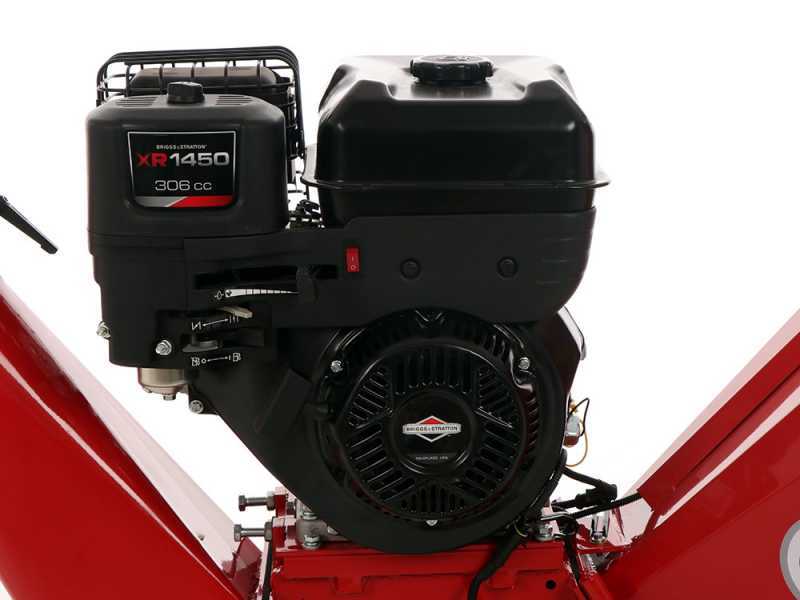

This machine is equipped with a 12 Hp B&S XR1450 engine, 306 cc, which guarantees power and reliability.

Professional machine with a great price/quality ratio.

The steel roller features a 350 mm diameter.

Major strengths of this machine:

• Sturdiness thanks to the system with steel rotor.
• Exceptional working capacity, it can carry out intense and demanding operations even when constantly grinding large diameter wood.
• High hourly output, over the standard petrol wood chippers consisting of rotor with blades and hammers.

Shredder is specifically designed for shredding medium and large-sized branches and small logs, reducing their volume up to 5/6 times. Ideal for forestry and public green maintenance companies that need to quickly remove and grind biodegradable waste from the soil. It is provided with a towing hook, which allows the transport by any means. It is also equipped with the modern electrical safety devices which meet the CE standards.

Warning: Like all wood chippers and garden shredders, it is not suited for shredding grass, leaves, pine needles, etc. (it is intended to shred branches, but it can also grind leaves, needles and others)

Garden shredders intended use:
- The wood chipper must grind only green branches and not dried ones (which would limit its shredding capacity and lead to quick deterioration of the blades);
- The branches must be preferably long, smooth and not knobby (otherwise the cutting diameter would be reduced);
- The branch cutting diameter indicated is the maximum, so it is advised not to shred larger branches. In this case it would be better to purchase a shredder with a larger branch cutting diameter;
- The cutting diameter can vary according to the amounts of wood (e.g: oak, olive, plum and peach are hardwood and can reduce the cutting capacity of the wood chipper);

Latest generation engine with OHV overhead valve technology.

The magnetron electronic ignition system ensures an easy, maintenance-free start.

Lo-Tone muffler, ensuring low noise during use.

Features:

WARNING

The engine is provided without oil.

Please carefully read the instructions manual before starting the unit.

Nominal power: 12 Hp

The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers. This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 10 Hp

* It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

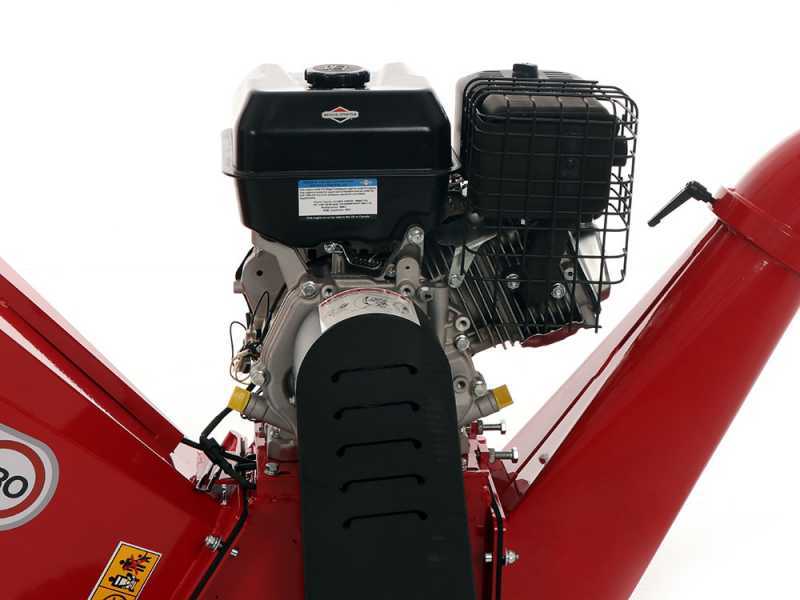

The only one of the category with intermediate double belt drive transmission.

This feature gives high sturdiness to the unit, protecting both the engine and all the shredding system from every possible internal hit or kickback.

Higher durability over time compared to the standard system of all the manufacturers of petrol-powered machineries, as the transmission is directly connected to the shredding cutting system.

The transmission is also equipped with special centrifugal clutch.

UNIFIED: considerably simplifies and speeds up operations compared to shredders featuring two feeding hoppers.

SELF-FEEDING: once introduced the branches into the hopper, the shredder draws them inside the shredding chamber autonomously.

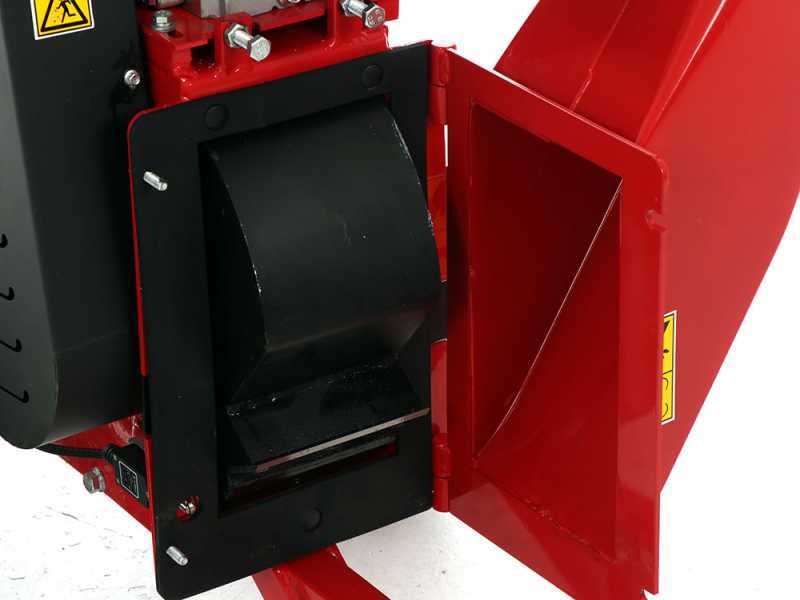

HOPPER: the hopper can be opened by means 2 bolts and hinges, allowing quick inspection, both in case of clogging and periodic maintenance as well as for checking the condition of the blades.

SAFETY DEVICE: hopper opening sensor. It prevents the machine operating if the hopper is opened.

SAFETY SYSTEM: emergency button In case of danger it is possible to immediately stop the machine both for personal safety, and in case of clogging.

Large and highly-thick 2 shredding blades mounted on a steel spinning rotor.

The double-blade system is completed by the counter-blade in the shredding chamber.

Internal blade-holder rotor with shaft made by balancing operation.

All roller shredders like this one allow high performance by entering leafless and cleaned branches (not thick and with too twigs);
they are ideal for quite large branches and not for many thin or green branches featuring many twigs; this is because the roller system is technically unsuitable for grinding small diameters branches, or green material in general, while they really give their best with larger branches.
This is due to their less "centrifugal" power compared to standard disc and blade models, and to the "greater distance between blade and counter-blade", designed for single branches that are already well cleaned but with a large diameter.

Adjustable discharge chute, equipped with a deflector with adjustable inclination. It can be opened in the same way as the hopper is opened, to quickly inspect the rotor.

It allows discharging the wood chips directly into a box.

Further to the deflector tilt, it is also possible to adjust the discharge chute: indeed it can rotate and simply adjusted either to right or left by manually loosening or tightening the proper knobs.

Focus on the tow hitch.

The front support stand is very large and provides stability to the machine. This allows distributing the weight over a greater surface area, thus preventing the garden shredder sinking into soft grounds.

The wood chipper is also provided with large wheels that ensure easy transport.
