Description

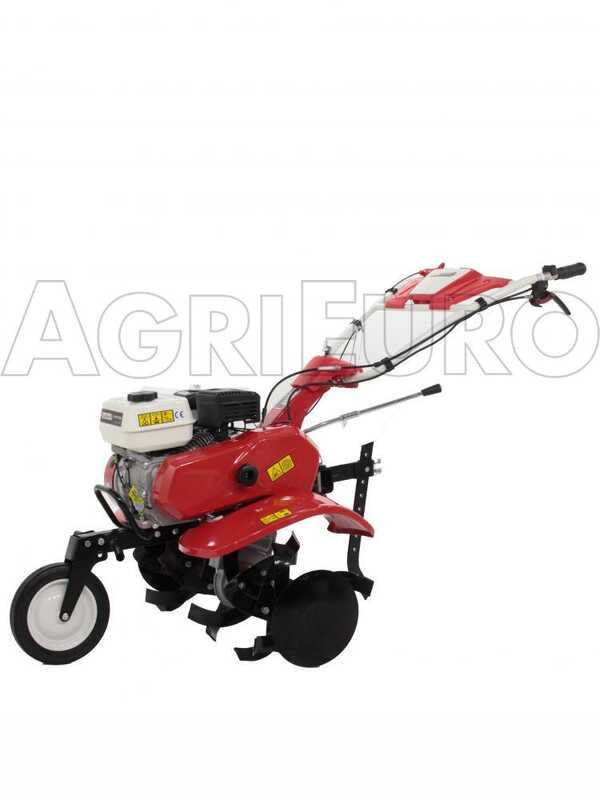

GeoTech PGT 700 Garden Tiller

Although mainly intended for hobby use, this garden tiller is exceptionally effective in agricultural work of low-medium requirements, and for tilling operations on medium surfaces.

Versatile, sturdy and powerful, perfect for quickly preparing the seedbed, making finely crushed and well-ventilated soil soft and ready for cultivation.

On medium-compact soils, this garden tiller prepares the ground easily, quickly and comfortably.

GeoTech-Pro PGT 700 - 7 HP Petrol Garden Tiller - 2+1 Reverse Gear Gearbox

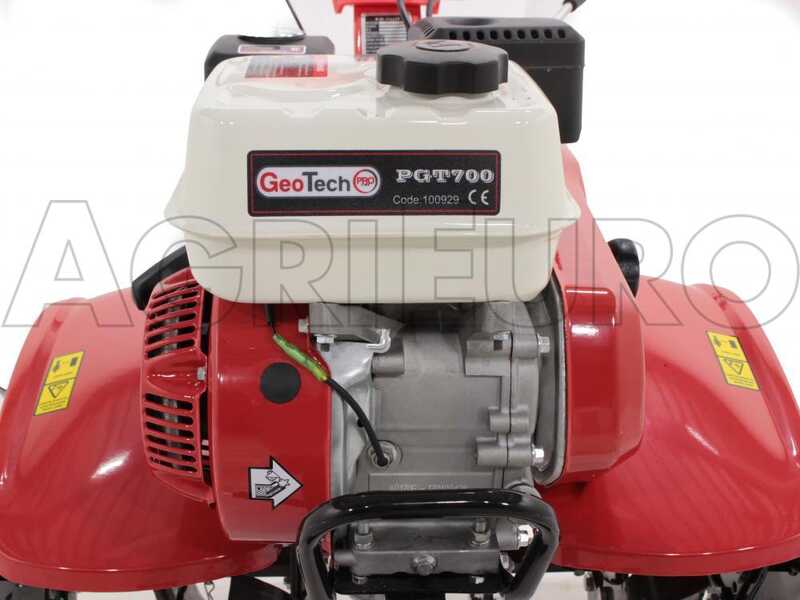

GeoTech 208 cc engine

Features:

Engine type:

Single-cylinder 4-stroke - OHV

Cylinder type:

Aluminium

Cubic capacity:

208 cm³

Power supply:

Petrol

Nominal Power: 7 Hp
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 5.36 Hp
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from an engine model to another according to the rotation speed provided by the manufacturer.

The engine is PROVIDED WITHOUT OIL.
Please carefully read the instruction manual before starting the unit.

Side belt and chain drive

The central and lower transmission up to the cutters is chain-driven.

Intermediate lateral double belt drive covered by a sturdy housing.

The engine and transmission are PROVIDED WITHOUT OIL.

It is recommended that the lubricating oil 1.1 L SAE80W-90 (for the transmission) be topped up to level.

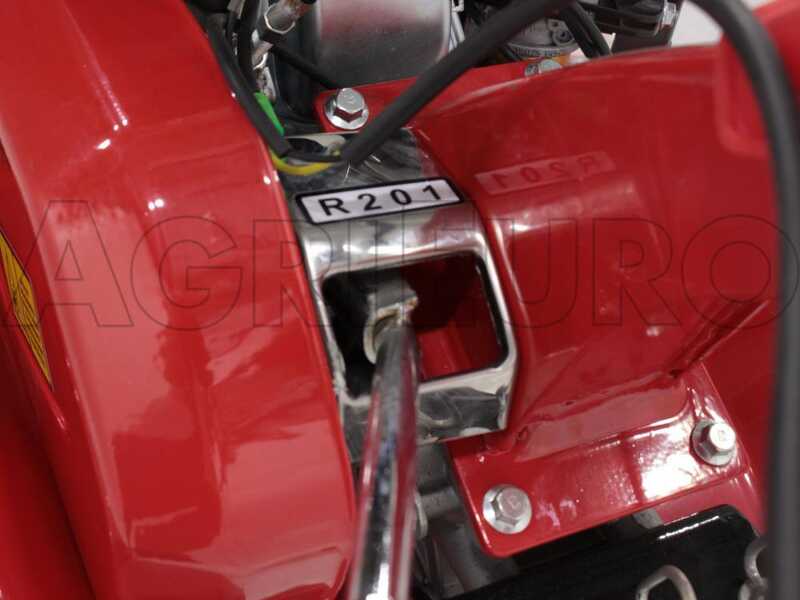

2+1 Chain Gearbox

The gearbox is mechanically robust: chain-driven.

The long gear lever allows you to select gears conveniently from just below the handlebar.

The gearbox is equipped with 2 forward and 1 reverse gear.

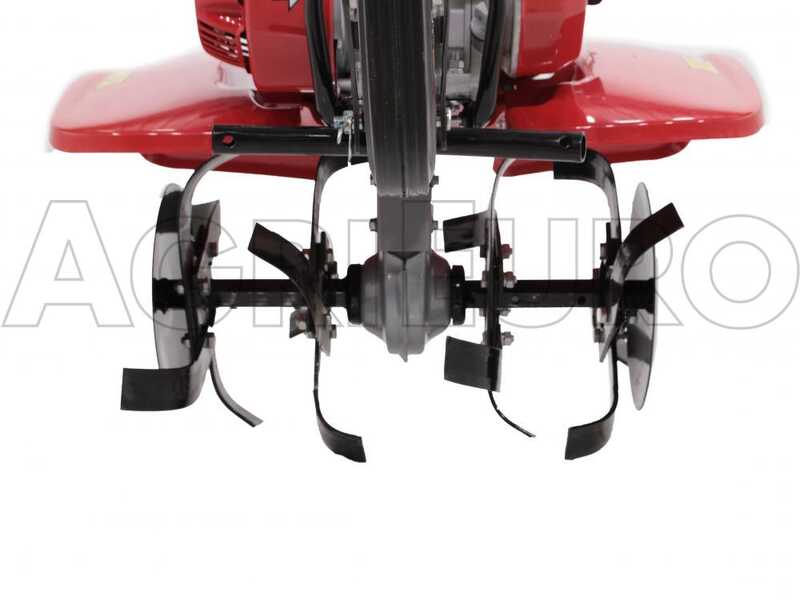

Tine with adjustable cutting width and transport wheels

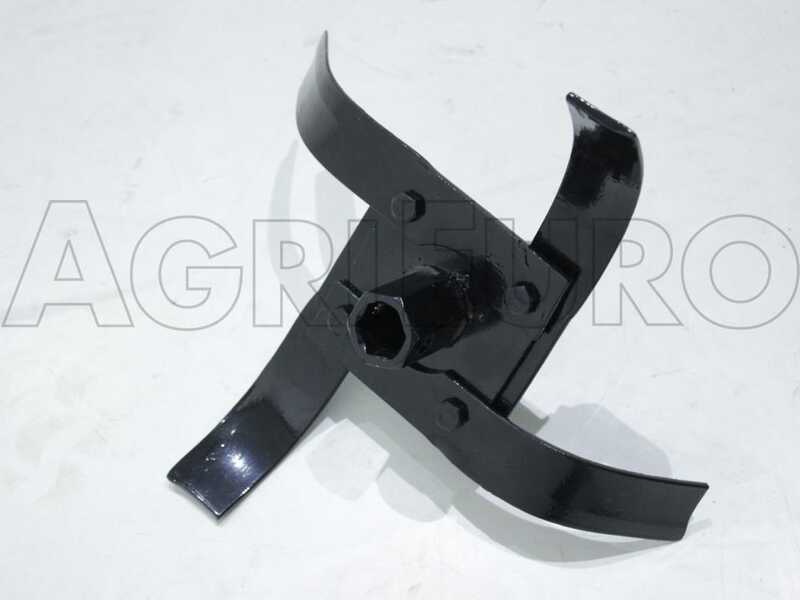

Tine: 85 cm, with 6 rows of rotary hoes + side crop protection discs.

Easily adjustable to 58 cm.

The tiller adjustment from a working width to another is carried out easily: the operator just needs to enter or remove the most external element and insert the crop protection disc.

This garden tiller model can also be used without the crop protection discs.

Hexagonal shaft diameter: 23 mm.

In addition, the machine is equipped with a pair of transfer wheels, which are incredibly useful for moving the garden tiller away from the working area for storage, thus freeing the operator from an additional dedicated means of transport.

Additional features

Driving handles adjustable laterally and in height.

Front transport wheel, provided as standard equipment, lifts into working position with a simple operation. Equipped with 2 positions with raised and lowered hooking and unhooking.

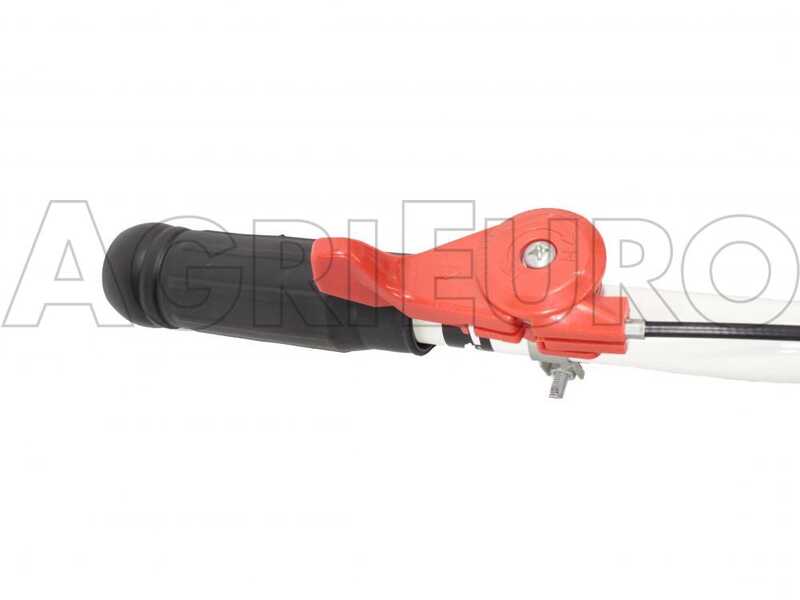

Throttle lever

Clutch lever for moving the machine forward.

Carefully check the proper adjustment of all the cables before use. Focus on the cable of the reverse gear right lever.

It is also absolutely essential to check the correct assembly and connection of ground wire, along with the proper functioning of the red safety lever (as soon as the lever is released the garden tiller must be immediately stopped!)
