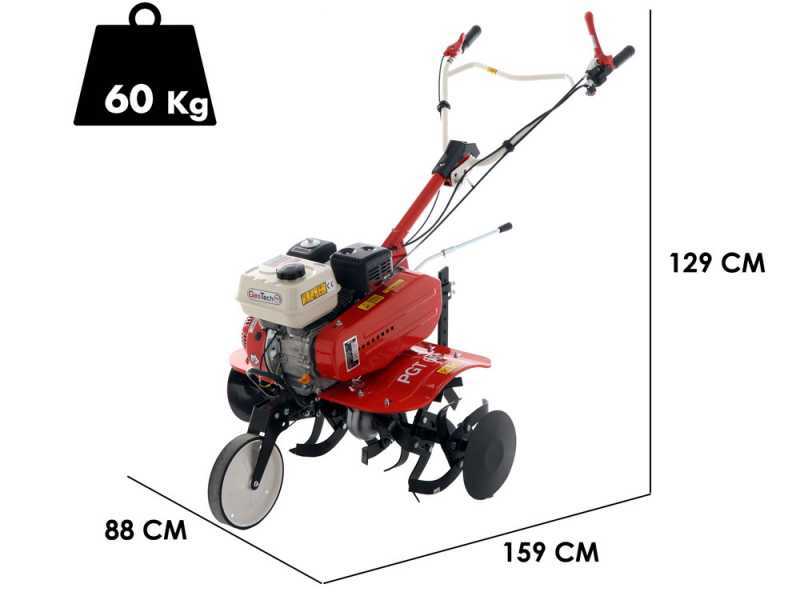

GeoTech Pro PGT 680 Garden Tiller

Although it is a high-performing machinery mainly suitable for small-medium agricultural jobs and for tilling medium areas, the GeoTech Pro PGT 680 is also a perfect machine for hobby use.

Extremely effective to quickly prepare the seedbed by breaking up the top crust, making the finely crushed and well aerated soil soft and ready for cultivation.

On medium compact soils, this garden tiller prepares the soil in an easy, quick and comfortable way.

Provided a with 2+1 gearbox.

Complimentary:

- Engine oil

WARNING!

Engine and transmission provided without oil. Make sure to add oil before the first use.

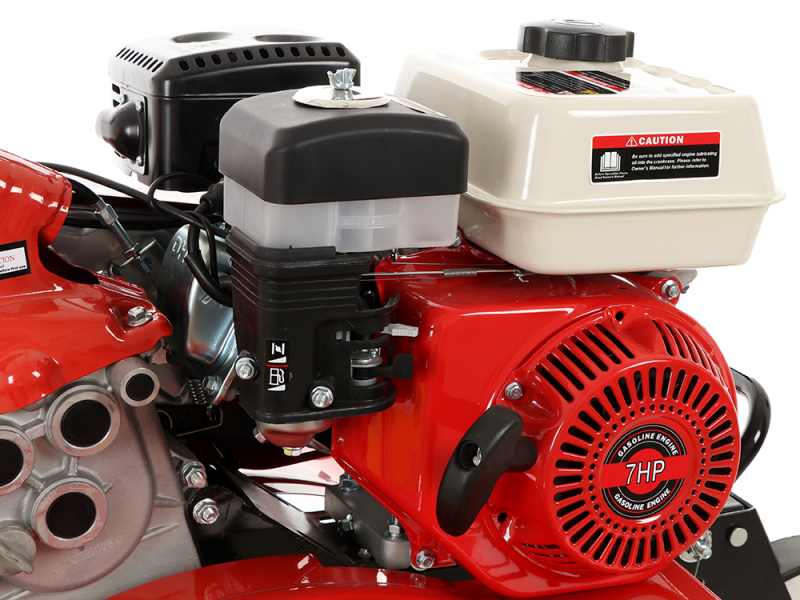

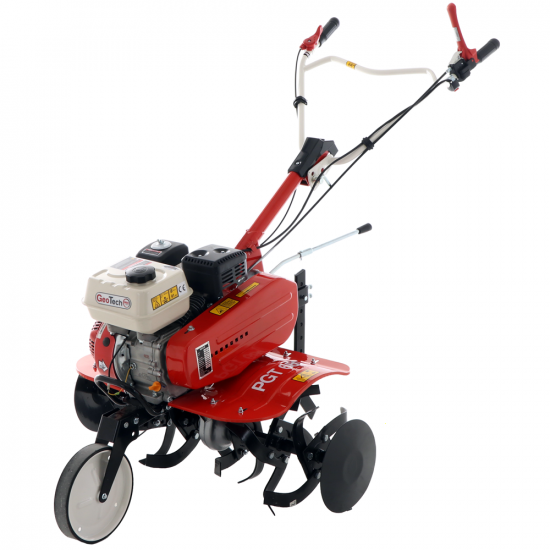

GeoTech-Pro PGT680 - 7 HP Petrol Garden Tiller - 208 cc Engine

7 HP 4-stroke engine

Features:

Engine type:

Single cylinder 4-stroke - OHV

Cylinder type:

Aluminium

Cubic capacity:

208 cm³

Compression ratio:

8.5: 1

Max. rpm:

3600 rpm

Torque value:

14 Nm

Fuel tank capacity:

3.6 L

Focus on the filter

3.6 L tank

Engine oil cap

Nominal Power: 7 Hp
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 5.36 Hp

It corresponds to the real power expressed by the crankshaft. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from an engine model to another according to the rotation speed provided by the manufacturer.

WARNING:

The engine is PROVIDED WITHOUT OIL.

Please carefully read the instruction manual before starting the unit.

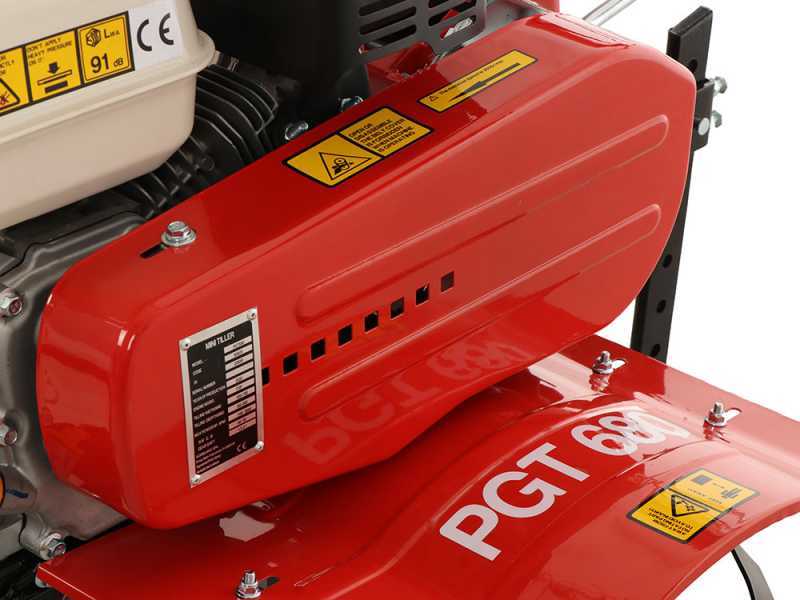

Chain and toothed wheel transmission in oil bath + belt drive

Intermediate side belt drive protected by a sturdy housing.

Lower chain and toothed wheel transmission in oil bath.

Focus on the gearbox.

WARNING!

The transmission is PROVIDED WITHOUT OIL.
Make sure to carefully read the instructions manual before starting the unit.

We recommend topping up the 1.1 L SAE80W-90 lubricating oil (for the transmission) to the level shown in the picture.

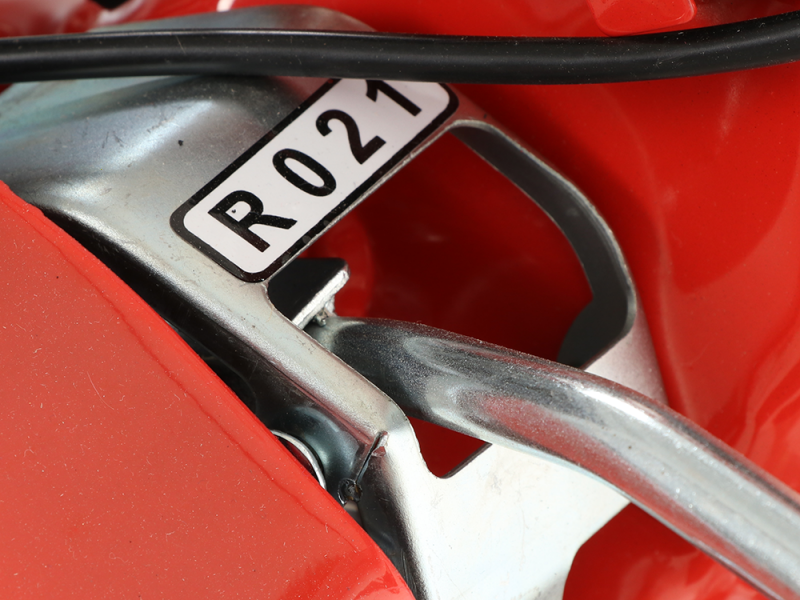

2+1 gearbox with with gears in oil bath

Mechanically sturdy gearbox: made with gears in oil bath.

The long gear lever allows to engage gears conveniently from just below the steering handles.

The gearbox consists of 2 forward and 1 reverse gear.

WARNING!

Gearbox provided without oil. Carefully read the instructions manual!

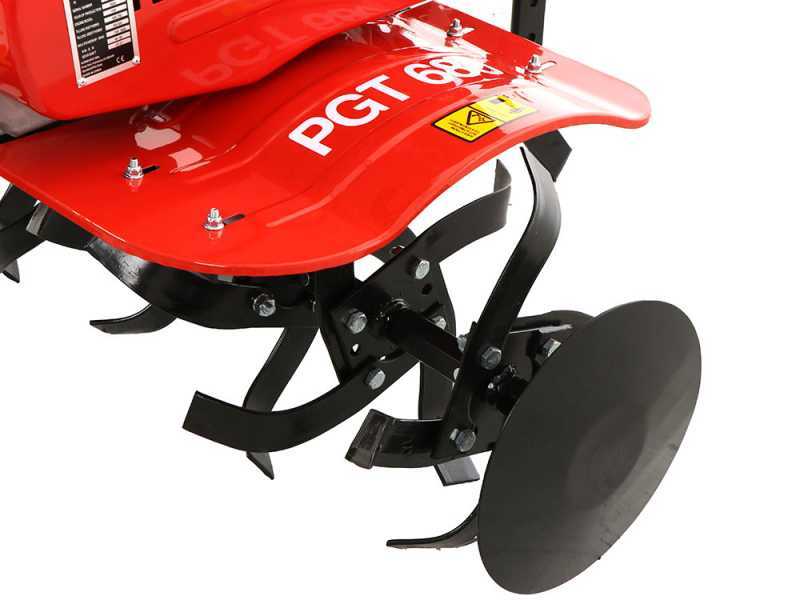

Tine with adjustable width

Tine: 85 cm, with 6 rows of rotary hoes.

Easily adjustable to 53 cm.

Hexagonal hoes shaft diameter: 23 mm.

The working width adjustment can be carried out very easily: just insert or remove the most external element.

Also available are side crop protection discs for the tines.

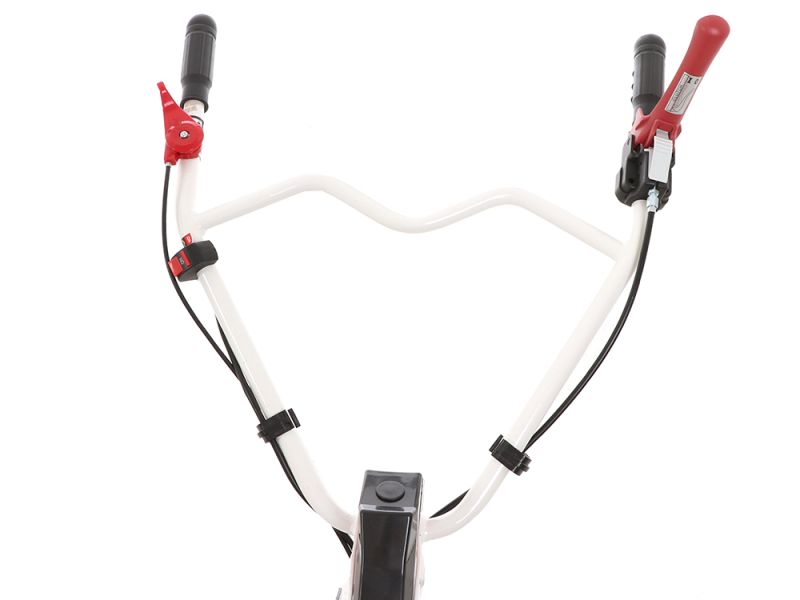

Additional features

Adjustable steering handles by means of a special lever.

Front transport wheel provided on standard equipment: it lifts into working position with a simple operation. It can be adjusted into two positions (raised and lowered) by screwing and unscrewing the hex bolts on the support arm.

Crop protection discs for the tines.

Throttle lever

Clutch lever for moving the machine forward.

The is located in its own axis and can be adjusted to various positions.

Tines protection housing.

ON/OFF switch.

Shock protection bumper.
