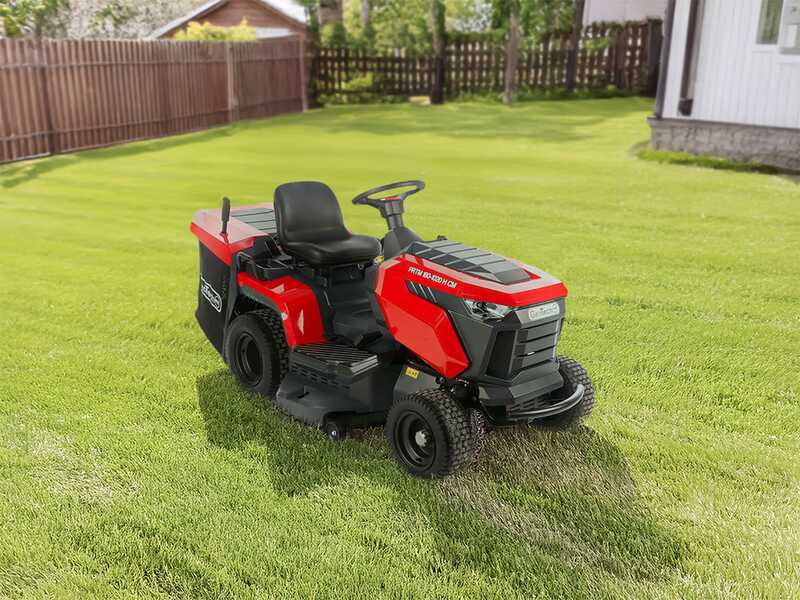

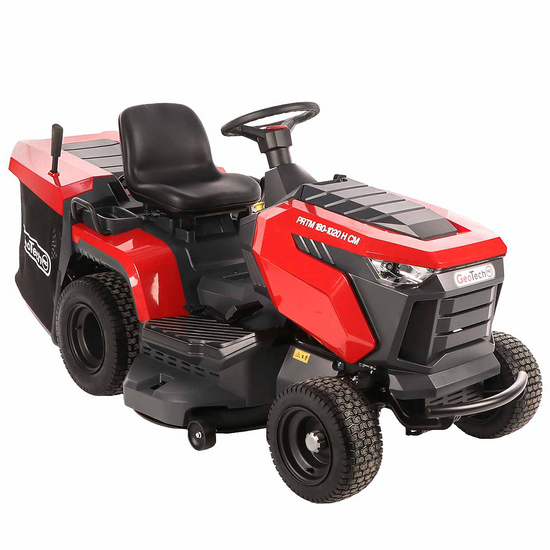

GeoTech-Pro PRTM 180-1020 H-CM - Lawn tractor - Hydrostatic transmission - Collection box

The combustion engine lawn tractor GeoTech-Pro PRTM 180-1020 H-CM is a powerful and versatile model, designed for those looking for an efficient and easy-to-use tool for garden or land care.

This lawn tractor is ideal for medium to large areas thanks to the robust dual-blade cutting deck of 102 cm.

With a Loncin LC1P92F-1 combustion engine, capable of delivering a nominal power of 17HP, it ensures high performance and long-lasting durability, while the hydrostatic transmission system allows excellent management of different speeds.

Additionally, it is equipped with electric start and LED lights with a front LED strip, ensuring optimal visibility even in low-light conditions.

Two different cutting modes:

1. Spacious 280-litre collection basket, to maximize work efficiency by reducing emptying times. The practicality is further emphasized by the ability to empty the basket directly from the driver's seat, using a convenient lever
2. Mulching cut thanks to the supplied plug, just insert it into the rear tunnel

An additional noteworthy feature is the presence of reverse cutting, which allows easy management of even the most complex spaces.

The 102 cm dual-blade cutting deck and the two anti-scalp wheels, along with the wash connectors, make green area maintenance particularly simple.

The blades, which can be activated electromagnetically with a button and adjusted in eight different heights from 30 to 90 mm, perfectly adapt to different lawn conditions and cutting needs.

The hydrostatic transmission, controllable with a pedal, facilitates manoeuvrability forward and reverse, offering a comfortable, safe, and precise driving experience.

The control panel, simple and intuitive, provides all the necessary information to monitor the state of the tractor and your work session, also showing battery charge, engine RPM, and hours worked.

To further enrich its features, the GeoTech-Pro PRTM 180-1020 H-CM is equipped with a tow hitch.

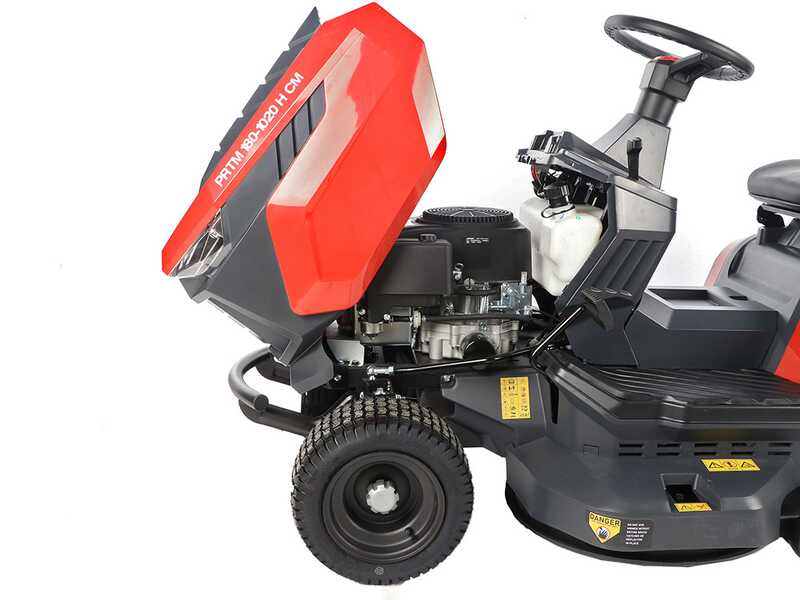

The Loncin LC1P92F-1 engine is a 4-stroke petrol engine, air-cooled.

It is an engine with a 452cc displacement and develops a power of 17hp.

Machine equipped with electric start.

WARNING!

The engine is SUPPLIED WITHOUT OIL.
Before starting it, carefully read the instruction manual.

Nominal Power: 17 HP
The more correct term would be “Commercial” Power, meaning the classic standard of power definition officially used until a few years ago by all the most well-known engine manufacturers.

* This data is still more widespread and advertised in the main commercial sales channels, although it is an increased data compared to the actual power.

Effective Power: 12.33 HP (at a rotation speed of 2600 rpm)
Corresponds to the actual power expressed at the engine shaft. It is the one indicated as official in the manual or in the technical data of the engine manufacturer.

* This data can vary for the same engine model based on the rotation speed that the equipment manufacturer has decided to have the engine deliver applied.

1- COLLECTION WITH BASKET (standard):

Brand new and spacious collection basket with a capacity of 280 litres, among the most spacious in its category.

The bag emptying system is very simple: it is done through a very effective system, leveraging the removable handle. You can thus empty the bag at the desired point without any effort.

The bag can be disassembled in an instant: just lift it upwards to remove it from its "bridge" housing

2- MULCHING (standard):

cutting system that shreds the cut grass leaving it on the lawn, pulverizing it to the point that it will almost seem as if it has been collected. This eliminates the problem of its disposal (reducing effort and drastically shortening the time spent cutting) and furthermore, it will subsequently decompose into a nutrient for the lawn itself and into water (grass is made up of 80% water) thus ensuring a perfectly balanced biological cycle. However, it is useful to remember that, to ensure the absolute efficiency of the system, the lawn must still be irrigated, and the grass cut very often. The conversion from one system to another is very easy.

Conversion: remove the collection basket and insert the mulching plug into the .

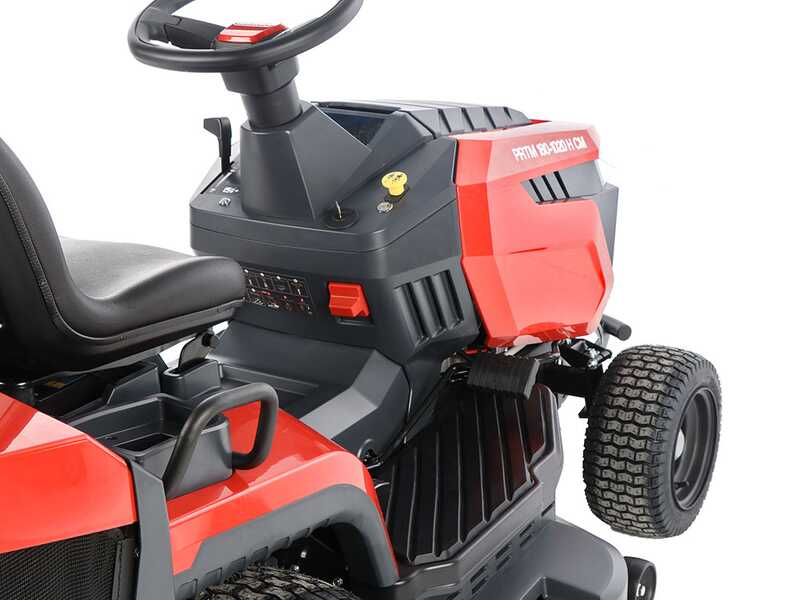

Thanks to the hydrostatic transmission pedal, driving the lawn tractor will be easy and intuitive. Everything can be controlled simply with the right foot resting on the pedal.

The operation is very simple: to move forward just push the pedal with the tip of the foot. The lawn tractor will move forward based on the pressure exerted. To engage reverse, just push with the heel on the other end of the pedal.

As soon as you release the pedal, the machine stops and allows you to operate in absolute safety.

• Detail of the transmission oil refill cap
• Detail of the transmission release for advancement

Robust gears make the transmission difficult to break.

The hydrostatic transmission is by nature decidedly more modern and functional (although more expensive) compared to the traditional manual gear transmission. The latter, whenever the speed needs to be changed, forces the operator to stop, change gear (because all lawn tractors with manual or mechanical transmission require the gear change to be done from a standstill), release the clutch, and restart at the desired speed.

Certainly, if the speed needs to be changed multiple times (for example in all those gardens where there are trees, pots, or any other kind of obstacle), the traditional gear transmission would be decidedly impractical. The hydrostatic transmission instead allows immediate speed changes, without ever stopping, in the most absolute practicality, in a totally automatic manner, simply by varying the pressure on the pedal of this transmission.

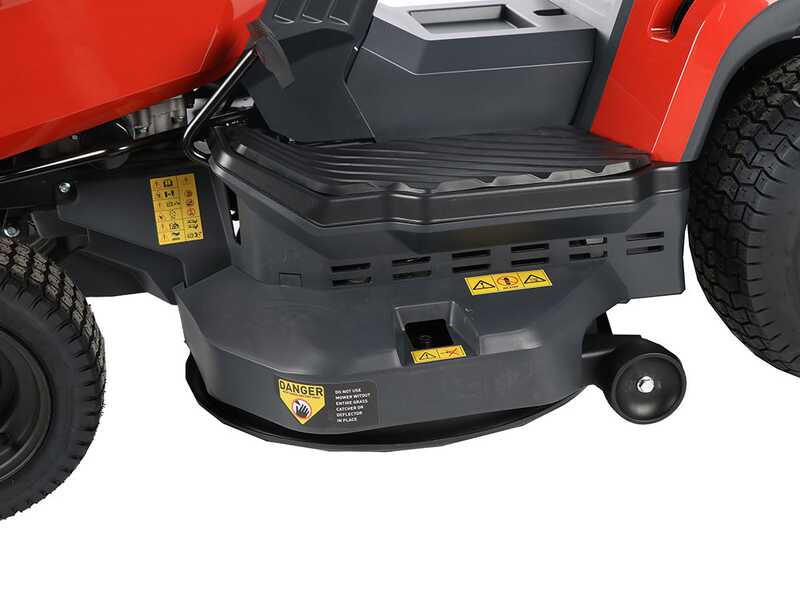

The GeoTech-Pro PRTM 180-1020 H-CM lawn tractor is equipped with a 2-blade cutting deck with two anti-scalp wheels

• Robust dual-blade deck: effective cutting width 102 cm.

The lawn tractor comes standard with two universal blades.

The cutting height is adjustable, via the appropriate lever, in 8 different sizes between 30 and 90 mm.

The blade engagement is electromagnetic and is controlled through the yellow button to the right of the steering wheel. This system avoids manual engagement through the classic lever found on many types of lawn tractors and works thanks to an electromagnetic clutch that allows for easy and quick blade engagement.

• Detail of the anti-scalp wheels
• Detail of the deck wash connector

Very simple and intuitive controls and adjustments.

After starting the engine, from the driver's seat it is indeed possible to change the cutting height of the lawn tractor, activate the blades even in reverse, increase the engine speed, engage the parking brake, engage reverse or turn on the front lights, all visible on the innovative screen.

Detail of the digital panel: the innovative smart display provides useful information on the state of the machine and your work session, also showing the battery charge, engine RPM, and hours worked.

• Activation block with key: electric engine start.
• Electromagnetic blade engagement

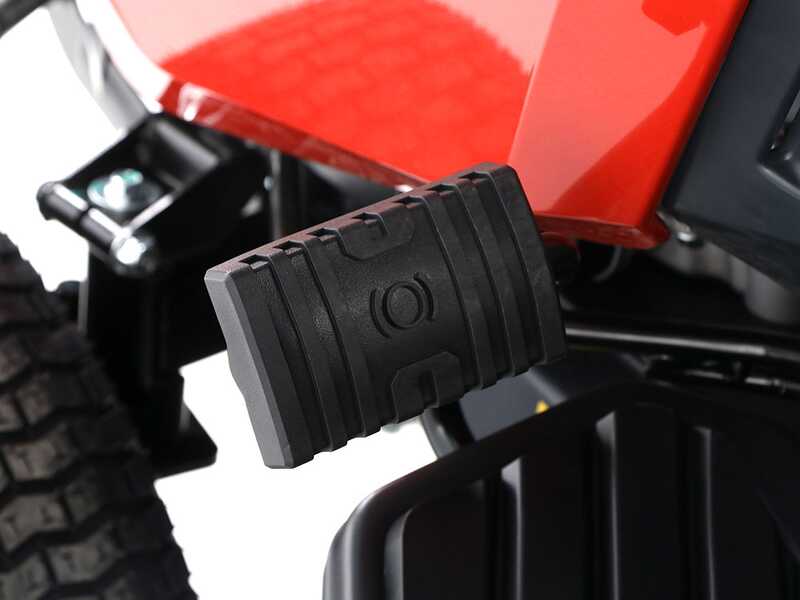

• Pedal brake
• Control pedals for the hydrostatic transmission: allows engaging forward and reverse gear
• Engine RPM adjustment lever
• Cutting height adjustment lever with 8 different heights between 30 and 90mm
• Parking brake engagement
• Reverse blade activation and LED lights activation

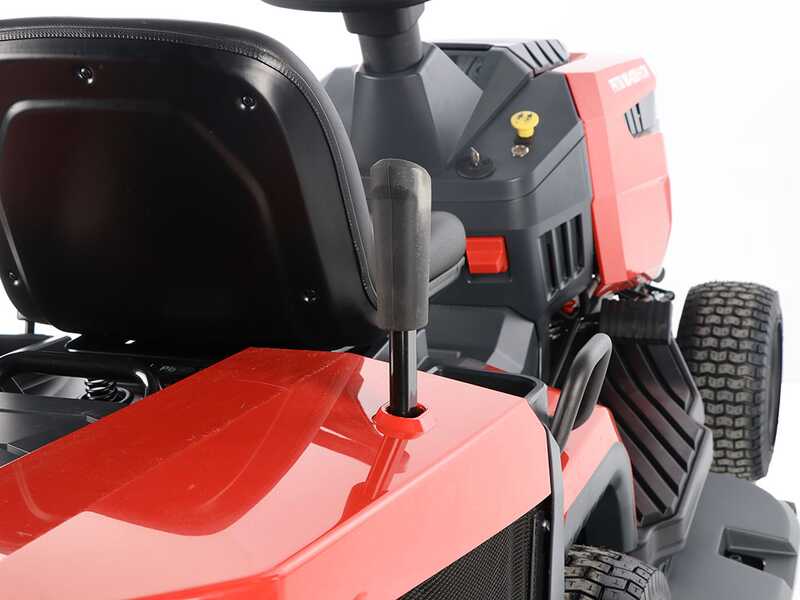

• Handle for emptying the basket directly from the seat

Other features of the GeoTech-Pro PRTM 180-1020 H-CM lawn tractor:

• Large format tires: Ensure greater respect for the lawn and the best possible traction on a lawn tractor.
• Comfort seat

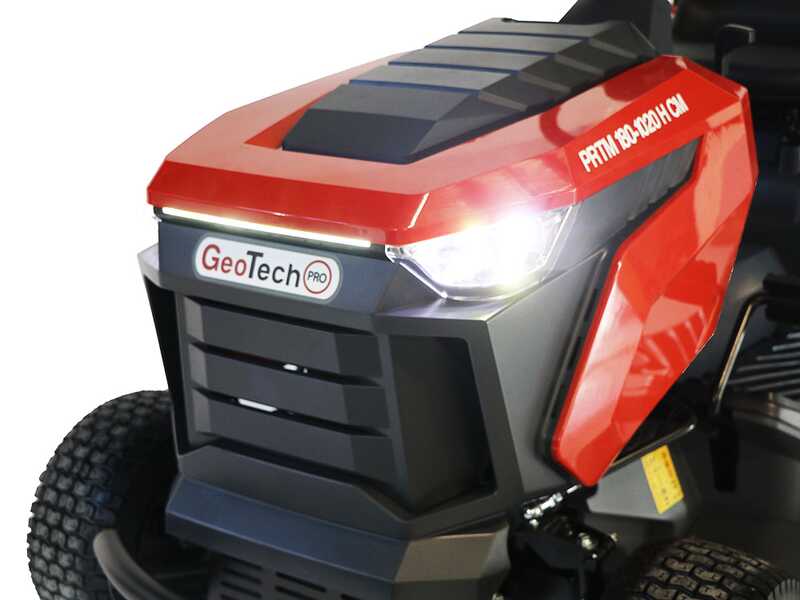

• Powerful front lights with LED strip
• Tow hitch
• Robust front bull bar for greater protection against impacts
• Ergonomic steering wheel
• cupholder and storage compartment on both sides
• Electric start, with 12V / 18Ah lead battery
• Deck wash connector, present on both sides
• Safety device on the seat
• Springs on which the seat rests, for greater comfort
