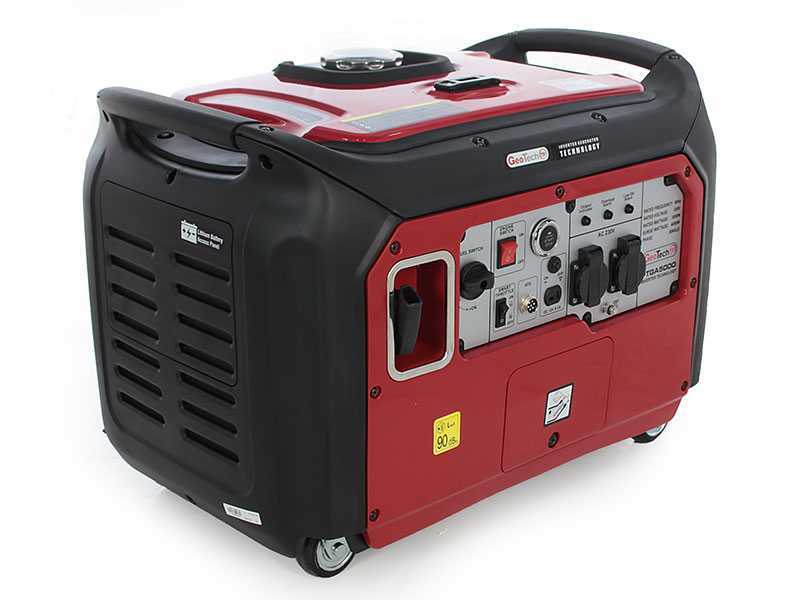

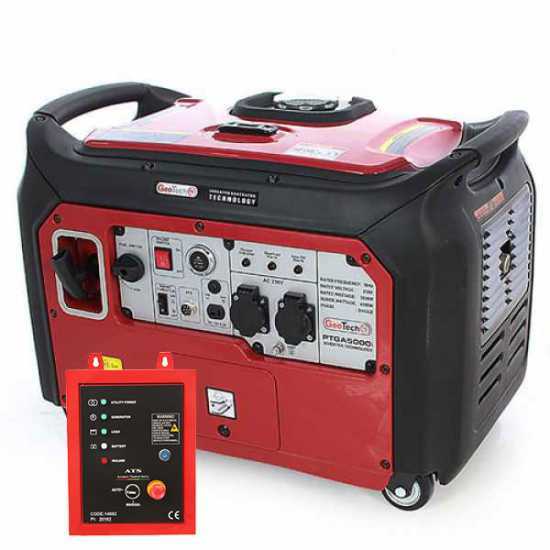

GeoTech-Pro PTGA 5000i - 4 kW Silenced Inverter Power Generator - DC 3.5 kW Single-phase + ATS

The GeoTech PTGA 5000i SILENT single-phase generator is a semi-professional product suitable for private operators.

Equipped with electric start.

Inverter technology:

This generator supplies electricity with constant frequency and voltage, regardless of the change in load and motor speed; this is possible thanks to the use of an electronic converter that unlocks the inlet voltage from the outlet one.

Unlike other traditional generators, a permanent magnet generator and a control system of the motor revolutions are used depending on the actual power used, that enable a significant fuel consumption reduction and a less noise level with the use of medium-low loads.

Main applications:

The reliability and the quality of the energy produced by this system enable to power many electric appliances as computers, medical equipment, measuring tools and any device which is sensitive to voltage and frequency variations.

This generator was designed for a private and hobby use, for emergency purposes in the event of a power failure or in any case not overly intensive or frequent use, like in companies.

WARNING: all these models of generators that do not belong to the PROFESSIONAL series (considering the product level evaluation used by our website) are not intended for more than 3-4 hours continuous work in order not to reduce the alternator durability as well as that of one of the other machine components due to the unit overheating or wear. As regards a home or intensive use of these generators, it is important to follow the indications mentioned above. In all these conditions, we highly recommend focusing the attention on the purchase of generators renowned as PROFESSIONAL by the product level classification made in our website.

Maximum supplied power: 4.0 kW

Maximum rated power: 3.5 kW

Secondary socket: 12 V - 8 A

This latter data must be considered as an effective and constant data in the generator supply (it ensures an unlimited duration of hours).

Voltage: 230 V

Working frequency: 50 Hz

Fuel tank capacity: 12 L

Autonomy (with 100% load): 8 hours

Weight: kg 57

Noise level: 70 dB

Engine features:

SC230 4-Stroke, single-cylinder, air-cooled engine 223 cc

Fuel tank capacity: 13.9 L

Start type: recoil start

Machine equipped with electric start

ATTENTION: engine is provided without oil

(please add 4-stroke engine oil before starting)

Main advantages with respect to the traditional 2-stroke engines:

• Bigger reliability
• Longer lasting
• Easier starting (above all after long periods of inactivity)
• Fewer problems related to the preparation of fresh fuel
• Less consumption (less than the half!)
• Less maintenance

SILENT: extremely reduced noise emissions, 70 dBA

Thanks to the silencer the generator can be used on campsite, campers, in public areas, residences, apartment buildings, small houses, town houses or wherever silent electricity is required.

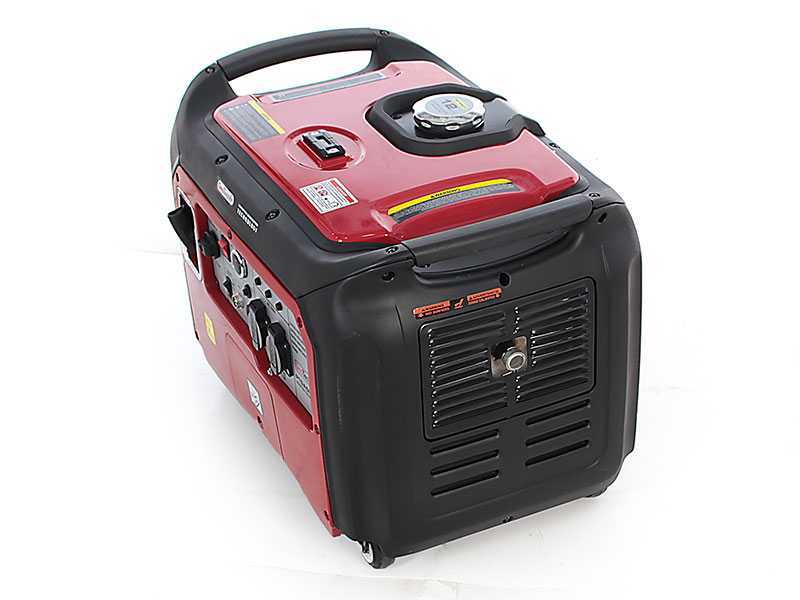

Focus on the muffler type

ATTENTION:

The engine is shipped WITHOUT OIL.

Please carefully read the instructions manual before starting the machine.

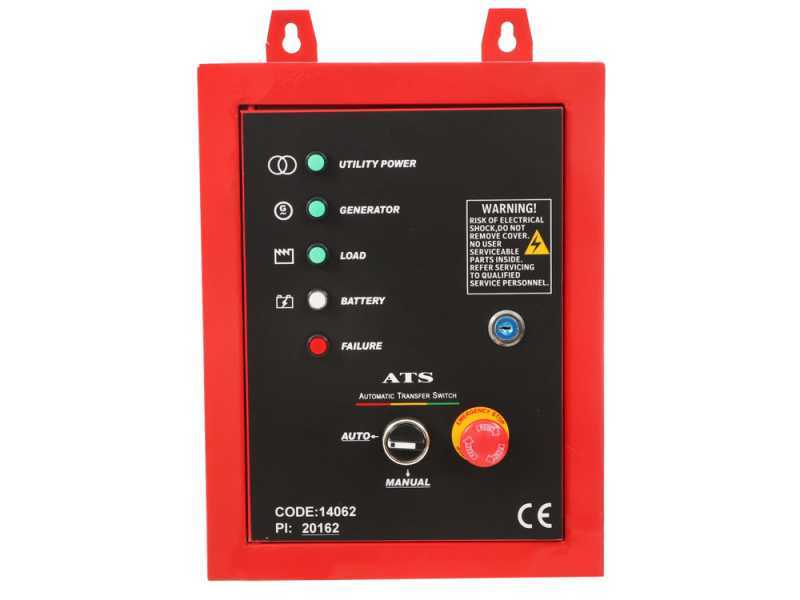

The ATS (Automatic Transfer Switch) panel has to be connected both to the electric utility and to the generator.

It allows providing electric power automatically in case of power interruptions.

The ATS device specifically reveals its functionality whenever an electric utility outage occurs: indeed, it is able to prevent serious effects to people as well as economic damage that can be caused in these particular situations.

We highly recommend considering the assistance of an electrician to connect the ATS PANEL to your home electrical utility.

15 m Connecting cable of extended length. We normally provide the machine with a cable of 3 m length.

Detail of the internal circuitry access.

Additional accessories included for the feeder cable installation.

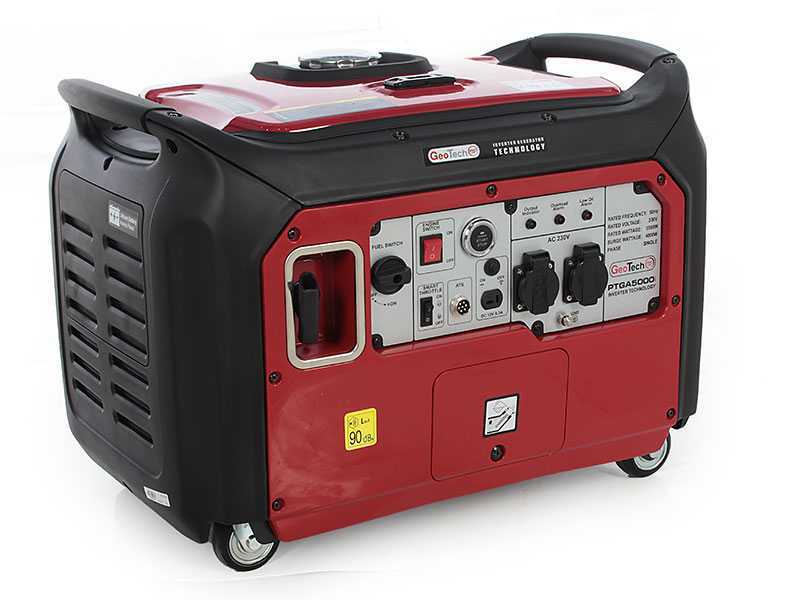

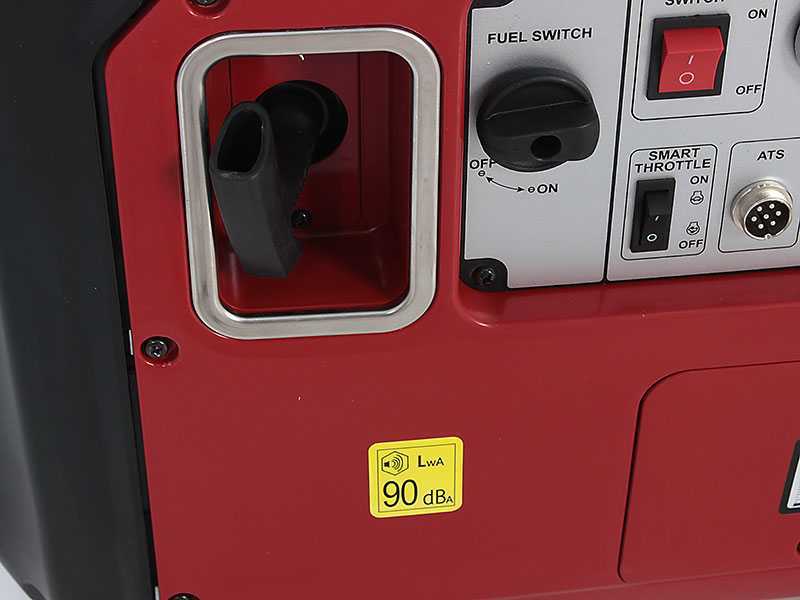

Recoil start, fuel lever and smart-throttle switch: when no equipment is connected to the generator or when these are switched off and there is no consumption of energy produced by the generator, the machine works in fuel saving mode. This device is helpful to minimize the fuel consumption and reduce noise levels when there is no load applied to the generator. When the energy consumption is restored by connecting the equipment or switching it on, the generator automatically switches to the right speed in order to supply enough electricity. *this mode is to be used exclusively with 220 V electricity supply (not with the battery charger).

Light indicators:

- Power supply. It switches on after power switch activation. In normal conditions, only this green light must be on.

- Overload indication. If the generator is overloaded, or in case of malfunction or short circuit in a connected equipment, this red light signalling overload switches on. After few seconds, power supply is interrupted and the green light switches off. In this case, switch the engine off and detect the cause of the overload.

- Oil alarm system. Designed to avoid damages to the engine caused by an insufficient oil quantity. Before oil drops under the safety limit, the red warning light switches on and the oil alarm system automatically stops the engine. *Attention: the engine is provided without oil.

Power sockets:

- 2 Schuko power sockets with 220 V power supply

- 1 power socket for battery charger: the charger power supply is fitted with overload circuit that activates the charger protection device.

Very roomy TANK that provides a long working autonomy: 13 L.

Equipped with side handles for an easy transport

Focus on the fuel level indicator

Fitted with 4 extremely sturdy plastic wheels for easy transport.

As regards the power needed referring to the use you will make of your generator, here below an extremely useful table to guide you among consumptions, starting coefficient and watt. Firstly, the highest-quality method is to identify which are the electric appliances we need to power with the generator and then perform a simple calculation to identify the necessary power that the generator must supply, as explained below.

Power required = Electric appliance consumption X Breakaway starting coefficient

The starting coefficient represents a fundamental feature for all the electric equipment as it indicates how much the consumption of the electric appliance increases. Therefore, it allows to concretely determine how many WATTs are necessary during the start-up operations.

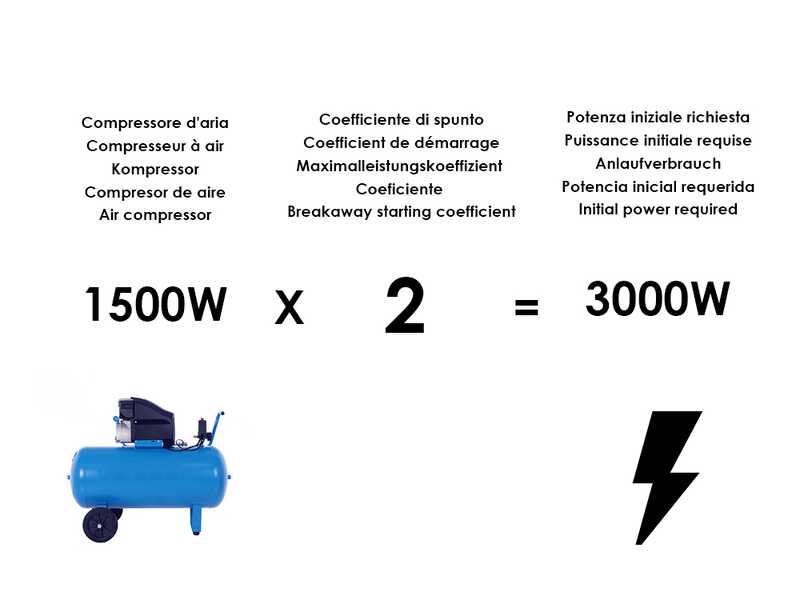

Example: Air compressor ( 1500 Watt ) X Starting coefficient ( 2 ) = 3000 Watt

Hence, it is important to address your choice on a generator featuring equal or higher WATT-rated electric power than the result obtained from the calculation made.

( * ) Check the consumption of the electric appliance on the operator’s use and maintenance manual or on the plate attached to the machine.

WARNING! Purely indicative table. Thanks to the formula indicated above you can easily calculate the electric power that the generator has to supply in order and connect to the generator specific electric appliances and select the model of generator which best suits your needs. We remind you that to operate electric equipment (computers, TVs and all the other electric appliances provided with electronic card) you need to focus the attention on inverter generators (which allows stabilizing the electric current supplied).

• This inverter generator is provided with ELECTRONIC CARD, which allows stabilizing the electric power supplied, producing an almost perfectly shaped electric wave.

  This makes the generator particularly suitable for different applications, but also unsuitable for others.

  RANGE OF APPLICATION, some examples: it allows powering all types of electronic equipment (as they are equipped with electronic card, consequently requiring stable electric current to avoid the risk of damaging these cards). It is also intended to ensure electric power to electric household appliances, kitchen appliances as well as leisure time equipment (appliances used on motor homes, boats, etc.).


  The generator is NOT SUITABLE FOR powering construction and workshop equipment, DIY equipment, welding machines and other appliances that are equipped with brush motors (they may cause electric power surges back to the unit in case of wear of the brushes damaging the generator electronic card). Inverter generators are not suitable for all the appliances listed above that are typically construction equipment applied on crafts or building sectors. In this case, you’ll need to address your choice on standard generators, which are not provided with inverter electronic card, but the ones featuring standard alternators with heavy-duty stator and rotor, which are specifically intended to power these appliances.

  We remind that the inverter generator is NOT intended for PROFESSIONAL use. It means that it is exclusively designed for occasional use (infrequent use of the unit). The working hours must not exceed 3-4 of continuous running (which may lead to the alternator overheating or wear, especially to its internal components: alternator stator and rotor). Whether you’re looking for a generator for intensive use (once a week, for instance), the operator should address the choice to a different type generator specifically designed for a more intensive use. Indeed, you should focus the attention on PROFESSIONAL or even INDUSTRIAL quality-level generator.

  The generator is not designed to be installed in photovoltaic or solar energy systems for energy production nor for the recharging or maintenance of batteries of these specific or other electric systems. Indeed, it may damage seriously the generator on its internal components (alternator, engine and electrical component). Each photovoltaic system requires a generator for INDUSTRIAL use (not for domestic use as this present model), specifically designed and manufactured for this purpose. WE DO NOT PROVIDE WARRANTY on generators connected to photovoltaic systems, as this entails an IMPROPER USE OF THE UNIT.

• The generator can only be used to power individual electrical equipment (respecting the rated power in KW produced by the generator in relation to the absorption of the appliances during the starting phase that must be lower than the power supplied by the generator).

• The generator can be used to power household device in emergency conditions (no current service provided by the domestic household), exclusively on the models that are specifically provided with ATS (Automatic Transfer Switch) device (specifically designed for this purpose and provided with connecting systems to your household electrical power).
• The generator is NOT intended for PROFESSIONAL use. It means that it is exclusively designed for occasional use (infrequent use of the unit). The working hours must not exceed 3-4 of continuous running (which may lead to the alternator overheating or wear, especially to its internal components: alternator stator and rotor). Whether you’re looking for a generator for intensive use (once a week, for instance), the operator should address the choice to a different type generator specifically designed for a more intensive use. Indeed, you should focus the attention on PROFESSIONAL or even INDUSTRIAL quality-level generator (that is not provided with standard 3000 rev/min alternator as this specific model, but it is designed with professional alternator with low speed: 1500 rev/min – with liquid-cooled engine and alternator – in this case you’ll see that the unit specifications and price are much different from this model).

The generator is not designed to be installed in photovoltaic or solar energy systems for energy production nor for the recharging or maintenance of batteries of these specific or other electric systems. Indeed, it may damage seriously the generator on its internal components (alternator, engine and electrical component). Each photovoltaic system requires a generator for INDUSTRIAL use (not for domestic use as this present model), specifically designed and manufactured for this purpose. WE DO NOT PROVIDE WARRANTY on generators connected to photovoltaic systems, as this entails an IMPROPER USE OF THE UNIT.
