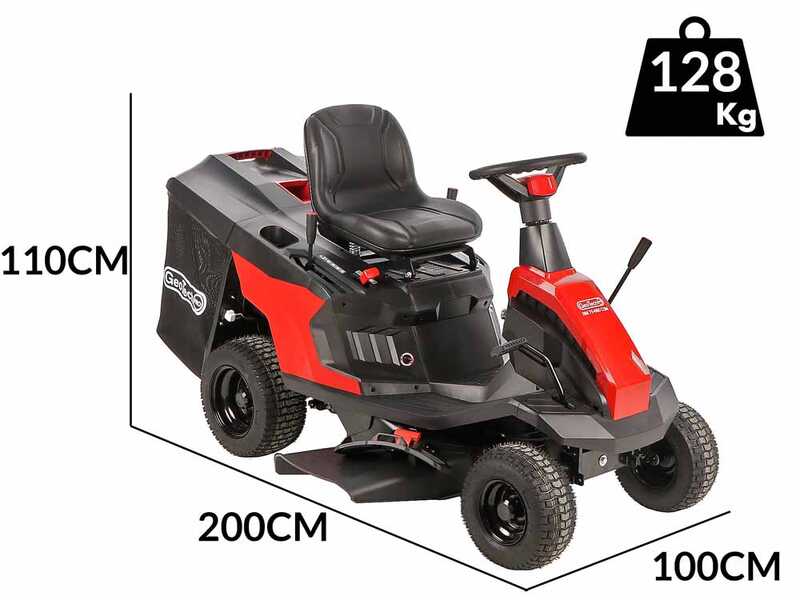

GeoTech-Pro RM 75-660 CSM - Mini-rider Riding-on Mower - 66cm Cut - Electric Start

The GeoTech-Pro RM 75-660 CSM is a riding-on mower that combines style and design with robustness and reliability; ideal for those with a small garden.

Equipped with a Loncin 1P75F internal combustion engine offering 4.5 kW power and 224 cc displacement. Integrated OHV technology helps reduce emissions and vibrations, ensuring efficient and environmentally friendly operation.

The tractor is capable of performing three different types of cut:

1. Collection in the 150L basket (on standard equipment)
2. Mulching system (on standard equipment)
3. Side discharge (on standard equipment)

The GeoTech-Pro RM 75-660 CSM riding-on mower is an excellent machine for mowing and collecting grass in green areas, such as gardens and lawns, facilitating the trimming of grass near trees and flower beds.

Equipped with a sturdy 66 cm single-blade cutting deck and four forward gears, the riding-on mower ensures optimal and even finishing of the lawn.

The transmission system includes:

• 4 forward speeds
• Neutral (N)
• Reverse (R)

It is equipped with a lead-acid battery for electric starting, included with a battery charger.

The lever-activated blade, adjustable in six different heights from 30 to 75 mm, adapts perfectly to different lawn conditions and cutting requirements.

Warning: never cross sideways on high slopes to avoid the machine overturning.

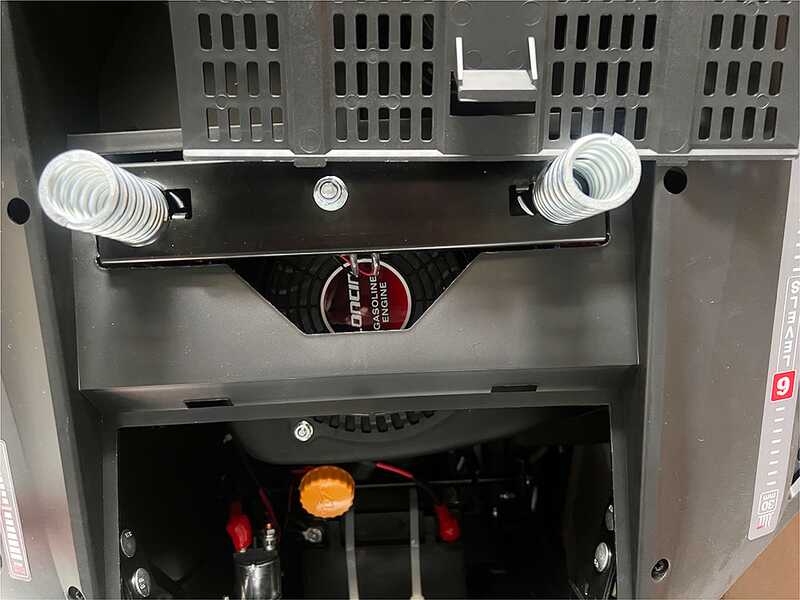

The Loncin LC1P75F is an air cooled 4-stroke petrol engine.

It is a 224 cc engine and develops good power (7.5 hp).

Equipped with electric start.

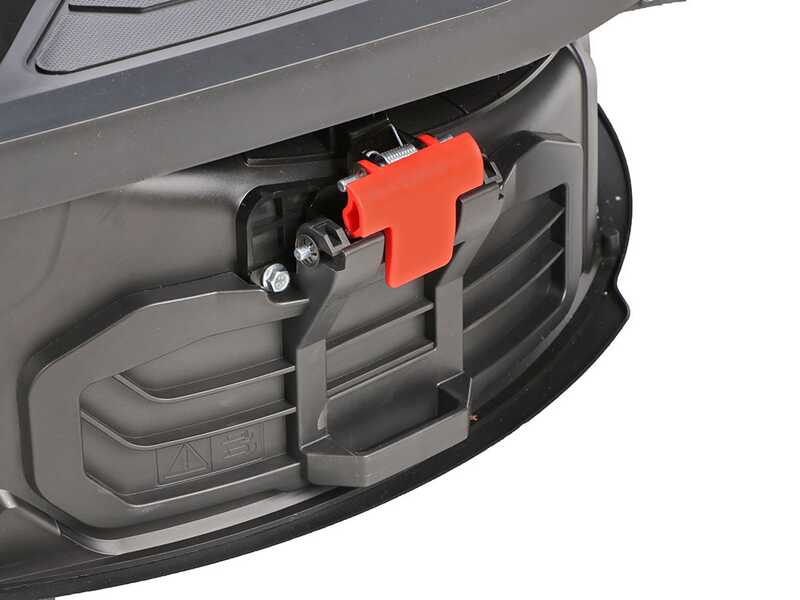

1 - SIDE DISCHARGE (on standard equipment):

For mowing grass without collecting it into the grass collector (suitable for maximising cutting performance in the shortest time; with this system it is possible to cut grass even slightly higher than normal), simply lift the housing and insert the deflector provided

2 - MULCHING (on standard equipment):

This grass mowing system allows crushing grass clippings and dropping them on the ground. The resulting grass particles are so small, they will be barely noticeable on the lawn. This eliminates the problem of its disposal (reducing any effort and shortening the time-saving). Moreover, grass clippings will break down into nutrients and water for the lawn (grass is 80% water) and will thus ensure a perfectly balanced biological cycle. However, it is worth remembering that, to ensure the greatest mulching results, the lawn should be irrigated, and the grass needs cutting at least once a week. Converting the machine from a cutting system to the other one is very easy.

3 - GRASS COLLECTION SYSTEM (on standard equipment)

Fitting the basket is quite simple and can be completed in a few minutes.

With the basket fitted, the GeoTech-Pro RM 75-660 CSM will collect the grass cuttings directly into the basket. This allows leaving the lawn clean and choosing where emptying the collector, Just manually remove the grass collector for emptying it. The grass collector is easy removable: simply lift it upwards to remove it from its housing.

The GeoTech-Pro RM 75-660 CSM riding-on mower features a selector switch that allows you to set between:

• Forward motion with 4 different driving speeds.
• Neutral (N)
• Reverse gear (R)

Once selected one of the 4 gears, you’ll get the possibility to adjust the speed (reducing it) by simply adjusting the pressure on the braking pedal (decelerating in the brake circuit).

Releasing the brake pedal, the riding-on mower will automatically return to the gear that has been previously selected.

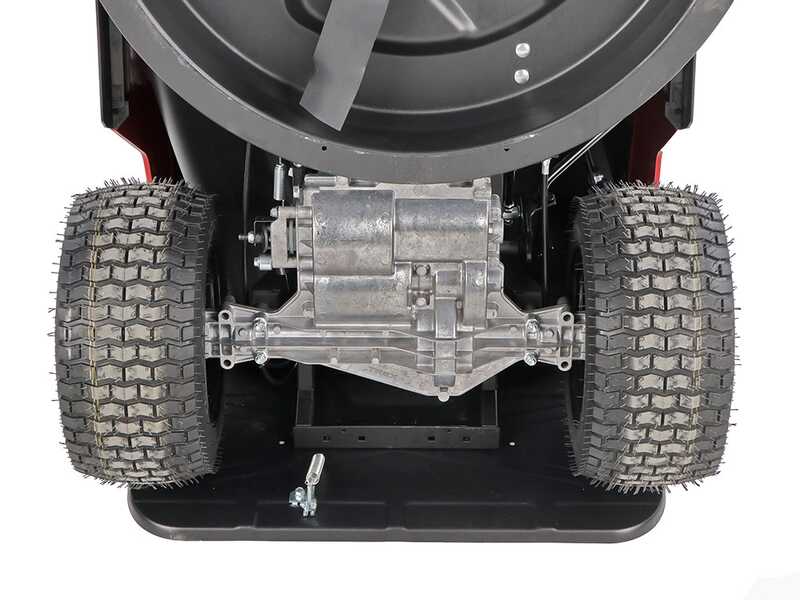

Focus on the gear transmatic transmission.

"Clutch" to engage reverse gear

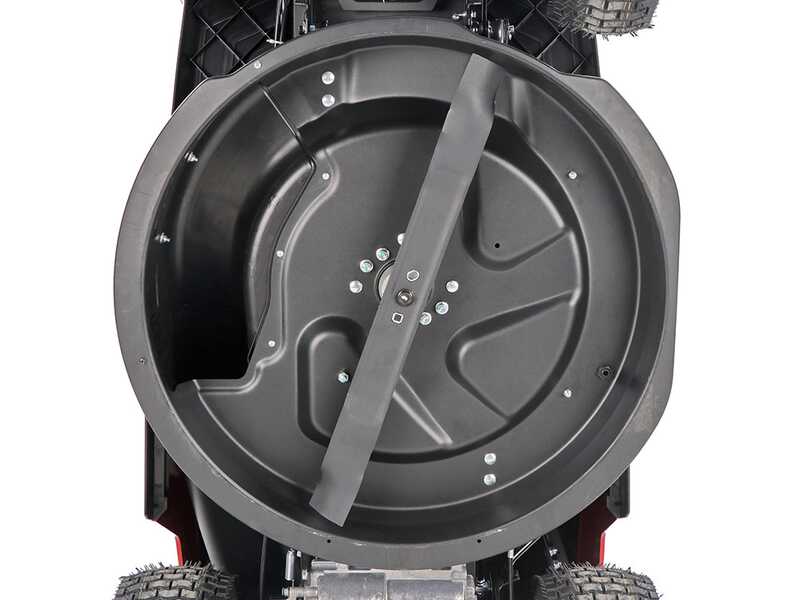

GeoTech-Pro RM 75-660 CSM cutting system features:

Sturdy single-blade cutting deck: 66 cm effective cutting width.

The tractor is fitted with a universal blade.

The cutting height is adjustable via the cutting lever in 6 different settings between 30 and 75 mm.

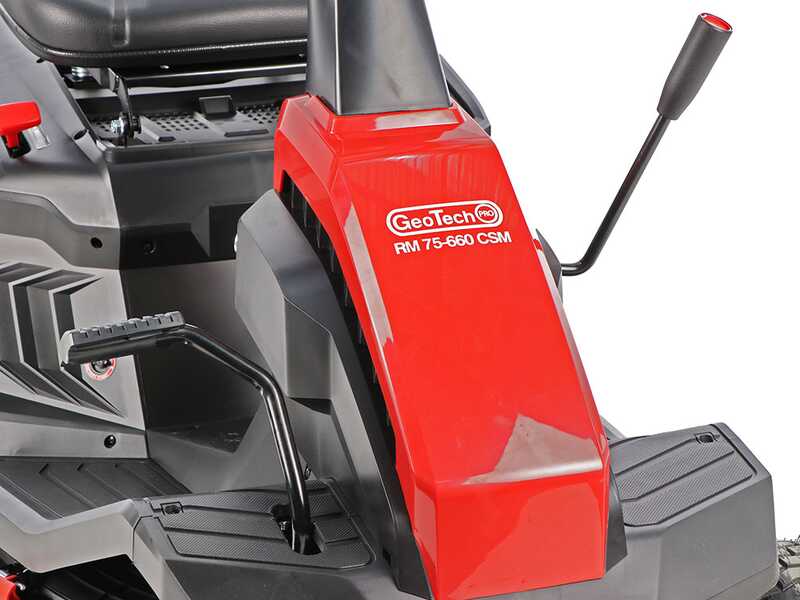

Easy and user-friendly controls.

After starting the engine, from the driver's seat you can select the forward speed, apply the brake, easily adjust the rotation and cutting height of the blades and more.

• Ignition lock with key: electric starting
• Blade engagement lever
• Braking pedal
• Engine rpm adjustment lever
• Cutting height adjustment lever in 6 different positions from 30 to 75 mm.
• Parking brake engagement lever
• Charging socket (charger included)
• "Clutch" to correctly engage reverse gear
• Forward, reverse and neutral gear engagement.

GeoTech-Pro RM 75-660 CSM riding-on mower additional features

• Large-sized tyres: they ensure higher care of the lawn and great adherence to the ground and traction on a riding-on mower.
• Comfort Operator’s seat
• Ergonomic steering wheel
• Cup compartment

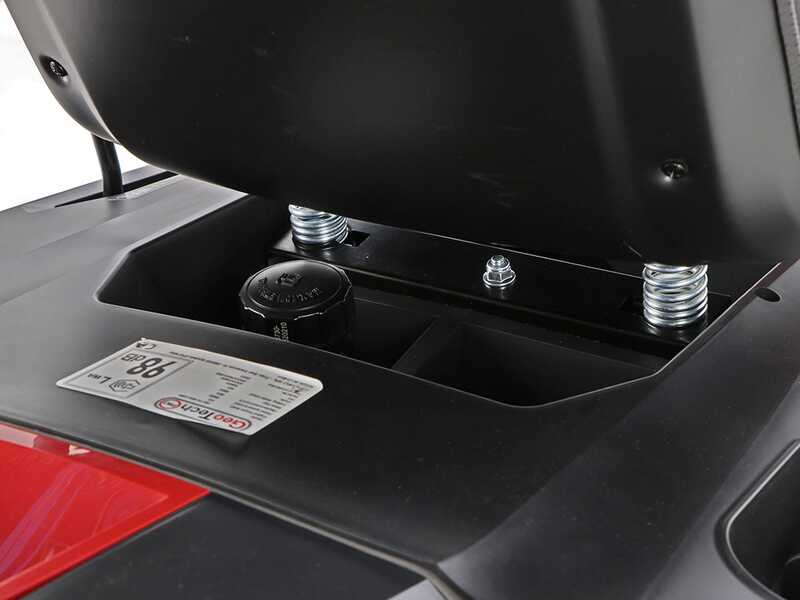

• Springs under the seat for greater comfort
• Front wheels: 13x6.00-6
• Connection for washing the cutting plate
• Electric start
